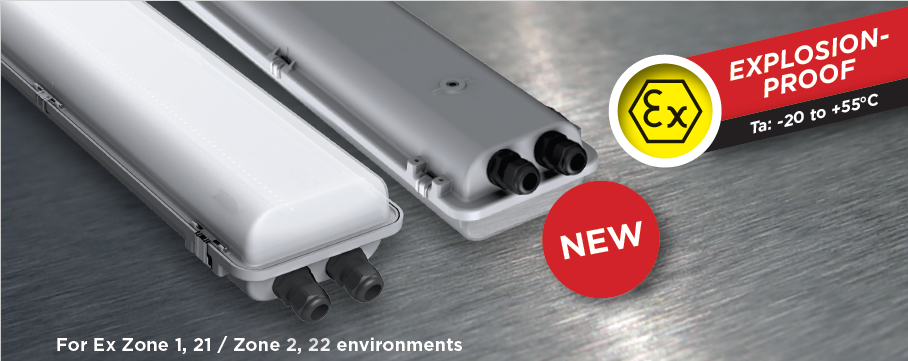

Explosion-proof, industrial dust and waterproof luminaires with LED modules.
Suitable for environment with risk of explosion.

MAIN BENEFITS AT A GLANCE:
- Permitted to be applied in Ex Zone 2, 22 areas
- Field of application: explosion hazardous locations (power plants, factories, mills, army facilities, plants for processing of gases and oil … etc.)
- Robust construction, excellent impact resistance (7J)
- Low service and surface temperature
- Available with extended 5 years guarantee

MOREOVER:
- No vibration, no eye disturbance, no UV radiation
- Trouble-proof operation even at extreme ambient temperature
- Maintenance-free
- Weatherproof, temper-proof, UV stable fixture

TECHNICAL FEATURES
- Housing: Made of glass fibre reinforced polyester (GRP)
- Diffuser: Made of injected opalised polycarbonate (PC)
- Available in 2ft / 4ft
- Luminous flux: from 2500 up to 6500 lm (emitted)
- High luminous efficacy: up to 155lm/W
- Lifetime: >75000 h (L90B10 Ta=35°C)
- Certificates: CE, Atex, IECEx
- ATEX markings: II 3 G Ex ec IIC T4 Gc*, II 3 D Ex tc IIIC T85°C Dc*
*certification pending

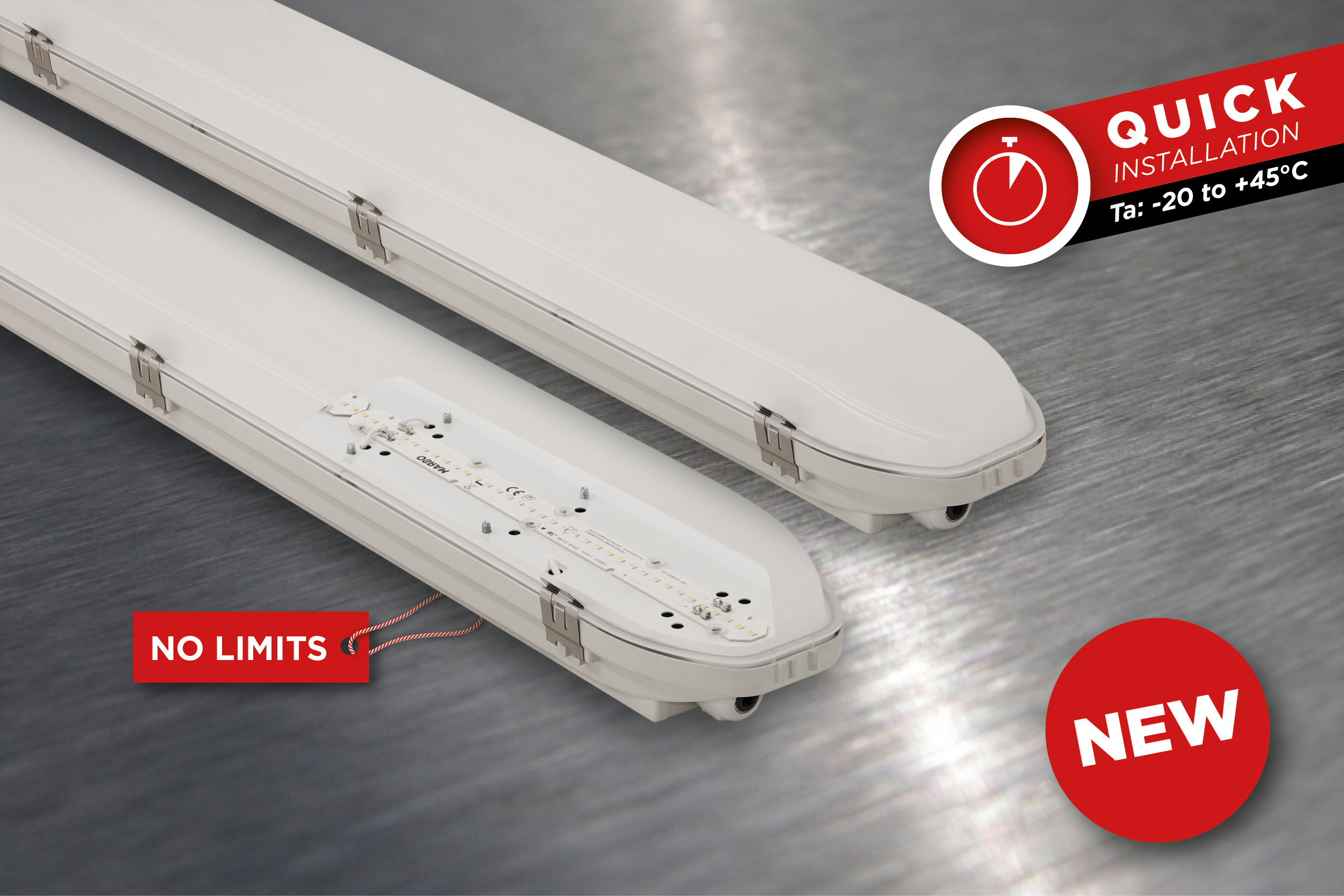

870-Inspire (870-Inspire GRP and 870-Inspire PC)

High-end dust and waterproof luminaires with LED modules.
HIGHLIGHTS:A professional luminaire for wide usage, that fulfils the strongest quality requirements.
TECHNICAL FEATURES:Luminous flux from 2700 up to 14000 lumen, efficacy up to 160 lm/W.
MAIN BENEFITS:Gear tray integrated into the diffuser. Compatible with all optional accessories and smart solutionsInspiring design, trend-setting appearance. Cost efficient and user-friendly installation (less than 2 minutes)Simple and quick installation even without disassembling the luminaire.
FIELD OF APPLICATION:Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection (IP66 - in option in IP67) against dust, contamination and water permeation. In accordance with their IP rating they can be widely used to illuminate spaces with dusty and humid environments.

870-Inspire LED - product specification
TECHNICAL DESCRIPTION AND BENEFITS:
Housing: It can be made of flame retardant glass fibre reinforced polyester, in light grey (RAL7035) colour. GRP has very good features: temperature resistance, mechanical stability, chemical resistance. Available in PC version with high mechanical strength and excellent shock resistance -suitable for 850°C glow wire test-.
Diffuser: Available in PC - injection moulded opalised Polycarbonate (high mechanical strength and highheat and shock resistance) or in Acrylic - injection moulded opalised PMMA (unique non-aging properties, high chemical resistance). Further benefits:- Extremely high light transmissivity (up to 90%)- Homogenous, well-balanced light dispersing (no shadows)
Gasket: The gasket between the diffuser and the housing is available in two versions:
- Injected silicone-based endless foam
- Non-aging PU (polyurethane) endless foam
Gear tray (reflector): The gear tray is integrated into the diffuser thus enabling a cost efficient and user friendly installation even without disassembling the luminaire. White powder coated steel sheet, according to Zhaga standards or customized.
Electrical components: The adequate power supply is ensured through electronic driver. Fixing the diffuser to the body: With highly resistant stainless steel clips.
Ways of installing (options): With strengthened stainless steel mounting brackets (also available hooks)

The product is also available in further more special versions.
870-INSPIRE NB: narrow beam version
870-INSPIRE AIR: outdoor version

870-FARMER: ammonia resistant version for the farming industry

870-INSPIRE +/-: special version functioning at extreme ambient temperature (Ta: -30 to +50°C)

870-INSPIRE FF: for food industry (with HACCP certificate)
Please contact our sales team for further information at sales@ibv.hu

793-Multiproof: Professional dust and waterproof extruded luminaires with LED modules.

For diverse industrial areas! (farming or food and outdoor)

YOUR MAIN BENEFITS:

The luminaires fulfil the requirements of food law (HACCP) - highly resistant against several detergents and chemicals – also withstanding the high-pressure jet water (on request IP69)

FIELD OF APPLICATION:

Due to the construction principles of the extruded profile and the end caps, our LED fixtures ensure a high

grade of protection (IP66, IP67, IP69) against dust, contamination and water permeation. In accordance

with their IP grade, they can be widely used to illuminate spaces with dusty, humid environment.

Thanks to its enhanced weather and chemical resistance, 793-Multiproof is extremely versatile and suitable

for a plenty of applications where errorfree functioning is desired.

The co-extruded PMMA profile allows us placement in farming industry or in food-processing industry and in outdoor areas.

TECHNICAL DESCRIPTION AND BENEFITS:

Housing: Made of Acrylic (PMMA) by co-extrusion, in white (RAL 9010) colour. The optical diffusing (upper) part is opalised. Thanks to the strengthened Acrylic raw material used, the whole fitting shows very high mechanical strength and high heat and shock resistance (= />IK08). At the same time further main advantages of the PMMA also apply such as weather, chemical and UV resistance.

The extruded opal diffuser offers you:

- high light transmissivity (up to 89%)

- homogenous, well-balanced light dispersing (no shadows)

- elimination of the dazzling effect (no glare)

- unique appearance and clean impression (no clips, no dots of the single LED´s)

End caps: Made of impact resistant polyamide and glued to the body. The glued end caps are locked up hermetically ensuring the high IP protection (up to IP69).

Gear tray (reflector): White powder coated steel sheet according to Zhaga standards or customized.

Electrical components: The adequate power supply is ensured through electronic driver, that is built into the luminaire.

Ways of installing: With stainless steel mounting clamps. They are easy to install onto the wall or ceiling. The clamps can be positioned freely on the fixture thus the tube is freely rotatable.

Quick installation: thanks to the application of rapid connector (Adels, Stucchi, Wieland), the electrical connection is fast and easy even without disassembling the luminaire.

Your benefits: significant cost savings and increased competitiveness on the market.

In food industry and outdoor areas: thanks to the venting plug the condensation of the humidity inside the luminaire can be avoided.

In farmer industry: the luminaire is equipped with special chemically-resistant electronic components (LED modules with protective layer, hermetically sealed driver, tinned cables, Adels rapid connector)

792-XSlide: Industrial dust and waterproof luminaires with LED modules and the following HIGHLIGHTS: Specially developed for LED applications. Outstanding light transmissivity! Quick Installation: 2 min installation time with rapid connector. Enter with us into trend-setting lighting in IP 66 / IP67!

TECHNICAL FEATURES:

Housing: Made of Polycarbonate (PC) by co-extrusion.
Diffuser :The diffusing (upper) part is opalized PC.

MAIN BENEFITS:

Comfortable and quick installation without disassembling the luminaire
Extruded profile with outstanding light transmissivity
Slender design and clean impression, specially developed for LED applications
Glued end caps with pull-out (sliding) tray for easy connection
Economical and cost-efficient

FIELD OF APPLICATION:

Thanks to the construction principles of gasket, end caps and the extruded profile our LED fixtures ensure a high grade of protection (IP 65) against dust, contamination and water permeation. In accordance with their IP grade they can be widely used to illuminate spaces with dusty, humid environment.


TECHNICAL DESCRIPTION AND BENEFITS:

Housing: Made of Polycarbonate (PC) by co-extrusion. The housing is made in light grey (RAL7035) colour. The diffusing (upper) part is opalised. Thanks to the used raw material the whole fitting shows very high mechanical strength and high heat and shock resistance (IK08). Diffuser: The co-extruded opal diffuser offers you:

• Extremely high light transmissivity (up to 90%) unique on the market
• Homogenous, well-balanced light dispersing (no shadows)
• Elimination of the dazzling effect (no glare)
• Unique appearance and clean impression (no clips, no dots of the single LED´s)
• Keeping the usual, well-known features of the diffuser such as chemical and heat resistance, mechanical features, UV stabilization etc.

End caps: Made of extremely resistant polyamide and glued to the housing. The glued end caps are locked up hermetically. After opening it the connector tray is accessible. IP 65 protection is ensured by adhesive that secures the end caps to the body. (IP65, in option in IP 66).
Gear tray (reflector): White powder coated steel sheet according to Zhaga standards or customized.
Electrical components: The adequate power supply is ensured through electronic driver, that is built into the luminaire.

Ways of installing:
1. With strengthened stainless steel mounting brackets. They are easy to install onto the wall or ceiling.
2. Suspension on chains or rope with stainless steel suspension brackets mounted with hooks.

Quick installation (1,5 min): The pull-out (sliding) tray accelerates the electrical connection easily without disassembling the luminaire.

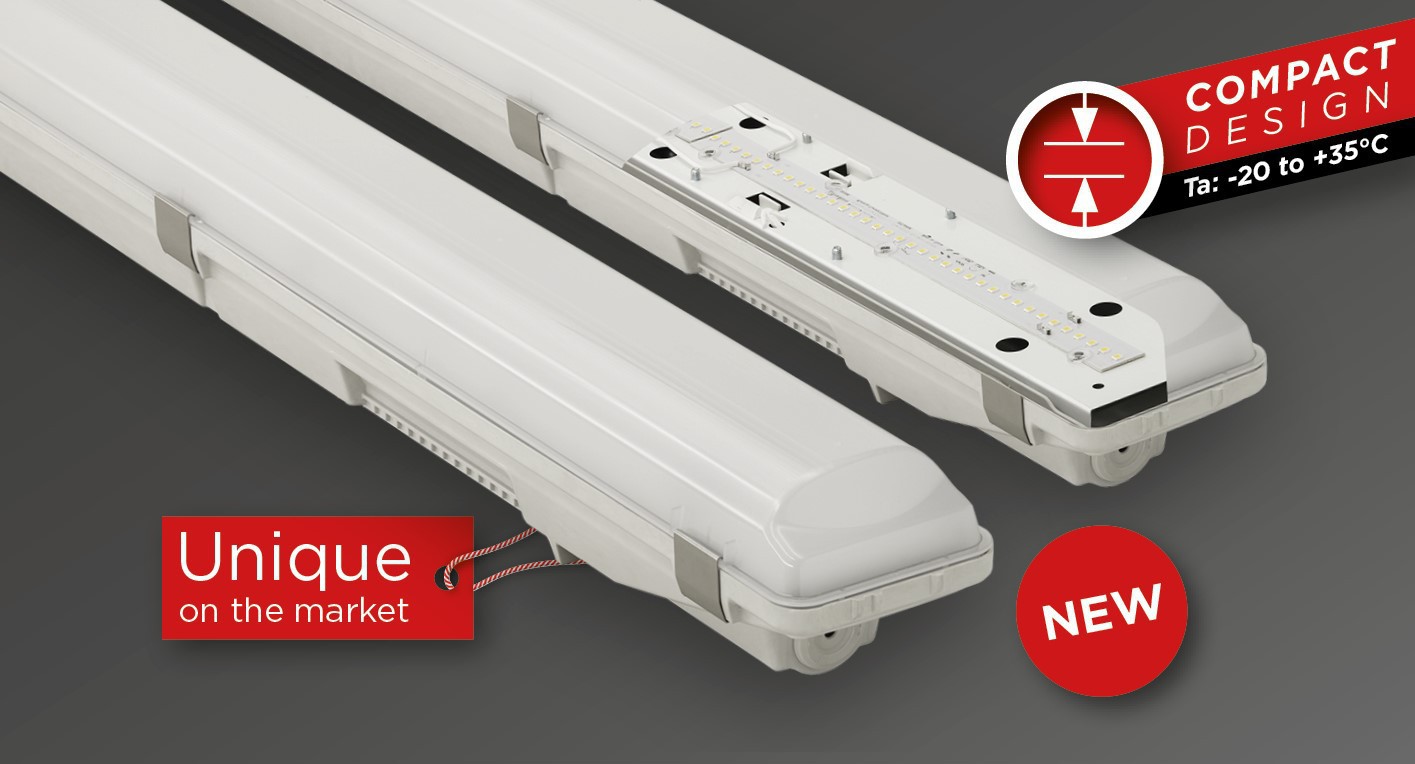

872-Entry (872-Entry GRP and 872-Entry PC):

Professional dust and waterproof luminaires with LED modules and the following HIGHLIGHTS:

• Specially developed for LED applications.
• Outstanding light transmissivity!
• Quick Installation: 2 min installation time with rapid connector.
• Enter with us into trend-setting lighting in IP 66 / IP67!

TECHNICAL FEATURES:

• Housing: Made of glass fibre reinforced polyester (GRP) or flame retardant injection moulded Polycarbonate (PC)
• Diffuser available in: Available in PC - injection moulded opalised Polycarbonate (high mechanical strength and high heat and shock resistance) or in Acrylic - injection moulded opalised PMMA (unique non-aging properties, high chemical resistance).

MAIN BENEFITS:

• Trend-setting compact design for LED, slim shape
• Professional (industrial) quality at an affordable price
• Easy and quick installation even without disassembling the luminaire
• Various options for electrical connection by dint of a plenty of accessories
• Adjustable distance of the mounting brackets (they can be positioned on the housing)

FIELD OF APPLICATION: Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection against dust, contamination and water permeation (IP66 and optionally available in IP67). In accordance with their IP rating they can be widely used to illuminate spaces with dusty and humid environments. TECHNICAL DESCRIPTION AND BENEFITS: Housing: It is made of flame retard ant glass fibre reinforced polyester (on request suitable for 850°C glow wire test too), in light grey (RAL7035) colour. Glass fibre reinforced polyester has very good temperature resistance, mechanical stability, furthermore it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent. Diffuser: Available in PC - injection moulded opalized Polycarbonate (high mechanical strength and high heat and shock resistance) or in Acrylic - injection moulded opalized PMMA (unique non-aging properties, high chemical resistance). Further benefits:

• Extremely high lighting efficiency through high light permeability, unique on the market, up to 90%
• An excellent light uniformity through well-balanced light dispersing (no shadows)
• Elimination of the dazzling effect (no glare)
• Keeping the usual, well known features of the diffuser such as chemical and heat resistance, mechanical features, UV stabilization etc.
• Universal width (no single and twin) and slim shape simplifies the light calculation.

The gasket between the diffuser and housing is available in two versions:

• Injected silicone-based foam
• Non-aging PU (polyurethane) foam

Gear tray(reflector): White powder coated steel sheet according to Zhaga standards or customized. Electrical components:The adequate power supply is ensured through electronic driver, that is built into the luminaire. With 872-Entry LED - depending on customer requirements - we can reach different levels of luminous flux (lumen) by keeping the luminous efficacy above 130 lm/Watt.


Fixing the diffuser to the body: With tamper-proof (vandal-proof) stainless steel clips.
Ways of installing (options):

• With standard (0,4 mm) stainless steel mounting brackets (easy-to-install) onto the ceiling.
• With strengthened (0,6 mm) stainless steel mounting brackets. They are easy-to-install onto the ceiling or the wall (in horizontal position).
• Suspension on chains, wire ropes etc. with stainless steel mounting brackets and with hooks.

The mounting brackets can be positioned with lateral flexibility for easy installation.

The product is also available in narrow beam version, called as 872-ENTRY NB.
Please contact our sales team for further information at sales@ibv.hu
