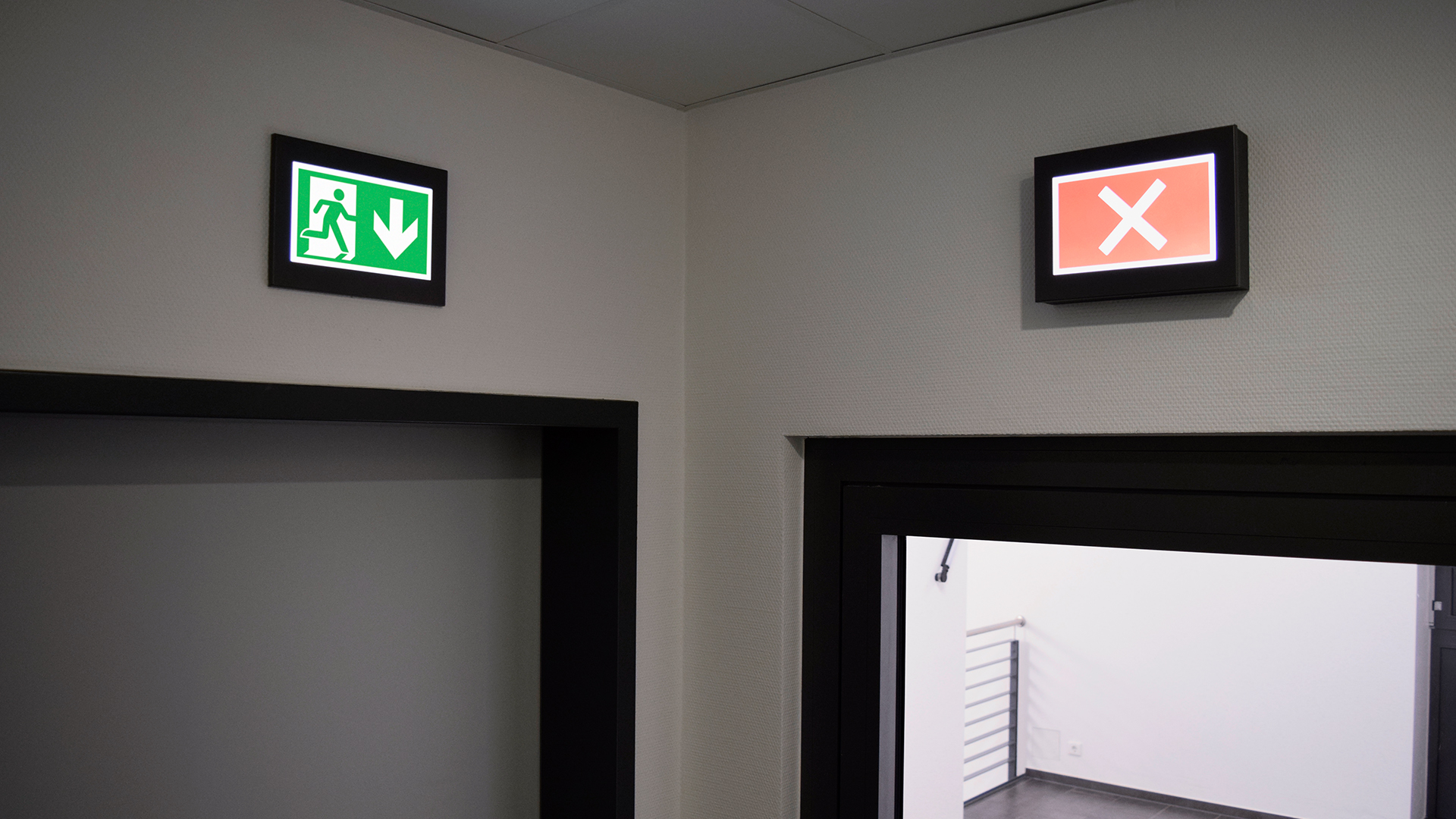

Dynamic, compliant, and customizable pictograms

These features are just a few highlights of the new luminaire generation. The FL 2820 TFT, with its TFT display, offers the capability to display various pictograms, images, or even animations. This, for the first time, allows for dynamic emergency route guidance with absolutely compliant pictograms.

Flexible pictograms – tailored to customer preferences

Thanks to the use of TFT technology, a wide range of pictograms can be displayed. Common rescue and fire safety signs can be selected from a library or customized pictogram designs can be implemented using free software.

This allows the luminaires to, for example, designate meeting rooms and, in case of an emergency, indicate an alternative escape route or provide directional guidance for the primary escape route. Adapting the pictograms later due to changes in regulations or usage is cost-effective and achievable without the need for mechanical pictogram replacement.

Monitoring

Like all INOTEC luminaires, the FL 2820 includes standard monitoring of all functions. With this luminaire, in addition to monitoring the LED backlight, the displayed image on the TFT display is also supervised. If the pictogram does not match the predefined design, it is immediately reported to the FUSION system. INOTEC's developed and patented continuous image monitoring is unique and represents an innovation in safety lighting.

Perfect pictograms – visible from any angle

Previously, creating dynamic pictograms often involved compromises in visibility. However, thanks to the use of the TFT display, these shortcomings are no longer an issue. The pictograms have a luminance of 800cd/m². Unlike conventional displays, the FL 2820 TFT display remains excellent in visibility even at very acute viewing angles.

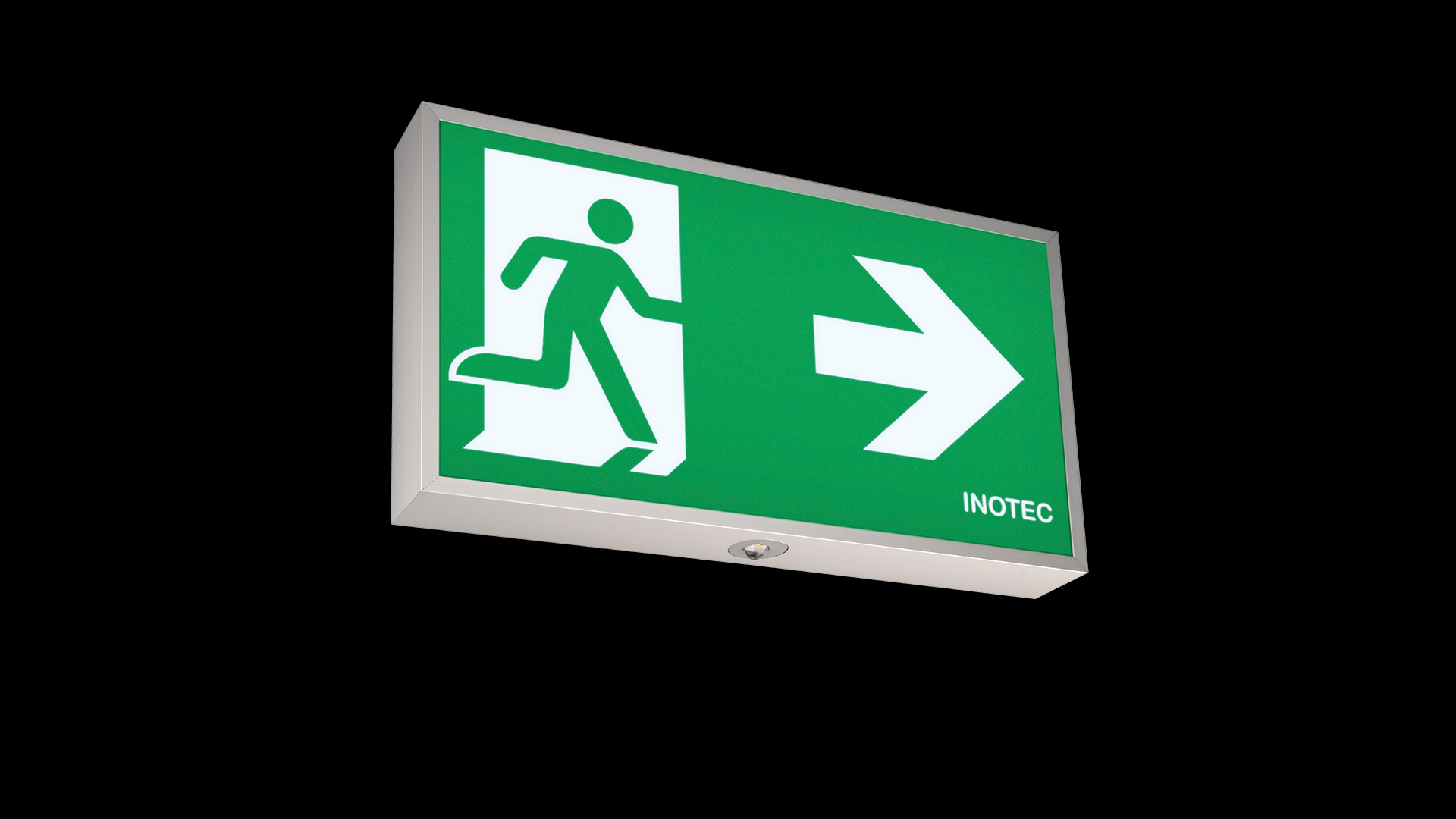

One-sided emergency sign luminaire made of high-quality aluminum profile. It features an exceptionally slim design and efficient, uniform illumination of the pictogram through modern light guide technology. For easy and flexible installation, cable entry is possible from the rear and the side.

Includes the INOTEC Spot-Light 2 for illuminating specific areas.

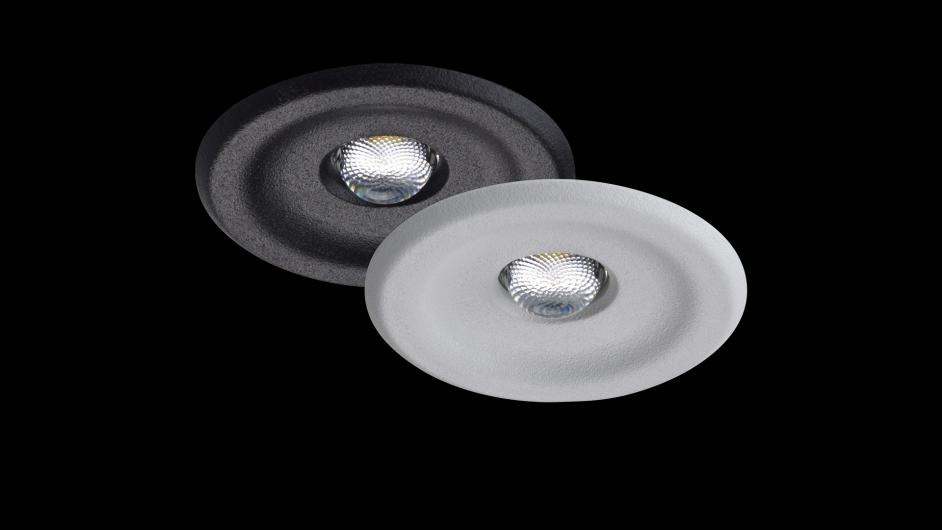

Spot-Light

A safety luminaire for compliant illumination of specific areas with a vertical illuminance of 5 lux. Integrated into emergency sign luminaires SNP 7x20-03AS or SNP 7x35-03AS. Continuously adjustable from 15° to 165° and 195° to 275°, lockable and secured against unauthorized rotation.

CLS FUSION - more than just a simple concept

With the CLS FUSION we developed and optimised our decentralised systems in many ways. Not just in functional aspects, we are also setting new standards in ways of safety, connectivity and ease of use.

Functionality

Intelligent circuits extend the mixed operation mode by more options within the same circuit.

More performance optimised luminaires can be connected to CLS FUSION due to providing up to 8 circuits. External BUS components clearly extend the functionality of the CLS FUSION.

Safety

The new individual LED monitoring increases the safety level of the emergency lighting with LED luminaires compared to standard solutions. With the integrated Battery Control System (BSC) we ensure future requirements of draft standards.

Ease of use

A modern graphical user interface simplifies the operation of the CLS FUSION. Standard interfaces like USB and network connection make it easy to read out and configure the setup.

FUSIONConnect: Cross-device transmission of switching commands for smart control of emergency luminaires

Connectivity

By connecting different monitoring systems like INOView, INOWeb or accessing building management systems you have full overview about the state of your decentral emergency light system in a central place.

Combined luminaire for general and emergency lighting

The SN/A 6201 is a modern take on a combined outdoor luminaire. The design is based on an INOTEC classic – the SN 6204. Thanks to the robust trapezoidal luminaire housing and the high IP65 protection rating, it is ideal for wall mounting outdoors.

Made of die-cast aluminium, the SN/A 6201 has four cable entries for feed-through-wiring for general and emergency lighting and is available in the light colours 3000K and 4000K.

Redundancy for real safety

Outdoors, switched safety luminaires are often used as general lighting at the same time. Or general lighting luminaires are equipped with a monitoring module in order to serve as a safety luminaire at the same time. In both cases, the protection goal is not achieved. If the ballast or the light source fails in one of the luminaires, neither the general lighting nor the safety lighting will function.

Combined luminaires are a better solution. In these luminaires, the technology of two luminaires is combined in one housing. Two LED drivers, one for the general lighting and one for the safety lighting, as well as a light source with two separate LED circuits provide the required redundancy.

Directed light – where it is needed

Many night-active insects orientate themselves to moonlight. Artificial light is many times brighter than moonlight and attracts numerous insects, especially if it is undirected light. Many animals are the victims of this light trap. Due to their disorientation, they are eaten, die by exhaustion or are unable to reproduce.

The wall luminaire SN/A 6201 has a downward light emission. This means that the light ends up in the places where it is needed. This not only saves energy, but also protects night-active animals and insects.

Directed light – where it is needed

Many night-active insects orientate themselves to moonlight. Artificial light is many times brighter than moonlight and attracts numerous insects, especially if it is undirected light. Many animals are the victims of this light trap. Due to their disorientation, they are eaten, die by exhaustion or are unable to reproduce.

The wall luminaire SN/A 6201 has a downward light emission. This means that the light ends up in the places where it is needed. This not only saves energy, but also protects night-active animals and insects.

Combined general lighting and emergency lighting

In emergency lighting, EN 1838 requires a minimum illuminance of 1 lux on the centre line for escape routes. In general lighting, on the other hand, a medium illuminance is planned. For walkways, this depends on the standards applied. According to EN 13201, a mean illuminance (Em) of 5 lux is used in most cases. In rare cases, 10 lux may be required. For outdoor staircases, 15 lux is generally planned. These requirements for general and safety lighting can be combined in one luminaire with SN/A 6201.

Housing with high protection class

The SN/A 6201 is made of high-quality die-cast aluminium. The wall luminaire has a high protection rating of IP65 and has been developed for outdoor use. The high quality of the materials used guarantees a long service life.
