free-standing resp. unsupported air termination pole systeme for HVC-50 and HVC-85 for HVC-exterior pole installation resp. meshed systems

Benefits:

• Transport length of the pole parts max. 2.8 m.
• Telescopic air termination rod in aluminium.
• Enormous saving of HVC conductor lengths for meshed systems.
• Significantly less time required for the installation.
• Separation distances better manageable due to shorter HVC-conductor lenghts.

Your benefits:

• Easy assembly without damaging the mounting rail when clamping.
• Quick installation – only one hexagon nut M8.
• Subsequent installation possible by simply swiveling the hammer head screw into the mounting rail groove.
• PV-connector „Flex“, suitable for various conductor materials corrosion-proof connection through contact plate made of stainless steel

multipole / mains system compliant

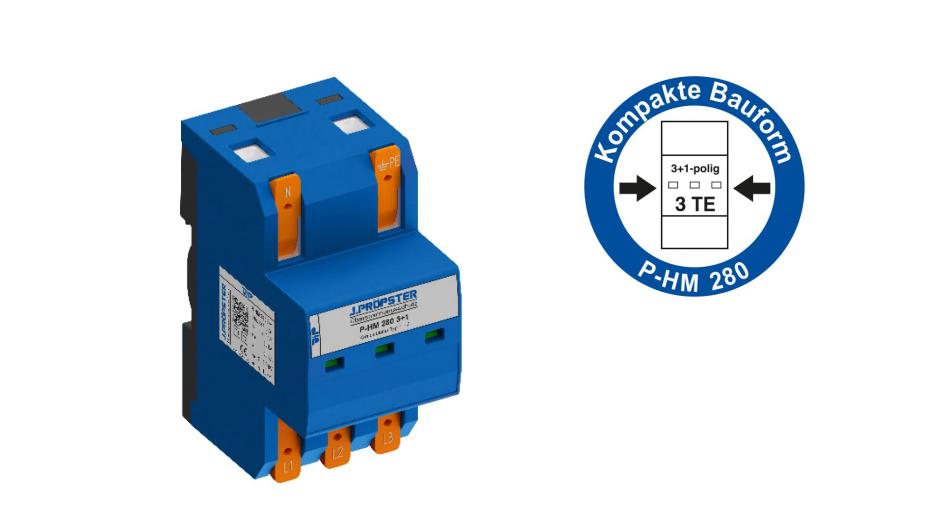

Benefits:

• Narrow dimensions of only 2 mods.
• Compact design facilitates retrofitting in existing electrical plants.
• Push-In terminal block for fast connection without tools.
• Combined medium and fine protection type 2+3.
• IIdeal surge protection for industrial terminal devices with three-phase connection.
• Min. cross section for connection 0.5 mm².
• Standard-compliant, economic surge protection solution e.g. for residential and office buildings.
• Optimal price/performance ratio.

The HCV-50 and HVC-85 conductors are the first insulated conductors used in lightning protection that can be tested for function. Here, for the first time, it is possible to determine by a simple and practical measurement that no lightning-induced insulation breakdown of the insulated cables has occurred and that they are therefore still safe and fully functional. A real innovation from the house of J. Pröpster.

Benefits:

• Regular insulation testing of the HVC lines.
• Simple and practical implementation of the insulation test
• Permanent protection can be guaranteed.
