The RCU Module (SDR-MRCU1602-COM, SDR-MRCU1602-PRO-COM) is a controller that operates under a 24VDC safe voltage and offers relay outputs, controllable silicon dimming outputs, dry contact inputs, LED outputs, and other functions. It features 16 isolated independent relay inputs/outputs, with each circuit supporting up to 10A output, suitable for controlling lighting, curtains, and more. Additionally, it includes 2 controllable silicon dimming outputs, with each circuit supporting a maximum of 3A output, 22 dry contact inputs, and 22 outputs ranging from 5-20VDC for panel backlight control. It also comes with one S-Net communication port and one standard RJ45 port, which supports S-Net or Transnet protocols. The PRO version includes an additional RS485 communication port.
The device can be independently controlled by MarsWindow, enabling pre-edited scene control and scheduled scene control.
Device data can be uploaded to the HRMS management system for device status management and data statistical analysis. The entire data transmission and device control comply with the latest industry standards.

xPRO6 is an industrial-grade central control host that can be applied to smart buildings, smart factories, smart education, smart transportation
and other scenarios, and is installed using DIN rails. This host system can customize the integrated management and control of different
brands and models of products supporting RS485, RS232 and LAN control. Make the IoT access operation of equipment more humane, more
environmentally friendly and more efficient.
xPRO6 central control host supports Internet communication of all modules of the system running in various application scenarios, and then
unified management of equipment in the cloud based on the Internet. The xPRO6 central control host supports remote system control
through the UControl mobile APP of mobile terminals (devices supporting Android and iOS operating systems). The xPRO6 central control
host can be remotely connected to the Wecontrol APP on the WEB side (devices supporting Windows, macOS and Linux operating systems).
The xPRO6 central control host can be programmally customized through S-Net, so as to upload the system data of the connected equipment
in each application scenario to the corresponding intelligent centralized control management system for device status management
and data statistical analysis. The entire data transfer and device control comply with the latest industry standards. The scene management
and scene timing settings of the system can be operated remotely through the UControl mobile app or Wecontrol APP. The simple and
convenient operation mode meets the needs of the current IoT system.
The xPRO6 central control host can be linked with the FMS middleware platform for the realization of a series of functions such as rail transit
central control host connection, central control host data collection of sub-devices, sub-device data reporting to third-party cloud platforms,
and third-party cloud platform issuance and control hardware equipment and device management.

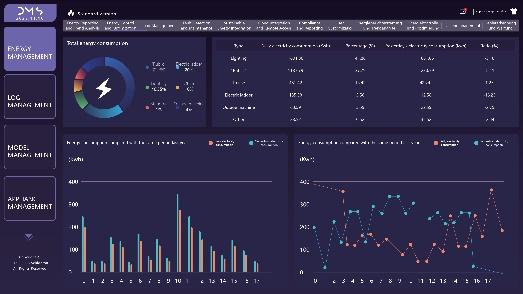

The xPRO6 central control host can be linked with DMS middleware and fog computing platform to realize the interconnection between
devices, between platforms, and between devices and platforms based on unified and standardized interfaces, so that the access and status
management of various IoT equipment systems in the project can be carried out on the visual page.
The xPRO6 central control host adopts industrial fanless heat dissipation design, which can avoid noise pollution caused by fans, and can be
used in occasions with high noise requirements. This design also improves equipment reliability, reduces equipment maintenance costs and
better environmental adaptability.
The xPRO6 central control host supports access to BACnet MS/TP protocol, which can provide reliable and real-time data transmission
services for the field control bus, realize the standardization and openness of the entire building control system, and make the use of
building automatic control technology simpler.
The xPRO6 central control host supports access to BACnet/IP, which can match fast and high-performance DDC controller to handle complex
control tasks, and can directly control information from the protocol layer, such as trend, scheduling, alarm, file transfer and other functions,
suitable for the most demanding intelligent buildings at this stage.
The xPRO6 central control host supports access to KNX equipment, which can convert the KNX standard protocol into a cloud protocol,
realize cloud and mobile terminal connection, and realize the communication between Modbus/RS485/RS232 and KNX bus.
The xPRO6 central control host supports the control of various equipment types such as lighting and air conditioning.

• Schideron HRMS has the ability for flexible modifications via our configuration software MarsWindows with logics & configuration changed seamlessly.
• Schideron HRMS use a distributed edge computing architecture. The software settings and logic for each guest room are stored independently on the guest room RCU. In case of hotel network equipment failure, it should not affect the normal operation of each guest room's RCU control system, and the RCU should be able to operate independently in an offline state.
• Schideron HRMS is capable to have an IoT response mechanism for successful or failed control to ensure the effectiveness of the commands to the RCU.
• Schideron HRMS records and saves error logs and operation logs at least 7 days.
• Schideron HRMS is designed with TCP/IP network connectivity, enabling individual control of lighting, curtains, scenes, and more within each room via the hotel's internal network.
• Schideron HRMS is able to interface with mainstream three-speed fan coils, variable-speed fan coils, and VRV multi-unit air conditioning systems on the market.
• Schideron HRMS is able to interface with the hotel's Property Management System (PMS) through TCP/IP and RS232 or any other communication protocols.
• Schideron HRMS has the following features supported:

1. Built-in energy measurement functionality in the RCU to contribute carbon footprint analysis purpose.

2. Facility Management (FM) integrated with the Smart Guest Control System for streamline the staff operation.

3. App for guest to facilitate the best user experience of the Smart Guest Control System

Ten-in-One Air Sensor:
• 7-inch LCD screen with a resolution of 1280x800
• Supports independent control, multi-group control, and scene mode control
• Interface content and style are editable; custom interfaces can be created using Wecontrol
• Icon control function, style can be edited as desired
• Editable control objects
• Supports distance sensing
• Temperature | Humidity | PM1.0 | PM2.5 | PM10 | CO | CO2 | TVOC | H2CO | Ozone
