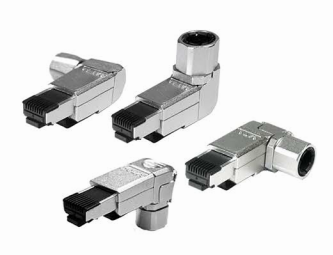

· Can be assembled in 4 different positions –West, East, North and South

· Fully shielded and fully metal housing guarantee secure and reliable transmission performance

· The cord compression nut provides uniform pressure and superior strain relief

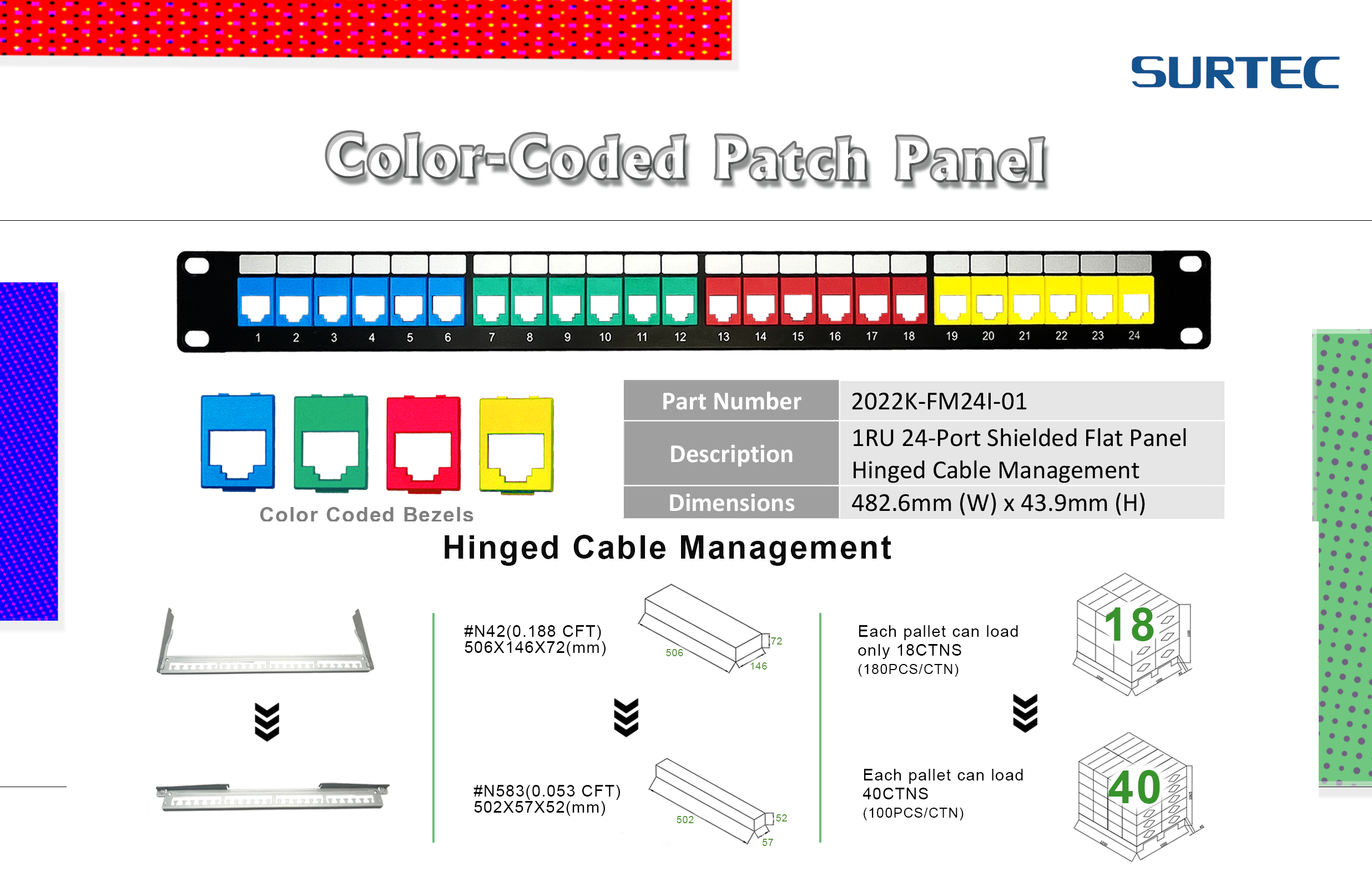

FEATURES

• Colored Bezels easy installation – no tools required
• Sturdy metal construction panel
• Includes Hinged Cable Management
• Accepts all UTP & FTP keystone
• Silkscreened port labels on panel front
• Interchangeable color bezels for easy port identification and management
• Panel face can be customized to showcase a variety of colors or logos
• Providing customization for various colors of removable color bezels. (24 bezels each panel)
  NOTE: The standard combination consists of four colors– red, blue, green, and yellow

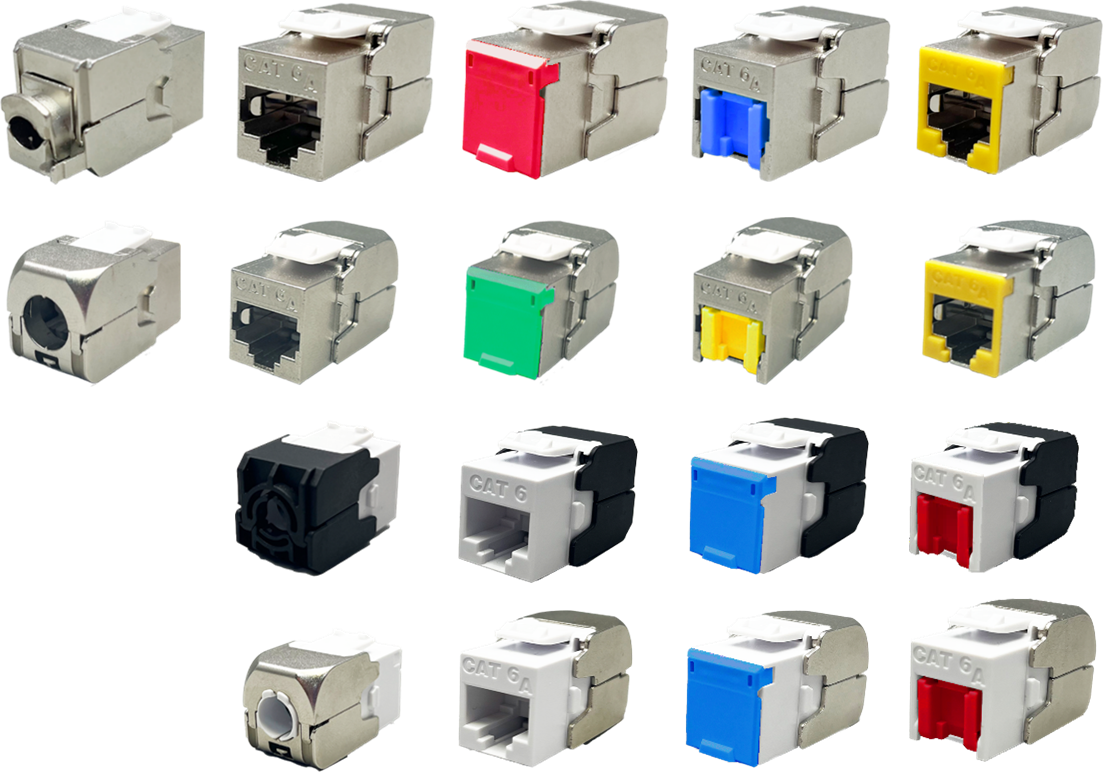

R Type FTP Jacks -With Strain Relief Arm

• Strain Relief: Enhances cable security with cable tie and reduced cable bending.
• Amplified cable fastening: Strain relief equipped with inner spines for enhanced grip and security.
• Patented MH62 contact design: Unique shortened contacts provide enhanced crosstalk compensation for improved performance.

R Type FTP Toolless Jacks — Slim Type with Grounding Pin

• Built-in Grounding Pin: Provides additional grounding assurance with a separate grounding wire.
• Unique High CAP Design: Ensures 360-degree screening by securely wrapping the grounding wire.
• Reliable Cable Retention: Simplifies installation without requiring cable ties.
• Patented MH62 contact design: Unique shortened contacts provide enhanced crosstalk compensation for improved performance.

R Type UTP Toolless Jack

• Offering various color choices: Simplifies port identification and management.
• Reliable Cable Retention: Simplifies installation without requiring cable ties.
• Enhanced Cable Securement: Unique flexible back design effectively clamps and secures cables. (Cat 5e, Cat 6 versions)
• Patented MH62 contact design: Unique shortened contacts provide enhanced crosstalk compensation for improved performance.

The CAT6A Shielded DIN Rail Mounted Coupler is designed for industrial networking installations. This product offers an ideal solution for connecting two shielded network patch cables in a product that is designed to be mounted on a DIN Rail. It comes equipped with a dust cover and an earthing spring for added protection. This coupler is IP20-rated, allows for side-by-side mounting, and supports Type 4 (100W IEEE 802.3bt) PoE++.

FEATURES:

1. Cat.6A In-line Coupler, RJ45

2. For mounting on DIN Rail TH35 according to DIN EN60715

3. Includes an earthing spring for grounding

4. Supplied with a Dust Cover

5. Durability: 750 mechanical cycles

6. IP20-rated for water and dust resistance

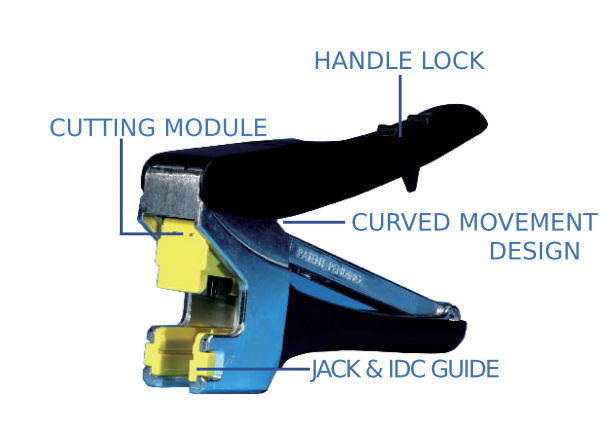

APPLICATION

     -The wire cutting support portion is compatible with 180 degree module
     -The cutting module is compatible with CAT 3 / 5e / 6 / 6A keystone jacks

FEATURES

     -Up to 70% increase in termination speed
     -Termination force is reduced by 70%
     -Convenient termination for any field installation
     -The cutting modules are compatible with CAT 3 / 5e / 6 / 6A jacks
     -The cutting module blades are replaceable
     -Capable of more than 1200 terminations
