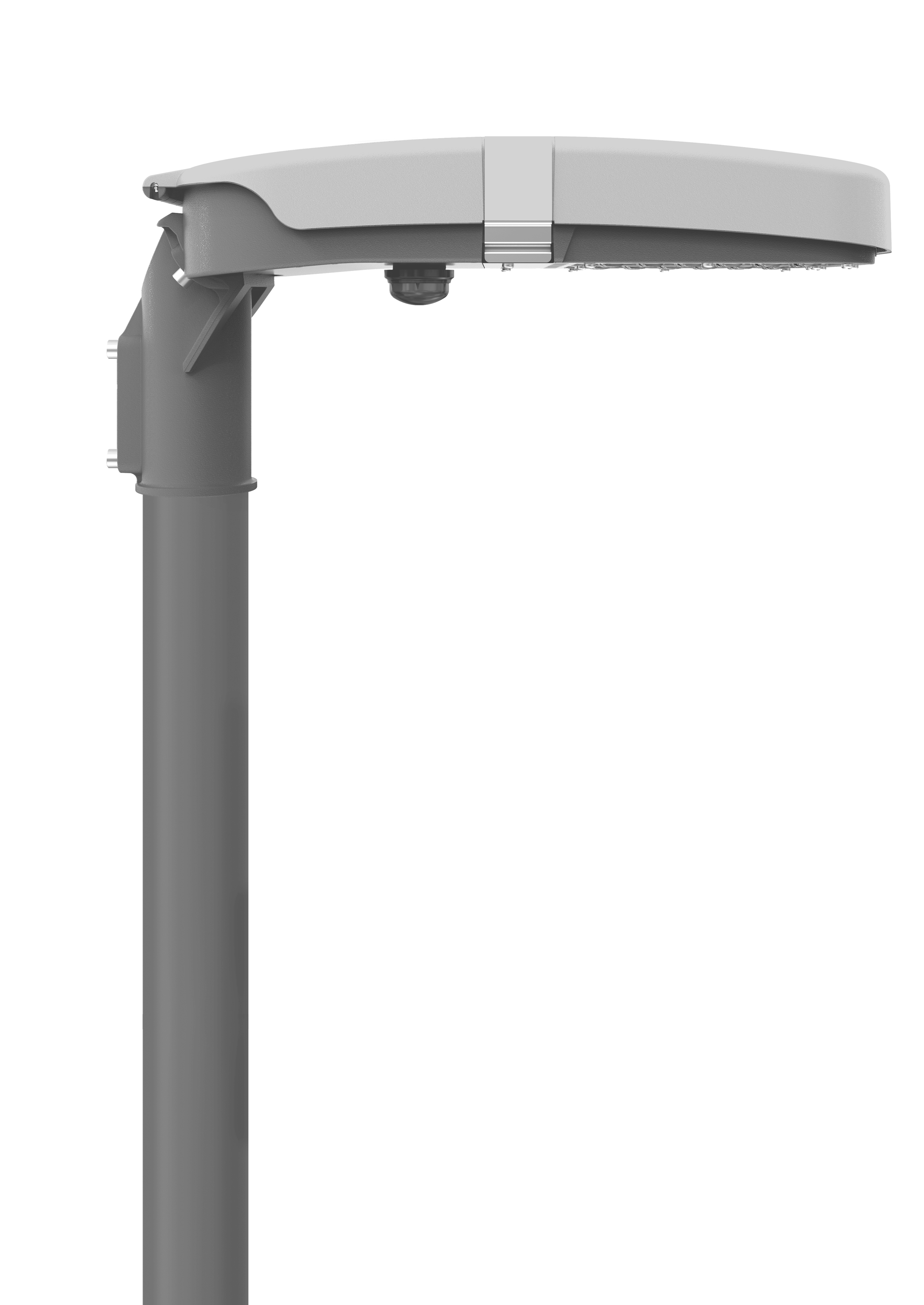

Ecological lights made of technical polymer indestructible in any setting

CIES is the first series of luminaires made of technical polymers specially designed by Televes, combining design, mechanical engineering and the latest electronic technology. These luminaires have a unique style that is also customizable! You can choose from numerous alternatives: different casing colors, wide color temperature range, different optics options, and much more.

CIES is an eco-friendly lighting option, from its production from 100% recyclable materials, in a process that minimizes the carbon footprint, to its high energy efficiency and durability, which reduces waste generation. What's more, the materials are very light and at the same time resistant, which optimizes all the transport, installation and maintenance tasks that are naturally linked to a public luminaire.
Thanks to this range of luminaires, an innovative and ideal solution is provided for the most aggressive environments, especially for maritime and seaside areas.

LIGHTING-CONTROL
Series with different dimming and remote management options are available:

• E series: possibility of including a customized and pre-programmed dimming profile, with several levels and up to 5 steps
• E4 series: additionally, allows DALI2, CLO and communication via NFC, expanding the possibilities of adaptation to different contexts
• IoT series: offers maximum flexibility by adding dimming connectors, which allows a Plug&Play connection to remote management nodes and thus provides the ability to connect to IoT infrastructures
  • N series: ANSI C136.41 NEMA standard connector
  • Z series: Zhaga book 18 standard connector
  • X series: Zhaga book 18 standard connector below

These open interfaces allow the N & Z Series to be connected to any remote management system, combining the possibilities of full integration with additional sensitization. Thus, our luminaires can be perfectly integrated into any Smart City project. This makes possible to regulate the luminous intensity and the power emitted in certain time slots, adapting the operation of the lighting according to the user's habits.
With flexible lighting, adapted to each situation, maximum levels of efficiency can be achieved.

Highlights:

• Resistant in any environment
• Maximum safety
• Easy installation and maintenance
• Eco-friendly luminaire
• Supports the quality of the night sky
• 100% made in Televes

WHAT'S SPECIAL ABOUT IT?

• A luminaire with a unique personality. It combines design, engineering and modernity: CIES features a slightly wavy design, that evokes the ocean tides of the environment surrounding the natural park of the Atlantic Islands of Galicia. Created in a maritime and island environment, CIES is known for its excellent performance in extreme weather conditions. Its design inspired by the Galician archipelago is manifested in the contrast between the strength and hardness of its materials and the lightness and mellowness of its style, such as the fine sand dunes that harmonize with the robustness of the islands.
• Invulnerable in any environment. Designed to last: CIES is made of corrosion-proof materials: technical polymers with a proprietary formula and stainless steel. By avoiding the use of mixed metals, the possibility of galvanic corrosion is completely eliminated, thus ensuring a long life for the luminaire. Its UV-stabilised technical polymer casing is vandal-resistant, withstanding impacts of IK10 level. CIES is the ideal luminaire for maritime areas, as it is particularly resistant to exposure to adverse weather conditions with high levels of humidity and/or salinity.
• Sustainable and ecological lighting. Supporting the quality of the night sky: Inspired by a protected natural area, CIES supports the preservation of the environment and respects the ecology and quality of the night sky. According to the requirements of the IAC (Astrophysics Institute of the Canary Islands), CIES is suitable for areas of special protection against light pollution, with a light emission to the upper hemisphere of less than 0.1%, emitting an adequate luminous flux, directed only towards the areas of interest.
• Environmentally friendly under the 3 "R's": In order to reduce environmental damage and take care of our planet, we take responsibility to contribute by following the 3 "R" rule:
  • Reduce: Our manufacturing process reduces by 50% the carbon footprint generated, compared to aluminum equivalents
  • Reuse: The luminaire can live on in the infrastructure, thanks to a LED module and driver replacement sustainably, supporting the circular economy
  • Recycle: The luminaire is made of 100% recyclable materials
• Perfect thermal management. Materials and design that enhance dissipation:The CIES luminaire has a passive cooling system for the light source. High-quality thermopolymer heat sinks ensure thermal conductivity, resulting in great temperature stability. In addition, the electronics compartment is separated from the LED modules, which prevents heat transfer between the two points. Thanks to the thermal protection of the electronics, the light's lifetime is maximized (L90B10 > 100,000h at 25°C) and its efficiency is greatly improved (up to 160 lm/W).
• Easy installation and maintenance. On-site and tool-free replacement: CIES has been designed to simplify installation and maintenance tasks as much as possible. From its light weight and handy format, to its tool-free cover opening and locking system, facilitating on-site replacement of its components. Moreover, the luminaire has a self-cleaning system thanks to the grooves located in the top part of the luminaire, helping to clean and preventing possible degradation due to the accumulation of dirt.
• 100% electrical safety: This luminaire has the best levels of electrical protection: its Class II guarantees safety without the need for ground connection thanks to the double isolation of the components. Furthermore, the SELV certificate guarantees an output voltage of less than 60V, minimizing the risk of electrocution in the event of system failure. In addition, its driver, optical group and IP67 connections offer integral protection to all the optical and electronic elements against the ingress of water and dust, eliminating any effect caused by external agents. Finally, the casing made of technical polymer (non-conductive material) eliminates completely the possibility of electrocution in the event of contact with the luminaire.
• Design and manufacture 100% made in Televes: Our cutting-edge facilities include all the means for the creation of this luminaire, from start to finish. This involves everything from the electronic and mechanical design, using advanced simulation processes, to the manufacture of the circuits, boards and all the elements of the chassis, using meticulous construction processes and assembly on robotized lines. An in-house design and manufacturing process also offers other advantages, such as quality verification at every point of development.

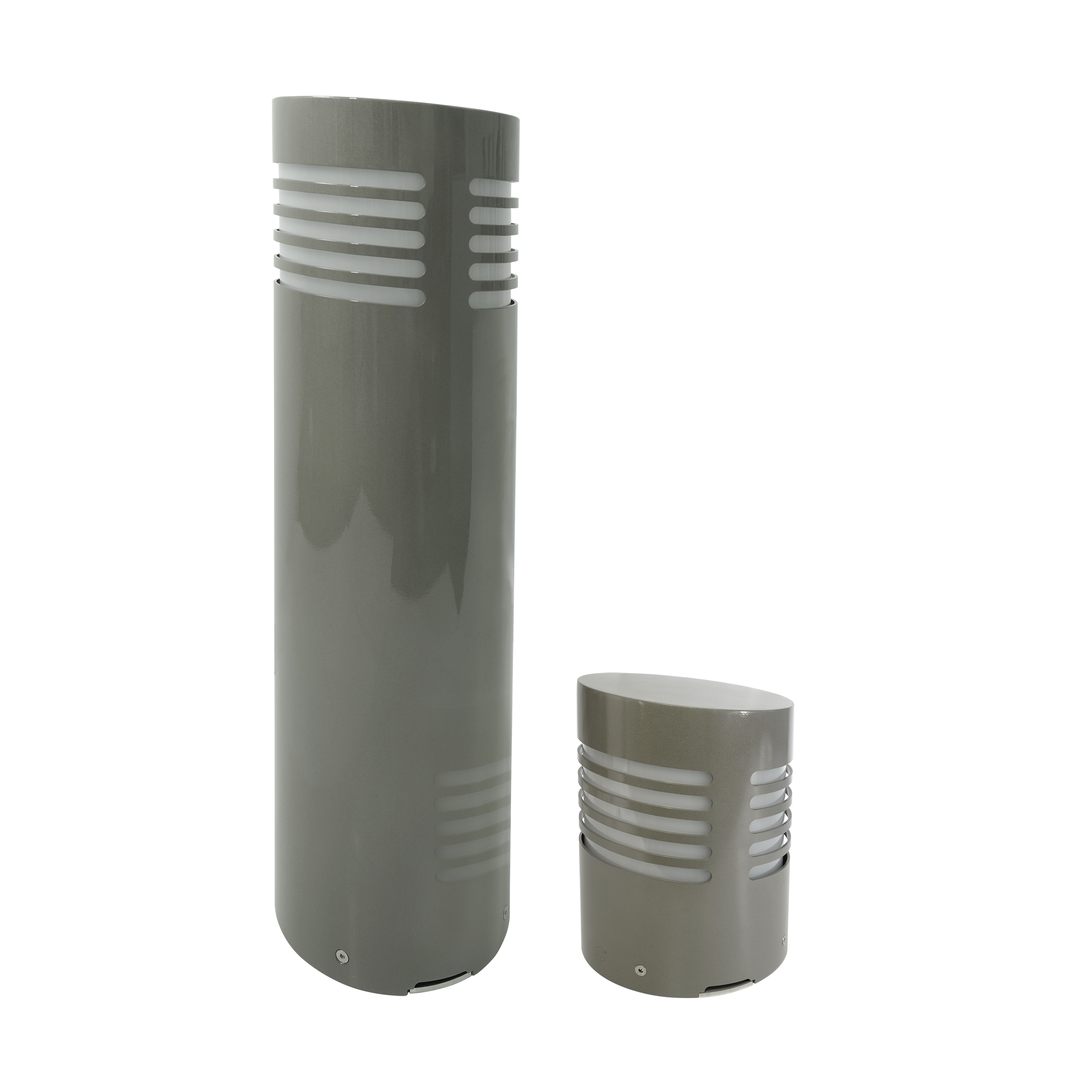

Rust-proof, vandal-proof pedestal lights for pedestrian and garden areas.

The Arousa pedestal light stands out for its high resistance and ability to remain unaltered in any environment, thanks to its high protection against impacts and its colorless anti-graffiti varnish coating. In addition, its high tightness and its stainless steel body also prevent the entry of water and oxidation.
Arousa is a highly durable pedestal light, customizable in different aspects, such as performance, color and finish. With an elegant design and high performance, the Arousa bollard complies with the technical requirements of luminaires established by the CEI / IDAE, being an excellent option for lighting urban centers and pedestrian areas.

Available in two heights:

• The large model (with a height of 80 cm) generates a longer-range lighting area, very suitable for paths and trails
• The small model (with a height of 30 cm) is compact and therefore ideal for the most discreet and ambient lighting.

Highlights:

• Durability and resistance: AISI 304 stainless steel body, resistant to corrosion even in the most aggressive environments
• Vandal resistant: IK10 impact resistance and colorless anti-graffiti varnish coating
• Multiple customization options: different lacquers in any color from the RAL range, possibility of engraving shields or logos, screen printing or making different cuts on the external envelope
• 100% electrical safety: Class II without the need for grounding and SELV certificate
• Energy savings: Long service life without the need for maintenance, which increases savings compared to other technologies, reaching savings of up to 80%
• 100% made in Televes: Technology designed and manufactured in our cutting edge facilities, guaranteeing total control, with demanding quality monitoring, over each of the production phases

WHAT’S SPECIAL ABOUT IT?

• Indestructible in hostile urban settings: The ability of this pedestal light to remain unaltered in vandalism situations is the result of its IK10 level impact resistance, and its colorless anti-graffiti varnish coating.
• Corrosion resistant in adverse weather conditions: Made of 3mm thick AISI 304 stainless steel, it offers an exceptional durability, regardless of how adverse they may be weather conditions of the environment.
• Exclusive customization for each situation: In order to offer a pedestal light completely adapted to each project, location or client, different customization options are offered. With regard to the color of the post light, the entire range of RAL hues is available, and the functional features are configurable. In addition, to promote passersby to know or remember you, it is possible to make an permanent laser marking with a logo or the shield of the city, on the surface of the post light. Finally, the shape of the light slots can also be customized, giving the pedestal light a unique and representative style.
• 100% electrically safe: Protecting pedestrians is critical, and that is why this pedestal light has the best levels of electrical protection: its class II guarantees safety without the need for grounding, thanks to the double insulation of the components. On the other hand, the SELV certificate guarantees an output voltage lower than 60V, minimizing the risk of electrocution in the event of system failure. In addition, its driver, optical group and IP67 connections offer comprehensive protection to all optical and electronic elements against the ingress of water and dust, eliminating any effect caused by external agents.
• Sustainable lighting: In addition to all the benefits offered by LED technology, this luminaire has an opal anti-glare diffuser, which reduces light pollution by not emitting light to the upper hemisphere, thus offering great visual comfort.
• Ease of assembly and maintenance: Both in the first installation and in future maintenance tasks, operating on this pedestal light will be very quick and simple, thanks to its easily removable trim.
• Design and manufacture 100% made in Televes: The cutting edge facilities of a manufacturer like Televes, consist of all the means for the creation of this luminaire, from start to finish. This involves everything from electronic and mechanical design, through advanced simulation processes, to the manufacture of the circuits, plates and all the chassis elements, through meticulous construction processes and assembly on robotic lines. A proprietary design and manufacturing process also offers other benefits, such as quality verification at every point of development.

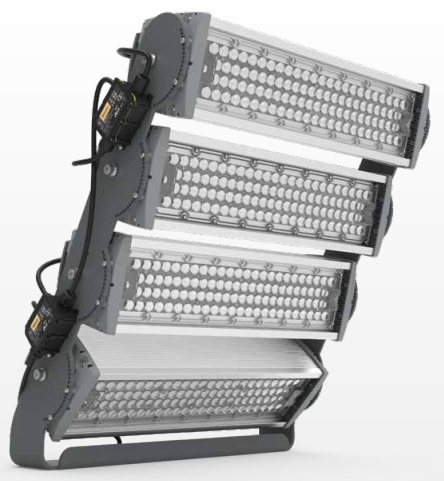

High-power modular lighting for professional sports facilities and large areas

Flex Floodlights are high performance luminaires with large luminous power, composed of independent modules, with the possibility of varying their format from 1 to 4 modules according to the lighting needs, reaching up to 1200W. They have the ability to direct the luminous flux at a specific angle with great precision, exposing only the area of interest to the illumination provided.
Flex floodlights are specially designed to illuminate large sports facilities, perfectly satisfying the lighting requirements needed for sports practice, even for top-level competitions. They are also perfect for special installations such as logistics ports, marinas or airports, where lighting requirements and reliability are critical to ensure visibility and safety for users.
Flex floodlights have different configurations of power and number of LEDs, adapting perfectly to different spaces. They provide high quality lighting and great energy efficiency covering the lighting demands of users, ensuring visibility and visual comfort.
In addition, our commitment to the quality of the night sky and responsible lighting is clear. Thanks to a correct orientation of the light, we can reduce the light impact of Flex floodlights, directing light exclusively to the points of interest and avoiding unnecessary light emissions towards the upper hemisphere of the luminaire.

Moreover, there is also available a small version of the floodlight, flex mini, that reaches up to 200W in its version of 1 module.

Highlights

• Low wind load: The balance between high light output and compact size reduces the action of the wind against the floodlight, minimizing the oscillations caused at high altitudes
• Scalable configuration: its modular structure allows the variation from 1 to 4 independent modules for floodlight, on a single support, adapting perfectly to the lighting requirements of each situation
• Durability and resistance: compact extruded and anodised aluminium structure, corrosion resistant even in the most aggressive environments, successfully passing resistance tests against severe conditions of use (EN 60598-1:2015)
• Vibration resistance: robust structure tested against vibrations (EN 60068-2-6:2008)
• Ease of repair: access to the inside of the floodlight without having to remove it from the support, allowing the power supply to be replaced on site in case of failure
• Quick return on investment: the high light efficiency provides substantial energy savings of up to 80%
• Minimizes maintenance costs due to its long working life and easy component replacement
• Perfect thermal management: heat conduction and convection are favoured by the dissipation curves of the luminaire structure
• High luminous efficiency: up to 155 lm/ W
• 100% made in Televes: Technology designed and manufactured in our cutting-edge facilities, guaranteeing total control, with demanding quality monitoring, over each of the production phases

Main features

• LED multi array modules: Selection of corresponding BINs with 3-step McAdam ellipse (SDCM <3) and maximum efficiency
• Driver certificated ENEC
• Color rendering index: CRI>70, possibility of CRI>80 and CRI>90 on demand
• A wide selection of highly homogeneous colour temperatures (3>SDCM): PC Amber, 1,850, 2,200, 2,700, 3,000, 4,000, 5,000, 5,700K,...
• Ingress protection code IP66 and impact protection code IK10
• 1-10V or DALI regulation models are available, fully compatible with presence detection and lighting control solutions depending on the needs of the installation

Why choose Flex?

Modular structure on a single support.
This translates into a maximum use of the availablebstructures, without having to reduce light output or quality.

High-quality uniform illumination
The inclined structure of the Flex floodlight avoids shadows due to the overlapping of the modules.
In addition, each block is vertically adjustable, ensuring a perfect orientation of the light according to the requirements, creating a pleasant and comfortable space for the users.

Independent modules that guarantee the operation
The Flex floodlight has independent drivers for each module, ensuring the survival of the service, even in case of failure of any of the modules.
This, together with the quality of the materials and the meticulous traceability of the manufacturing process, guarantees optimum performance, minimizing the possibility of lighting interruption.

Flawless thermal management
The structure of the Flex floodlight consists of an aluminium enclosure with dissipation curves that form part of the chassis itself and favour heat conduction and convection.
In addition, each module is independent, avoiding heat transfer between them.

Design and manufacture 100% made in Televes
Our cutting-edge facilities include all the means for the creation of this luminaire, from start to finish.
An in-house design and manufacturing process also offers other advantages, such as quality verification at every point of development

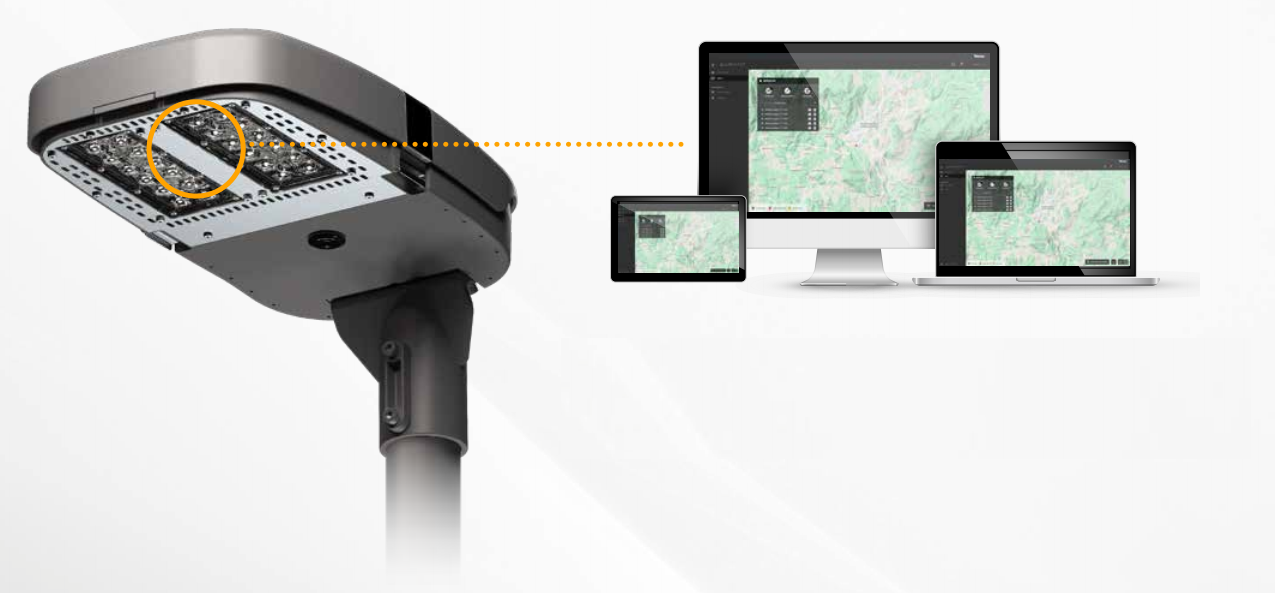

What are the advantages of Aurant?
1. Big savings, small changes:
By gradually dimming the lights, we can go one step forward
in achieving energy efficiency, with no impact on the citizens’
perception whatsoever. Benefits brought by the lighting
management are, then, twofold. Smooth and simple performance
that will adapt to the citizens’ changes of habits.
2. Reduction in carbon footprint:
Intelligent lighting reduces energy costs by lowering intensity
levels when they are not needed. This helps us reduce CO2
emissions to take care of our planet.
3. Enhanced lighting service:
Invest in comfort and safety by adapting lighting to the citizens’
needs. Light up right where and when you need it by enhancing
light levels in specific places of the network, preventing a
whole line of luminaires from being affected. Thanks to ongoing
monitoring, we can address incidences right away, even before
your neighbors can notice.
4. Great network scalability:
Aurant lighting module is the go-to choice to manage from
small projects – featuring very few light points – to great cities
with thousands of luminaires. Thanks to our platform, growth
has no limits.
5. High compatibility:
Designed according to standards and based on neutral
technology, Aurant lighting module is so flexible that they can
manage our own luminaires and other brands’. Easy integration
helps implement the service, so there is no need to change the
whole network. Our open platform can be also integrated into
third-party applications and is compatible with any communication
technology.
6. Optimized network maintenance:
Early identification of each point of failure allows planning of
maintenance routes, replaying quickly to any incident and
reducing time and costs.
7. Commitment to responsible lighting:
With a proper and intelligent management, we can reduce light
pollution and protect the night-sky darkness and the biodiversity
of the environment.

What are features?

Access any computer or tablet connected to the Internet
• User-friendly interface
• Accessible from anywhere through their Internet connectivity
Control map – everything at a glance
• Check your whole light inventory on the map
• Identify the status of each node by color
• Accurate and automatic location of each luminaire thanks to the GPS system fitted in the control nodes
• Work over each luminaire in one click
Group management for an easier use
• Nodes nearby group automatically
• Create and modify groups for different applications
• Operate over plenty of luminaires in just one step
Lighting calendar
• Configure different lighting schedules according to the season
• Add special lighting plans for specific dates
• Individual or group management
Alarm panel: keep ahead of issues
• Receive alerts in real time
• Check the incident history
• Define the minimum and maximum values for alert in each parameter
• Monitor malfunction in the electric network
Monitoring dashboard: everything under control
• Represent data of interest with simple charts
• Synthesize and organize relevant information to analyze results
• Follow up your objectives with a customizable dashboard
Network security
• User register and authentication
• Access with different profiles
• Safe communication between remote-monitoring nodes and the platform
Remote OTA (Over The Air) update
• Your new functionalities will be up to date without the need for physical access to each point
• Scheduled and controlled updates for your devices
• Applicable to point-to-point control and dashboard control

Renovation to LED technology while preserving the original structure of the luminaire.

Retrofit is the direct replacement of old lighting technologies with newer, more efficient ones, using the previous installations. It is the perfect lighting solution for sustainable consumption, high efficiency and high performance.
This lighting system is very suitable in cases where a correct balance is required between the benefits of LED lighting and the use of previous resources, obtaining significant savings in its implementation and a major increase in well-being and safety in cities.

Retrofit is a safe bet in favor of ecology, as it prioritizes the minimization of waste generated by taking advantage of existing structures. It also stands out for the low consumption of LED technology and its great durability, offering responsible lighting by controlling the light emitted to the upper hemisphere of the luminaire.
Additionally, the installation of the Retrofit modules is simple and versatile, fitting into the different structures through different adaptive frames.

LIGHTING-CONTROL
Retrofit Module offers the possibility of including a customized and pre-programmed dimming profile, with several levels and up to 5 steps. This makes possible to regulate the luminous intensity and the power emitted in certain time slots, adapting the operation of the lighting according to the user's habits.
With flexible lighting, adapted to each situation, maximum levels of efficiency can be achieved.

Highlights:

• Benefits from the latest advances in LED technology by reducing the initial investment
• Guarantees total safety regardless of the state of the installation: Certified as an independent LED module
• It allows preserving the old luminaires without affecting the current environment: Adaptable to any size of ornamental luminaire and with the possibility of customizing the baseplate on demand
• Energy saving: Long maintenance-free service life, which increases savings compared to other technologies, achieving savings of up to 80%
• Flawless thermal management: Passive cooling system of the light source, by means of high quality thermopolymer heat sinks stabilized against UV radiation
• Commitment to responsible lighting: Reduction of the flux emitted to the upper hemisphere
• 100% made in Televes: Technology designed and manufactured in our cutting edge facilities, guaranteeing total control, with demanding quality monitoring, over each of the production phases

WHAT’S SPECIAL ABOUT IT?

• Technology adapted to all contexts: The Retrofit module makes it possible to upgrade old lighting installations with the latest LED technology. With Retrofit the lighting system is renewed while making the best possible use of previous resources. This is especially important in historical or monumental areas, where preserving the existing luminaires is key, minimizing the aesthetic impact and protecting the cultural heritage. Retrofit is also a highly versatile solution, which can be installed on almost any existing luminaire thanks to the adaptable frames or by creating a bespoke baseplate.
• Great return of investment: The use of existing structures, combined with the high efficiency of LED technology and its long service life, results in reduced costs and a quick return on the initial investment.
• Maximum security: The Retrofit module has the highest levels of electrical protection: its Class II guarantees safety without the need for grounding thanks to the double isolation of the components. Furthermore, the SELV certificate provides an output voltage of less than 60V, minimizing the risk of electrocution in the case of system failure. In addition, its driver, optical group and IP67 connections offer integral protection to all optical and electronic elements against water and dust ingress, eliminating any effect caused by external agents.
• Flawless thermal management: The Retrofit module has a passive cooling system for the light source. High thermal conductivity is guaranteed by the innovative, high-quality heat sinks made of thermopolymer of our own design, resulting in high temperature stability. The heat sink ensures thermal protection of the electronics, regardless of the geometry of the luminaire where it is installed, maximizing the lifetime of the LED module and improving its efficiency.
• Design and manufacture 100% made in Televes: Our cutting-edge facilities include all the means for the creation of this luminaire, from start to finish. This involves everything from the electronic and mechanical design, using advanced simulation processes, to the manufacture of the circuits, boards and all the elements of the chassis, using meticulous construction processes and assembly on robotized lines. An in-house design and manufacturing process also offers other advantages, such as quality verification at every point of development.

Additional Information:

• 1-10V or DALI regulation models are available, fully compatible with lighting control solutions depending on the needs of the installation
• IP68 connector - PLUG AND PLAY: Supplied with a tubular IP68 connector for quick and safe installation of the lighting
• Driver, optical group and IP67 connections: offers integral protection to all optical and electronic elements against water and dust
• Wide selection of highly homogeneous colour temperatures (SDCM<3): PC Amber, 1,850, 2,200, 2,700, 3,000, 4,000K...
• More than 10 different types of optics are available for lighting adapted to any environment
• CRI>70 and available on request CRI>80 and CRI>90
