Belimo Stellantriebe Vertriebs GmbH

22PEM-1UC

22PEM-1UC

Belimo Stellantriebe Vertriebs GmbH

Supplier profile All products

Contact supplier Contact persons

Description

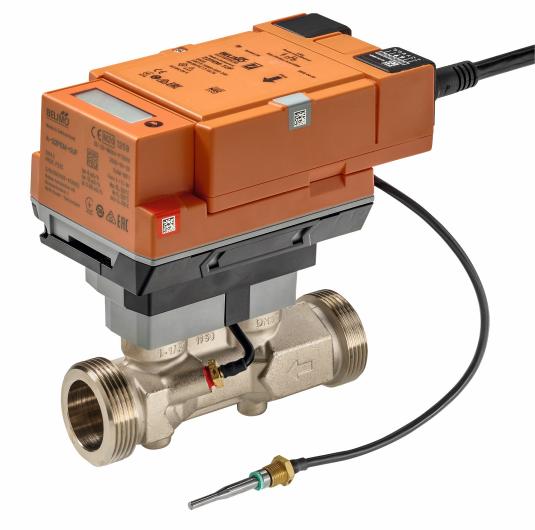

Thermal energy meter MID / EN 1434, AC/DC 24 V, DN 15, 1.5 m³/h

Thermal energy meter

Thermal energy meter for measuring energy in a heating or cooling circuit. The device is certified for heating applications according to MID and fulfills the requirements of EN1434. If required, the power supply can be provided via PoE (Power over Ethernet). Communication is provided via BACnet,
Modbus or MP-Bus. Configuration is done with the Belimo Assistant App via NFC technology or via web server. The commissioning report can be generated automatically. Connection to the Belimo
Cloud is possible.

More from us

Our website

Downloads

Belimo Energy Valve™ and Thermal Energy Meter

More products by Belimo Stellantriebe Vertriebs GmbH

EV015R2+BAC

Electr. 2-way PI-CCV Belimo Energy Valve™, AC/DC 24 V, BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud, 2...10 V, DN 15, Internal and external thread, Rp 1/2"G 3/4", PN 25, ps 1600 kPa, V'nom 0.42 l/s, Fluid temperature -10...120°C [14...248°F], Glycol monitoring

Characterised control valve with thermal energy meter, sensor-operated flow or power control, power and energy monitoring function, 2-way, internal and external thread, PN 25

Nominal voltage AC/DC 24 V
Control modulating, communicative, hybrid
For closed cold and warm water systems
For modulating control of air-handling and heating systems on the water side
Ethernet 10/100 Mbit/s, TCP/IP, integrated web server
Communication via BACnet, Modbus, Belimo MP-Bus or conventional control
PoE (Power over Ethernet) Power supply possible
Conversion of sensor signals
Glycol monitoring

EP015R-R6+BAC

Electr. 6-way PI-CCV EPIV, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 2...10 V, DN 15, Internal thread, Rp 1/2", PN 16, ps 1600 kPa, V'nom 1260 l/h, Fluid temperature 6...80°C [43...176°F]

Characterised control valve with sensor-operated flow control, 6-way, Internal thread, PN 16 (EPIV)

Nominal voltage AC/DC 24 V
Control modulating, communicative, hybrid
Two sequences (cooling/heating) with one 90° rotary actuator
Switching or modulating control on the water side of thermal heating/cooling elements
For closed cold and warm water systems
Communication via BACnet MS/TP, Modbus RTU, Belimo-MP-Bus or conventional control

C615QP-B+BAC

PI Zone Valve, 6-way, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, DN 15, Internal thread, Rp 1/2", PN 16, ps 1600 kPa, V'nom 210 l/h, Fluid temperature 6...80°C [43...176°F]

PI Zone Valve, 6-way, Internal thread, PN 16

Nominal voltage AC/DC 24 V
Control modulating, communicative, hybrid
For closed cold and warm water systems
Switching or modulating control on the water side of thermal heating/cooling elements
Two sequences (cooling/heating), changeover with 6-way characterised control valve
Pressure-independent flow control by 2-way PI zone valve (PIQCV)
Communication via BACnet MS/TP, Modbus RTU, Belimo MP-Bus or conventional control

P-22RTM-1U00D-2

Room Operating Unit CO₂ / Humidity / Temperature active, NFC, Modbus, BACnet, ePaper touch display and LED, PC, white, RAL 9003

Room Operating Unit CO₂ / Humidity / Temperature

For measuring the temperature, humidity and CO₂ in the room and adjusting temperature and ventilation setpoints. The high-contrast ePaper touch display ensures best readability and intuitive operation. Thanks to MP-Bus, Modbus RTU and BACnet MS/TP communication, the room operating units can be seamlessly connected to existing third-party controllers. Commissioning and parametrisation of the device is conveniently done with the Belimo Assistant App.
