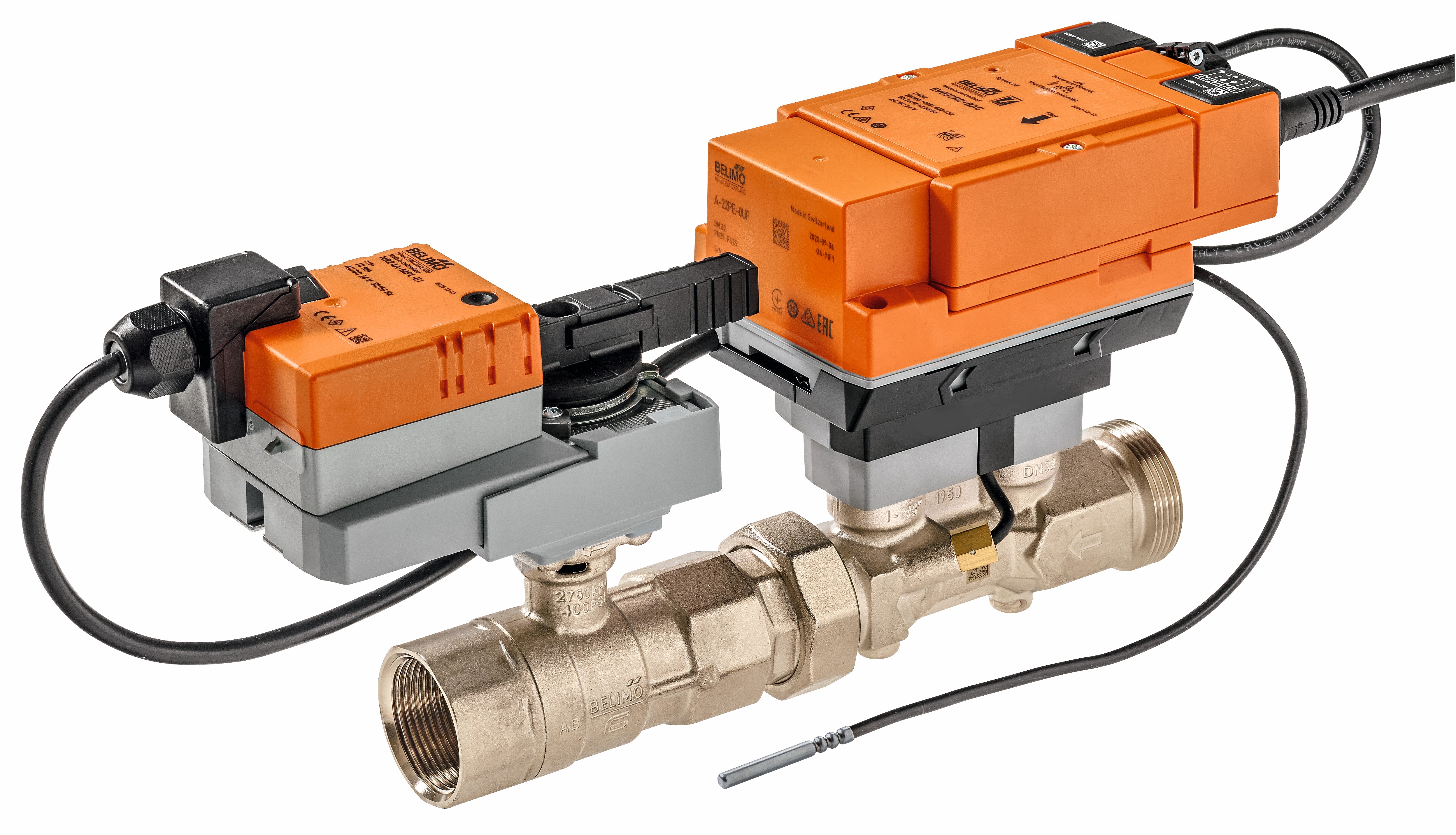

Electr. 2-way PI-CCV Belimo Energy Valve™, AC/DC 24 V, BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud, 2...10 V, DN 15, Internal and external thread, Rp 1/2"G 3/4", PN 25, ps 1600 kPa, V'nom 0.42 l/s, Fluid temperature -10...120°C [14...248°F], Glycol monitoring

Characterised control valve with thermal energy meter, sensor-operated flow or power control, power and energy monitoring function, 2-way, internal and external thread, PN 25

• Nominal voltage AC/DC 24 V
• Control modulating, communicative, hybrid

• For closed cold and warm water systems

• For modulating control of air-handling and heating systems on the water side

• Ethernet 10/100 Mbit/s, TCP/IP, integrated web server

• Communication via BACnet, Modbus, Belimo MP-Bus or conventional control

• PoE (Power over Ethernet) Power supply possible

• Conversion of sensor signals

• Glycol monitoring
