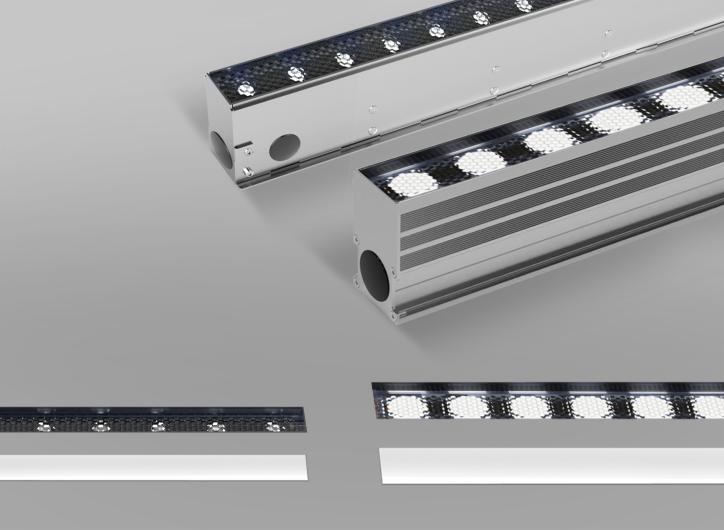

Terragon 40 and Terragon 80 is a highly specified series of inground linear luminaires. Designed with the premium quality materials ensuring great performance and durability. The aluminum housing and stainless steel frame offer superior resistance to weathering and corrosion, ensuring the luminaire remains aesthetically pleasing. TERRAGON provides a perfect blend of form and function, featuring a sleek and modern design that will elevate any outdoor space. It is perfect for wall washing, as it provides a uniform and consistent distribution of light, ensuring evenly illuminated surfaces. TERRAGON comes with customizable tilt angle, giving a complete control over the final lighting outcome.

Antiglare control through the use of either honeycomb or micro louvre options.

Available in clear, opal or in various beam angles.

Adjustable tilt angle ±15° for the IP67 model.

Fixed tilt angle 0°,2.5°,5.0°,7.5° for the IP68 model.

Supplied with input cable & IP 68 connector as standard.

Possibility for in-out cables & connectors upon request as extra.

Walk Over: Up to 500kg (5kN).

Maximum Static Load: Up to 2000kg (20kN).

Ingress Protection: IP68 for fixed tilt models/ IP67 for adjustable tilt models.

IK Rate: IK 07

Recessed & Flat Recessed models. Suitable for marine and harsh environment applications.

Cost effective models at 24VDC or high efficient models from 24VDC up to 48VDC.

L90/B10 50.000h for monochromatic models.

L70/B10 50.000h for RGBW & TW models.

By Electron SA

Click It System is an elegant contemporary system ideal for highly demanding aesthetically spaces. The system is available in surface, pendant and trimless version. Flexibility and easiness in the repositioning of the luminaires with a click. It is offered with a vast variety of accessories for limitless design in the final layout.

Click it Spots include: three sized spots, zoom spot, frame and gobo spots.

Click it Linear luminaires include: linear spots, linear wash, and four sized linear ambient luminaires.

Click it Tubes include: two sized tubes rotatable 340degrees ensuring an interesting pattern.

Click it Decorative luminaires include: two pendant cylindrical fixtures, a bell shaped luminaire, a sphere spot and a pendant sphere.

The system is offered in 42 PWM Dimmable or 48 DALI Dimmable.

Low tolerances for colour temperature (3step MacAdam), Lumen maintenance L90/B10 50.000h.

Low UGR ensuring visual comfort

By Electron SA

Elegant Max II is the new model of Elegant series, ideal for outdoor architectural applications. It is unique for wall washing due to the different wall bracket lengths and the maintenance of the pitch between the luminaires. It ensures the highest glare control through antiglare accessory offered as extra. It can also be offered (besides the input cable with IP68 connector offered as standard) with an extra output cable with IP68 connector, chain connection (30.5cm only in standard version). It is available upon request in different RAL colours. Marine treatment to meet the most demanding weather conditions available upon request.

It is available monochromatic (L90/B10 50.000h) and RBGW (70/B10 50.000h).

Lighting management options:

On-Off/DALI/DMX512/IR/RF/PUSH BUTTON

• Ingress Protection: IP66
• LED: CREE LEDs
• Main body: Natural anodized anticorodal aluminium EN AW-6060.
• Protective cover: 3mm tempered Low-Iron glass.
• Finishes (End caps): Anticorodal die cast aluminium alloy AS12 with 2 anti-corrosion powder coatings (primer & polyester).
• Mounting brackets: Natural anodized Anticorodal aluminium EN AW-6060 with INOX-304 metal parts.
• Optics: PMMA collimating lens.
• Gaskets: Silicone rubber.
• Connector: Nylon 66. Fire resistance V-0 (only for standard version, not ECO).
• Screw Vent: PC
• Pressure equalization: Screw Vent (Breather) 190ml/min@0,07bar.
• Cable gland: Nickeled brass. IP68.
• Printed circuit: Insulated metal substrate PCB.
• Power cords: 50cm, suitable for outdoor use, halogen-free good chemical resistance, cold resistant, UV-resistant, temperature range for fixed installation -50oC to +80oC.
• Screws: Stainless steel.
• Accessories Materials: Ground brackets/ Wall brackets /Antiglare: Natural anodized Anticorodal aluminium EN AW-6060 with INOX-316 metal parts.

By Electron SA

Disc, Eclipse, Loop, and Orbit family of luminaires is a complete series of round and square with rounded corners luminaires available in surface, pendant, recessed and trimless application. The surface version is offered either with Direct illumination or with Direct illumination combined with a decorative Indirect lighting effect. The Pendant version is offered with Direct or with Direct and Indirect illumination. All models have dimming options of 1-10V, DALI or Wireless control.

Each type of the luminaire consists of two models: High Power and High Efficiency. ossibility for Low Glare (UGR<22*) as an option in the High Power model. Possibility for Low UGR (UGR<19*) as an option in the High Efficiency model.

Luminaire material aluminium & cover material PMMA. Powder Coated: Black (RAL9005), White (RAL9003), or Grey (RAL7037) as standard, but custom colours also available on request. Low tolerances for colour temperature (3step MacAdam), Lumen maintenance L80/B10 50.000h. Emergency Function capability. (3 hours, with build-in rechargeable battery). Indoor Use: IP40. Custom sizes also available upon request.

• Disc sizes: Ø270, Ø400, Ø580, Ø850, Ø1130, Ø1420 mm
• Eclipse sizes: Ø580, Ø850, Ø1130, Ø1420 mm
• Loop sizes: 319X319, 469X469, 609X609, 879X879, 1149X1149, 1419X1419mm
• Orbit sizes: 609X609, 879X879, 1149X1149, 1419X1419mm

By Electron SA
