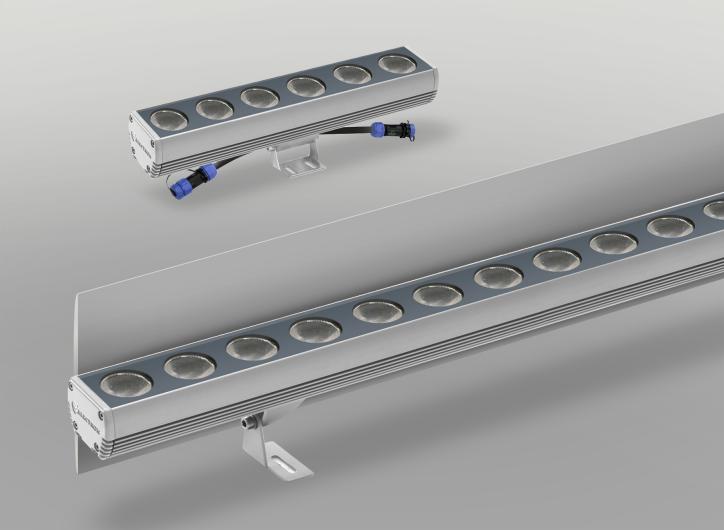

Elegant Max II is the new model of Elegant series, ideal for outdoor architectural applications. It is unique for wall washing due to the different wall bracket lengths and the maintenance of the pitch between the luminaires. It ensures the highest glare control through antiglare accessory offered as extra. It can also be offered (besides the input cable with IP68 connector offered as standard) with an extra output cable with IP68 connector, chain connection (30.5cm only in standard version). It is available upon request in different RAL colours. Marine treatment to meet the most demanding weather conditions available upon request.

It is available monochromatic (L90/B10 50.000h) and RBGW (70/B10 50.000h).

Lighting management options:

On-Off/DALI/DMX512/IR/RF/PUSH BUTTON

• Ingress Protection: IP66
• LED: CREE LEDs
• Main body: Natural anodized anticorodal aluminium EN AW-6060.
• Protective cover: 3mm tempered Low-Iron glass.
• Finishes (End caps): Anticorodal die cast aluminium alloy AS12 with 2 anti-corrosion powder coatings (primer & polyester).
• Mounting brackets: Natural anodized Anticorodal aluminium EN AW-6060 with INOX-304 metal parts.
• Optics: PMMA collimating lens.
• Gaskets: Silicone rubber.
• Connector: Nylon 66. Fire resistance V-0 (only for standard version, not ECO).
• Screw Vent: PC
• Pressure equalization: Screw Vent (Breather) 190ml/min@0,07bar.
• Cable gland: Nickeled brass. IP68.
• Printed circuit: Insulated metal substrate PCB.
• Power cords: 50cm, suitable for outdoor use, halogen-free good chemical resistance, cold resistant, UV-resistant, temperature range for fixed installation -50oC to +80oC.
• Screws: Stainless steel.
• Accessories Materials: Ground brackets/ Wall brackets /Antiglare: Natural anodized Anticorodal aluminium EN AW-6060 with INOX-316 metal parts.

 By Electron SA
