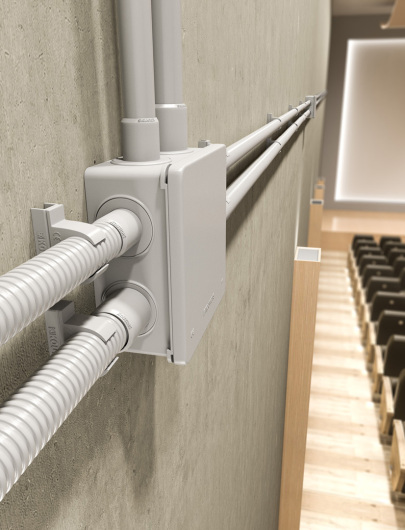

Solutions for outdoor exposed installations with high mechanical requirements

The specification of the appropriate building materials depending on the kind of installation and the application field ensures both the safety and the sustainability of an electrical installation.

KOUVIDIS has designed since 1990 an integrated heavy type conduit system named CONDUR – CONFLEX (1250Nt, 6J) whose special characteristics make it ideal for outdoor exposed installations which require increased safety measures and high mechanical requirements such civil engineering (industrial buildings, infrastructure projects) and electric power stations.

CONDUR – CONFLEX was the first heavy type plastic conduit system that was produced in Greece and has been replaced the metal conduits over time. It has gained the trust of the electrician installer because of its high quality and has been used in hundreds of construction projects counting zero non-conformities

Examples of application fields

Infrastructure projects, public buildings, industrial buildings, electric power stations

Product specifications

• Exceptional resistance to UV radiation >10 years
• The product does not attract rodents (European Patent: EP2698792)
• It has been tested and certified by VDE German Institute
• High compression (1250Nt) and impact (6J) resistance, (heavy type) in low temperature of -25oC
• Compliance with RoHS Directive

Solutions for places where ISO 22000 Food and Safety MS (HACCP) is applicable or hygiene is priority

Even in the cleanest environment where good hygiene practices are employed, microbial contamination will occur because of factors like air circulation and human contact. Once microbes are present on surfaces, there is an undesirable risk of cross contamination within that environment and beyond.

Antimicrobial materials offer an additional layer of protection to conventional cleaning which is useful in reducing the number of microbes in an environment, but antimicrobial technology can be beneficial in keeping the numbers of microbes relatively low in between episodes of cleaning.

As a pioneer in developing products for specific applications KOUVIDIS has designed an innovative medium type (750Nt) conduit system with antimicrobial technology with the brand MEDISOL AM - MEDIFLEX AM. MEDISOL AM - MEDIFLEX AM is ideal for hygiene places where people are in continuous exposure to pathogenic germs and cleanliness is imperative.

Antimicrobial protection ensures a reduction of up to 99% of the most dangerous bacteria within 24 hours. A reduction in the bacteria can be observed within the first 15 minutes. Antimicrobial efficacy is tested according to international standard ISO 22196 and is controlled by the British laboratory BIOCOTE.

Examples of application fields

Ideal for sanitary areas (hospitals, medical centers & laboratories) and public spaces (schools, nursery homes/rooms & sport centers) and areas requiring implementation of HACCP ISO 22000 system such as food industries/warehouses, restaurants, etc.

Product specifications

• Specially stabilized thermoplastic U-PVC with extra UV stability
• Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE
• Prevention about 99% of most common pathogens (MRSA, E-coli)
• Compliant with the European Biocidal Products Directive 98/8/EC
• White color (RAL 9003) facilitates inspection and cleaning
• The system maintains its antimicrobial activity even if any of its parts happen to get scratched
• Compliance with RoHS Directive
• The product does not attract rodents

New generation of double layer conduits with anti-electromagnetic technology for exposed type installations

MEDISOL PLUS – MEDIFLEX PLUS is a pioneering double layer conduit system ideal for exposed, indoor/outdoor installations and for concealed type electrical installations such as concrete. Following the method of co-extrusion of 2 layers along with the use of special stabilized, heavy metals free (RoHS), halogen free (EN 50642), low smoke (EN 61034-2) and low acidity (ΕΝ 60754-2) raw materials, rigid MEDISOL PLUS and pliable MEDIFLEX PLUS conduits achieve high mechanical strength and flexibility, guarantying a safer electrical installation and low environmental footprint.

The corrugated external wall of MEDIFLEX PLUS provides the necessary flexibility and the required mechanical strength. The internal layer follows the geometry of the outer layer, facilitating the smooth insertion of the cables due to the ultra-slip material that is added which reduces the friction up to 40%.

Thanks to the development of anti-electromagnetic technology, part of the radiation originating from cabling is isolated within the interior layer, while the interference created between circuits (weak and strong currents) is minimized.

Examples of application fields

Ideal for exposed installations, indoor/outdoor, and concealed type installations in concrete, hollow walls, underfloor in screed and underplaster.

Product specifications

• Lower friction up to 40% due to special ultra-slip material added in the internal layer (test conducted according to IEC/TR 62470)
• Halogen free - iodine, bromine, chlorine, etc. - raw materials
• Low smoke and low acidity in case of fire
• High compression (750Nt) and impact (2J) resistance, (medium type) in low temperatures of -15οC for MEDIFLEX PLUS and -25οC for MEDISOL PLUS
• The inner layer incorporates an innovative Anti - Electromagnetic Technology
• Very good performance over concrete chemical substances
• High mechanical resistance in high temperature of (105oC)
• Not attractive to rodents (European Patent EP2698792)

Cable protection solutions for concealed type installations such as dry wall, underplaster, sub-ceiling and sub-floor

The pioneer 3layer plastic conduits system SUPERSOL PLUS and SUPERFLEX PLUS are designed to provide cable protection solution for electrical installations in dry wall, underplaster, sub-ceiling and sub-floor. Following the method of co-extrusion of 3 layers along with the use of special stabilized, halogen free (EN 50642, ΕΝ 60754-2) and low smoke (EN 61034-2) raw materials, SUPERSOL PLUS and SUPERFLEX PLUS conduits achieve light type compression to resistance (320Nt) and medium type impact resistance (2J), making the installer’s work easier and much safer.

The external layer provides the necessary mechanical strength whilst the inner layer facilitates the smooth insertion of the cables due to the ultra-slip material that is added and reduces the friction up to 40% (SUPERFLEX PLUS) and 20% (SUPERSOL PLUS). Finally, the third independent layer consists of indelible longitudinal lines which distinguish power cable protection from telecommunications cable protection.

Thanks to the development of anti-electromagnetic technology, part of the radiation originating from cabling is isolated within the interior layer, while the interference created between circuits (weak and strong currents) is minimized.

Combined with the new specially designed clips, made of polypropylene, the new connection couplers, in yellow color, and the innovative metallic clamps for dry wall, SUPERSOL PLUS and SUPERFLEX PLUS compose the definite conduits system for electrical concealed light type installations.

Examples of application fields

Ideal for concealed type installations in plasterboard, cavity walls and sub-ceiling, in indoor spaces such as office buildings, hotel rooms and residences.

New stellar generation of three-layer conduits for exposed and concealed type installations

DUROSOL PLUS - DUROFLEX PLUS is a 3layer conduit system that drives the revolution in exposed outdoor installations, guarantying more than 10 years resistance to UV radiation, while in concealed type installations is the best solution for concrete applications. Following the method of co-extrusion of 3 layers along with the use of special stabilized, heavy metals free (RoHS), halogen free (EN 50642, ΕΝ 60754-2) and low smoke (EN 61034-2) raw materials, rigid DUROSOL PLUS and pliable DUROFLEX PLUS conduits achieve high mechanical and chemical resistance and make the electrician’s work easier, faster and safer while at the same time they leave a low environmental footprint.

DUROFLEX PLUS is the first double structured wall conduit in small diameters of Ø20, Ø25, Ø32 to be manufactured in Europe. The corrugated external wall of the conduit provides the necessary flexibility and the required mechanical strength with the use of less raw materials. The internal smooth wall ensures the smooth insertion of the cables while at the same time there is also an internal cable guide that facilitates the routing of the cables. The third independent layer of longitudinal lines, in indelible color, creates a long-lasting color marking between electrical installations and communication systems.

The innovative 3layer plastic conduits system DUROSOL PLUS - DUROFLEX PLUS comes with a range of accessories such connection coupler, clip, adaptor and junction box with knock out seals, all in black color.

Examples of application fields

Ideal for exposed outdoor installations and concealed type installations in concrete, hollow walls, underfloor in screed and underplaster.

Product specifications

• Lower friction up to 50% due to special ultra-slip material added in the internal layer (test conducted according to IEC/TR 62470)
• Halogen free - iodine, bromine, chlorine, etc. - raw materials
• Low smoke and low acidity in case of fire
• High compression (750Nt) and impact (2J) resistance, (medium type) in low temperatures of -15οC for DUROFLEX PLUS and -25οC for DUROSOL PLUS
• UV resistance (>10 years)
• Very good performance over concrete chemical substances
• High mechanical resistance in high temperature of (105oC)

Not attractive to rodents (European Patent EP2698792)

Double wall conduits with color marking for buried underground energy and telecommunication networks.

GEONFLEX & GEOSUB double wall conduits are two of the most precious products in KOUVIDIS history because they have changed the protection of cables in buried underground installations in Greece. After 12 years in the market they have been placed in hundreds of construction projects with great success gaining installers and engineers respect due to their high quality and their distinctive advantages.

Applying its 12 years manufacturing know-how on structured wall conduits, KOUVIDIS presented a new even smaller diameter of Ø 32 providing more flexibility in buried underground installations. KOUVIDIS is the only European company that produces plastic conduits for buried underground networks in diameters of Ø32, Ø40, Ø50, Ø63, Ø75, Ø90, Ø110, Ø125, Ø160, Ø200, Ø250.

Examples of application fields

Ideal for buried underground power and telecommunication networks, urban development projects, RES urban development projects and construction projects

Product specifications

• Halogen free - iodine, bromine, chlorine, etc. - raw materials
• Test reports by the independent German Institute VDE
• 11 available diameters from Ø32 to Ø250
• Not attractive to rodents (European Patent EP2698792).
• Compliance to RoHS Directive
• Red color coding for protection of cables in electrical installations, green color coding for protection of cables in communication systems
• UV stabilized (> 5 years)
• Conduits come with cable guide for easier introduction of cables
• Relevant couplings with locking cam and end plugs are available for assembling
• GEONFLEX N750 conduits incorporate a special material (slip) on its internal smooth surface to facilitate easier introduction and guiding of cables thanks to the significant reduction in friction.
