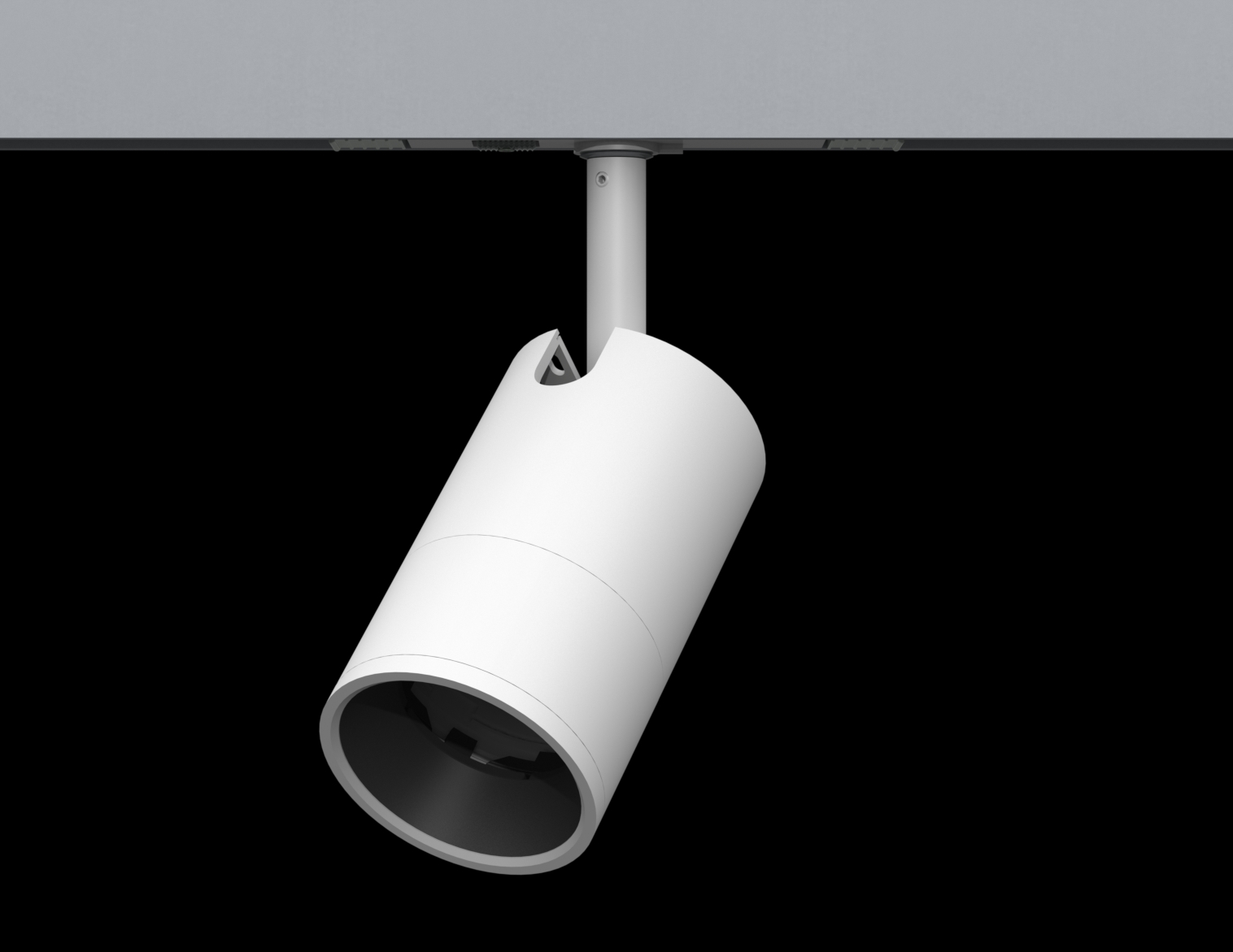

The result of years of research, the C2Z includes a variable 15° - 35° zoom object.  The C2-series also includes wallwash, fixed focus object, framing projector and super narrow 4 degree spot. The C2-Series's discrete 2” diameter size and minimalist cylindrical form house a powerful LED engine, capable of producing up to 1600 Lumens and 98 CRI in color temperatures ranging from 2700K - 4000K . Available with on-board dimming, and with an effective range of application between 9’ [2.75M] - 18‘ [5.5M], the C2 Series is one of the most versatile museum-grade LED lines on the market.  It is also availabe in Dim-to-Warm and Tunable White variants, and is ideal for use in Museum, Retail, Corporate, Hospitality and Residential.

C2Z: 2" [26mm] diameter cylinder fixture, track or canopy mounted with fully recessed, individually dimmable driver, 10-30 degree zoom, 1600 Lumens, 98 CRI, for use in ceilings from 9' [2.75M] - 18' [5.5M].

C2W: The ideal complement to the C2Z, the C2W provides even ceiling-to-floor wallwashing for ceilings between 9’ [2.75M] and 18’ [5.5M]. The specially designed kick-reflector includes space for up to 2 additional optical media and reduces glare. The small, minimalist profile fits seamlessly into gallery, high-end residential, corporate and other architectural environments.

C2O: Providing an additional level of control, the C2O utilizes fixed-focus interchangeable optics providing 10°, 22° and 32° beam-spreads. The C2O’s specially designed accessory cartridge has space for up to 3 media, with a wide array of optical media for enhanced light manipulation available. On-board dimming allows for individual control of fixture heads during focusing, and the C2O’s tilt-lock mechanism ensures that fixtures stay focused once set.

C2S: Punchy and precise, the C2S Very Narrow 6° Spot provides pin-point lighting for sculpture or small objects. Available in up to 810 Lumens, the C2S uses a specially designed glare reducing accessory cartridge that can hold up to three media, including spread lenses and louvers.

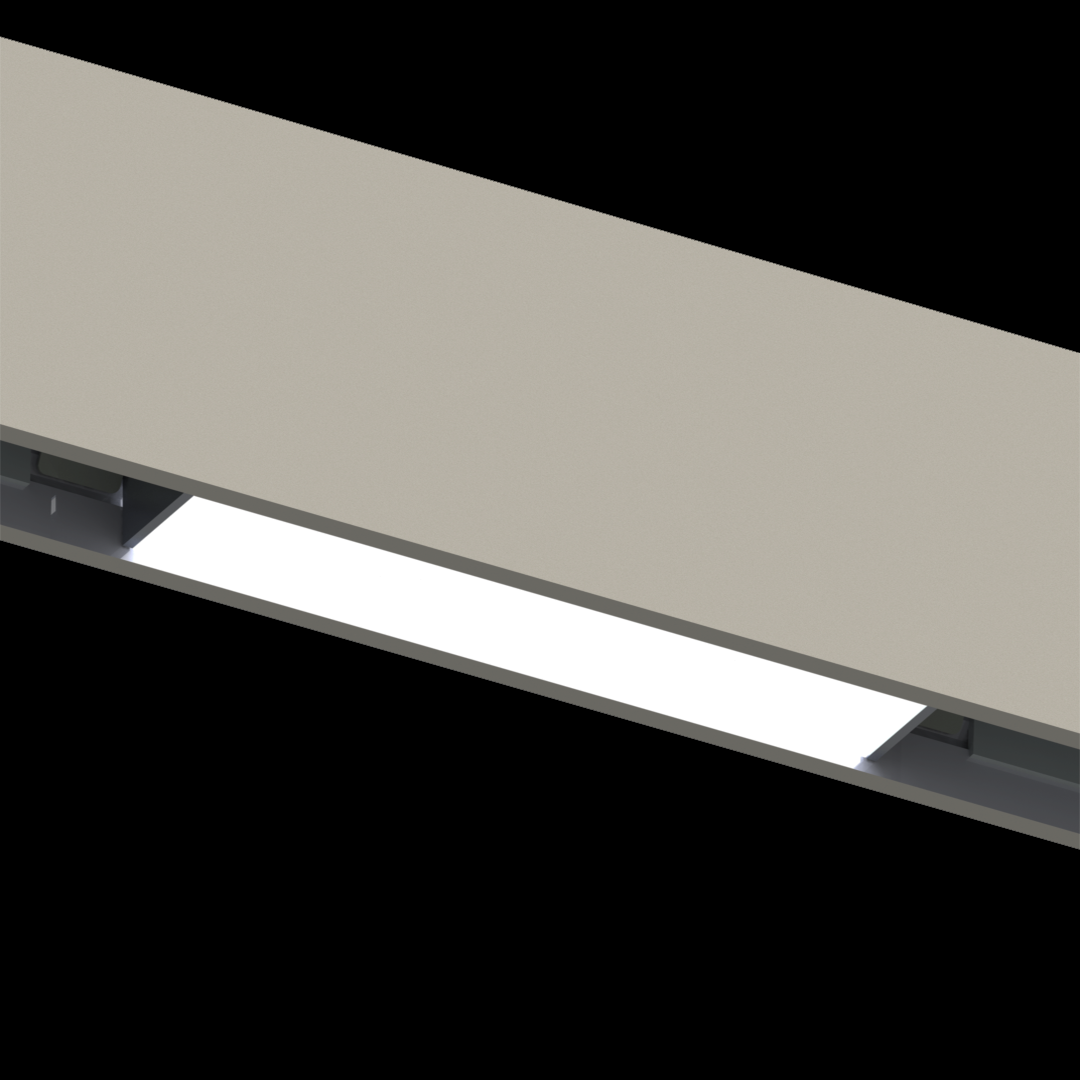

Our goal is to provide illumination technologies that either disappear into the architectural environment, or integrate into it in a way that complements the formal, spatial, and organizational vocabulary of the building or landscape.  The LBUS emergency fixture is a fully recessed, hidden emergency luminaire that fits inside Recessed, Hanging and Surface-Mounted BusRun.  With output sufficient to illuminate paths of egress in spaces from 9' - 24' tall, the LBUS emergency LED integrates seemlessly into almost any space.

With the advance of new media, and the rise of digital media and interactive art, the ability to provide a robust physical and digital infrastructure is important to many of today's galleries, museums and hospitality venues.  The Busport was designed to provide a retractable theatrical rigging interface that disappears into the ceiling when not used.  The largest BusPort provides up to 4 power and data outlets, as well as space for two BusPipe extenders for mounting fixtures, projectors, sensors and other devices.  Capable of supporting up to 2500 lbs, the system also has a hoist to enable the raising of large media-enabled displays.

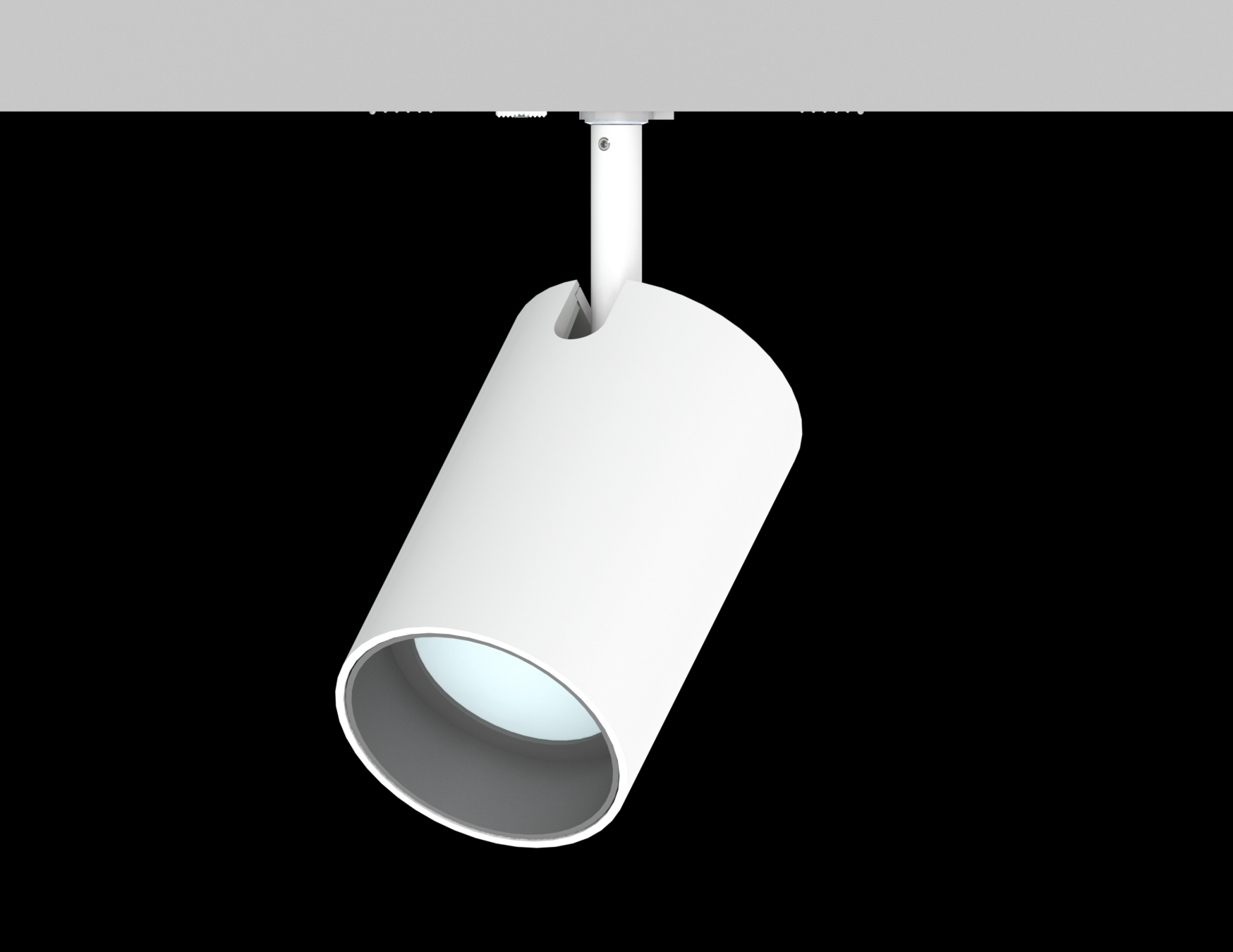

The result of years of collaboration with leading lighting designers, architects, curators and conservators, the C3 Series represents Litelab’s ongoing commitment to performance, quality and design. It includes a variable 10° - 30° zoom object, wallwash, fixed focus object, framing projector and super narrow 4 degree spot. The Cylinder Series‘s discrete 3” diameter size and minimalist cylindrical form house a powerful LED engine, capable of producing up to 1800 Lumens and 98 CRI in color temperatures ranging from 2700K - 4000K . Available with on-board dimming, and with an effective range of application between 9’ [2.75M] - 24‘ [7M], the Cylinder Series is one of the most versatile museum-grade LED lines on the market. The Cylinder Series is used in both The Museum of Modern Art, New York, and the Culture Shed, and was awarded 2019 Editor’s Choice Product of the Year in Lighting by Architectural Record. Ideal for application in Museum, Gallery, Residential, Retail and Corporate environements, the Cylinder Series is a paragon of form, flexibility and functionality.


C3Z: 3" [76mm] diameter cylinder fixture, track or canopy mounted with fully recessed, individually dimmable driver, 10-30 degree zoom, 1800 Lumens, 98 CRI, for use in ceilings from 9' [2.75M] - 24' [7.31M].

C3W: The ideal complement to the C3Z, the C3W provides even ceiling-to-floor wallwashing for ceilings between 9’ [2.75M] and 24’ [7.31M]. The specially designed kick-reflector includes space for up to 2 additional optical media and reduces glare. The small, minimalist profile fits seamlessly into gallery, high-end residential, corporate and other architectural environments.

C3O: Providing an additional level of control, the C3O utilizes fixed-focus interchangeable optics providing 10°, 22° and 32° beam-spreads. The C3O’s specially designed accessory cartridge has space for up to 3 media, with a wide array of optical media for enhanced light manipulation available. On-board dimming allows for individual control of fixture heads during focusing, and the C3O’s tilt-lock mechanism ensures that fixtures stay focused once set.

C3P: The C3P provides a high level of versatility in a minimal footprint. Four tensioned shutters allow installers and designers to shape beams to design intent, while interchangeable optical tubes provide focus angles of 11°, 22°, 33° and 54° for in-field adjustability based on exhibition needs. Standard pin-spot Gobos provide additional flexibility, with beam-spreads between 1° - 52°.

C3S: Punchy and precise, the C3S Very Narrow 4° Spot provides pin-point lighting for sculpture or small objects. Available in up to 810 Lumens, the C3S uses a specially designed glare reducing accessory cartridge that can hold up to three media, including spread lenses and louvers.

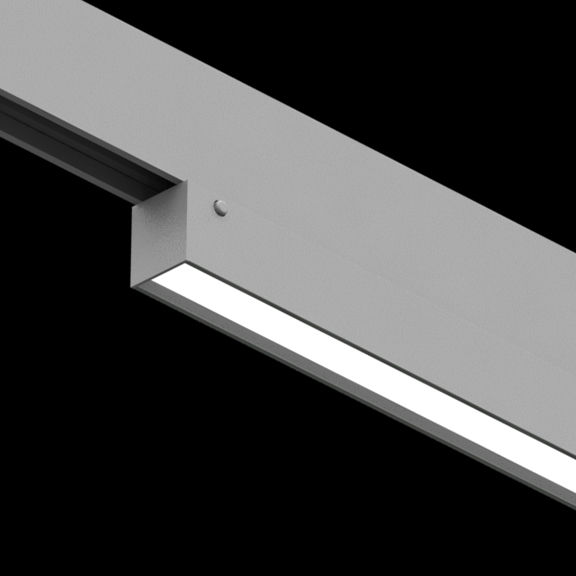

The L-OS provides a minimalist modern profile with a high output, high CRI linear light source. Available in high and low output options, the L-OS features an impressive 95 CRI. At only 1-1/4" wide and 1-1/2" total height to the bottom of Litelab's BusRun, the LineLite is a discrete, but powerful addition to any lighting repertoire. Interchangeable optics provide lighting designers with an additional degree of flexibility. Ideal for use in corporate, retail and cultural applications.
