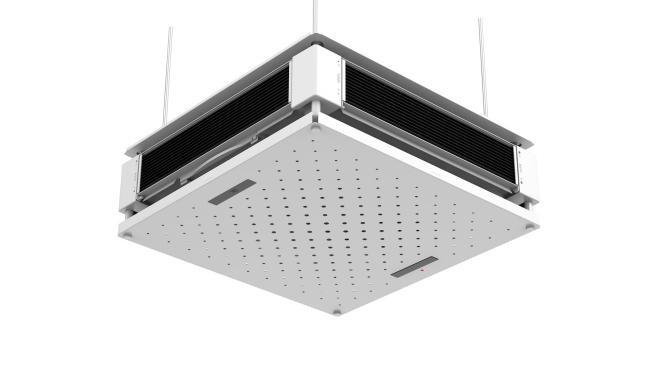

This system is high output UVC disinfection machine for occupied space. It’s a four sides of the upper room radiation light design to improve the purification range and efficiency, four sides of the UV-C ultraviolet radiation is on the upper air, which is installed at 2.5m height and achieve RG zero standard under 2.1m, so that the upper space is purified while commercial activities continue below.

This is an upper air system with China & US patent design, we adopt wave type target optical control technology. The regular upper air UV-C device is without target optical control design. But we adpot the new target optical control technology for grille position on the device to control the UV-C ray angle and then maximum utilization rate of the UVC irradiation.

It’s a high watt UV-C device which is 150w. The ultraviolet radiation intensity at 1m is 100μw/cm²for one side. What’s more, it’s with aluminum reflector for UV-C tube. Comparison of sterilization efficiency with same time, the device with built-in aluminum reflector can improve up to 18%.

This upper air unit is with a high speed air circulation system. There is a centrifugal fans inside, it is with four side outlet design on the device, which can quickly form air convection through the fan, accelerate the indoor air circulation, increase the killing rate per unit time. And the fan can be adjustable to the different speed.

In order to make the upper air uvc device more safety to use, we designed four built-in PIR sensor for the device, one side with one PIR sensor. The UVC tube lamp will stop working to prevent UVC light from hurting people or animals and improve product safety when a person enters the UVC ultraviolet radiation area.

The built-in UV-C tube lamp is with pull-out design. After removing the fan screw at one end of the power cord, the uvc tube and power supply module can be drawn out as a whole, which is convenient for replacement and maintenance.

There is a digital display on the device. It can show the current working state, infrared remote control to adjust the function, more convenient to use. And you can use the default remote control to set disinfection time, fans speed, even turn on the fans if you would like to use it in some special area.

This device is with UV-C quartz tube for four sides. If you want to replace the tube, it’s also very easy. It’s opening type design, you can use the tools to open the grid and then replace the UV-C tube.

This upper air equipment offers targeted, high-level UV disinfection in high-risk areas. You can use it in indoor but wide space, like offices, medical clinics, retail, food stores, hotels, schools, banks, toilets and other public places.
