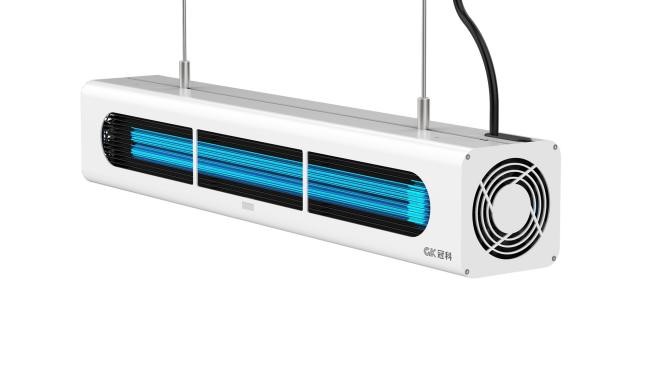

The product name is Wallpuri. Wallpuri, WALL means the main installation is wall mounted, PURI means the device can purify the air.

As we known, there are many similar 180°upper air disinfection device on the market already. However, we make it difference.

Wallpuri is an upper air system with China & US patent design, we adopt wave type target optical control technology. The regular upper air UV-C device is without target optical control design. GK is the first one to use this new technology for grille position on the device. The new technology can control the UV-C ray angle and then make the device design in ultra thin and less weight. At the same time, the black grille design can absorb useless UV rays and then maximum utilization rate of the UVC irradiation.

Wallpuri is with ultra cutting edge design concept to make a Light + Ultra thin + High device. Light design means less weight, it’s only 6Kg. Ultra thin design means that compared with the similar products on the market, it’s the most ultra-thin design on the world. High design includes two part, one is high power of 85W, and one is high UVC intensity, the ultraviolet radiation intensity at 1m is 170μw/cm². What’s more, it’s with aluminum reflector for UV-C tube. Comparison of sterilization efficiency with same time, the device with built-in aluminum reflector can improve up to 18%.

Wallpuri is an upper air disinfection UVC device with two industrial fans for two end sides. The industrial fan can speed up the air flow then improve the disinfection efficacy. The industrial fan is with a very long lifespan of 70,000hours and the noise can be under 40dp. Kindly please check the noise testing.

Wallpuri is with RG zero standard when the height is under 2.1m and the installation height should be at 2.3m height. In order to make the upper air uvc device more safety to use, we designed a built-in PIR sensor for the device. The UVC tube lamp will stop working to prevent UVC light from hurting people or animals and improve product safety when a person enters the UVC ultraviolet radiation area.

The built-in UV-C tube lamp is with pull-out design. After removing the fan screw at one end of the power cord, the uvc tube and power supply module can be drawn out as a whole, which is convenient for replacement and maintenance.

About the installation, wall mounted or hanging for options. It’s available for hospital, school, shop, office, bank etc.

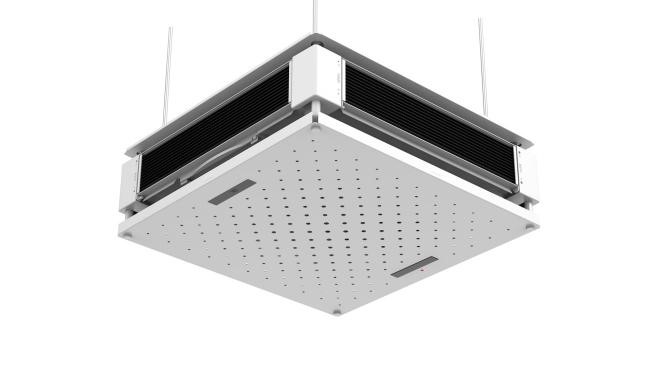

This system is high output UVC disinfection machine for occupied space. It’s a four sides of the upper room radiation light design to improve the purification range and efficiency, four sides of the UV-C ultraviolet radiation is on the upper air, which is installed at 2.5m height and achieve RG zero standard under 2.1m, so that the upper space is purified while commercial activities continue below.

This is an upper air system with China & US patent design, we adopt wave type target optical control technology. The regular upper air UV-C device is without target optical control design. But we adpot the new target optical control technology for grille position on the device to control the UV-C ray angle and then maximum utilization rate of the UVC irradiation.

It’s a high watt UV-C device which is 150w. The ultraviolet radiation intensity at 1m is 100μw/cm²for one side. What’s more, it’s with aluminum reflector for UV-C tube. Comparison of sterilization efficiency with same time, the device with built-in aluminum reflector can improve up to 18%.

This upper air unit is with a high speed air circulation system. There is a centrifugal fans inside, it is with four side outlet design on the device, which can quickly form air convection through the fan, accelerate the indoor air circulation, increase the killing rate per unit time. And the fan can be adjustable to the different speed.

In order to make the upper air uvc device more safety to use, we designed four built-in PIR sensor for the device, one side with one PIR sensor. The UVC tube lamp will stop working to prevent UVC light from hurting people or animals and improve product safety when a person enters the UVC ultraviolet radiation area.

The built-in UV-C tube lamp is with pull-out design. After removing the fan screw at one end of the power cord, the uvc tube and power supply module can be drawn out as a whole, which is convenient for replacement and maintenance.

There is a digital display on the device. It can show the current working state, infrared remote control to adjust the function, more convenient to use. And you can use the default remote control to set disinfection time, fans speed, even turn on the fans if you would like to use it in some special area.

This device is with UV-C quartz tube for four sides. If you want to replace the tube, it’s also very easy. It’s opening type design, you can use the tools to open the grid and then replace the UV-C tube.

This upper air equipment offers targeted, high-level UV disinfection in high-risk areas. You can use it in indoor but wide space, like offices, medical clinics, retail, food stores, hotels, schools, banks, toilets and other public places.

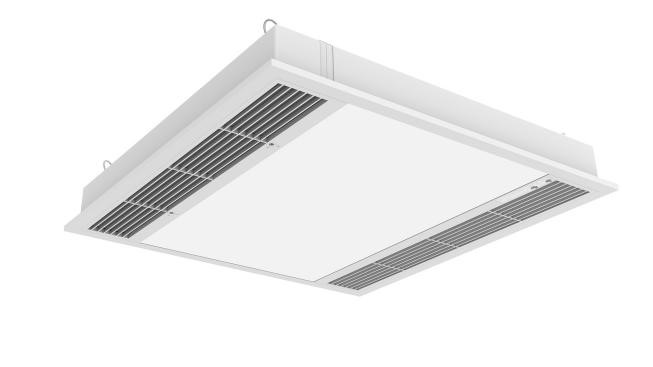

This device is a panel light appearance but with disinfection function. We call it as panelpuri.

It is a hybrid LED white lighting and UVC disinfection light. It’s a 100% RG0 air uvc disinfection design for occupied area, which can be used for any strictly photobio safety countries or area.

This unit is with a high speed air circulation system. There is a centrifugal fans inside, it is with four side outlet design on the device, which can quickly form air convection through the fan, accelerate the indoor air circulation, increase the killing rate per unit time. And the fan can be adjustable to the different speed.

The built-in UV-C tube lamp is with pull-out design. After removing the fan screw at one end of the power cord, the uvc tube and power supply module can be drawn out as a whole, which is convenient for replacement and maintenance. And there are a filter inside, which can be replaced.

There is a digital display on the device. It can show the current working state, infrared remote control to adjust the function, more convenient to use. And you can use the default remote control to set disinfection time, fans speed, even turn on the fans if you would like to use it in some special area.

What’s more, there are different size for options such as 2*2 and 2*4 to replace the existing led panel light or new installation on the ceiling.

• Full range wattage optional in one series

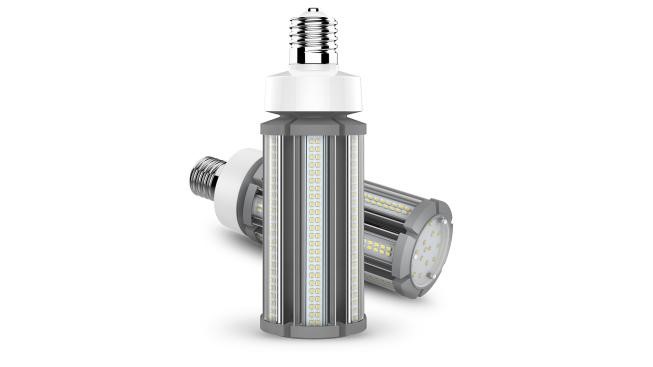

Compared with the regular led corn bulb on the market, the double adjustable led corn bulb is available from 18w to 120w which can replace 50w HPS/HID/HQI etc traditional street light. And it can be used for total enclosed fixtures with a good heat dissipation, which the fixture like post top, shoebox, wall pack, highbay etc., even 120w this kind of high watt.

• Intelligent interface design

The double adjustable led corn bulb is designed with an intelligent interface. It’s available to work with different plug&play sensors from GK. And this kind of design is with China and US patent protection.

• Double adjustable function

The first adjustable function is 3 selectable CCT which is 3000K/4000K/5000K for options. It indicates you can save the SKU on inventory.

The second adjustable function is watt choice on the plug and play sensor. GK develops a new sensor for different wattage switch 60%, 80%, 100%. For example, if you use 18w led corn bulb, the sensor settings at 60%, then the min wattage should be around 10w.

What’s more, GK have many different plug and play sensors to meet different fixture application, such as microwave sensor, PIR sensor, photocell sensor, WIFI sensor, Bluetooth sensor etc.

• Meet DLC 5.1 requirement

As we known, the HID retrofits like led corn bulb can apply DLC on US and Canada market. And the newest DLC requirement is 5.1 version, the bulb should be dimming and high lumen which is more than 150lm/w.

The double adjustable led corn bulb has listed DLC5.1 already. You can check the post on the offical website of DLC, and the model no. is GKS39-19.

• Quard-protection （None for other manufacturers）

Most of the led corn bulb are used for the total enclosed fixtures. An unstable grid or improper installation, such as the un-removal of ballast may cause high voltage in the circuit, this high voltage may lead to the varistor overheated,and then the driver housing may get on fire and burn.

The advantages of GK overvoltage/overheat protection products

• Varistor overheating protection

Preventing housing melting due to the heat from the varistor, which is caused by excessive voltage input from power grid or any failure components.

• Lamp body overheat protection
• Power supply overheat protection

Either overheat protection of the lamp body or the power supply is activated, the lamp power will drop to 70% of itself；if both are activated, the power will drop to 55%. When the lamp body and driver temperature is lower to the reset temperature,the lamp power will go back to 100% automatically.

• Overvoltage protection

Preventing the lamp from risk of overvoltage,when input voltage detection detect the input voltage is over 320V,the lamp will flicker and not lighting,when the input voltage go back to lower than 320V, the lamp will start to work normally automatically.

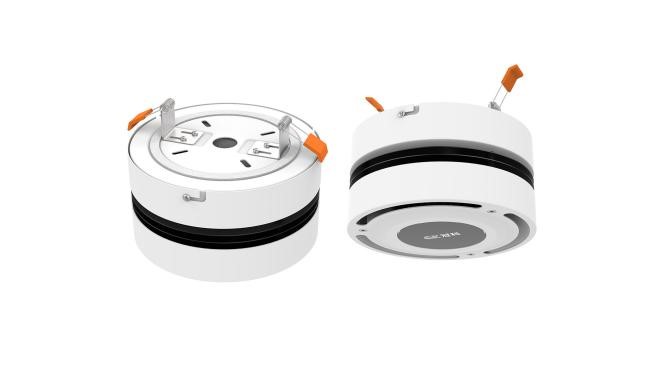

It’s called as Canpuri with China & US patent design, no only just for the appearance or structure design, but also for the mini upper air of targeted optical control technology.

UV-C air disinfection is more and more popular on the market, as it can solve the problem that UV-C products should be workable for occupied room. We need to consider two main points, which is efficiency and safety when we develop and design a new UV-C product.

Canpuri, this upper air device will look similar down light shape and same down light size which can replace the existing 5” & 6” down light or use the existing down light hole. It’s a great patent compact design, Canpuri is with RG zero standard when the height is under 2.1m and the installation height should be at 2.3m height. It’s the world’s first mini upper air disinfection UVC LED device with centrifugal fan.

GK adopts the newest UV LED technology at 275nm UVC led with a long lifespan of 10,000hours, avoid to replace the traditional UVC quartz tube. Canpuri is a upper air disinfection device for occupied room, which is total UVC led for the Upper air luminaries.

In order to speed up the air flow and improve the disinfection efficiency, GK designed a centrifugal fan inside for Canpuri. And there is a fan speed adjustable switch inside, there are 3 levels for options.

About the installation, there are various for options like ceiling, recessed etc. And Canpuri can be used for many public indoor places like hotel, restaurant, office, school, toilet, kitchen, bank etc.
