AEC Illuminazione S.r.l.

STYLO

Explore product

Hall4.0B50

See Floorplan

Address

AEC Illuminazione S.r.l.
Via Righi 4, Z.I. Castelnuovo
52010 Subbiano Arezzo
Italy

Telephone+39 0575 041110

Fax+39 0575 420878

Contact

Discover more from us

Our website

About us

With over 60 years of experience, AEC Illuminazione is an Italian company based in Tuscany, leader in the outdoor lighting market.

The company philosophy is the TOTAL QUALITY SYSTEM, which see the concentration of all the phases in the Italian headquarters. From the first design to the production of the products, all the steps take place in the AEC headquarters.

AEC has been recently a prestigious award: the Red Dot Design award 2018. The company product has been awarded for its special design. AEC is recognized all over the world for the design and the details of each products.

Important italian city lit up by AEC has been Milan in occasion of EXPO, Turin and abroad Oslo, Helsinki, Casablanca, Berlino, Auckland. The company has recently awarded an important tender for the new led lighting of important cities in Saudi Arabia.

AEC provides 100% made in italy efficient and smart solutions for street, urban, tunnel and indoor lighting.

Our product groups

Street lights

Keywords

Smart solutions
Sport area lighting
Outdoor lighting
Street lighting
tunnel lighting

Our Products

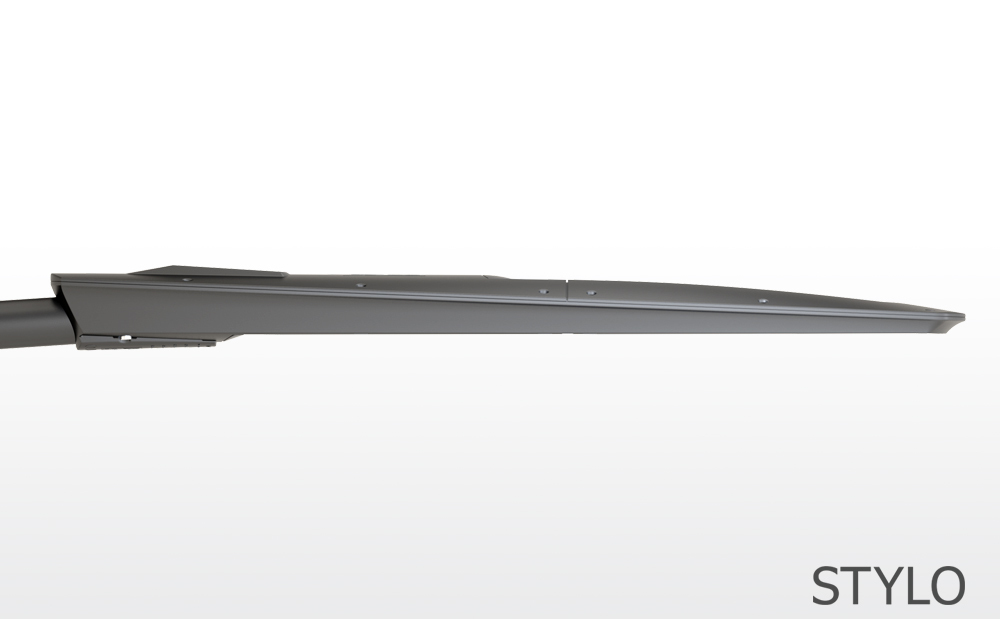

STYLO

STYLO is the new LED urban and steet products. The luminaire is featured by particular long shape, lines and innovative design. STYLO won the RED DOT DESIGN 2018 Award: It's one of the biggest and most important design awards in the world. An internationally recognized quality label by an expert jury for its high design quality.

MECHANICAL CHARACTERISTICS

Fixing canopy and body in die cast aluminium UNI EN1706 powder painted.
Gasket polyurethane without junction points.
Screen: high transparency flat tempered glass 5mm thickness or
polycarbonate screen UV resistant (in option).
Removable metal gear plate.
Cable gland plastic, M20x1,5 – IP68 (M25X1.5 - IP68 in option).
Protection degree:
IP66 | IK08 with polycarbonate screen.
IP66 | IK07 with flat tempered glass.

ELECTRICAL CHARACTERISTICS

Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current: 350mA | 525mA | 700mA
Power factor: > 0.9 (at full load).
For cable max section 4mm2
Integrated overvoltage protection:
SPD integrated 10kV-10kA, type II, with LED signal and thermo fuse to disconnect load at the end of life.
Pulse withstand >10 kV CM / DM
Available dimming options:
F: Fixed power not dimmable.
DA: Automatic dimming (virtual midnight) with default profile. DAC: Custom DA profile.
FLC: Constant light flux.
DB: Dual power with control wire.
WL: Wireless single point communication system. DALI: Digital dimming interface DALI.
NEMA: Socket 7 pin (ANSI C136.41).
ZHAGA: Socket 4 pin (Book 18).

AVAILABLE OPTICS

STU: Asymmetrical optic for street lighting (urban).
STE: Asymmetrical optic for street lighting (suburban).
STW: Asymmetrical optic for wide roads and wet asphalts lighting.
STA + STA 1: Asymmetrical optic for V and P categories.
SV: Asymmetrical optic for narrow urban streets or highway entrance/exit turns
S05: Asymmetrical optic for urban and street lighting.

OPTICAL UNIT CHARACTERISTICS

Modular optical system.
Led light source colour temperature: 4000K (3000K in option).
CRI: ≥70.

ARYA

ARYA is the new LED luminare for urban lighting of AEC. Its unmistakable design, attention to details and great variety of optics available, make it the perfect solution to confer a distinctive character to the urban landscape and maximize energy savings.

MECHANICAL CHARACTERISTICS

Fixing and body in die-cast aluminium UNI EN1706 powder coated.
Silicone gasket.
Tempered glass thickness 5mm.
Installations:
TP: post top installation ø60-ø76mm
Optical unit 99.85% aluminium with a surface finish in 99.95% with vacuum-sealed deposition. Alluminium grade class A+ (DIN EN 16268).
Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools without sealed parts with adhesives.
Weight and dimensions: 470x520x68 | Max 7 Kg
Protection degree IP66 | IK08
Powder coating graphite cod. 01 Corrosion protection: 1500hr saline fog ISO 9227.

ELECTRICAL CHARACTERISTICS

Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current:
Hyper Comfort 250 / 350mA
Pixled 400 / 500mA
Power factor: > 0.9 (at full load, F, DA, DAC).
Mains connection: external connector IP66/68 for cables max 2.5mm2.
Overvoltage protection up to 10kV in common and differential mode.
SPD (Optional) 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection.
Available dimming options:
F: Fixed power not dimmable.
DA: Automatic dimming (virtual midnight) with default profile. DAC: Custom DA profile. FLC: Constant light flux. WL-ZHAGA: Wireless single point communication system. DALI: Digital dimming interface DALI.
ZHAGA: Socket 4 pin (Book 18).

AVAILABLE PIXLED OPTICS

STU-S: Asymmetrical optic for street, urban and cycle-path lighting (narrow emission).
STU-M: Asymmetrical optic for street, urban and cycle-path lighting (medium emission).
STU-W: Asymmetrical optic for wide urban and suburban road lighting.
S03: Asymmetrical optic for wide urban and suburban road lighting.
S: Symmetrical optic for urban lighting and green areas.
STA/STA1: Asymmetrical optic for long interdistance and wide roads, V and P class.

AVAILABLE HYPER COMFORT OPTICS

HC-S: Hyper Comfort roto-symmetric optic for urban lighting and green areas.
HC-ST: Hyper Comfort asymmetrical optic for urban lighting and green areas.

OPTICAL UNIT CHARACTERISTICS

Modular optical system.
LED light source colour temperature: 4000K (3000K in option).
CRI: ≥70.

COMPASS

COMPASS is the new LED series for street and urban lighting. The luminaires are available with various fixings: TP: installation on post-top TP/BR: universal post-top/bracket TP-UB: urban post-top fixing AM: wall mounting TS: cable suspension S: suspended installation

MECHANICAL CHARACTERISTICS

Die casting aluminium body UNI EN1706 with low copper content for high protection against aggressive marine environment.
Polyurethane seal without junction points. Stainless steel closure springs.
Highly transparent tempered glass.
Installations:
TP: post-top ø60-76-102mm
TP/BR: universal post-top ø48-ø60mm or bracket ø42-ø60mm TP-UB: urban post-top ø60mm (only available on COMPASS 1)
AM: wall mounting
TS: suspended installation on cable ø5-ø12mm
S: suspended installation on bracket 1/2” GAS
Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools without sealed parts with adhesives.
Weight and dimensions: COMPASS 1: 540x87mm - 10.5kg COMPASS 2: 640x95mm - 13.5kg
Protection degree IP66 | IK08
Powder coating Graphite cod. 01. Corrosion protection: 1500hr saline fog ISO 9227.

ELECTRICAL CHARACTERISTICS

Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current: 400mA | 500mA.
Power factor: > 0.9 (at full load, F, DA, DAC).
Mains connection for cables max section 4mm2
Overvoltage protection up to 10kV in common and differential mode.
Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection.
Available dimming options:
F: Fixed power not dimmable.
DA: Automatic dimming (virtual midnight) with default profile. DAC: Custom DA profile. FLC: Constant light flux. WL: Wireless single point communication system. DALI: Digital dimming interface DALI.
NEMA: Socket 7 pin (ANSI C136.41).
ZHAGA: Socket 4 pin (Book 18).

AVAILABLE OPTICS

STU-S: Asymmetrical optic for street, urban and cycle-path lighting (narrow emission).
STU-M: Asymmetrical optic for street, urban and cycle-path lighting (medium emission).
STU-W: Asymmetrical optic for wide road lighting.
TS-S: Symmetrical optic for suspended lighting (narrow emission).
TS-M: Symmetrical optic for suspended lighting (medium emission.
TS-W: Symmetrical optic for suspended lighting (wide emission).
TS-03: Symmetrical optic for centre road lighting (extra wide emission).
S03: Asymmetrical optic for wide urban and suburban road lighting.

OPTICAL UNIT CHARACTERISTICS

Modular optical system PIXLED with aluminium reflector.
Led light source colour temperature: 4000K (3000K in option).
CRI: ≥ 70 (CRI ≥ 80 in option).

ALO

ALO is the new Led floodlight specially designed to meet the numerous lighting needs of sports facilities. It allows maximum design flexibility and guarantees high-performance and long-lasting lighting. The ALO series consists of two ALO 1 andALO 3, available in three different versions: with separate external driver for remote use with respect to the projector, with power supply pre-mounted on the fixing bracket and with patented MicroMoover barycentric fixing system.

Connection, heat sink and body in die-cast aluminum UNI EN 1706.
Removable optical system.
Efficiency up to 175lm/W.
Protection degree IP66 with with exchange valve membrane pressure. Mechanical resistance IK08.
Screen in flat tempered glass thickness 5mm.
Insulation class: I.
Power supply: 220÷400V - 50/60Hz.
LED current: 1000/1250mA.
Inclination: + 20° ÷ + 75°
Overvoltage protection ≥ 10kV CM/DM.
SPORT PROFESSIONAL CCT = 5700 K CRI ≥ 70-80-90 TLCI > 80 Flicker factor (FF) < 3%
SPORT RECREATIONAL CCT = 5700 K CRI ≥ 70-80 Flicker factor (FF) < 3% LARGE AREA CCT = 4000 K CRI ≥ 70 Flicker factor (FF) < 3%
DIMMING OPTION
F: Fixed power not dimmable. DALI: Digital dimming interface DALI. DMX: Digital dimming interface through DMX control.

STORY

The LED lantern STORY combines innovation of the most advanced LED technology, with the charm of a lantern with great aesthetic value. It is the perfect solution for urban lighting of modern and traditional contexts.

MECHANICAL CHARACTERISTICS

Fixing, canopy and body in die-cast aluminium UNI EN1706 powder coated.
Silicone gasket.
Screen in satinized flat tempered glass thickness 5mm.
Installations:
TP: post top installation ø60 (ø76mm optional) S: suspended installation on brackets 1/2” gas
Optical unit 99.85% aluminium with a surface finish in 99.95% with vacuum-sealed deposition. Aluminium grade class A+ (DIN EN 16268).
Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools without sealed parts with adhesives.
Weight and dimensions:
STORY TP: 415x615x415 - 9kg STORY S: 415x546x415 - 9kg
Protection degree IP66 | IK08
Powder coating graphite cod. 01 Corrosion protection: 1500hr saline fog ISO 9227.

ELECTRICAL CHARACTERISTICS

Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current:
Optic HYPER COMFORT 250mA | 350mA.
Optic TRIO 525mA | 700mA.
Power factor: > 0.9 (at full load, F, DA, DAC).
Mains connection: external connector IP66/68 for cables max section 2.5mm2
Overvoltage protection up to 10kV in common and differential mode.
Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection.
Available dimming options:
F: Fixed power not dimmable.
DA: Automatic dimming (virtual midnight) with default profile. DAC: Custom DA profile. FLC: Constant light flux. PLM: Power line single point communication system. WL: Wireless single point communication system. DALI: Digital dimming interface DALI.
NEMA: Socket 7 pin (ANSI C136.41)
ZAGHA: Socket 4 pin (ZHAGA Book 18)

AVAILABLE OPTICS

STU-M/ STU-S:Asymmetrical optic for street, urban and cycle-path lighting.
STE-M/ STE-S: Asymmetrical optic for suburban street lighting.
STW: Asymmetrical optic for wide urban and suburban road lighting, specific for wet asphalts.
S05: Asymmetrical optic for street, urban and green areas lighting.
SV: Asymmetrical optic for narrow urban streets or highway entrance/exit turns.
S: Roto-symmetrical optic for parking and urban areas.
HC-S: Hyper Comfort roto-symmetric optic for urban lighting and green areas.
HC-ST: Hyper Comfort asymmetrical optic for urban lighting and green areas.

OPTICAL UNIT CHARACTERISTICS

Modular optical system.
LED light source colour temperature: 4000K (3000K optional).
CRI: ≥70
