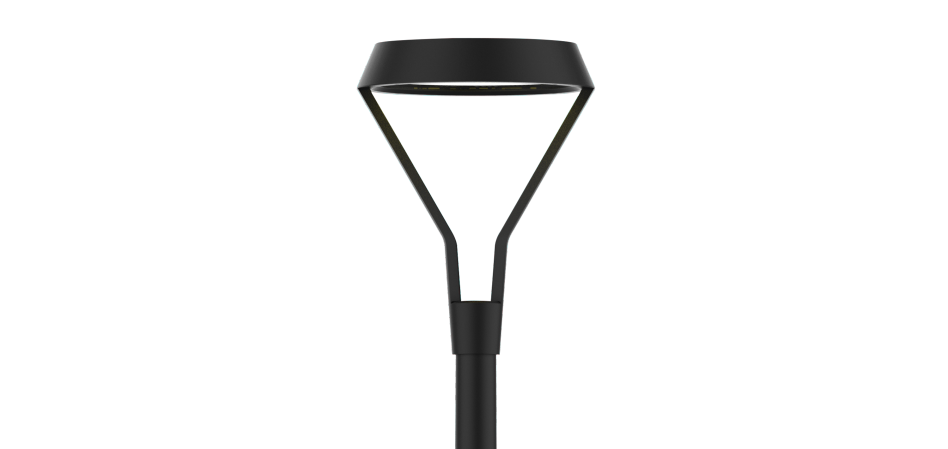

MONA II

LEGEND is designed for harsh outdoor conditions, ENEC certified Legend provides maximum energy savings with its high light efficiency. Legend, which is preferred in road, street and street lighting, provides excellent service for many years thanks to its driver and LED quality combined with its aluminum body.

LEGEND Specifications:


WARRANTY: 5 years

LED Luminaire Power: 75W , 100W , 125W , 150W

Luminous Flux: 9750 lm , 13000 lm , 16250 lm , 19500 lm

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP66

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 10KV(Common Mode) - 6KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Operating Temperature: (-40 °C)….(+50 °C)

Optional: SPD, Dali, Dimmable, Programmable Driver, Photocell, Nema Socket

Certificate: TSE , ENEC , CE , ISO


Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr

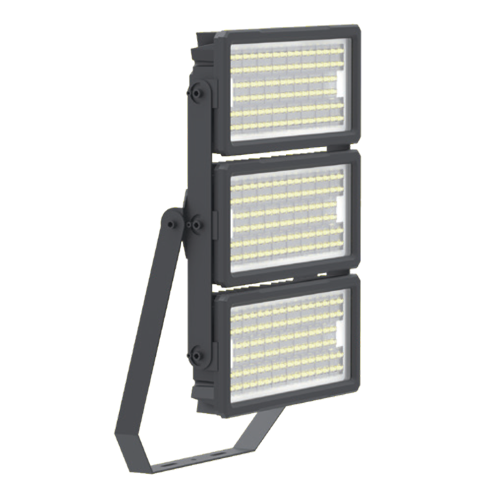

TOKYO one of the important members of our highly energy-efficient projector series, offers economical and long-lasting solutions thanks to its different sizes and quality components.

TOKYO Specifications:

WARRANTY: 5 years

LED Luminaire Power:
(TOKYO I : 240W , 320W , 400W)
(TOKYO II : 480W , 640W , 800W)
(TOKYO III : 960W , 1200W)

Luminous Flux:
(TOKYO I : 31200 lm , 41600 lm , 52000 lm)
(TOKYO II : 62400 lm , 83200 lm , 104000 lm)
(TOKYO III : 124800 lm , 156000 lm)

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP66

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 10KV(Common Mode) - 6KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Operating Temperature: (-20 °C)….(+40 °C)

Optional: SPD

Certificate: TSE , CE , ISO

Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr

HARE, one of our road and street lighting product group, offers long-lasting, economical and quality lighting services in all road lighting projects with its high lumen, suitable for all seasons, high energy saving and different power options.

HARE Specifications:

WARRANTY: 5 years

LED Luminaire Power: 200W , 240W

Luminous Flux: 26000 lm , 31200 lm

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP66

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 10KV(Common Mode) - 6KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Operating Temperature: (-40 °C)….(+50 °C)

Optional: SPD, Dali, Dimmable, Programmable Driver, Photocell, Nema Socket

Certificate: CE , ISO

Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr

HELIX, high power luminaire for industrial environments and very good light efficiency and ideal light distribution for industrial places and sheds and warehouses and large stores.

HELIX Specifications:

WARRANTY: 5 years

LED Luminaire Power: 75W , 100W , 125W , 150W , 200W

Luminous Flux: 9750 lm , 13000 lm , 16250 lm , 19500 lm , 26000 lm

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP65

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 4KV(Common Mode) - 4KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Optional: Dimmable, programmable, DALI driver, 1-3 hours emergency kit

Certificate: CE , ISO

Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr

LEGEND is designed for harsh outdoor conditions, ENEC certified Legend provides maximum energy savings with its high light efficiency. Legend, which is preferred in road, street and street lighting, provides excellent service for many years thanks to its driver and LED quality combined with its aluminum body.

LEGEND Specifications:


WARRANTY: 5 years

LED Luminaire Power: 75W , 100W , 125W , 150W

Luminous Flux: 9750 lm , 13000 lm , 16250 lm , 19500 lm

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP66

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 10KV(Common Mode) - 6KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Operating Temperature: (-40 °C)….(+50 °C)

Optional: SPD, Dali, Dimmable, Programmable Driver, Photocell, Nema Socket

Certificate: TSE , ENEC , CE , ISO


Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr

TOKYO one of the important members of our highly energy-efficient projector series, offers economical and long-lasting solutions thanks to its different sizes and quality components.

TOKYO Specifications:

WARRANTY: 5 years

LED Luminaire Power:
(TOKYO I : 240W , 320W , 400W)
(TOKYO II : 480W , 640W , 800W)
(TOKYO III : 960W , 1200W)

Luminous Flux:
(TOKYO I : 31200 lm , 41600 lm , 52000 lm)
(TOKYO II : 62400 lm , 83200 lm , 104000 lm)
(TOKYO III : 124800 lm , 156000 lm)

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP66

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 10KV(Common Mode) - 6KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Operating Temperature: (-20 °C)….(+40 °C)

Optional: SPD

Certificate: TSE , CE , ISO

Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr

HARE, one of our road and street lighting product group, offers long-lasting, economical and quality lighting services in all road lighting projects with its high lumen, suitable for all seasons, high energy saving and different power options.

HARE Specifications:

WARRANTY: 5 years

LED Luminaire Power: 200W , 240W

Luminous Flux: 26000 lm , 31200 lm

Luminous Efficacy: 130 lm/w (4000-6500K)

Color Temperature: 3000K-4000K-6500K

Color Rendering: >70

IP Protection: IP66

Body: Aluminium Injection

IK Class: IK08

Surge Protection: 10KV(Common Mode) - 6KV(Differential Mode)

Power Factor: >0,95

LED Lifetime: 100.000 hours

Operating Temperature: (-40 °C)….(+50 °C)

Optional: SPD, Dali, Dimmable, Programmable Driver, Photocell, Nema Socket

Certificate: CE , ISO

Product Link: https://detayaydinlatma.com.tr/legend-led-yol-armaturu

www.detayaydinlatma.com.tr
