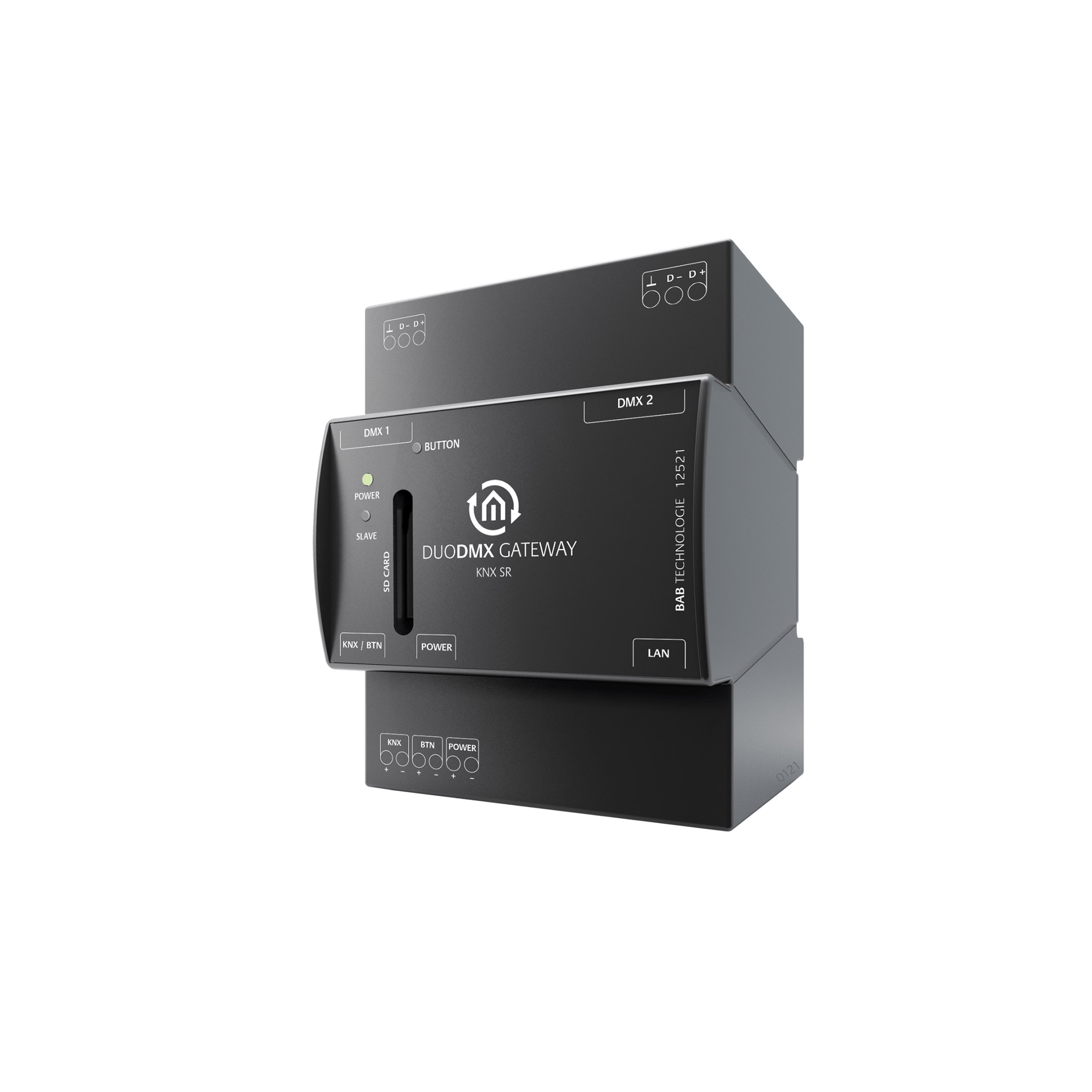

The DUODMX GATEWAY is the bi-directional KNX or EnOcean interface to the DMX world – easy to configure and flexible in use. Two configurable DMX interfaces, each with 512 channels, allow independent control of two DMX worlds. With the bi-directional SR versions you can control KNX participants from the DMX world – and vice versa. Various device variants and the wireless LAN option allow the use in almost every scenario. Easily link channels and scenes to KNX addresses using Drag ’n’ Drop. The professional DMX-configuration software «DMX-Configurator» makes it possible. With the free app for iOS® and Android®, you can also control the standalone versions intuitively and conveniently – without any bus system at all. The DUODMX GATEWAY is available as REG (4 division units) and built-in housing variant. The DUODMX GATEWAY in the flush-mount variant is ideally suited for retrofitting in ceilings or various mounting options due to its compact dimensions and the supply via POE. An adapter for top hat rail mounting is available as an option.


DUAL INTERFACES
The DUODMX GATEWAY has two separately controllable DMX interfaces. This means that two DMX worlds can be controlled independently of each other with one gateway at the same time. Another highlight are the bidirectional variants. You can use them to control KNX devices via a DMX master. The master or slave operation can be set per interface and is available for the variants 12521, 12111 (12111w) and 12121.

CONFIGURABLE VIA DRAG ‘N’ DROP
The included DMX software „DMX-Configurator“ offers a fast and easy configuration. KNX group addresses or EnOcean subscribers can be linked to DMX channels and scenes simply and intuitively via Drag ‘n‘ Drop. In addition to all necessary DMX-specific settings, the software also offers a preview function, instantly displaying the created scenes in the connected DMX world. The final configuration data is conveniently transferred to the DUODMX GATEWAY via network.

MULTIFUNCTIONAL DIMMING
All DMX channels can be dimmed and switched individually or in groups. This allows you to change lighting scenes at any time as desired. Relative and absolute dimming as well as switching on and off individual or several DMX channels enable optimum control via visualisation and/or KNX push-buttons. 3 and 4 byte values are also available for control with colour wheels. In addition, a soft on/off function is available for the first 128 DMX channels.

PROGRAMMABLE SEQUENCES
A popular feature of the DUODMX GATEWAY is its programmable sequences. Simply create the desired color impressions as sequences. The sequences run independently in DUODMX GATEWAY and can be called up at any time at the touch of a button. Created sequences can also be linked to each other. In addition to pressing a key, sequences can also be triggered via a potential-free contact input. In this way, you can implement simple “on-site” operation completely independent of the bus system.

FLEXIBLE THANKS TO KNX, ENOCEAN, WLAN AND POE
Whether KNX or EnOcean RF, wired or wireless: you are completely flexible when it comes to choosing the application options of the DUODMX GATEWAY. For use without a bus system, use one of our standalone versions – together with the free app for iOS® and Android®, the perfect choice for conventional installations without building system technology. The power supply for the built-in housing is either directly supplied to the device or via POE.
