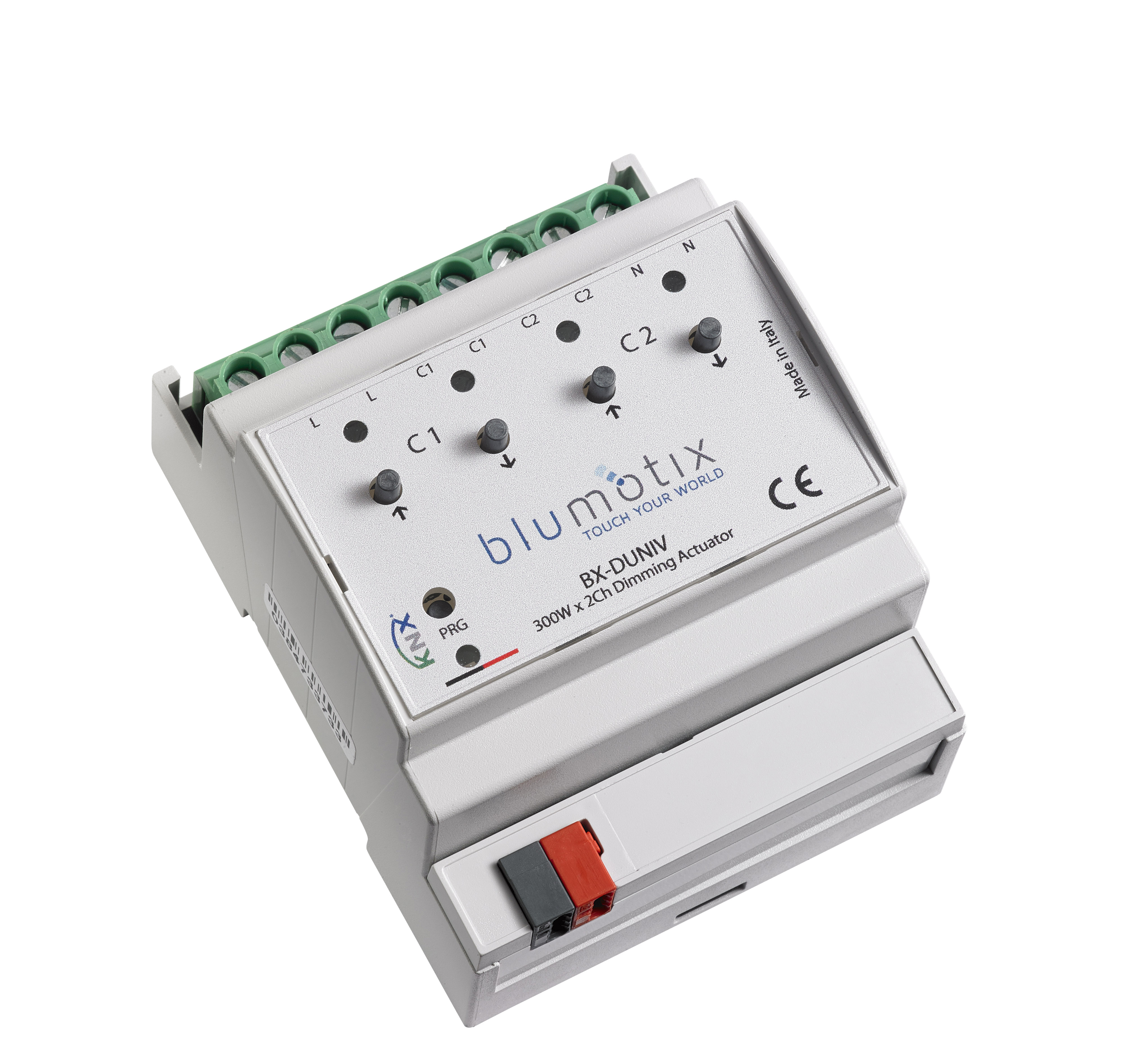

Universal KNX Blumotix dimmer actuator (RLC, LED, CFL) with 2 channels. BX-DUNIV is the dimmer capable of delivering up to 300 W at 230 V ac on each of the two available lines. The dimming curves can be configured to suit the type of light source used. Possibility of driving the lamps in two modes: “LE” Leading Edge, with start phase cut, and “TE” Trailing Edge, with end phase cut. The front panel features manual controls for adjusting the outputs.

BX-DUNIV is able to achieve low brightness, even with modern fluorescent lamps or LEDs, stabilises the brightness of energy-saving sources and solves unwanted side effects: buzzing, flashing, unstable operation.

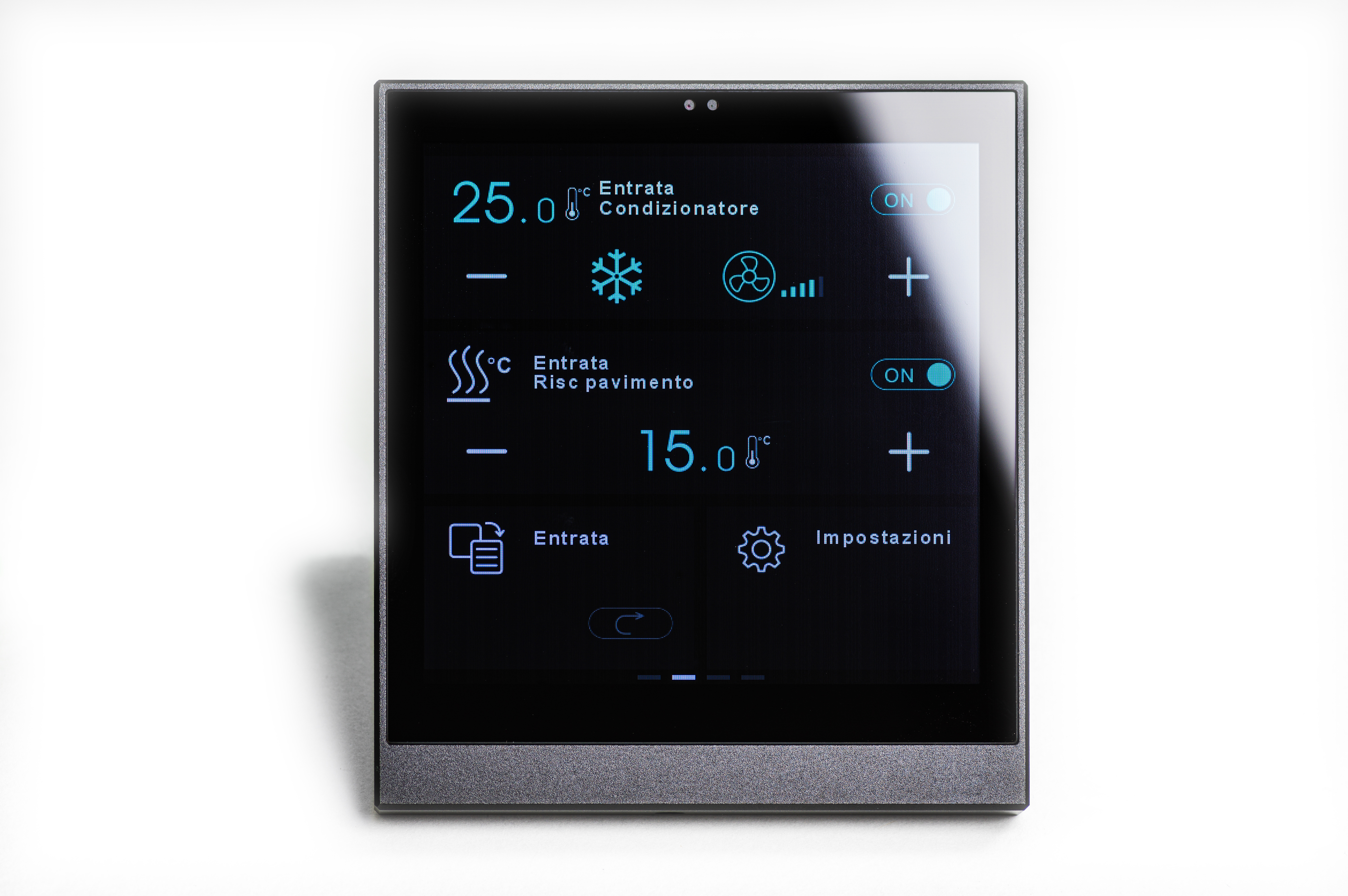

KRONOS4 is designed to integrate all the functions necessary for the supervision of homes and buildings in general. The touch panel allows you to control any KNX system in a simple and intuitive way. Made with an elegant design, the 4" Knx smart touch panel has an aluminum frame and body only 9mm thick. Flush-mounted installation on a 2-module square box. The 4" KNX smart touch by Blumotix is equipped with a temperature, humidity and laser proximity detection sensor. The touch controller has 10 programmable pages in addition to the thermostat and fan coil function. Scenarios, dimmer, on-off switching, curtains, shutters, thermostat, conditions customizable climate settings. Laser detection sensor setting up to 120cm with switching objects and dimmer. The touch panel requires an additional 12-24V (<50mA) power supply.

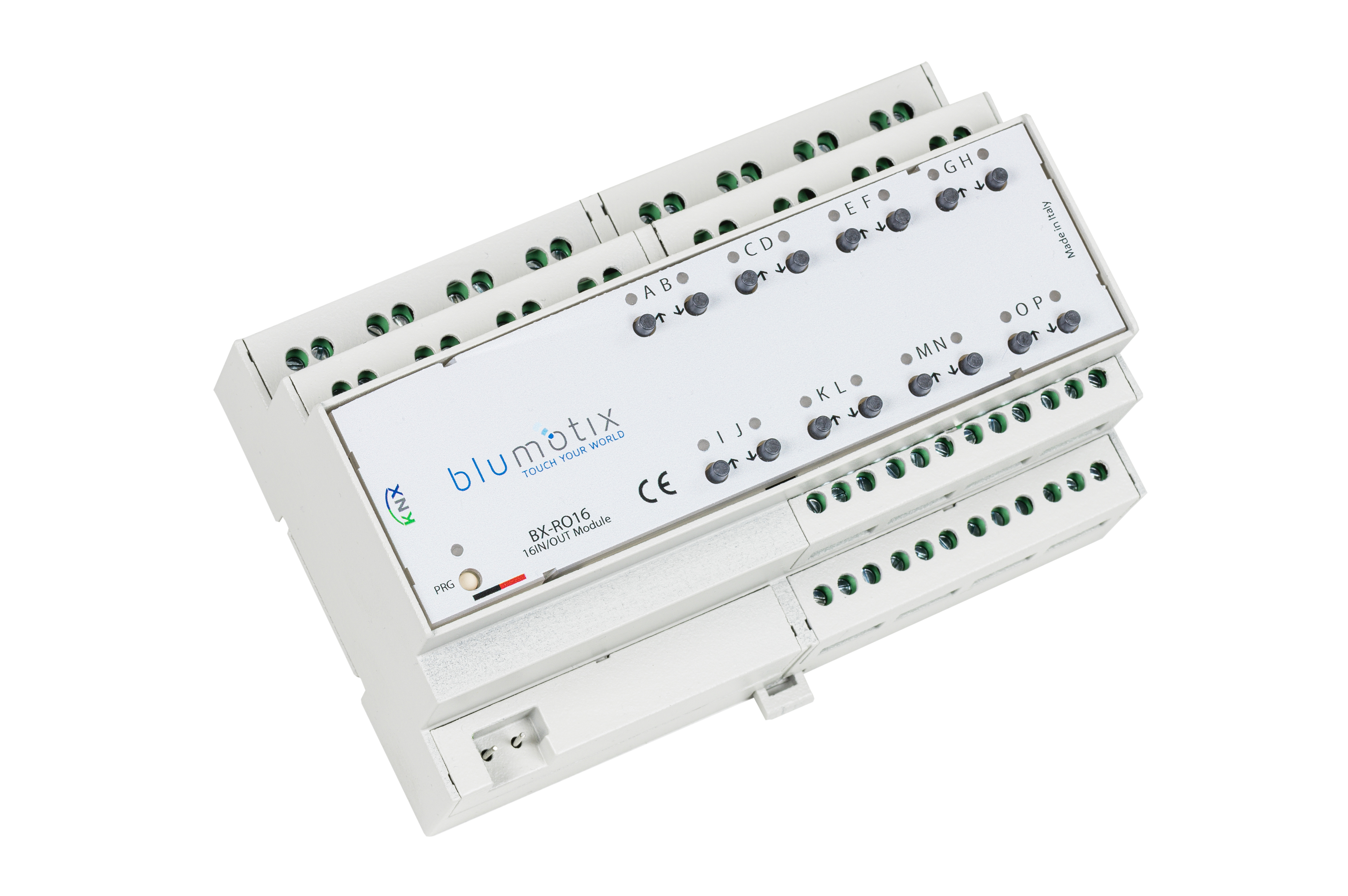

BX-RO16/BX-RO8 are 16/8-channel DIN-rail-mounted multifunctional actuator for independent switching of loads by by relay contacts. Switching of outputs can also be managed by buttons on the front panel. A green LED indicates the status of the channel. They are equipped with bistable relays with 16 A contacts directly connected to the terminals, without phase sharing. The screw terminals can accommodate wires up to 2.5 mm2 in cross section. The contacts can withstand an inrush current of up to 320 A in the first 2 ms, so they are particularly suitable for driving inductive loads typical of fluorescent or neon lamps. The devices provide switching functions, status notification, lockout command, forcing, timing, delays, scenarios, and management of roller shutters and blinds. They control valves with PWM algorithm and can drive multiple fancoil devices (2 or 4 pipes). They also have a set of logic functions consisting of 16 communication objects of input for each channel.

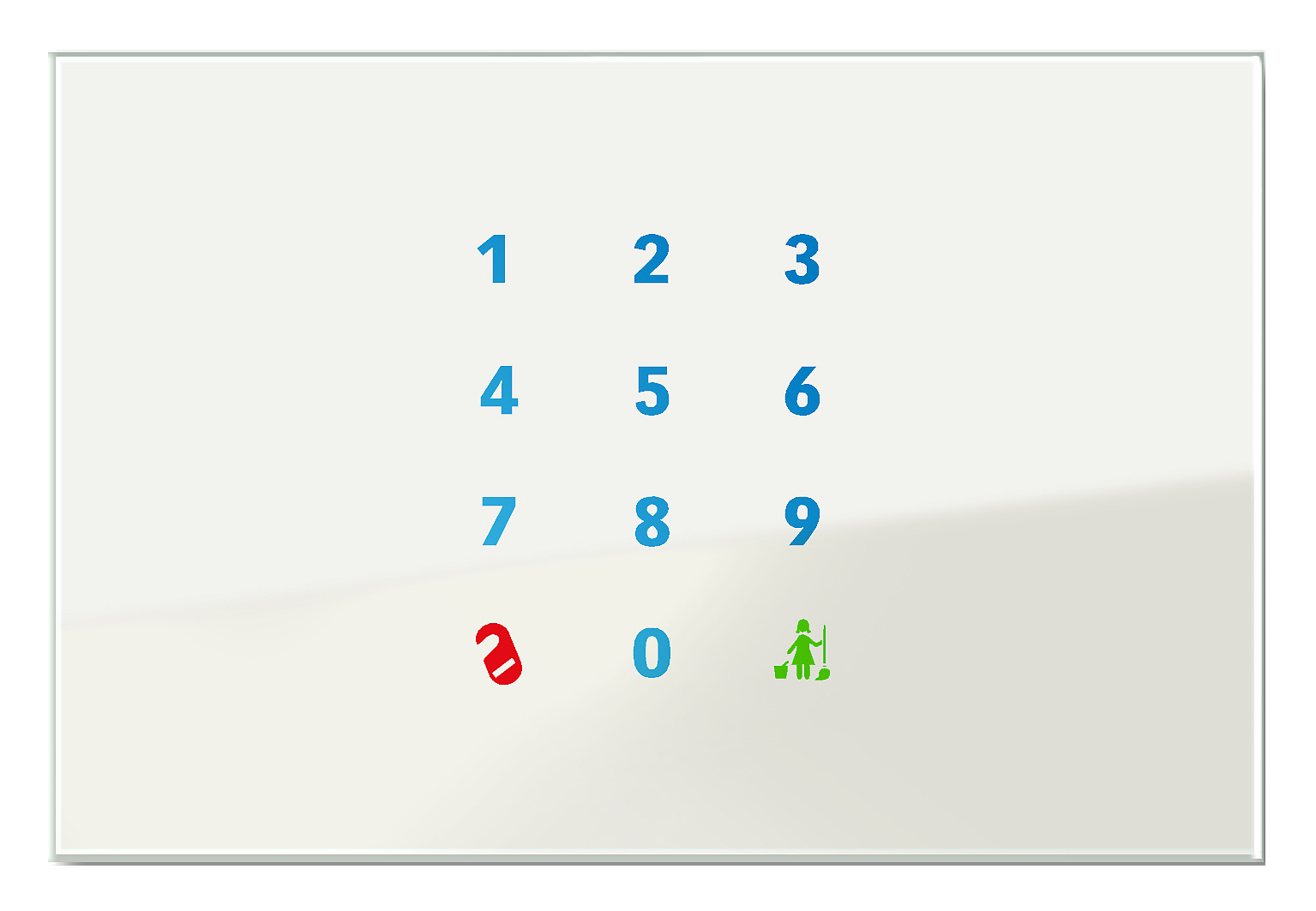

Doory is an smart numeric keypad that serves as an access control system. The Doory numeric keypad is a glass KNX touch device, backlit and equipped with a proximity sensor. It is particularly suitable for hospitality establishments, as the glass can be customised with a room number and standard functions, typical of hotel services (do not disturb, make up room).The keypad provides management of room access via numeric code without the need for any other support. Combined with the numeric keypad there is a glass KNX touch panel, to be installed inside the room, for the activation of functions related to the keypad and in direct communication with the reception for emergency signals.The numeric keypad access control system can be integrated with the BMS BX -NEMO software, which can be interfaced with the main hotel management systems on the market, allowing the supervision and management of the hotel’s systems and all its accesses from a smartphone, tablet or traditional PC.

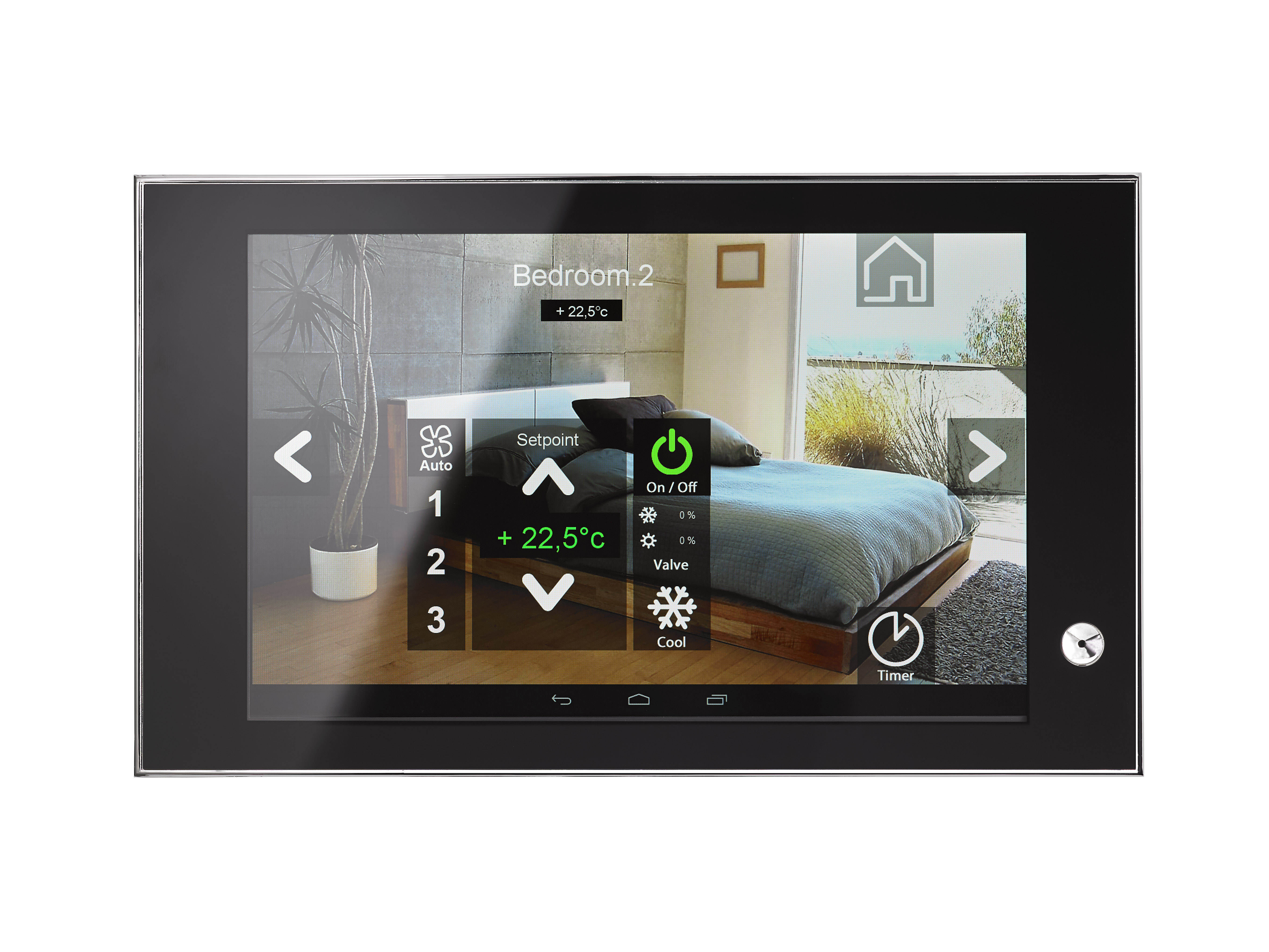

The THEO line is designed to integrate all the functions necessary for home control. THEO Touch Panels allow you to control any KNX installation in a simple and intuitive way. The use of multi-finger capacitive glass allows you to drag and slide the controls to make the use of the device even simpler and more intuitive. The IPS display offers HD quality video definition with a very wide vertical and horizontal viewing angle.

Technical features

• Output power Supply: 12 ÷ 24 V dc
• Power absorption: 15 W
• Display: 10,1” – IPS – 16:9 – 1280×800 pixel
• CPU iMx6 Dual Lite 1 GHz
• RAM DDR2 1 Gb
• Slot micro USB OTG
• Integrated BCU KNX
• Operating Temperature: -5 ÷ +45 °C (internal use)
• Connection to the BUS: coupling terminal, 2 pins, d=0,8 mm
• Degree of protection: IP20
• Dimensions: 282 x 168 x 12 mm

KNX functions

• Light control
• Window control
• Air conditioning
• Load control
• Camera management
• Timer and chronothermostat
• Scenario programming
