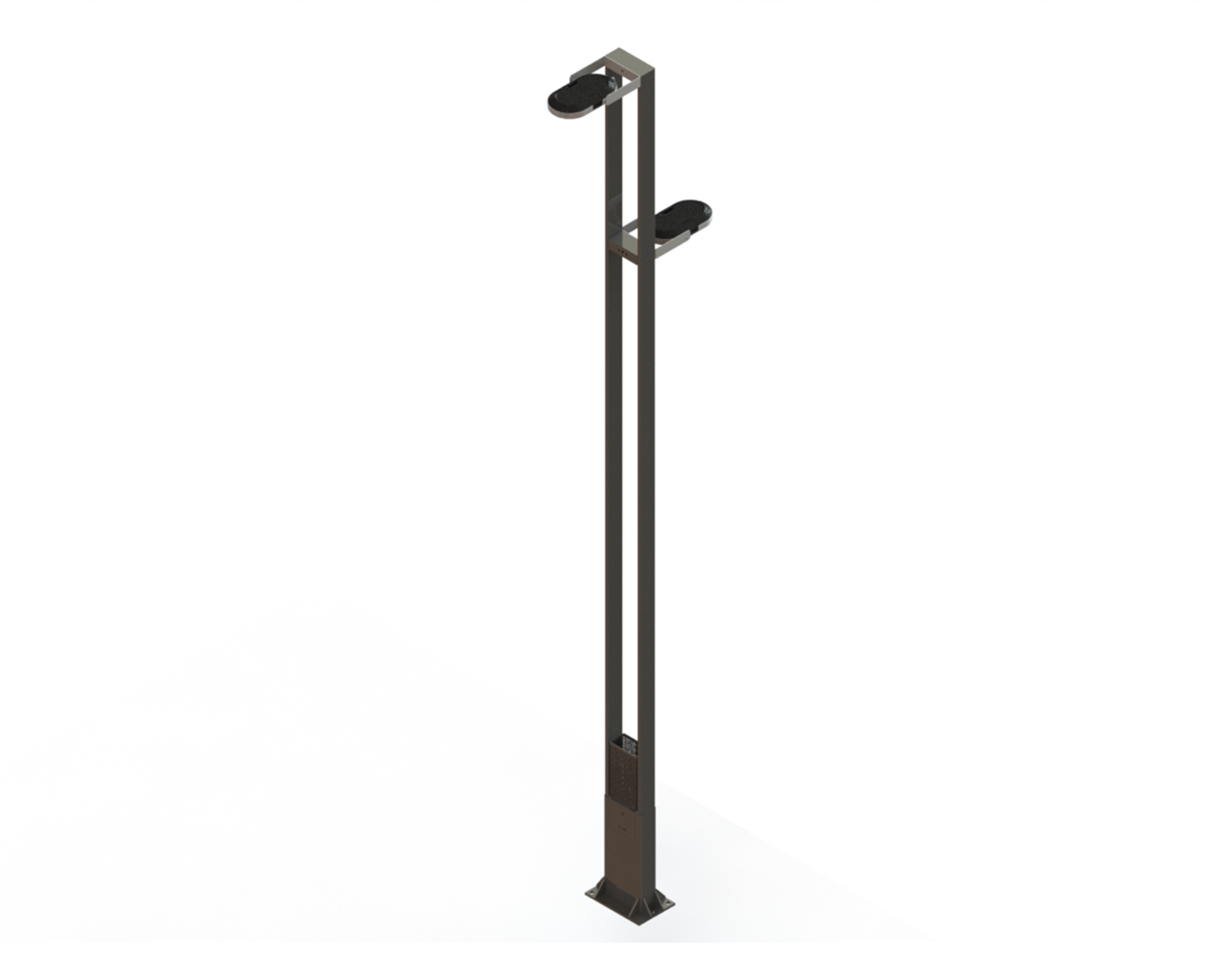

City View is Carandini's new light point designed to bring green spaces to life within a city. With an avant-garde, elegant, and modern design, it seamlessly fits into all types of urban environments, providing optimal and precise light distribution at night and a discreet presence during the day. Its structure consists of two slender columns connected by a base, allowing the installation of a luminaire and/or other accessories such as a waste bin or a vertical garden without losing sight of the cityscape.

Designed by Jordi Miró, City View offers a wide range of configurations and two different heights: 4.7 m and 6 m. Additionally, the garden configuration includes an innovative oxygen counter that allows monitoring the CO2 compensation values of the column.

Key features include:

• Versatile and customizable: Allows laser engraving of the shield of any municipality.
• Available accessories: Waste bin (in two different sizes) and vertical garden.
• Option to install one or two luminaires at different heights.
• Elegant finish: Galvanized with black RAL 9005 paint.
• Door: Flush
• Base: Flat plate and brackets
• Vertical garden with an option for an oxygen counter: Allows visualizing the percentage of oxygen generated by the column.

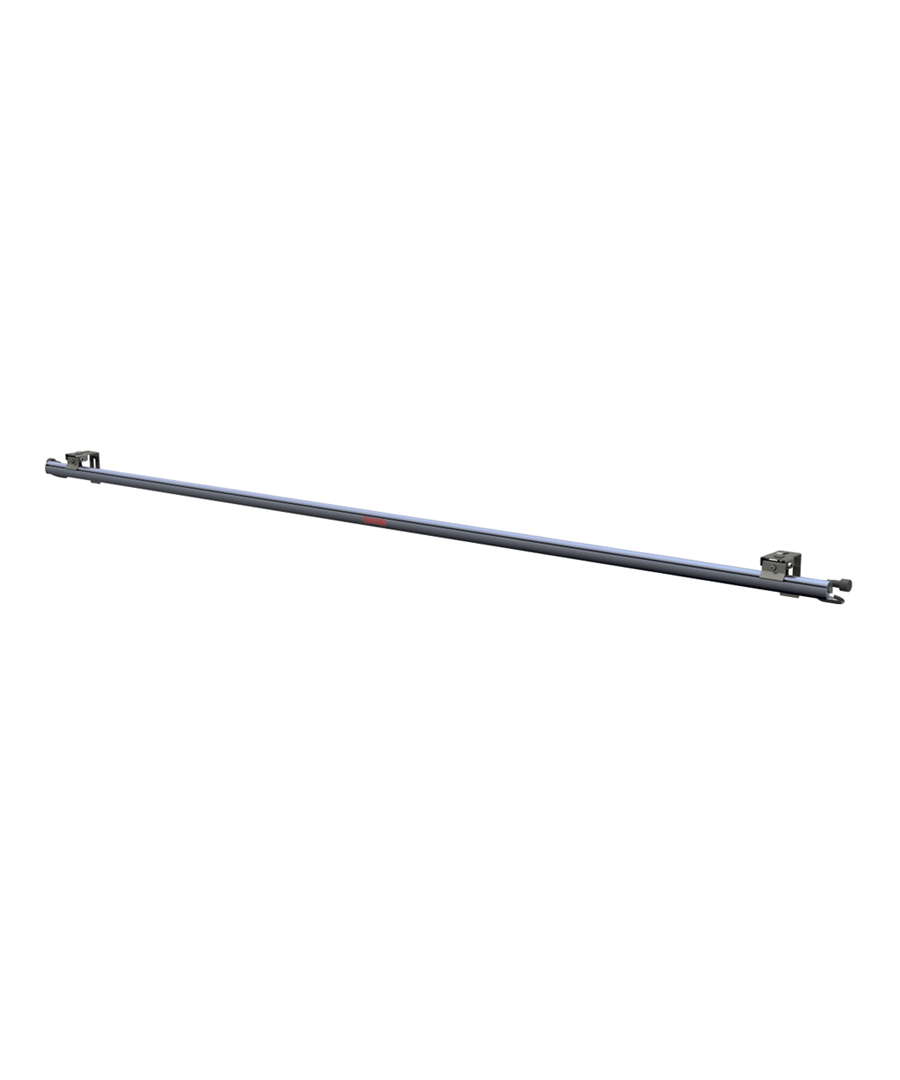

T-LINE is an innovative signaling, lighting, and emergency system designed to enhance safety in tunnels. This system incorporates cutting-edge LED technology, ensuring exceptional efficiency and minimal power consumption. Its design is specially conceived to provide low-height illumination without causing glare, which is crucial in such environments. As a continuous system, the annoying flicker effect often experienced with individual emergency systems is completely eliminated. Additionally, its modular linear design ensures absolutely perfect uniformity, covering up to 50 linear meters per luminaire.

Key Advantages:

• Meets emergency regulations for tunnels.
• Modular and flexible design for installation in all tunnel or underpass varieties.
• Easy maintenance: Centralized access to electronic equipment and batteries.
• Fully adjustable and orientable stainless steel mounting brackets.
• Permanent emergency version for up to 1 hour.
• Durability and robustness: IP66 + IK09.
• High luminous performance with reduced consumption.
• Up to 60% lower consumption than a conventional solution.
• Corrosion-resistant anodized 6060T6 aluminum.
• Energy Efficient: 130 lm/W.
• L90B10 lifespan of 60,000 hours (Ta) 25ºC

T-XTREME is Carandini's new complete solution for tunnels and underpasses. Winner of the Red Dot Award for best product design 2023.

Designed to illuminate all areas of the tunnel and to adapt to all types of tunnels thanks to its optical modularity, fixings, sizes, components and lighting packages.

It is technically engineered and designed to provide adequate lighting throughout the life of the project, so it is equipped with the latest photometric and control technologies.

It is compatible with the control system for tunnels (Controlux tunnel), allowing a smooth transition adapted to the driver's eye through the different parts of a tunnel.

It is sustainable, recyclable and has a low carbon footprint. In addition, it complies with the most demanding tunnel regulations.

The new T-XTREME projector together with Controlux tunnel and the HFT emergency solution become the perfect global solution for any tunnel and road underpass making it safe, efficient, maintainable, and allowing the best driving experience in tunnels.

Main technical characteristics:

• Complete solution for Urban and Interurban tunnels
• ENEC Certification
• Modular design and with 3 sizes of aluminum casting EN AC 44100. Low Cu content <15%.
• Large range of light packages (from 4,000 to 75,000) lumens, 12 types of optics.
• Robust, durable, and reliable: IP66 + IK10 + IP69K for pressure water cleaning
• Prepared to adapt to any type of tunnel thanks to its TUNNEL-FIX system that allows different fixation systems (central, lateral, separate box, united box...) and facilitates the fixation and orientation of the luminaire in the support stirrup.
• Possibility of inclinations (orientation by ball joint every 5º).
• Easy maintenance: frontal access to drivers without tools & with quick connectors.
• Uses components that are the Zhaga standard.
• High light output and efficacy with reduced consumption
• More efficient and durable LED technology: up to 165 lm/W and more than 20,000 hours of LED testing.
• Prepared to connect base Zhaga, Nema, double cable entry (Dali or dedicated cable) & communication nodes. (ZD4i)
• Thermal management: Convection, conduction, and radiation.
• Useful life L90B10 100,000 h at temperatures of up to 25º.
• Low footprint
• 98,26% recyclable

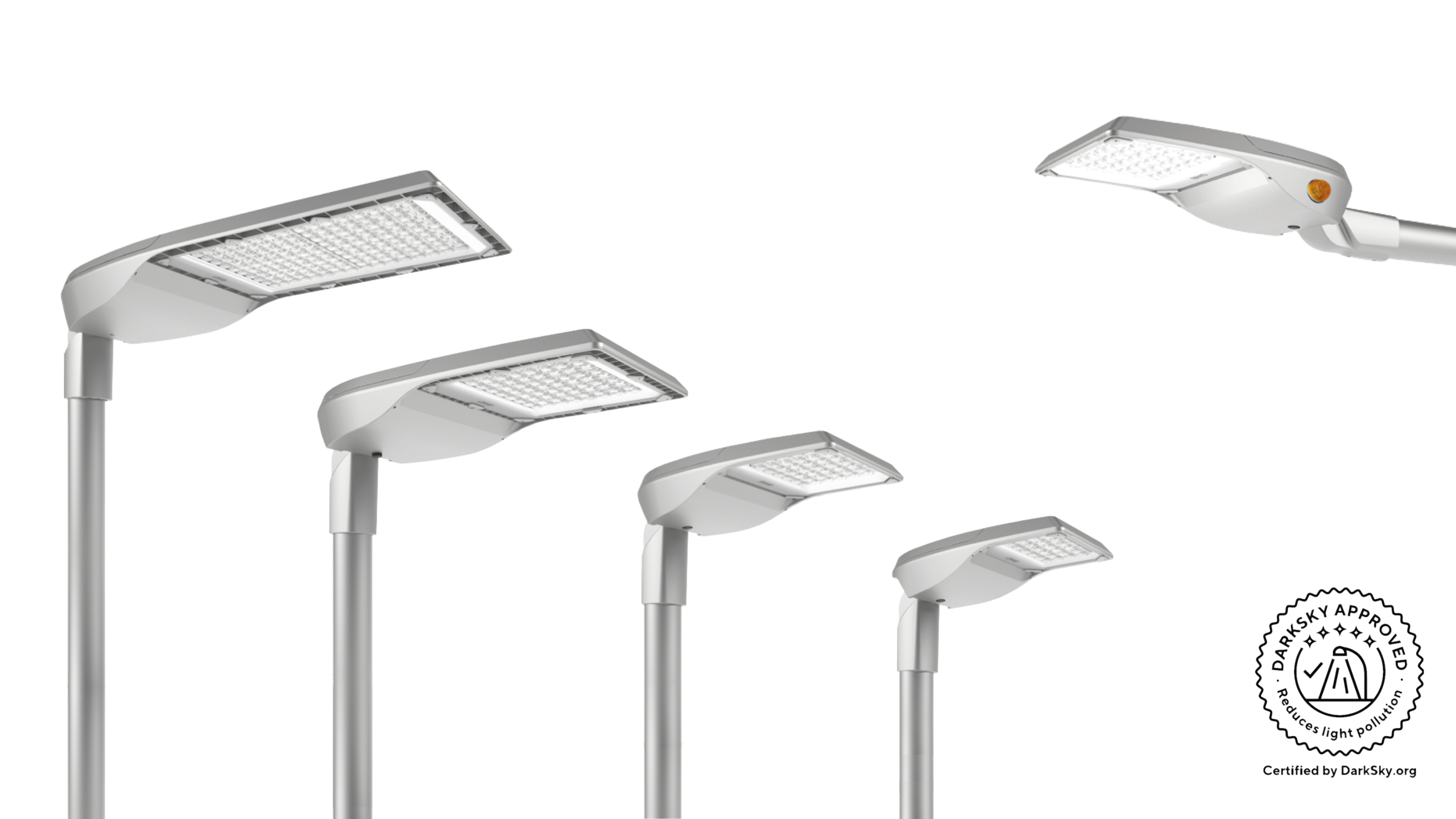

Veka is a luminaire family for public street lighting by Carandini. Its elegant design, latest generation LED technology and optical distributions make it a high quality solution for urban streets, secondary roads, motorways, residential streets, car parks and bike lanes.

It has up to 4 size and one new application for pedestrian crossing.

New Veka S PP

Veka S PP is the evolution of new technologies in accordance with the new lighting level and energy regulation. It has a simple and elegant design that harmoniously blends into the road and offers lighting that attracts the driver’s attention, increasing the pedestrian’s horizontal and vertical field of vision. In addition, it has cutting-edge LED technology and a new optics that creates a feeling of safety on streets and roads at night time, directing light where it is needed.

New Veka S PP by Carandini, offers the possibility of including not only flashing lights but also motion sensors that either operate independently or are integrated into city control systems (Controlux).

It has recently been certified as Dark Sky by the International Dark-Sky Association.

Key Advantages for Veka family:

• Up to 5 installation methods
• Tool-free access from the top
• Sturdiness: IP66 + IK10/IK08
• Die-cast aluminium (Cu<0.1%)
• Up to 9 optical distributions
• Smart Ready: Designed to house both indoor and outdoor communications nodes
• Future Proof: Zhaga-compliant
• Life span L90B10 100,000h (Ta) 25ºC
• Night Friendly: ULR Arrêté du 27 décembre 2018 & Dark Sky Certified
• Can incorporate presence sensor in luminaire.
• Pedestrian crossing flashing option
• Up to 99% recyclable
• Low footprint

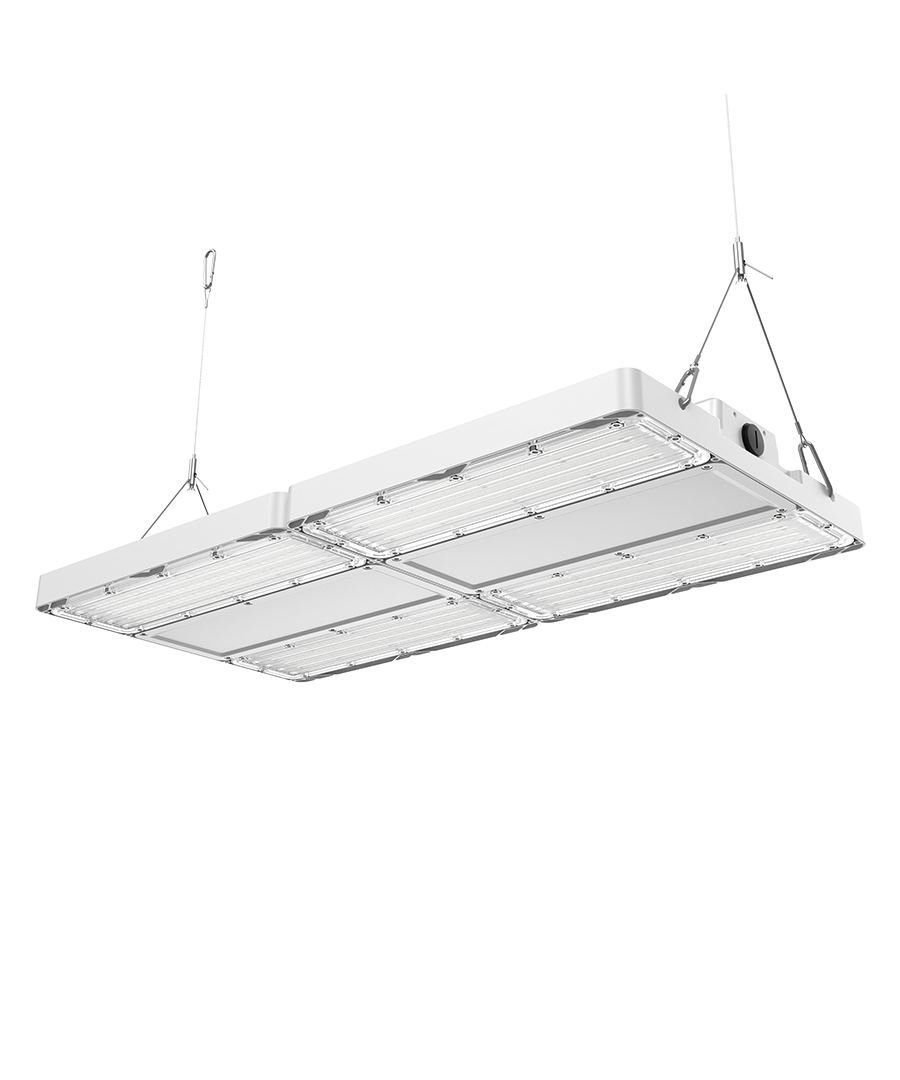

Active luminaire has been designed to provide effective and uniform lighting solutions in industrial and sports environments. With an IP66 protection rating, it ensures durability in various settings. Additionally, it integrates customizable intelligent controls such as PIR sensors and is compatible with the DALI system.

Key Advantages:

• Available in up to 2 sizes.
• Modular design suitable for high ceilings.
• Multiple installation methods.
• LED luminaire designed for industrial areas and sports spaces.
• Durability and sturdiness: IP66 + IK10.
• State-of-the-art LED technology.
• Energy-efficient: 160 lm/W.
• Up to 2 photometric distributions.
• Anti-glare optics.
• Optional motion sensor.
• Lifetime L80B10 50,000h (Ta) 25ºC.
• "Plug and play" sensor; an external sensor with brackets is optional.
