Analogue time switch module - FM/1 STuZH

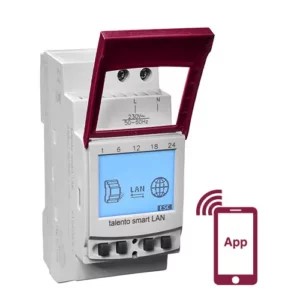

The LAN module enables fast and easy data transfer via LAN network. This makes life much easier for installers. With the talento smart LAN module, various templates can be created on a PC and easily linked to up to 5 talento smart S25 time switches. The perfect solution for managing complex applications such as supermarkets, chain stores, schools, and large administrative buildings.

In addition to standard applications, the talento smart LAN module allows installers to transfer or read out programs remotely on the S25 and to conveniently manage large applications in addition to standard applications. The LAN module connects the user to the installed devices via the Internet. This allows access via an in-house network, VPN, or cloud.

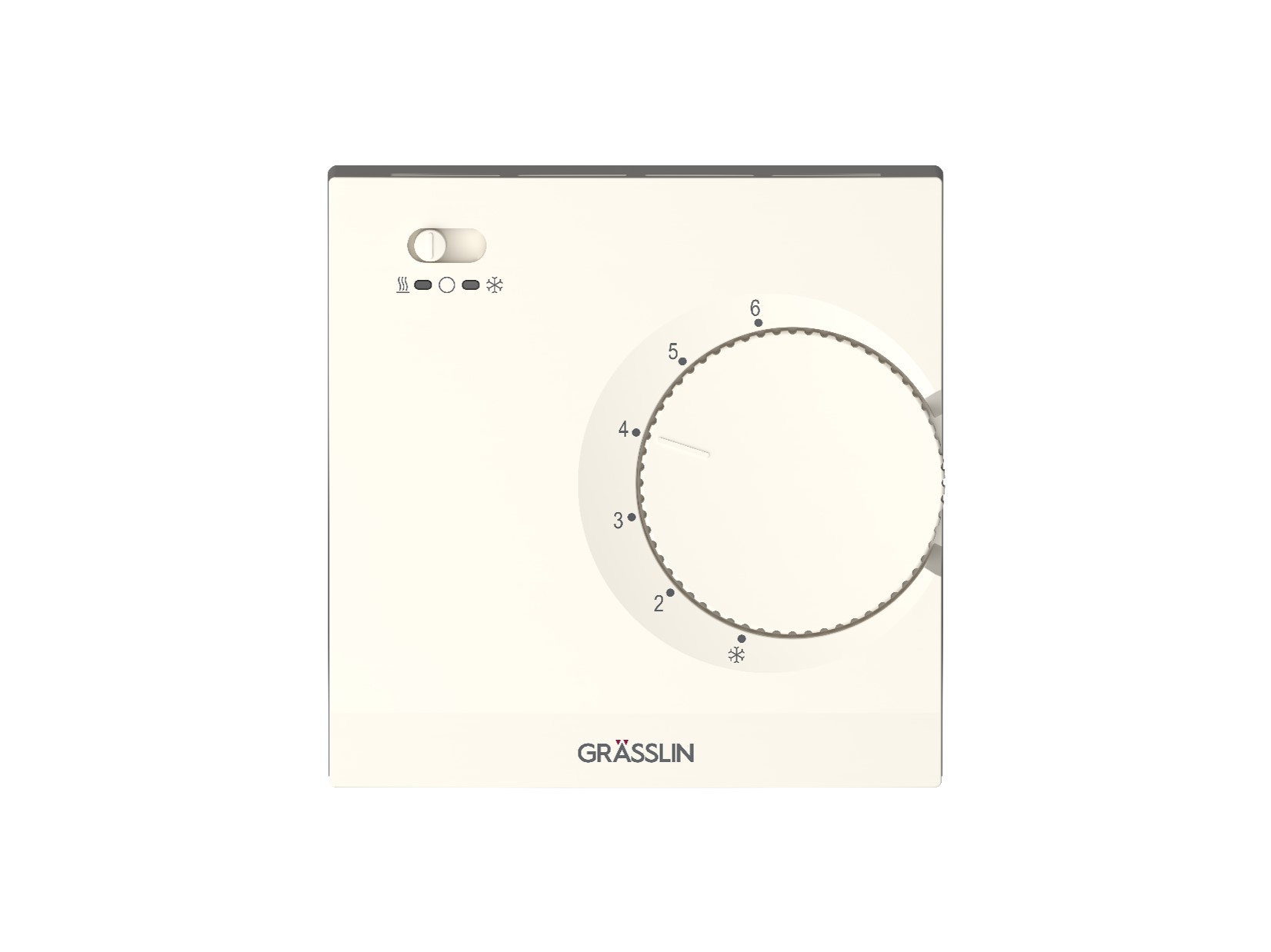

This versatile room thermostat enables precise electronic control for heating and cooling and can be flexibly integrated into a wide variety of heating systems – from gas and water heating systems to electric heating systems with central or individual room control. The dimmable and switchable indicator lights ensure undisturbed operation, while the option of connecting an external sensor opens up additional application options and significantly increases flexibility in building use.

The integrated quick-connect system enables particularly fast installation and significantly reduces assembly times. This makes the device ideal for new construction and renovation projects with high requirements for efficiency and process reliability.

The thermostat offers clear economic advantages for installers, the renovation market, OEM applications, B2C/B2B sales, and online retailers: reduced installation and operating costs, very low standby consumption of only 0.2 W, and a compact design that supports efficient use of space. This makes the device ideally suited for modern, energy-optimized buildings and a wide range of applications in both professional and private environments.

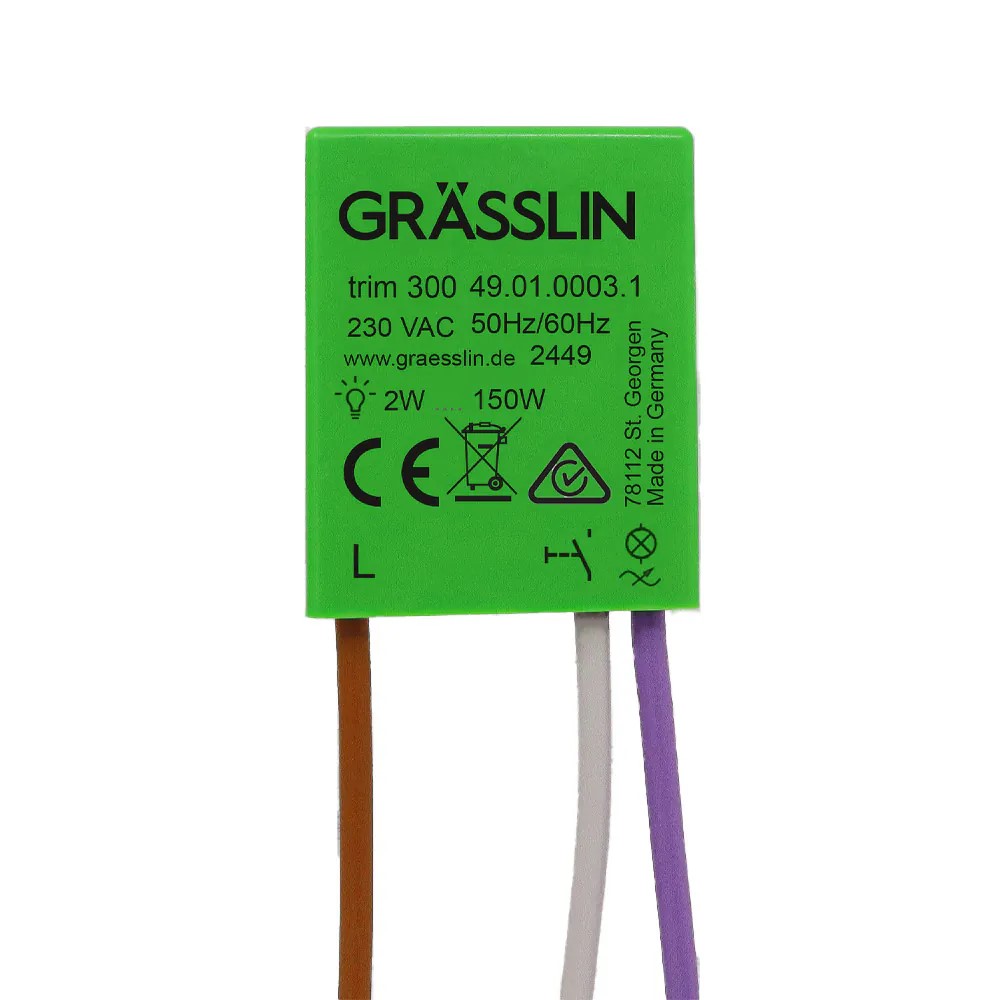

Grässlin trim universal dimmers are probably the smallest flush-mounted dimmers on the market. They are suitable for different light sources. Thanks to their extremely compact design measuring just 32.5 x 26.4 x 9.6 mm (H x W x D), they can be easily installed or retrofitted in any flush-mounted box. In addition, thanks to protection class IP65, they can also be used in
humid environments. The trim 300 can be controlled via app using Bluetooth Mesh 5.0 and functions like a full-fledged timer. It has a weekly program, an annual function, and an astro function, as well as an additional power reserve of 2 hours. The functions and programs of the trim 300 are comparable to our popular talento smart C15 timer switch.

If you have installed several devices, you can control the trim 200 and trim 300 via Bluetooth and the mesh network. The individual devices in the house or building connect to form a network and send signals to the next device. This makes it possible to control the devices even in remote rooms.

The system version talento smart S25 enables installers to build up a complete system with up to 8 channels in combination with the extension modules talento smart CE2. This system can be programmed remotely from anywhere in the world through our talento smart LAN.

Digital astro-distribution timer with 800 memory locations for creating 50 date-dependent programs (ON, OFF, cycle, pulse, random ON, random OFF) and 50 date-independent programs (ON, OFF, cycle, pulse, random ON, random OFF) with a shortest switching time of 1 minute (ON/OFF) or 1 second (cycle, pulse). Free blocking of weekdays. The summertime/wintertime changeover is either automatic, date-related or can be deactivated. 12/24 h setting. Switching status display. Integrated hour counter with service function. Manual switch: automatic, fix ON/OFF, override. White display illumination for good readability. Non-volatile memory (EEPROM) to back up programs in case of power failure. Power reserve via battery up to eight years. The clock can be sealed and protected against unauthorized access by a PIN. Programming is done either directly on the clock or conveniently via mobile devices and the corresponding apps (Android and iOS) as well as via appropriate PC software.

The LAN module enables fast and easy data transfer via LAN network. This makes life much easier for installers. With the talento smart LAN module, various templates can be created on a PC and easily linked to up to 5 talento smart S25 time switches. The perfect solution for managing complex applications such as supermarkets, chain stores, schools, and large administrative buildings.

In addition to standard applications, the talento smart LAN module allows installers to transfer or read out programs remotely on the S25 and to conveniently manage large applications in addition to standard applications. The LAN module connects the user to the installed devices via the Internet. This allows access via an in-house network, VPN, or cloud.

This versatile room thermostat enables precise electronic control for heating and cooling and can be flexibly integrated into a wide variety of heating systems – from gas and water heating systems to electric heating systems with central or individual room control. The dimmable and switchable indicator lights ensure undisturbed operation, while the option of connecting an external sensor opens up additional application options and significantly increases flexibility in building use.

The integrated quick-connect system enables particularly fast installation and significantly reduces assembly times. This makes the device ideal for new construction and renovation projects with high requirements for efficiency and process reliability.

The thermostat offers clear economic advantages for installers, the renovation market, OEM applications, B2C/B2B sales, and online retailers: reduced installation and operating costs, very low standby consumption of only 0.2 W, and a compact design that supports efficient use of space. This makes the device ideally suited for modern, energy-optimized buildings and a wide range of applications in both professional and private environments.

Grässlin trim universal dimmers are probably the smallest flush-mounted dimmers on the market. They are suitable for different light sources. Thanks to their extremely compact design measuring just 32.5 x 26.4 x 9.6 mm (H x W x D), they can be easily installed or retrofitted in any flush-mounted box. In addition, thanks to protection class IP65, they can also be used in
humid environments. The trim 300 can be controlled via app using Bluetooth Mesh 5.0 and functions like a full-fledged timer. It has a weekly program, an annual function, and an astro function, as well as an additional power reserve of 2 hours. The functions and programs of the trim 300 are comparable to our popular talento smart C15 timer switch.

If you have installed several devices, you can control the trim 200 and trim 300 via Bluetooth and the mesh network. The individual devices in the house or building connect to form a network and send signals to the next device. This makes it possible to control the devices even in remote rooms.
