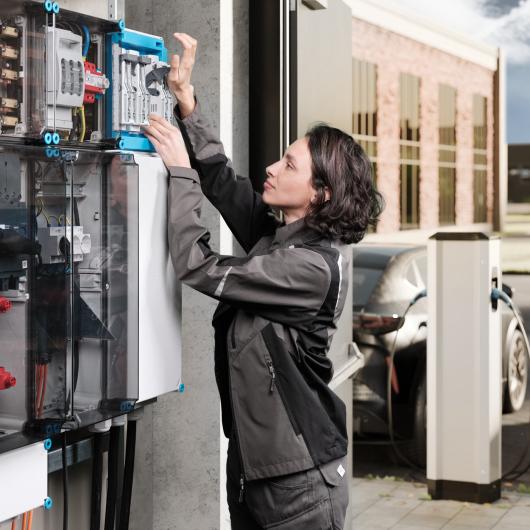

ENYCHARGE - Ready-to-connect distribution boards for e-mobility

Application: for indoor installation in industrial and commercial buildings and / or protected outdoor installation

• Degree of protection IP 54-65
• Protection class II
• For the installation of DIN rail equipment
• Operation of devices permitted by
• unskilled persons
• With FIXCONNECT® plug-in terminal technology for PE and N
• With up to four disconnectable N potentials in one bar that allows the installation of RCDs without additional efforts or accessories
• According to IEC 60 670-24
• Material: PS polystyrene
• Burning behaviour: glow wire test in
• accordance with IEC 60695-2-11: 750 °C,
• flame-retardant, self-extinguishing
• Colour: grey RAL 7035

Application: weatherproof, for the unprotected outdoor installation or in harsh environment outdoors

• Degree of protection IP 65
• Protection class II
• For the installation of DIN rail equipment
• Operation of devices permitted by
• unskilled persons
• With FIXCONNECT® plug-in terminal technology for PE and N
• With up to four disconnectable N potentials in one bar that allows the installation of RCDs without additional efforts or accessories
• According to IEC 60670-24
• Material: PC polycarbonate
• The material is examined for UV resistance by the institute for plastics and thereby suitable for the outdoor installation during UV effect
• Climatic influences and effects on the equipment are to be considered
• Burning behaviour: glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: grey RAL 7035

Combinable enclosure system for self-assembly of distribution boards, intended to be operated by ordinary persons according to IEC 61439-3
Application: Suitable for indoor and/or outdoor installation protected against weather influences in industrial and commercial buildings

• Pre-assembled enclosures with electrical functions
• Enclosures can be used as single boxes or combined to assembies
• For free: Planning tool ENYGUIDE and  guide for design and assembly for project engineering
• Degree of protection IP 66
• Dust-proof and protected against ingress of water with harmful effects
• Protection class II
• Insulation-enclosed
• Material: PC polycarbonate
• Climatic influences and effects on the equipment are to be considered
• UV resistant according to IEC 61439-1, Section 10.2.4: The material is examined for UV resistance
• Burning behaviour: glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: grey RAL 7035

Low-voltage Switchgear and Controlgear Assemblies up to 5000 A
Hensel has been producing low-voltage switchgear and controlgear assemblies for industry, commerce and functional buildings for more than 50 years.

Quality standards
Hensel plays a decisive role in the development of national and international standards for low-voltage switchgear assemblies. Our innovative switchgear and distribution systems are developed by us and constantly kept up to date with the latest technical developments.Our technical know-how and our active participation in national and international standardization committees guarantee our customers a clear technical lead!
Our switchgear manufacturing plants in Lennestadt and Grimma offer a high levelof flexibility and guarantee a reliable standard of quality. Both production sites are of course certified according to DIN EN ISO 9001:2015.

Developing and manufacturing
We develop and construct all our products under consideration of the state-of-the-art production engineering and use the most modern operating resources to do so. The entire manufacturing is situated in our own facilities – steel processing, plastic manufacturing and copper processing.
Due to our production facilities, we can guarantee a continuous and sustainable product quality. We utilize fully automatic workflows to produce our products. Low-voltage switchgear assemblies are individually produced at our plants in Lennestadt and Grimma, as per customer requirements.

Einfach sicher. Sicher einfach. So geht Verteilung von PV-Strom heute.

Mit ENYSUN bietet HENSEL dem Elektrohandwerk anschlussfertige Verteilerlösungen speziell für Photovoltaikanlagen – von kleinen Dachanlagen bis zu großen gewerblichen PV-Systemen. Die Verteiler sorgen für eine sichere und normgerechte Energieverteilung auf Gleich- und Wechselstromseite und schützen die Anlage zuverlässig vor Überlast, Kurzschluss und Überspannung. Dank geprüfter Komponenten und durchdachter Systemtechnik lässt sich ENYSUN einfach in bestehende oder neue Installationen integrieren – für maximale Betriebssicherheit und lange Lebensdauer.

Für Elektriker bedeutet das: weniger Planungsaufwand, mehr Effizienz auf der Baustelle und höchste Zuverlässigkeit im Betrieb. Alle Verteiler sind vormontiert, geprüft und dokumentiert – für eine schnelle, fehlerfreie Installation und eine sichere Inbetriebnahme. Ob für Dachanlagen, Freiflächen oder Gewerbeobjekte – ENYSUN bietet die passende Lösung für jede PV-Anwendung und unterstützt das Elektrohandwerk dabei, die Energiewende sicher und einfach umzusetzen.

Ihre Vorteile im Überblick:

• In 5 Minuten bestellt, in 15 Werktagen versendet
• Für Freischaltstellen bis 500 kW, und Wechselrichtersammler bis 350 kVA Bemessungsleistung
• Geprüft, dokumentiert nach DIN EN IEC 61439-7 und inkl. Produkthaftung
• Schnelle und einfache Montage
• Fehlerfreie und geprüfte Verdrahtung ab Werk für maximale Sicherheit

Combinable enclosure system for self-assembly of power switchgear and controlgear assemblies (PSC) according to IEC 61439-2
Application: Suitable for indoor and/or outdoor installation protected against weather influences in industrial and commercial buildings

• Pre-assembled enclosures with electrical functions
• Enclosures can be used as single boxes or combined to assembies
• For free: Planning tool ENYGUIDE and  guide for design and assembly for project engineering
• Degree of protection IP 65
• Single enclosures without any flanges and components mounted in the lid have degree of protection IP 66
• Dust-proof and protected against ingress of water with harmful effects
• Protection class II, total insulated
• Insulation-enclosed
• Material: PC polycarbonate
• Climatic influences and effects on the equipment are to be considered
• UV resistant according to IEC 61439-1, Section 10.2.4: The material is examined for UV resistance
• Burning behaviour: glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: grey RAL 7035

• Modern terminal technology
• Functional enclosure technology
• Various cable entry

Series DK

• Application: for indoor installation in industrial and commercial buildings
• With elastic membranes, which can be removed for cable entry via cable glands
• Multi-level knockouts for cable glands in different sizes
• Degree of protection: IP 66
• Material: polypropylene or polycarbonate
• Burning behaviour: glow wire test in accordance with IEC 60695-2-11: 750 °C, flame-retardant, self-extinguishing
• Colour: grey, RAL 7035

Series KF

• Application: weatherproof, for unprotected outdoor installation in harsh environment and offshore applications
• Degree of protection: IP 66 / IP 67 / IP 69
• with cable glands as accessories, temporary submersion up to 1 meter
• Weatherproof: UV-resistant, rainwater-proof, temperature-resistant, saltwater-proof
• Material: PC-GFS polycarbonate
• Burning behaviour: Glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: grey RAL 7035 or black RAL 9011

Series WP

• Application: waterproof, for encapsulation
• Degree of protecton IP 68
• submersion up to 20 meter, 168 hours
• Sealing compound fitting the product: the quantity is always matched to the product - never too much or too little material during processing.
• Inspection and subsequent installation: The lid can be removed for inspection purposes. For subsequent installations or inspections, the sealing compound can be easily removed.
• Material: PC-GFS polycarbonate
• Burning behaviour: Glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: grey RAL 7035 or black RAL 9011

Series FK

• Application: for buildings with public traffic, to guarantee the emergency power supply in the event of a fire
• Intrinsic fire resistance in accordance with DIN 4102 Part 12 (German standard) in combination with function-retaining cables
• Insulation integrity PH120 in accordance with BS EN 50200 in combination with insulation retaining cables
• Screw anchors, high-temperature-resistant ceramic terminal E30 up to E90 and cable entries included as standard
• Multi-level knockouts for cable glands in different sizes
• Material: PC-GFS polycarbonate
• Glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: orange, RAL 2003
• Cable junction box for large cable cross sections up to 50 mm²

Series KX

• Application: for use in potentially explosive atmospheres, suitable for Ex zone 2 and 22
• Ex marking for explosive gas atmospheres: II 3G Ex ec IIC T6 Gc
• Ex marking for explosive dust atmospheres: II 3D Ex tc IIIC T85 Dc
• With drill markings on the box walls for flexible positioning of the cable entries
• Degree of protection IP 66, Ex cable glands available as an accessory
• Suitable for areas with a high level of mechanical hazards
• Can be closed quickly by a quarter turn - locked position well visible
• With high-position terminal or terminal blocks + Various conductor cross sections and types
• Terminals with wire protection including for flexible conductors without ferrules
• Various terminal positions
• Material: Polycarbonate
• Burning behaviour: Glow wire test according to IEC 60695-2-11: 750°C, flame retardant, self-extinguishing
• Colour: black, similar to RAL 9011
