• 4.0 inch color IPS, 480x480 resolution, capacitive touch screen
• Up to 2 home pages and 15 function pages can be configured
• Switching, dimming, blinds control and value send functions
• HVAC, Air conditioner, Floor heating and Ventilation System control
• RGB and RGBW dimming, color temperature control
• Backgroud Music control functions
• Air quality and Energy display
• Weekly timer, Event Group functions, Logic functions
• Password access, Panel block, and Screensaver
• Proximity sense, screen brightness setting, Touch vibration feedback
• Built-in temperature sensor
• Colorful strip indication
• Day/Night signal and summer time automatic adjustment
• Support customized image resource replacement
• Support long frame for ETS5 (quick application download)

KNX Smart Touch with push button, 3-gang not only supports screen touch operation, but also supports button operation, bringing a sense of dual experience while integrating functions such as Dimming, Curtain, Scene, Room temperature controller, Air conditioning, Ventilation system, Audio control, RGB and RGBW dimming, Colour temperature dimming, and Status display, and built-in temperature and humidity sensors to detect local environment temperature and humidity, meeting most daily applications. In addition, the series products support Logic function and Scene Group function, and 2 external input interfaces (as Binary input detection or NTC detection), provide more possibilities for special and complex applications. Also support practical and convenient functions such as Proximity sense, Screen saver, Panel block, Password access and etc.

• 3.0 inch colour IPS capacitive touch screen, resolution 854x480
• Home page function, support to display air quality information or scene function
• With basic control functions including switching, dimming, blinds, scenes,etc. and other control functions including colour and colour temperature control, audio control, HVAC control (Room temperature control, Air conditioner and Ventilation)
• Information and status indicator
• Scene Group functions, Logic functions
• Password access, Panel locking, and Screensaver
• Proximity sense, screen brightness setting
• Built-in temperature and humidity sensor
• Day/Night signal and summer time automatic adjustment
• Support customized image resource replacement
• Support 2 external input interfaces, used as dry contact detection or NTC temperature detection
• Push button as Customized linking to touch or Push button sensor, and with RGB indications

7'' Indoor Monitor

• 7'' colored TFT display
• Full capacitive touch panel
• Elegant design

Outdoor Station

• Support calling to Indoor Monitor 1 and Indoor Monitor 2
• Support 2 door locks management
• Support IC card
• Adjustable unlock time
• Support external camera extension (Camera Interface Module is needed)

Power Supply

• Standard din-rail installation
• AC 100-240V, 50-60Hz, 600mA
• Support max. 6 devices

KNX Gateway for Tuya ZigBee as the interface between KNX system and Tuya ZigBee system, realizing the connection between the Tuya ZigBee ecosystem and the KNX system. Based on the gateway, it can easily control the KNX devices with Tuya APP, and upload status information of KNX devices to Tuya platform, for monitoring and managing the devices conveniently.

As a ZigBee Gateway function, it can connect to Tuya Cloud, and add ZigBee device of Tuya ecosystem to the cloud.

Support uploading KNX devices to Tuya platform for management, to control KNX device and display status.

Support KNX devices functions, including Switch, Dimming, Curtains, Scenes, Colour and Colour temperature control, Audio control, HVAC control (Room temperature control, Air conditioner and Ventilation system), multiple sensors (Air Quality, Temperature and humidity, Brightness, Gas, I/O signal and etc.), and Current, Energy Metering display.

Logic functions

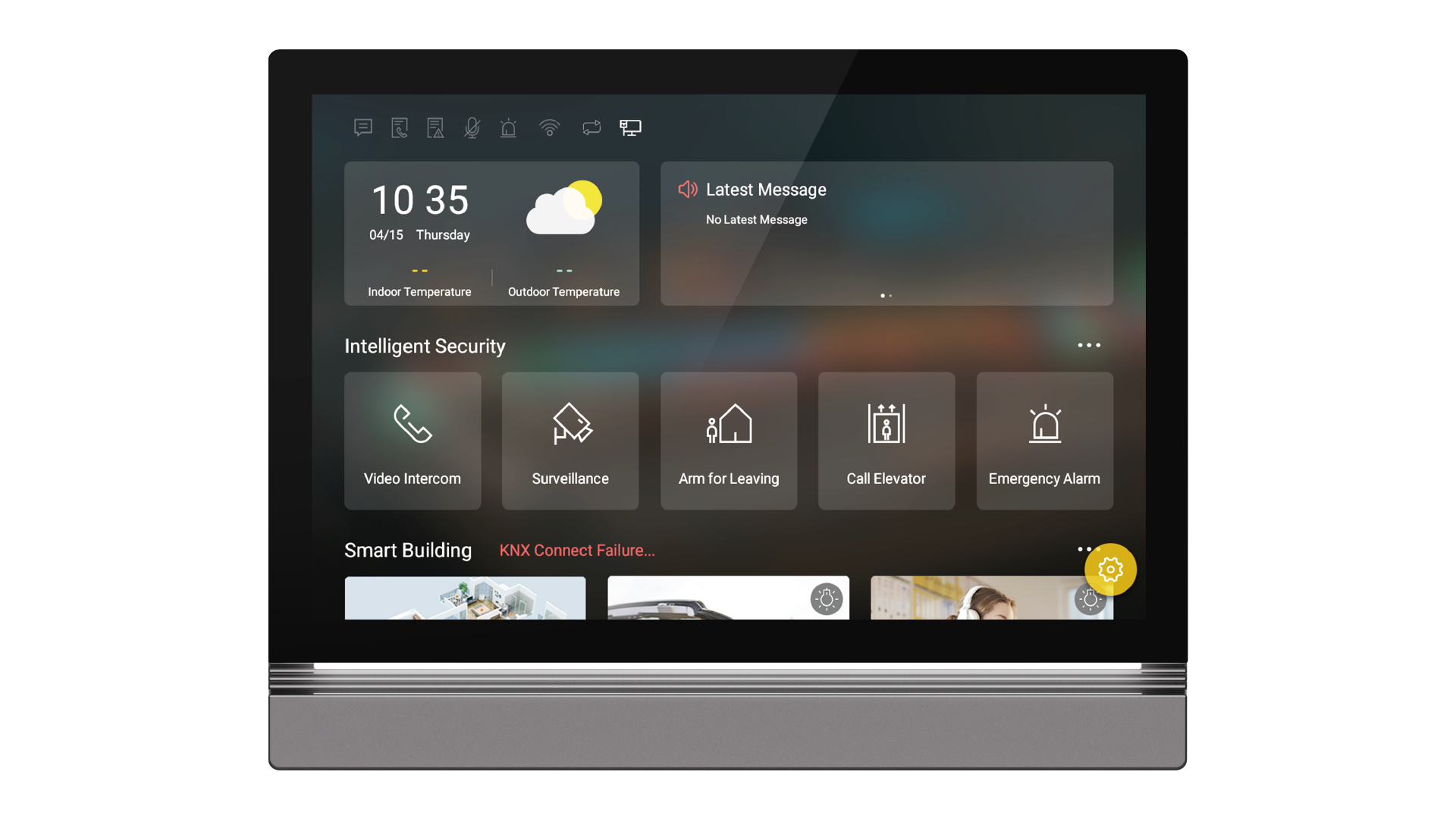

This product is a device based on TCP/IP protocol and KNX protocol, it is a main device for building intercom system which support video intercom, defense zone setting and standby picture tweeting (under standby mode). In addition, it can also control KNX device connected to the system, for example, ON/OFF lights, enable/disable scene, dimming, shutter/blinds control, HVAC control etc., it supports not only KNX functions in listed page but also in map view.

• Main Features of Z10:
• 10.1” IPS Touch Panel with aluminum faceplate
• Support standard PoE 48V power or DC24V auxiliary power
• Support connection to doorbell or mini outdoor station
• Support lift calling function
• Support call divert setting
• Support real-time surveillance to door stations and IP cameras connected
• Support receiving message from guard unit
• Support video intercom among visitor, resident and management center
• Support intercom in the same network
• Standard 8 defense zones
• Support map view programming in smart home function
• Ambience LED belt for elegance and indication of functions
• Switching, dimming, shutter/blinds control, value sending function
• Support air quality value display
• Support HVAC control
• Support both IR split AC and AC with protocols (RS485 etc.)
• Support background music control
• Support RGB control
• Max. 8 timing functions
• Max. 4 group event functions
