MADRIX STELLA is the 2-port network node with RDM support for solid-state projects.

It is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.

Developed and made in Germany.

Art-Net / Streaming ACN / USB
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network. In addition, simply connect to MADRIX 5 over USB.

2 DMX-IN/OUT
Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.

Easy Configuration
MADRIX STELLA offers powerful features. Managing the device is still quick and easy. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.

Sync Mode
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.

3rd-Party Controllers
MADRIX STELLA complies with official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.

RDM & Daisy-Chain Support
2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together. On top, the device supports the Remote Device Management standard.

Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.

Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.

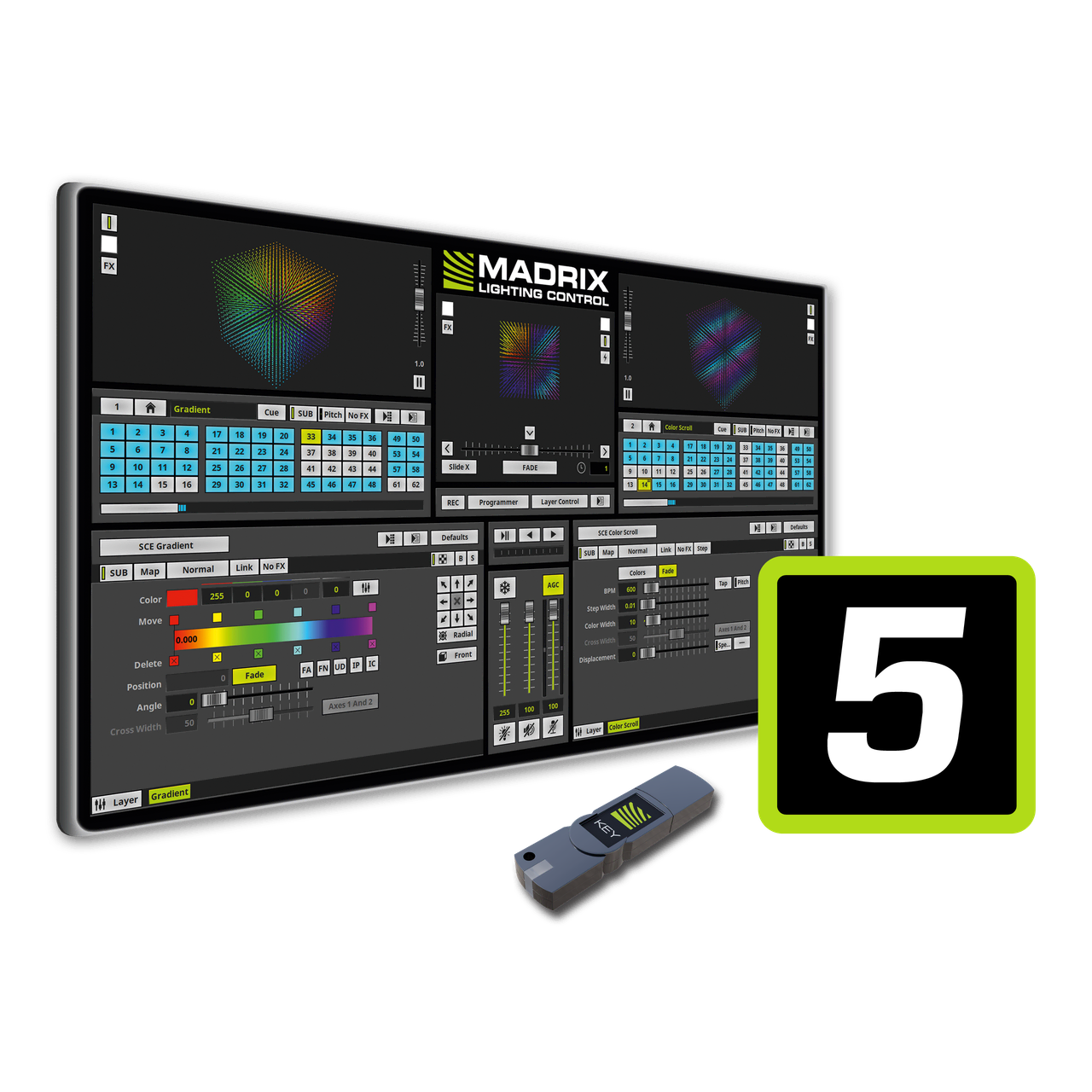

MADRIX 5 Software is the preferred lighting tool of choice for industry professionals, lighting designers, operators, VJs, and enthusiasts all around the world.

Ultimate Control
From the smallest projects to the biggest ones – get the best out of your LEDs. MADRIX 5 can produce a complete LED light show from a normal computer or laptop. Still, it can drive tens of thousands of LEDs without problems. This powerful software will not only allow you to control nearly any 2D LED display in every possible way, but real 3D LED applications as well. This makes it the ideal solution for your LED project.

Ultimate Flexibility
Bring your LED design to life with beautiful colors, stunning visuals, and spectacular effects. MADRIX 5 adapts to your needs. Use it as LED lighting controller, VJ software, 2D pixel mapper, 3D voxel mapper, media server, or media creator. This software is easy to use with a VJ-like operation, 2 decks and a crossfader, plus 3 real-time previews to show your effects in advance.

2D Pixel Mapping
The MADRIX 5 Software makes it possible to control numerous LED fixtures; also of different kinds. Position them according to your needs in nearly any form or shape. Map pixel by pixel and achieve pixel-perfect results, even with the lowest of pixel resolutions. The result are crisp and sharp visuals on your LEDs.

3D Voxel Mapping In X, Y, And Z
MADRIX 5 provides a leading-edge feature set to fully control real 3D LED matrices. MADRIX 5 supports volume rendering (voxel mapping). This approach is fundamentally different to the 3D projections or the physical layout of 2D surface areas that are widely known nowadays. It makes your installation state-of-the-art.

Combine 2D And 3D
Combine any 2D project with 3D elements in order to create even more spectacular attractions for your audience, customers, and clients. MADRIX 5 is a powerful tool that will help you realize the projects you want to build. Mapping LEDs is fast, creative, and fun. MADRIX 5 certainly takes your LED display to the next level.

Industry Standards For Output

MADRIX 5 excels in flexibility. You can directly connect to a wide range of LEDs and compatible first-party or third-party LED controllers.

DMX-Based Output

• Art-Net (I, II, 3, 4) (Unicast & Broadcast)
• DMX512
• Philips Color Kinetics KiNET (V1 / V2)
• Philips Hue
• SPI (via MADRIX NEBULA)
• Streaming ACN (sACN / E1.31) (Unicast & Multicast)

Even more options are available via converters or bridging tools.
Output is defined through our MADRIX 5 KEY dongle licenses.

DVI-Based Output

ColourSmart Link
Colorlight A8
Colorlight 5A
Colorlight T9
DVI (VGA, HDMI, and more)
Eurolite T9

Industry Standards For Input, Interoperability, Remote Control, And Audio

MADRIX 5 easily integrates with other lighting desks, consoles, controllers, and many other hardware or software tools.

• Art-Net (I, II, 3, 4)
• ASIO
• Blackmagic Design (DeckLink, Intensity, and more)
• CITP
• DMX512
• GamePort
• MA-Net 1 / MA-Net 2
• MADRIX I/O
• MADRIX ORION
• Media (Images, Pictures, Logos, Videos, Text, Live Signal Capturing, Screen Capturing)
• MIDI
• NewTek NDI (Send & Receive)
• Remote HTTP (Web Server)
• Spout (Send & Receive)
• Streaming ACN (sACN / E1.31)
• Time Code (Art-Net / MIDI / SMPTE / System Time)
• WDM

Even more options are available via converters or bridging tools.
Input is not limited by the MADRIX 5 KEY license system.

MADRIX LUNA is the range of easy-to-use and reliable network nodes.

They reliably distribute DMX512 data over long or short distances using Ethernet network or USB. The sync mode makes sure that lighting effects look their best on the LEDs.

3 versions with different port counts are available:

LUNA 4
LUNA 8
LUNA 16

Developed and made in Germany.

Art-Net / Streaming ACN / USB
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network. Any small or large project greatly benefits from dependable data distribution and efficient operation. Use any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

4/8/16 DMX-OUT + 1 DMX-IN
4, 8, or 16 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.

Sync Mode
MADRIX 5 and MADRIX hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.

Easy Configuration
MADRIX LUNA offers powerful features, especially in combination with MADRIX 5. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.

3rd-Party Controllers
MADRIX LUNA complies with the official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.

Quality Design
Devices are built 19″ x 1U or 19″ x 2U. They feature a fanless, noiseless, low-energy design, a durable metal case, and NEUTRIK plugs. 2 premounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.

Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.

Everywhere, lighting designs beautifully light up the world all around us. And clients expect them to do so without failure, each and every day. Behind the scenes, the lighting industry faces the complex aspects of modern technologies. Increasingly large projects become increasingly difficult to manage and maintain.

That is why today‘s DMX lighting fixtures are equipped with Remote Device Management. It is a two-way communication for receiving instructions as well as sending out feedback. When devices report back data, you gain access to a whole new level of available information, insights, and control. MADRIX RADAR is the complete toolbox to make the most of this data; automatically and efficiently.

Supervise all of your lighting fixtures in a single software. Handle large amounts of RDM devices. It is a new kind of application that opens up entirely new possibilities for you and your clients. MADRIX RADAR includes automatic fixture patching, fully automatic 24/7 device monitoring, automatic e-mail notifications, and much more.

Transform how you work with luminaires. Easily configure settings remotely. Let the software monitor devices automatically for you. Quickly see the results in graphical overviews at a single glance. That means that your setup and maintenance processes are much faster, much easier, and much more cost-efficient than ever before.

Build a database of past sensor data and see the progression of device parameters, such as temperature and operating hours. Exchange devices that are likely to fail soon, before they do. Make your maintenance costs much more predictable by planning them more effectively in advance.

Provide unparalleled support and supervision for each installation.
Start offering all-new benefits to your clients.
Unleash the full potential of RDM.

Configuration. Meet your favorite new addressing tool.

Convenient Remote Access
Easily set up your RDM devices remotely. This means you can perform any configuration conveniently from your computer; instead of requiring direct access to the devices themselves in the truss, in the ceiling, or on the facade.

Simplified Fixture Addressing
Avoid the complicated procedure to manually set up all of a project‘s lighting fixtures by hand before they can be mounted. Freely modify their settings, such as the important DMX start address, after any installation has taken place.

Incredibly Fast Workflows
Drastically reduce the time-consuming process of configuring a large number of devices. Use the built-in search function and change settings of a single device or select several entries to quickly make multiple changes at once.

Incredibly Powerful Automation
Let the software automatically patch all fixtures in a single DMX universe or across the entire range of addresses. Simply use drag and drop to put them in the correct order. Setting up DMX addresses has never been faster.

Full Support
MADRIX RADAR supports all RDM parameters detailed in the official protocol specifications of ANSI E1.20 and ANSI E1.37-1 over Art-Net. All fixed parameters (PIDs for Set and Get) and manufacturer-specific parameters are included.

Monitoring. Fully automatic 24/7 device monitoring with automatic notifications.

Continuous Monitoring
Let the software monitor all of your devices 365 days a year, 7 days a week, 24 hours a day. It does so fully automatically without any required supervision. This simply wasn‘t possible before.

Making Sensor Data Understandable
MADRIX RADAR checks the status of devices, such as voltage, temperature, status, power cycle, life cycle, and more. Graphical overviews allow you to quickly see if a sensor value is within its specified limits or out of its valid range.

Event Reports
In addition to merely requesting and receiving information, the software will apply its own logical routines in order to create events for you. By probing and validating incoming data, MADRIX RADAR provides actionable reports for you.

Automatic Notifications
If MADRIX RADAR detects any irregularities, you can receive automatic status updates within the software, run a PowerShell script, or let the system conveniently send you e-mails. In short, you are always up to date.

MADRIX AURA is the advanced lighting control recorder and stand-alone playback unit.

It is the central stand-alone controller for simple recording and large-scale pixel mapping.

3 versions are available:
AURA 2
AURA 12
AURA 32

Developed and made in Germany.

Stand-Alone Playback
Independently run the most sophisticated light shows from this compact playback unit via Art-Net or Streaming ACN. Easily control up to 2, 12, or 32 universes per device.

Live Recording
Record any Art-Net or Streaming ACN network stream onto the inserted SD/SDHC card. With MADRIX 5, producing a beautiful light show is as easy as pressing record and play.

Central Hub
Simply connect compatible MADRIX hardware interfaces or third-party devices to provide the correct output for your lighting fixtures.

Time-Controlled Shows
Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.

Master-Slave Synchronization & Scalability
Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.

Web Configuration
Access and change specific device settings, such as the important IP address, subnet mask, playlist settings, and much more, using the built-in web configuration page.

Live Control
8 on-device buttons allow for quick playback and recording control as well as directly adjusting overall speed and brightness.

Remote Control
Trigger AURA via HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.
