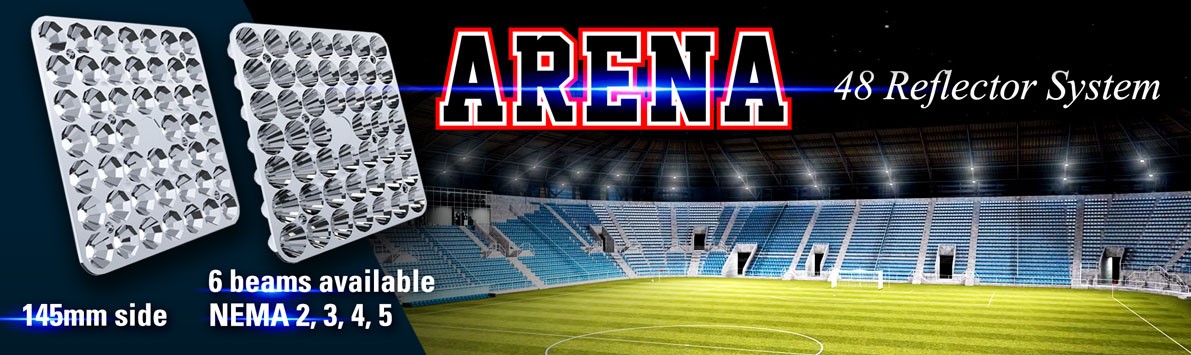

KCLP48xxCRSM is the new Khatod’s family of high-tech Reflectors meant for wide area applications, especially for lighting applications in any type of sport structures and environments, indoor and outdoor. KCLP48xxCRSM Reflectors come in many models. They are square shaped - 145mm x 145mm - and consist of an array made of 48 reflectors, with a 2mm pitch between the optical foci. They perform a variety of NEMA Beam Angle Types, from Narrow Beam (NEMA 2) to Ultra Wide Beam (NEMA 5) and an outstanding Asymmetrical Beam (NEMA 5x6). Made of PC HT Black with aluminium reflective coating,  the reflectors work perfectly within -40° to ~ 90°C temperature range. KCLP48xxCRSM Reflectors are optimized for the most famous 3535 package LEDs with dome. Perform high lighting efficiency, excellent luminous flux and great glare control. They are also available with a cover made of transparent PC and provided with a silicone gasket ensuring IP and IK protection. They can be used individually or configured in multiple parts so to create the perfect lighting fixture for your application, as linear lighting rows or in configurations of different shape and width. The Reflectors are easily assembled by screw fixing.

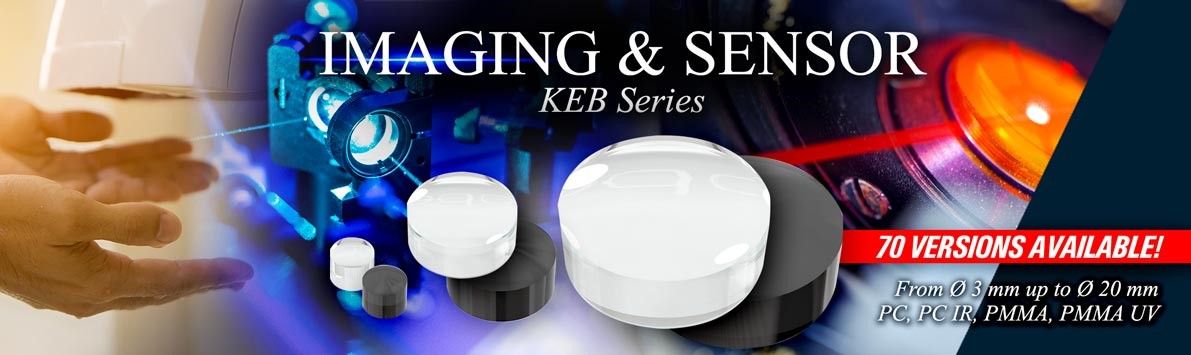

Biconvex lenses to:
- Collimate the radiation from different sources such as LEDs, laser diodes and VICSELs.
- Focus the radiation collected on receivers, like photodiodes and linear CCDs.

The main advantage stands in the possibility of engineering both the optical and the mechanical part in a single component.
Thanks to the extensive selection of materials we are able to work with a wide range of frequencies, covering from UV to the near-infrared.

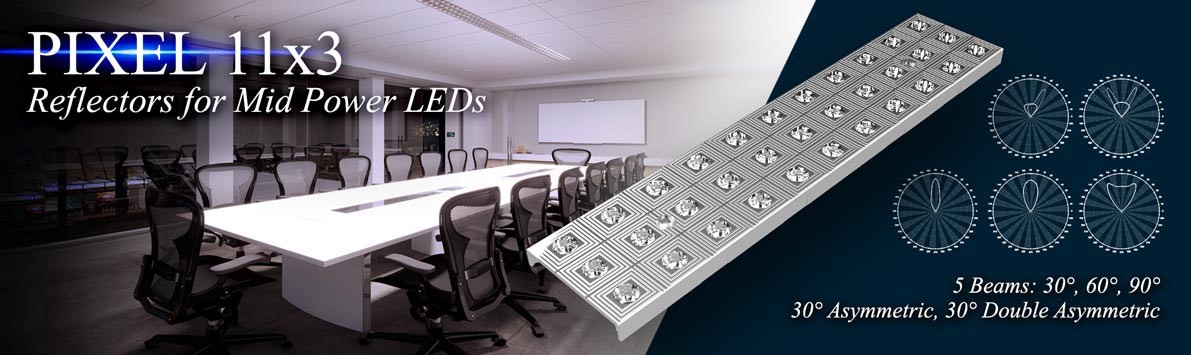

Reflector systems, designed for most popular Mid Power LEDs. Excellent optical solution for lighting systems used in rooms with high ceilings and industrial framing. Perfectly meet the requirements for applications that need high-efficiency lighting while being energy efficient.

Reflector panels made of 33 cavity, box-shape, designed for Mid Power LEDs.

Module dimensions: 285.60mm x 61mm side, 10.25mm height.

Material: Black PMMA + Alluminium Reflective Coating.

5 beams available: 30° asymmetric,30° double asymmetric, 30°, 60°, 90°

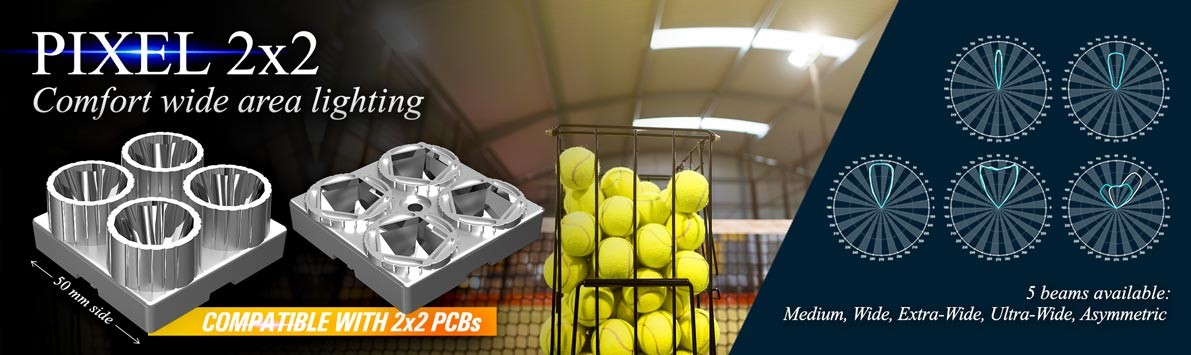

KCLP04xxCRSM is the new Khatod’s family of high-tech Reflectors meant for wide area applications, especially for lighting applications in any type of sport structures and environments, indoor and outdoor.
KCLP04xxCRSM Reflectors come in many models. They are square shaped – 50mm x 50mm – and consist of an array made of 4 reflectors, with a 25,40mm pitch between the optical foci. They perform a variety of NEMA Beam Angle Types, from Medium Beam (NEMA 3) to Ultra Wide Beam (NEMA 5) and an outstanding Asymmetrical Beam (NEMA 5x6). Made of black PC HT with aluminium reflective coating, the reflectors work perfectly within  -30° to ~ 120°C temperature range.
KCLP04xxCRSM Reflectors are optimized for the most famous 3535 package LEDs with dome. Perform high lighting efficiency, excellent luminous flux and great glare control.
They can be used individually or configured in multiple parts, so to create the perfect lighting fixture for your application, as linear lighting rows or in configurations of different shape and width.
The Reflectors are easily assembled by screw fixing.

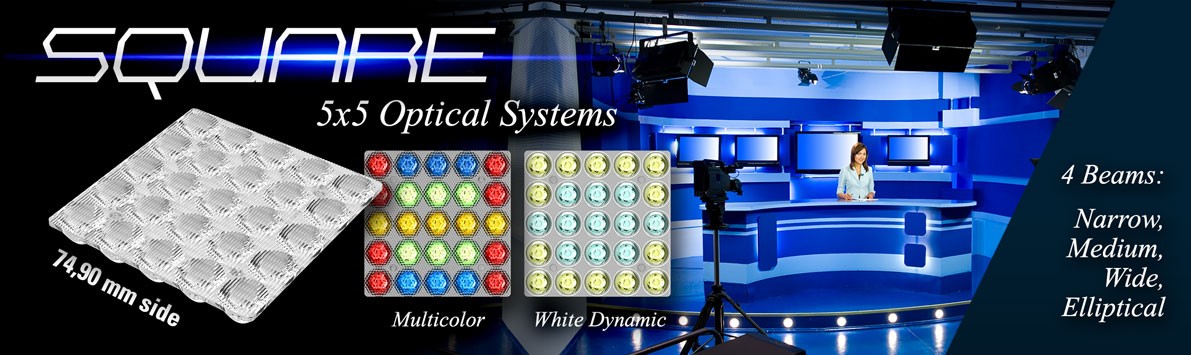

SQUARE Lenses are the new Khatod’s family of Multi-Lens Modules for indoor applications.
PLL2251xx Lenses come in many models. Square shaped – 74.9mm x 74.9mm – consisting of a 25 lens array.
They perform a variety of circular beam angle types, from 11° to 40° and Elliptical Beam. Made of PMMA, the lenses work perfectly within -40° to +85°C temperature range. Available with or without PEGs.
PLL2251xx Lenses are optimized for the most popular 3535 package LEDs with dome. High lighting efficiency and excellent luminous flux.
Can be used individually or configured in multiple parts so to create the perfect lighting fixture for your application, as linear lighting rows or in configurations of different shape and width.
The Lenses are easily assembled by glue.
