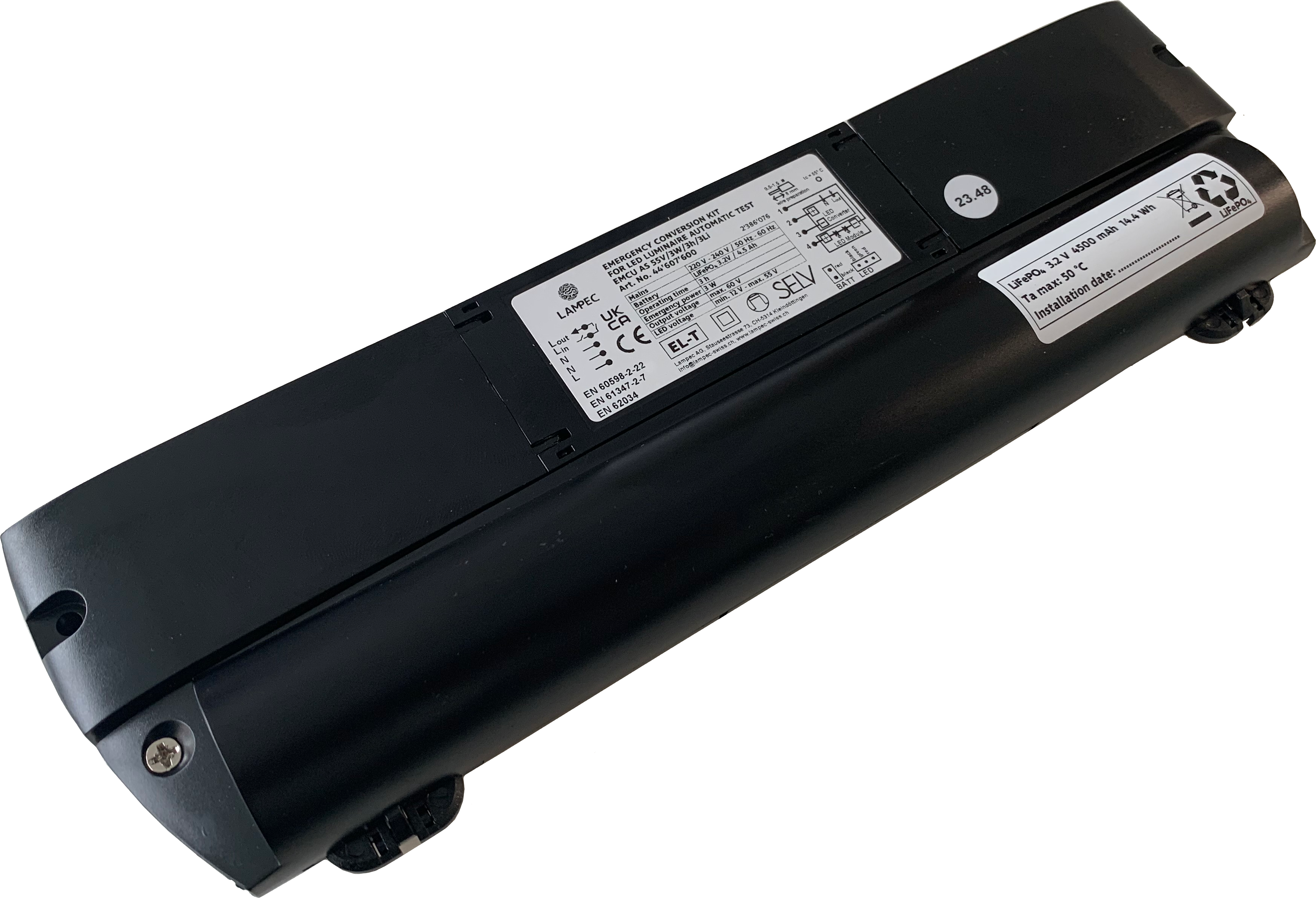

The emergency lighting inverter EMCU A adds emergency lighting and self-testing functionality conforming to the IEC 62034 standard to regular LED luminaires. One or two battery compartments designed to hold a number of 18650 or 26650 LiFePO4 (LFP) battery sticks may be connected to one or both sides of the slim and space-saving polycarbonate housing.

The inverter along with the battery compartment(s) may be put into dropped ceilings to work with downlights, LED panels and similar luminaires. A battery regeneration process for capacity optimisation is initiated automatically after commissioning as well as after each battery exchange to allow for the maximum battery lifetime.

• Self-contained emergency lighting remote box with in-built LFP battery for LED luminaires
• forward voltage ranging from 10 to 325V
• 1 h and 3 h emergency durations, others upon request
• approx. 3W of constant emergency output power, others upon request
• automatic battery regeneration
• deep discharge protection
• optional bus communication (DALI or M-Bus)
• polycarbonate housings with strain relief for inverter and battery
• suitable for protection class Il luminaires
• 60 months warranty

Expand your existing LED luminaires with emergency operation and self-testing functions according to the IEC 61347-2-7 and IEC 62034 standards with the EMCU K family of emergency lighting inverters. The short and slim metal housing is suitable for mounting in a large number of protection class I LED luminaires in a space-saving way along with the equally compact LFP batteries. Our new regeneration process for capacity optimisation is automatically initiated immediately after commissioning as well as after each battery exchange to allow for the maximum battery lifetime.

• Self-contained emergency lighting inverter for LED luminaires and LED applications
• forward voltage ranging from 10 to 220V
• 1 h and 3 h emergency durations, others upon request
• 3W of constant emergency output power, others upon request
• automatic battery regeneration
• deep discharge protection
• metal housing L 150 x W 30,2 x H 22,1 mm
• suitable for protection class I luminaires
• 60 months warranty

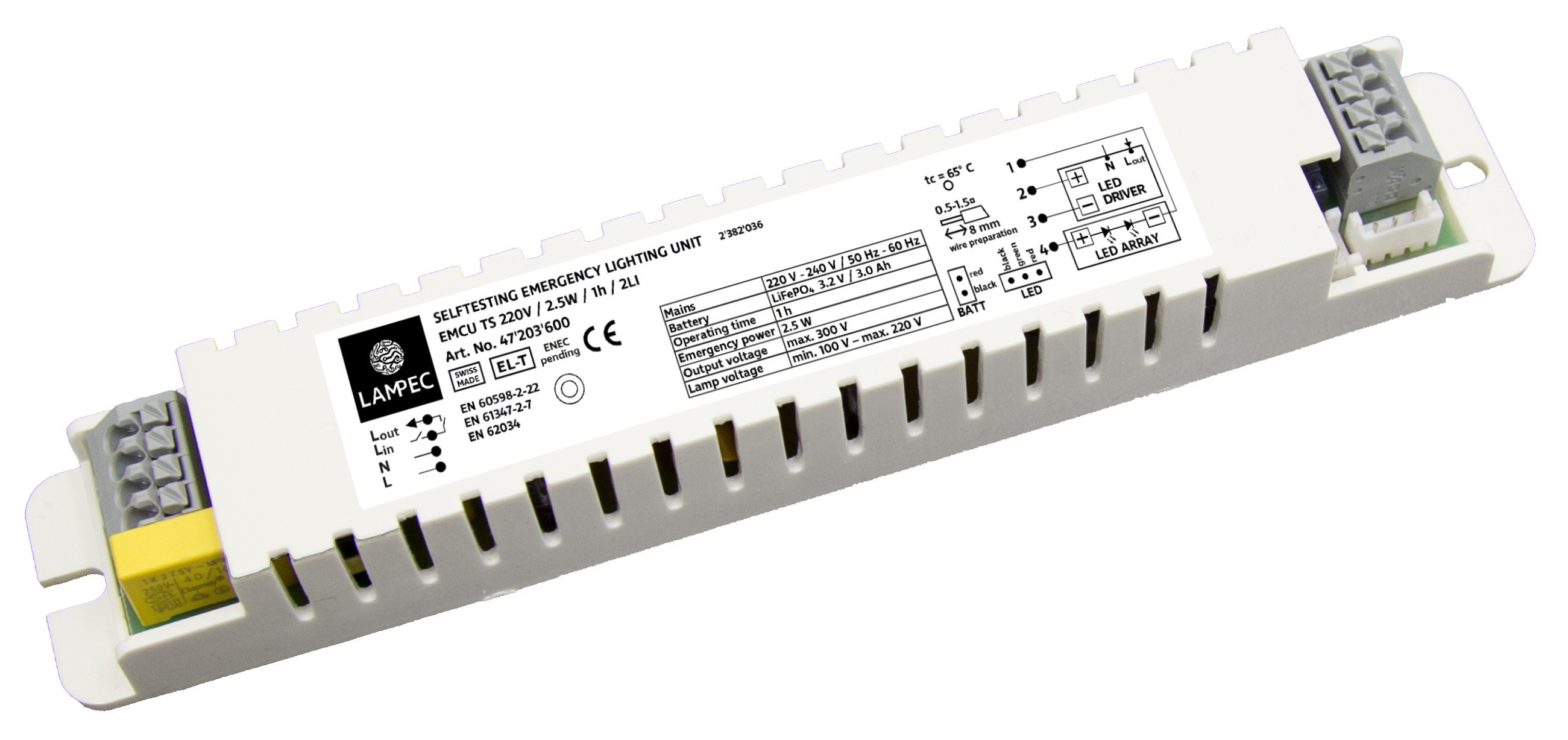

Expand your existing LED luminaires with emergency operation and self-testing functions according to the IEC 61347-2-7 and IEC 62034 standards with the EMCU T family of emergency lighting inverters. The space-saving polycarbonate housing fits snugly into a wide range of protection class II LED luminaires along with the equally compact LFP batteries. Our new regeneration process for capacity optimisation is automatically initiated immediately after commissioning as well as after each battery exchange to allow for the maximum battery lifetime.

• Self-contained emergency lighting inverter for LED luminaires and LED applications
• forward voltage ranging from 10 to 325V
• 1 h and 3 h emergency durations, others upon request
• 3W of constant emergency output power, others upon request
• automatic battery regeneration
• deep discharge protection
• optional bus communication (DALI or M-Bus)
• polycarbonate housing L 177 x W 30 x H 21,5 mm
• suitable for protection class Il luminaires
• 60 months warranty

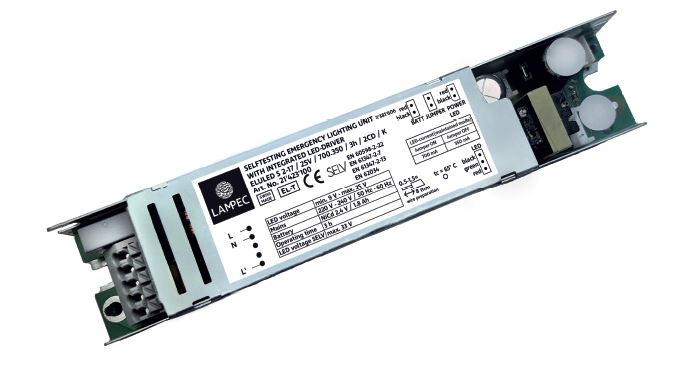

The ELULED IK emergency lighting combo driver operates LED modules with power ratings of min. 2W to max. 20W in mains operation. The LED voltage ranges from 8.3 to max. 25 V for the 25V version and from 20 to max. 57 V for the 57V version. During emergency mode, there is a constant LED output power depending on the connected battery type. The emergency operation and self-test functions comply with the standards IEC 61347-2-7 and IEC 62034 respectively. The short and space-saving metal housing may be installed in a variety of protection class I emergency and safety luminaires along with the equally very compact LFP batteries. Battery regeneration for capacity optimisation is initiated automatically immediately after initial commissioning and each time the battery is replaced.

• self-contained emergency lighting combo driver for LED exit signs and emergency luminaires
• maintained and non-maintained operation
• selftest conforming to IEC/EN 62034
• Use in luminaires with LED arrays from 8.3 to 25V (25V version) or 20 to 57V (57V version)
• LED current values in mains operation 300...700mA (25V version) or 120...350mA (57V version) within the maximum output power of 20W; automatic recognition of LED array, other values on request
• emergency duration 1h, 3h or 8h, others on request
• constant output power in emergency operation depending on battery type used
• SELV
• automatic battery regeneration
• deep discharge protection
• bi-colour LED status display
• optional bus communication (DALI or M-Bus)
• metal housing L 150 x W 30,2 x H 22,1 mm for protection class I LED luminaires
• ambient temperature range 5 to 50 °C
• 60 months warranty

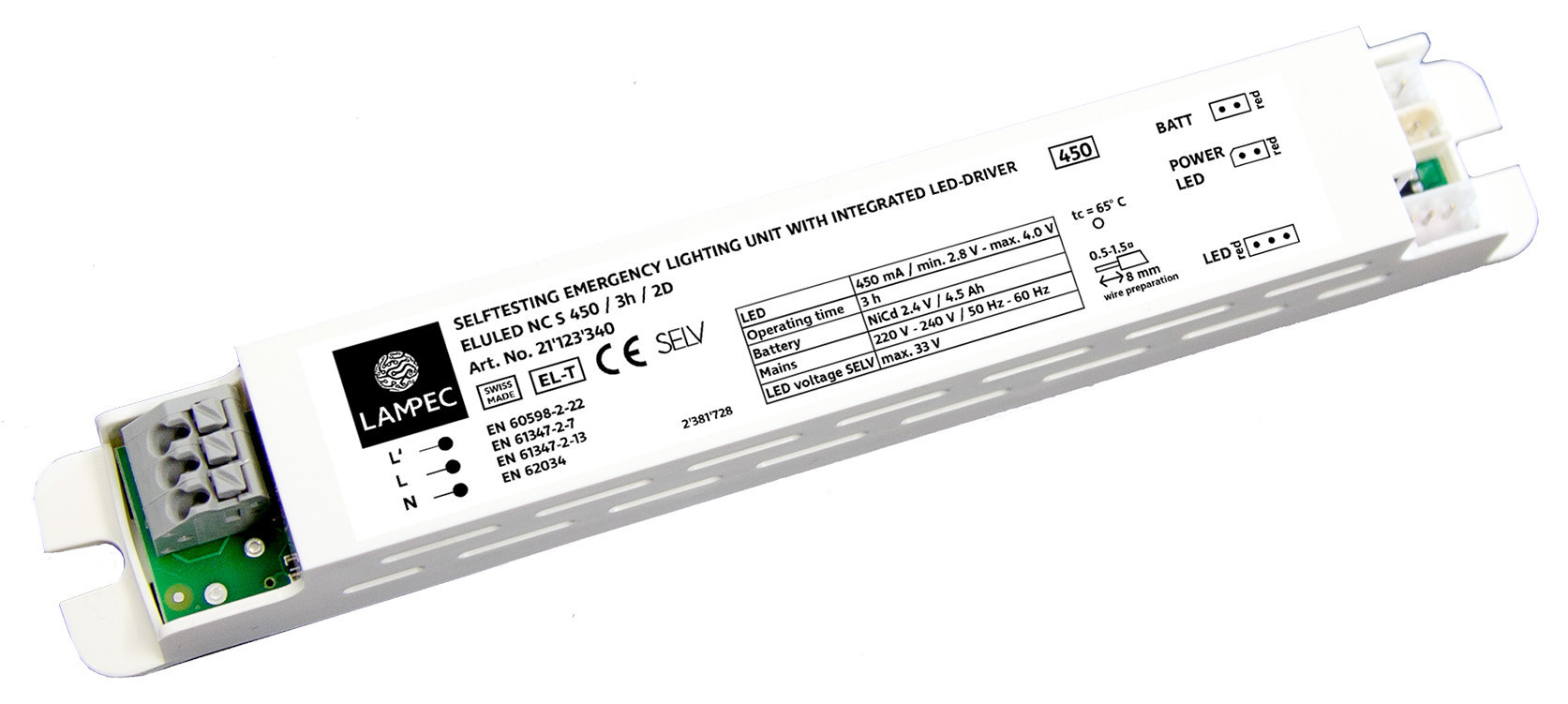

Operate your LED exit sign or emergency luminaires with our ELULED NC emergency lighting combo driver with up to a maximum of 5W in mains operation and with automatic self-testing according to the IEC 61347-2-7 and IEC 62034 standards in emergency operation. The slim and space-saving polycarbonate housing is suitable for installation in a wide range of emergency and safety luminaires along with our equally compact LFP batteries. Our new regeneration process for capacity optimisation is automatically initiated immediately after commissioning as well as after each battery exchange to allow for the maximum battery lifetime.

• Self-contained emergency lighting combo driver for maintained and non-maintained operation
• Suitable for emergency luminaires and exit signs with LED arrays between 2,8 and 13,5V
• Current in maintained operation between 100 und 700 mA within the maximum output power of 5W, automatic detection of LED voltage, other values upon request
• 3h or 8h emergency duration, other values upon request
• Constant output power in emergency mode, depending on specified battery type
• SELV
• Optional bus communication (DALI or M-Bus)
• Deep discharge protection
• Polycarbonate housing L 165 x B 24 x H 21 mm
• 60 months warranty
