Centralized Control and Monitoring System For Streetlights

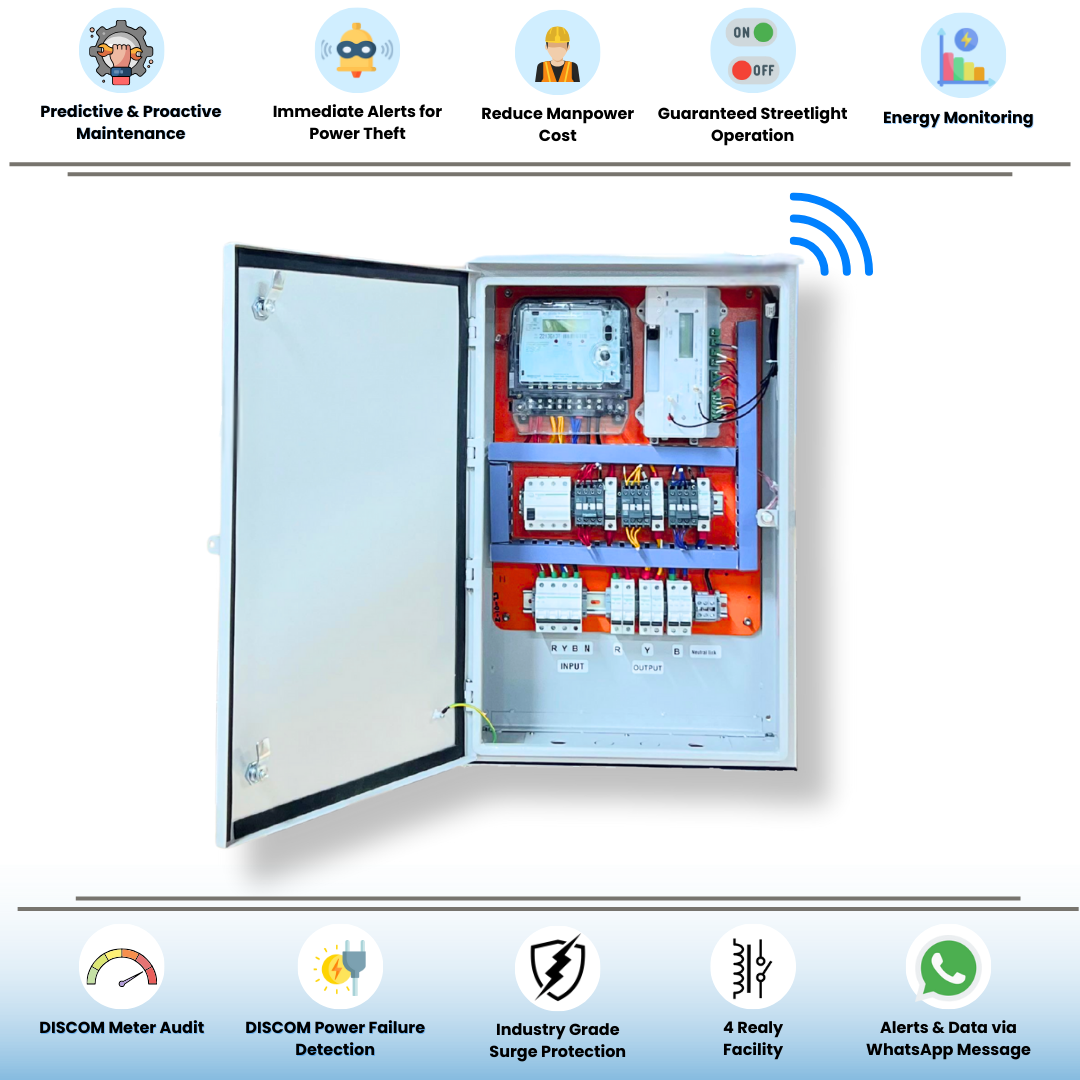

Customizable group streetlight control panels are fully built switchgear panels consisting of mightyTIMER's Smart Timers, Energy Meter, MCBs, Electrical contactors, etc. for control & monitoring a group of streetlights.

Group streetlight control panels come in 1 Phase & 3 Phase variants. Also, we offer a variety of enclosure options to customize from MS, SMC Enclosure, Stainless Steel, etc. as per site requirements & conditions.

Salient features of these panels are:

• High quality design & manufacturing of panels
• Clearances & Creepage distances are well maintained
• Maintenance safety is adhered
• Multiple mounting & installation options such as pole mount, wall mount & ground mount
• Component repairing & replacement is easy, quick & user-friendly
• Plug & play type configuration for cable connections and configurations.

mightyTIMER iSLCs are smart nodes to be connected with each luminaire for dedicated individual control & monitoring of streetlights.

We have pole mountable (retrofit), NEMA based, ZHAGA based & Embedded chip based iSLC products with various communication technology variants such as LoRaWAN, SigFox, PLCC, LTE-M, NB-IoT, 4G(LTE), Zigbee, RF, WiFi, Wi-Sun, BLE, etc.

We also have motion sensor variants in iSLCs.

Highlight: We have deployed a first made in India adaptive motion dimming iSLC solution where we have achieved mesh roaming mechanism between multiple gateway mesh hops within 3000+ streetlight poles and 90+ highmast poles.

Some of the key features of mightyTIMER's iSLCs are:

• User adjustable dimming intensity
• Single click configuration of multiple iSLCs
• Multiple variants to choose from for various requirements
• Variants available with Class 1 Energy Metering chip inside in
• GPS chip inbuilt in select variants for tracking & navigating to iSLCs
• Accelerometer variants available for detecting movement of iSLCs to alert in case of tampering
• Sensor integrations possible such as Motion Sensor, Temperature sensor, noise sensor, etc.

Timerops platform is mightyTIMER's Web software based on a secured cloud for smart streetlight control, monitoring & management.

The smart platform is a quick response, light weight & secure software based on the latest MQTT protocol.

It features a fully customizable dashboard with extensive analytic charts, reports & views.

It supports APIs for seamless integration with worldwide platforms. Timerops gives a hands-on monitoring of the Energy Metering analytics for reconciliation with DISCOM energy meter readings and for detecting theft / power leakages in the streetlight infrastructure.

TimerOPS has an interactive GIS map for clustering of smart streetlight components of Smart timers, Panels, iSLCs along with streets mapped with poles, lights, technologies used, network gateways, online/offline status, at-a-glance meaningful summary and much more.

Some of the meaningful modules that make up TimerOPS are Street Lights Asset Management for managing pole, LED Light & LED driver details, Citizen Complain & Task Management for efficient servicing, Fault Analytics & Notification Management.

Timerops also extends itself as Smartphone Apps & WhatsApp bot.

It is the heart of smart streetlight control & monitoring architecture.

Smart Timers are IoT based group streetlight controllers with various technology variants such as 4G (LTE), NB-IoT, LoRaWAN, WiFi, etc. Smart Timers are available in 1 Phase & 3 Phase variants.

They form the component of group streetlight control panels (control feeders) to control, schedule, monitor & communicate with the mightyTIMER's TimerOPS cloud software.

Smart Timers also form as the IoT Gateways for Individual Streetlight Controllers (iSLCs) to communicate within the streetlight infrastructure based on LoRaWAN, Zigbee, BLE, SigFox, WiFi, Wi-Sun, etc.

Some key features of Smart Timers:

• Dynamic voltage range with performance even at 600 V AC levels
• GPS time synced RTC to ensure reliability & accuracy of Real-Time Clock
• Firmware Over the Air (FOTA) updates via cloud & also supports nearby FOTA
• Alerts & protection when Panel door opens, MCB Trips, Contactor fails, SPD failures, Over/Under Voltage, Over/Under Current, etc. faults
• Monitor upto 150+ various electrical parameters with Class 1 accuracy
• DISCOM power failure detection & alerts
• Year round astronomic calendar scheduler with monthly astronomic offset based on GPS (Latitude / Longitude)
• WiFi/BLE based nearby (local) configuration, control & monitoring when remote connection is not available
