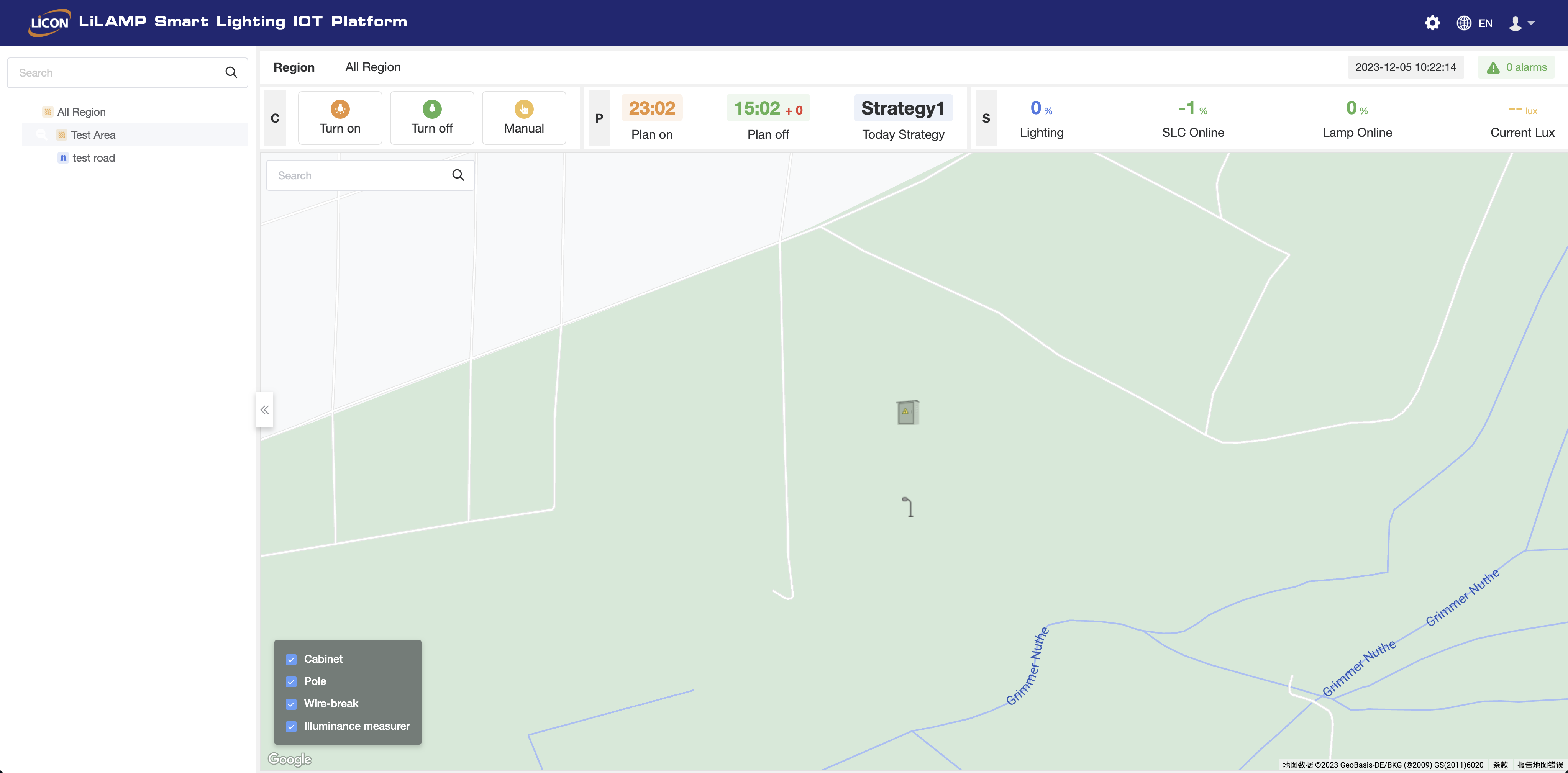

Includes 3 parts: centralized control of lights, single control of lights and monitoring, with the function of remote metering,
remote control,remote signaling,remote adjustment and remote monitoring.
●Distributed microservice architecture design to facilitate function and performance expansion; Support Linux / Windows platform deployment; Support multi project management.
● Can be deployed into both a large central platform and a cloud platform (eliminating central investment and manual duty); Easily download mobile app and play with lighting with a mobile phone.
●compatible with GPRS / CDMA / 4G / NB and other communication modes and protocols to facilitate the upgrading of the system.
●perfectly realize the scene control such as grouping, segmentation, time sharing, interval, one side, main / auxiliary road and control strategies such as working days, weekends, holidays and major activities.
●compatible with lsc7 / 8 lighting centralized controller and SLC1 / 2 single lamp controller, and adopts double insurance measures combining remote control and automatic control.
●audible and visual, voice, SMS alarm and message push of various faults; Active alarm for major faults such as abnormal light on / off, power supply power failure / phase loss, access control / flooding, cable leakage / disconnection, lamp pole leakage and lamp failure.
● automatic meter reading and remote metering; Statistical function of energy consumption and light duration;
● Multiple safety measures to ensure safe operation.
● GPS satellite or network automatic time adjustment.
● Data query and report printing function.

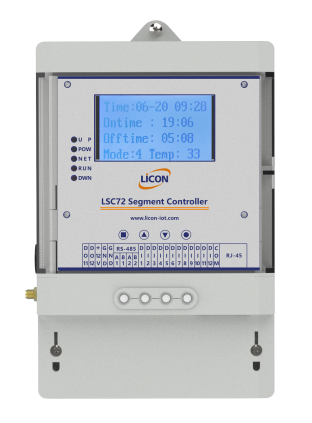

● With advanced functions of remote meter,remote control,remote signal,remote dimming,automatic control and alarm,it can monitor outdoor lighting 3phase main power and manage single street light.
● Integrated meter-type structure, easy to install.
● Using industrial grade Cortex-M3 32-bit ARM chip and metering chip to real-time monitor voltage,current and power,fast speed,high accuracy,strong function
● Compatible with 4G wireless and RJ-45 network port communication,it can connect centralized station and cloud platform.
● Supports HPLC/ZigBee/LoRa etc self-organizing network communication to centralized manage lights.
● Using embedded operation system,it can remote upgrade.
● Easy to realize scene controlling and mode controlling.
● Turning on/off lights automatically by longitude,timing or 7-days default plan, when communication failed.
● Alarm for major faults,such as abnormal on/off of lights,power failure/phase loss and open/water of power cabinet and register history of lights on/off.
● Built-in large capacity lithium battery with UPS function.
● Big LCD screen,easy to operate.
● 2 RS-485 serial ports for various device communication.
● It has statistical function of energy consumption/ lighting time
● It has power switching function,still works 1/2 phase in 3 phase

With industrial grade 32-bit processor, it runs Linux fast.
● Extensible edge computing module,includs Cortex-A7 chip (4cores，frequency 1.2GHz)、hardware encryption chip and HDMI、USB、audio、SD card interface.
● Supports network port,4G/5G,WiFi access to the internet and connect with Licon SCM platform.
● Suppots RJ-45、RS-485,matchable for various mounting devices.
● Supports TCP、UDP、MQTT、MODBUS etc protocols.
● Self-contained WiFi supports P、STA、Repeater mode.

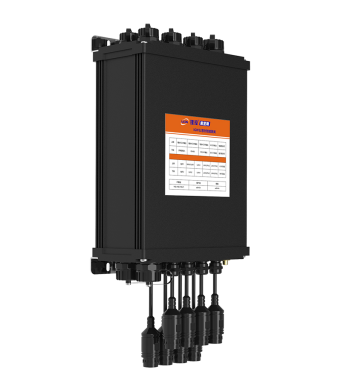

● Integrated design of LED driver and gateway,to solve problems for power supply of different devices. It has 1 AC220V input and 3 AC220V outputs,2 DC12V outputs,2 DC24V outputs and 4 PoE(DC48V)outputs.
● Real-time monitoring AC nput/output, voltage/cureent/power of DC output etc datas.
● Available for external HPLC/ZigBee/LoRa etc communication module for self-organizing network to realize centralized management of street lights,manhole cover and rubbish bin etc.
● Innovative design,waterproof connector,aluminum shell,IP67,vertical installation.

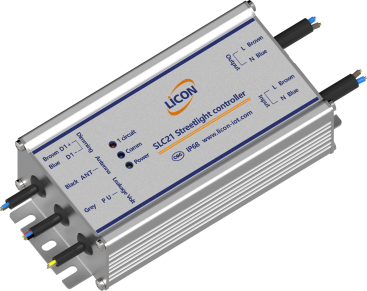

● Wired connection,can be installed into light fixture or manhole of pole,
● Compatible with various communication method:RS-485/HPLC/ZigBee/LoRa/NB-IoT/4G Cat.1 etc.
● Aluminum shell and fully guled,IP68 waterproof.
● Innovation of LED indicator on it, easily to judge the wirings connection fault etc.
● Adopts industrial-grade MCU and power metering chips, high reliability.
● Supports 1~3 outputs controlling and monitoring,unique one controller for 3 outputs(main road light,auxiliary road light and Chinese knot or other output)
● Installed on each lamp, and can be commanded by centralized platform or mobile APP to realize the lighting control of area or road.
● With alarm functions of abnormal on/off of lamp,lamp malfunction,communication failed etc.
●Optional street pole electrical leakage monitoring(voltage leakage and current leakage) .

● Standardised connection with NEMA、Zhaga、CSA051, easily installation for street lights controlling and  dimming.
● Compatible with various communication method:RS-485/HPLC/ZigBee/LoRa/NB-IoT/4G Cat.1 etc.
● Installed on the top of lighting fixture,lower than 8m from the the ground,which benefits the transmission of wireless signals.
● Plug and play installation, no wiring required.
● Flame-retardant PC material shell, anti-aging and unbreakable
● Built-in Antenna and communication module,no needs to open holes
● Adopts industrial-grade MCU and power metering chips, high reliability.
● Installed on each lamp, and can be commanded by centralized platform or mobile APP to realize the lighting control of area or road.
● With alarm functions of abnormal on/off of lamp,lamp malfunction,communication failed etc.
● 0~10V/PWM dimming output for LED street light dimming(optional)
