The P4 BiLED incorporates exceptionally high photometric performance in a discrete and versatile LED emergency lighting luminaire range. Addressable versions are available for remote monitoring and control. Fully automatic self-testing models are available for non-maintained and maintained operation and in Fastel Standalone, Fastel Link and Fastel Wireless technologies.

P4’s unique 6 year battery warranty is included. Utilising alternative light distribution lenses permits wide spacing of luminaires whilst meeting minimum illuminance requirements of installations on escape routes and also in open areas, thus minimising installation costs.

BiLED2 Recess Mounted Luminaires are simply and easily installed into ceilings through the 45mm hole required to mount the attractive fascia and heat sink into the ceiling. BiLED Surface Mounted Luminaires can be mounted directly onto solid ceilings. Mains lighting versions are also available. KEY FEATURES AND BENEFITS

• High efficiency white LEDs.
• Exceptional light output and excellent colour rendering.
• Provides opportunity to reduce initial capital outlay and installation costs.

Simple, discreet, recessed or surface mounted interior edge lit sign luminaire.

Suitable for either ceiling or flag wall mounting, ExiLED sign luminaires are easily integrated into modern décor.

High intensity white LEDs provide low energy illumination of the attractive double sided legend blocks.

Available for use as both mains powered information signs and emergency lighting signs, the emergency lighting versions may be of Fastel Standalone, Fastel Link or Fastel Wireless operation – specified by system suffix.

Fully compliant with the requirements of BS EN 60598-2-22, ExiLED sign luminaires are suitable for viewing distances up to 13 metres.

KEY FEATURES AND BENEFITS

• A compliant, stylish yet discreet sign
• Ideal for circulation areas where larger sign luminaires appear unsightly
• Styled to complement the P4 Quatrum luminaires
• Full automatic, self-testing LED self contained models
• Available also as LED mains or static inverter versions
• All models comply to BS EN 60598 and all emergency lighting versions to BS EN 60598-2-22

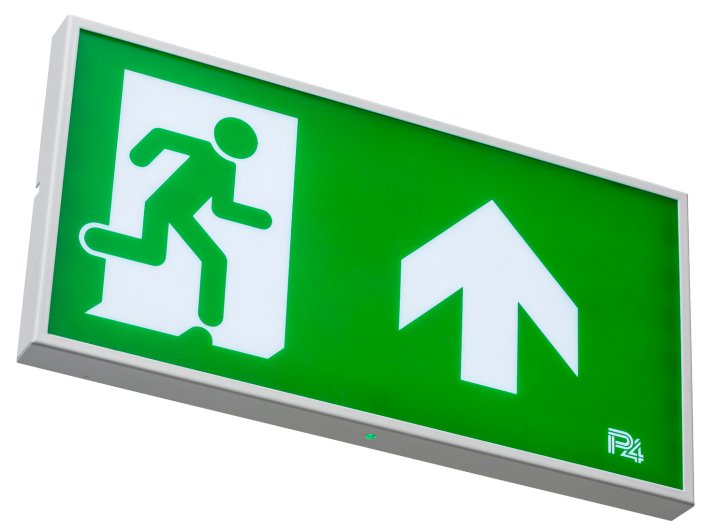

An exclusive range of white oval profile, LED low energy wall or ceiling mounted edge lit sign luminaires designed to complement all interiors. Features include a suspended 12mm thick opal legend panel with die-cut pictogram legend(s) edged with an extruded trim. Sign illumination complies fully with BS EN 1838 requirements and the luminaires comply with BS EN 60598 and BS EN 60598-2-22.

Rod suspended, recessed, surface ceiling mounted or wall mounted, edge lit sign luminaires incorporating high efficiency LED illumination of legend panel from mains or emergency lighting.

Models available suitable for viewing distances up to 20 metres or 30 metres.

Emergency lighting versions may be of Fastel Standalone, Fastel Link or Fastel Wireless operation specified by system suffix. Alternative finishes specified by optional suffix.

KEY FEATURES AND BENEFITS

• Fully automatic, self-testing LED self contained models
• Ceiling mounted suspension length adjustable to suit installation
• Ceiling mounted models can be surface mounted using optional surface mounting box cover
• Emergency lighting, mains lighting or static inverter operation

The M-Web FWSD is a central supervision unit with an embedded web server which continuously scans the whole installation sending control data to the connected devices and gathering information about their status.

The M-WEB FWSD can monitor and control up to 7,875 wired and/or 3,585 wireless emergency lighting luminaires and signs, significantly reducing infrastructure and installation costs for the end user.

It is configured to carry out a weekly functional test and a quarterly full duration test. The M-WEB FWSD stores test results for up to four years, allowing the end user immediate access to test reports to ensure and prove emergency lighting compliance. The testing day and time for individual emergency lighting luminaires and signs can be set to suit user requirements.

The system output is displayed as pages on a web browser via any LAN using TCP-IP protocol or connection may be made to a BMS interface via the RS232 or RS485 ports. A GSM option for remote access is also available.

In addition, the web server software now offers a further layer of security to prevent unauthorised access and the ability to use a dynamic IP address, as an alternative to the standard static IP address.
