PASSIVE SAFETY

Mission accomplished!

"I pali arredo" range

I invite You to carefully go through these pages, where we collected our most original products, classical shapes, and new models, with the ambition of suggesting a different outlook of the lighting columns, elements which have a great presence into the spaces of our everyday life, either during the night and the day.

To suggest a different outlook of the places, with elements studied to fit up and unable to give different feelings according to the shapes and colours employed.

For this reason, we thought about and studied “i Paliarredo”, collection on which we worked with enthusiasm, putting to the test competence, creativity, employing new design techniques, and using the flexibility which takes root in our handicraft origins.

As You will appreciate going through this catalogue, the “i Paliarredo” collection is composed of a wide range, from which You can choose to create “lighting furnishing fittings” purpose made according to your own taste and to Your budget, to emphasize the places, always respecting functionality, quality, safety and respect for the environments, always keeping in mind the economic aspect.

Intentionally we do not propose the so called “system” composed of the column and lighting fixture but we propose only the column, so that the designer is not bound and he can choose thus the lighting fixture more suitable to the specific need.

This new catalogue represent to us a challenge, an innovation, not only from the point of view of the product but also from the technologic point of views and mostly from the commercial point of view..

We face this challenge  resolutely and with enthusiasm

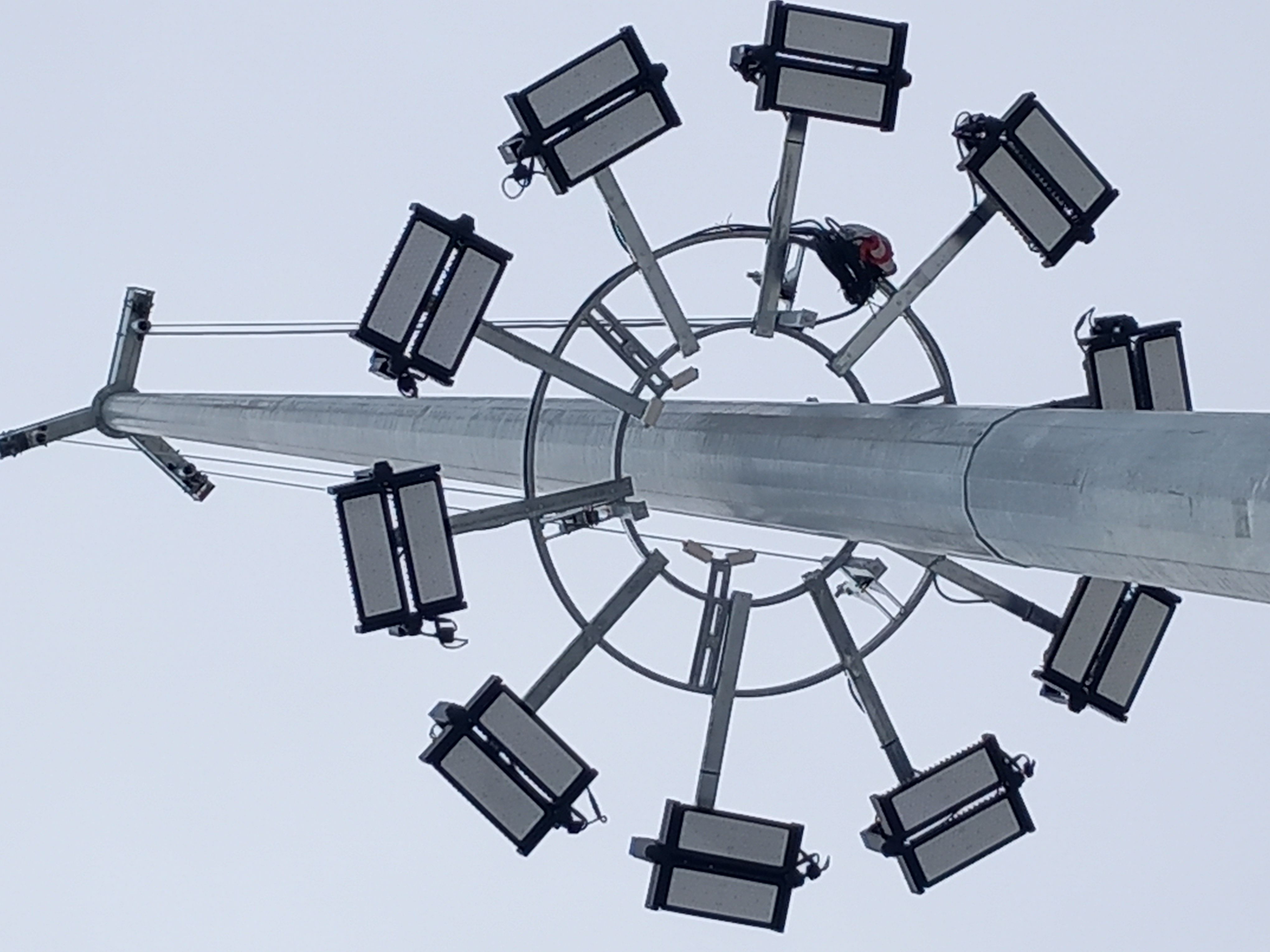

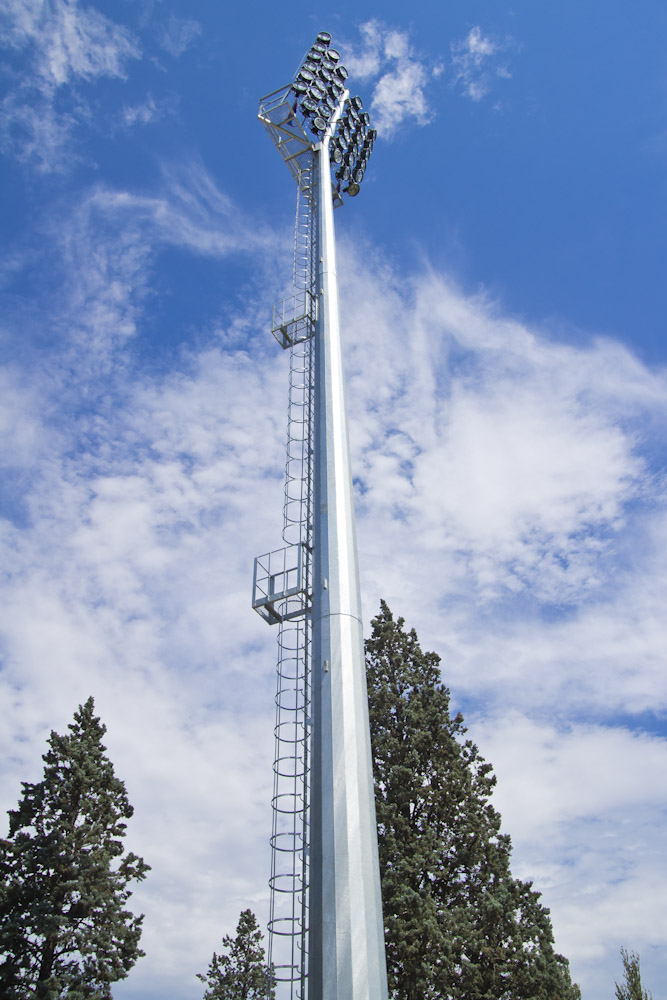

 Lighting masts with mobile crown mainly composed of:
Monotubular shaft tapered shaped with polygonal cross section, hot
dip galvanised, composed of 2 or more sections to be joined at site by
forced overlapping. Designed according to the methods
established from the construction theory in force. Manufactured by cold forming
of steel plate and subsequent external longitudinal welding carried out
by automatic and approved process. Provided for the anchorage to the
basement by means of direct burying into the concrete foundation block.
Movement system, complying with safety standard in force,
is composed of a mobile crown where the floodlights are fastened.
This crown, supported from 3 ropes transmitted on the trailing head on top
of the mast, slides along the shaft, allowing thus to lower the floodlights up
to an height suitable for the maintenance from the ground.
Movement, transmitted from the 3 ropes is carried out by means of electric
hoist applied to the base of the shaft. The hoist can be provided “trolley
mounted” or “inside the mast”. During normal operation of the mast the
crown is fixed on top column thanks to the hooking elastic system with
double thin plate of armonic steel.
Electric system suitable for the power to be installed,
composed of the interlocked socket at the base of the shaft where
it is necessary to have the electric line, from the feeding cable self bearing
type, completed with CEE plug at one end, and then connected to the
junction box on the mobile crown on the other end. The junction box,
completed with terminal board already wired is provided with watertight
socket provided for the lighting test at ground
by means of purpose made extention with CEE plugs

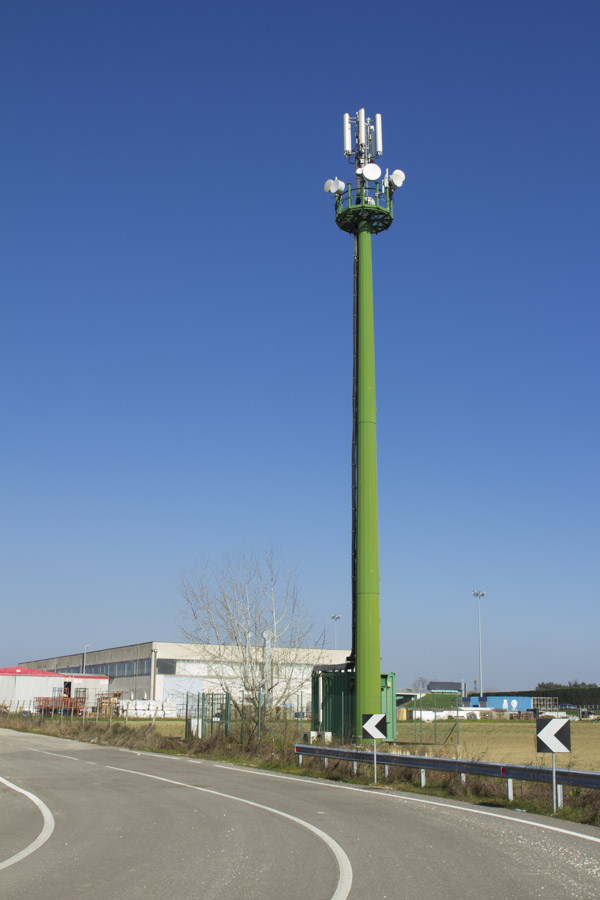

The particularly slender shape, the assembling simplicity and quickness as well as the cheaper
prices compared with the lattice works, made it possible that the monotubularsteel column found
a wide application in the field of telecommunications.
The experience gained in designing and manufacturing such supports, proposes ourselves as qualified suppliers among the bigger Italian companies in this field.

Lighting masts with mobile crown mainly composed of:
Monotubular shaft tapered shaped with polygonal cross section, hot
dip galvanised, composed of 2 or more sections to be joined at site by
forced overlapping. Designed according to the methods
established from the construction theory in force. Manufactured by cold forming
of steel plate and subsequent external longitudinal welding carried out
by automatic and approved process. Provided for the anchorage to the
basement by means of direct burying into the concrete foundation block.
Movement system, complying with safety standard in force,
is composed of a mobile crown where the floodlights are fastened.
This crown, supported from 3 ropes transmitted on the trailing head on top
of the mast, slides along the shaft, allowing thus to lower the floodlights up
to an height suitable for the maintenance from the ground.
Movement, transmitted from the 3 ropes is carried out by means of electric
hoist applied to the base of the shaft. The hoist can be provided “trolley
mounted” or “inside the mast”. During normal operation of the mast the
crown is fixed on top column thanks to the hooking elastic system with
double thin plate of armonic steel.
Electric system suitable for the power to be installed,
composed of the interlocked socket at the base of the shaft where
it is necessary to have the electric line, from the feeding cable self bearing
type, completed with CEE plug at one end, and then connected to the
junction box on the mobile crown on the other end. The junction box,
completed with terminal board already wired is provided with watertight
socket provided for the lighting test at ground
by means of purpose made extention with CEE plugs
