PEDAS Elektrik San. ve Tic. A.S.

CASUAL Flood Lighting Luminaire

CASUAL Flood Lighting Luminaire

PEDAS Elektrik San. ve Tic. A.S.

Supplier profile All products

Contact supplier

Description

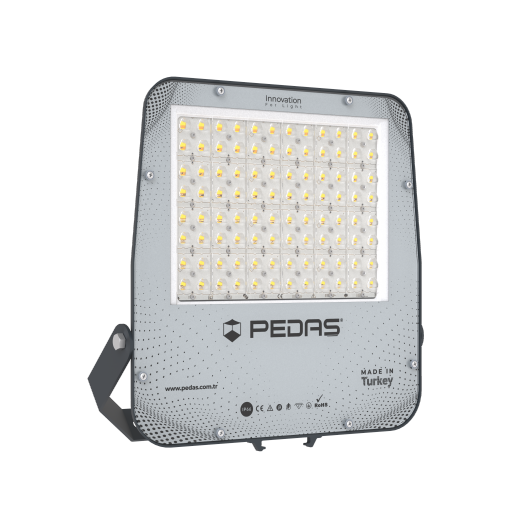

CASUAL Flood Lighting Luminaire

CASUAL S: 20-80W

CASUAL M: 90-150W

CASUAL L: 160-300W

Flood light luminaire.

198-264V / 50-60 Hz energy input.

Aluminum injection body.

Long life and durability with high quality raw material combined.

Impact resistance of housing IK10, of PC glass IK08

6 KV protection standard. Optional 10KV surge protector

can be integrated.

IP66 protection against dust and moisture.

Suitable for use of 10-20 meters height masts.

Optional 30,60 and 90° optical design.

Up to 140 lm/ W at 160W.

According to demands optional Ral codes.

Optional 1-10V, DALI can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-5, IEC EN62031, IEC EN 62778

More from us

Our website Our product

Downloads

DATASHEET

More products by PEDAS Elektrik San. ve Tic. A.S.

Trade fair innovation

HOBBY Waterproof Lighting Luminaire

HOBBY Polycarbonate Waterproof Lighting Luminaire.

Waterproof industrial lighting luminaire.

198-264VAC / 50-60 Hz energy input.

Polycarbonate Extrusion body.

Long life and durability with high quality raw material.

Impact resistance of housing IK10

2-4 KV protection standard. Optional 10KV surge protector

can be integrated.

IP65 protection against dust and moisture.

Suitable for use of 2-4 meters height.

Optical design suitable for large area lighting.

Up to 115 lm/W at 30W.

According to demands optional Ral codes.

Optionalt 1-10V, DALI, Phase-cut can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-1, IEC EN62031, IEC EN 62778

Trade fair innovation

ESTEE-FAVOR LED Panel Lighting Luminaire

Optional dimensions : 30x30, 30x60, 30x120, 60x60, 60x120

198-264V / 50-60 Hz energy input.

DKP 0,5mm sheet body

Long life and durability with high quality raw material combined.

Impact resistance of housing IK02

2 KV protection standard.

IP40 protection against dust and moisture.

Suitable for use of 2-4 meters height recessed.

Optical 105° angle design.

High Efficient UGR: <19 Opal Diffuser

L70> 50.000 Hours Life Mid Power LED

Up to 120 lm/W at 35W.

According to demands optional Ral codes.

Optional 0-10V, DALI, Phase-cut can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-1, IEC EN60598-2-2, IEC EN62031, IEC EN 62778

Trade fair innovation

RONDA High & Lowbay Lighting Luminaire

High & Low Bay industrial lighting luminaire.

198-264VAC / 50-60 Hz energy input.

Aluminium Injection body.

Long life and durability with high quality raw material.

Impact resistance of housing IK10, of PC glass IK08

6 KV protection. Optional 10KV surge protector

can be integrated.

IP66 protection against dust and moisture.

Suitable for use of 8-12 and 12-16 meters height.

Optional 30,60 and 90 ° optical design.

Up to 140 lm/W at 80W.

According to demands optional Ral codes.

Optional 1-10V, DALI can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-1, IEC EN62031, IEC EN 62778

Trade fair innovation

Santiago XL Street & Road Lighting Luminaire

Santiago S Model : 30 - 70W

Santiago M Model : 80 - 110W

Santiago L Model : 120 - 150W

Santiago XL Model : 160 - 220W

Street & road lighting luminaire

198-264VAC / 50-60 Hz energy input.

Aluminum injection body.

Long life and durability with high quality raw material.

Impact resistance of housing IK10, of glass IK08

6 KV protection. Optional 10KV surge protector can be integrated.

IP66 protection against dust and moisture.

Suitable for use of 8-15 meters height poles.

Optical design in accordance with M1-M5 standard.

Up to 150 lm/W 80W

According to demands optional Ral codes.

Optional 1-10V, DALI, AstroDIM can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-3, IEC EN62031, IEC EN 62778
