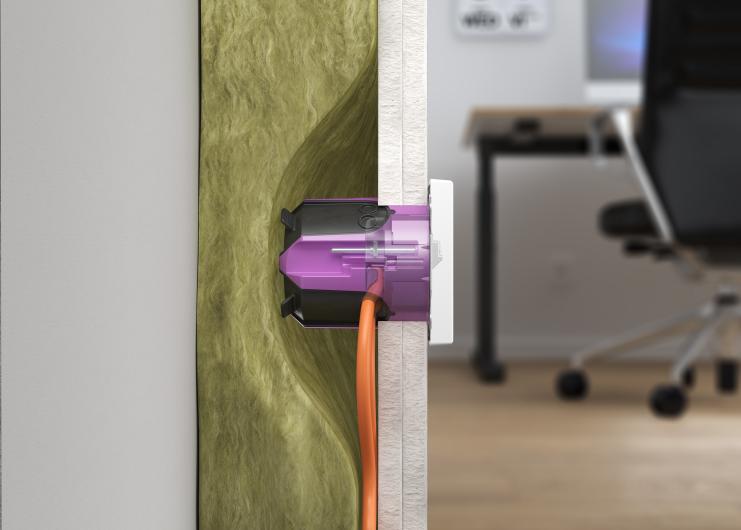

ECON® Data one-gang connection box

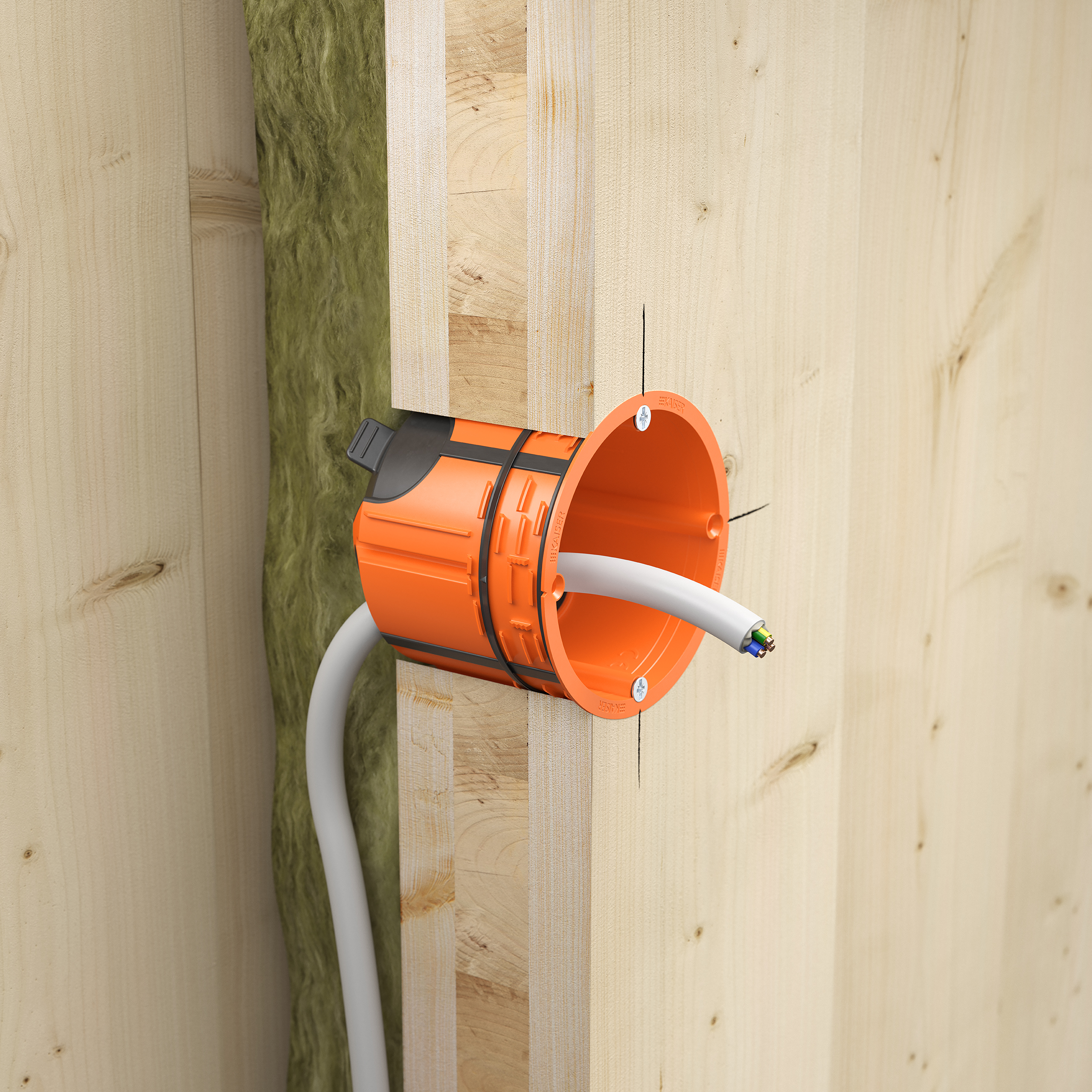

ECON® Fix. Mounted without lugs. Insert-Align-Clamp-Done!
With the new ECON® Fix junction box, installation is significantly faster and easier thanks to the latchless clamping ribs for fastening in various wall material combinations such as OSB boards, board plywood or solid wood, gypsum fibre boards or even in exposed masonry. Circumferential sealing lamellas on two levels guarantee that the airtight level is maintained. The centring bars allow precise and enable convenient mounting of the device junction box in the installation opening without canting. PLUG - ALIGN - CLAMP - READY!

• Clamping rib fastening for different wall constructions, e. g. solid wood
• Circumferential sealing lamellas on 2 levels to maintain the airtight level
• 4 screw domes for maximum flexibility for accessory fitting
• Tool-free cable and conduit entry
• Device screws with plus-minus drive

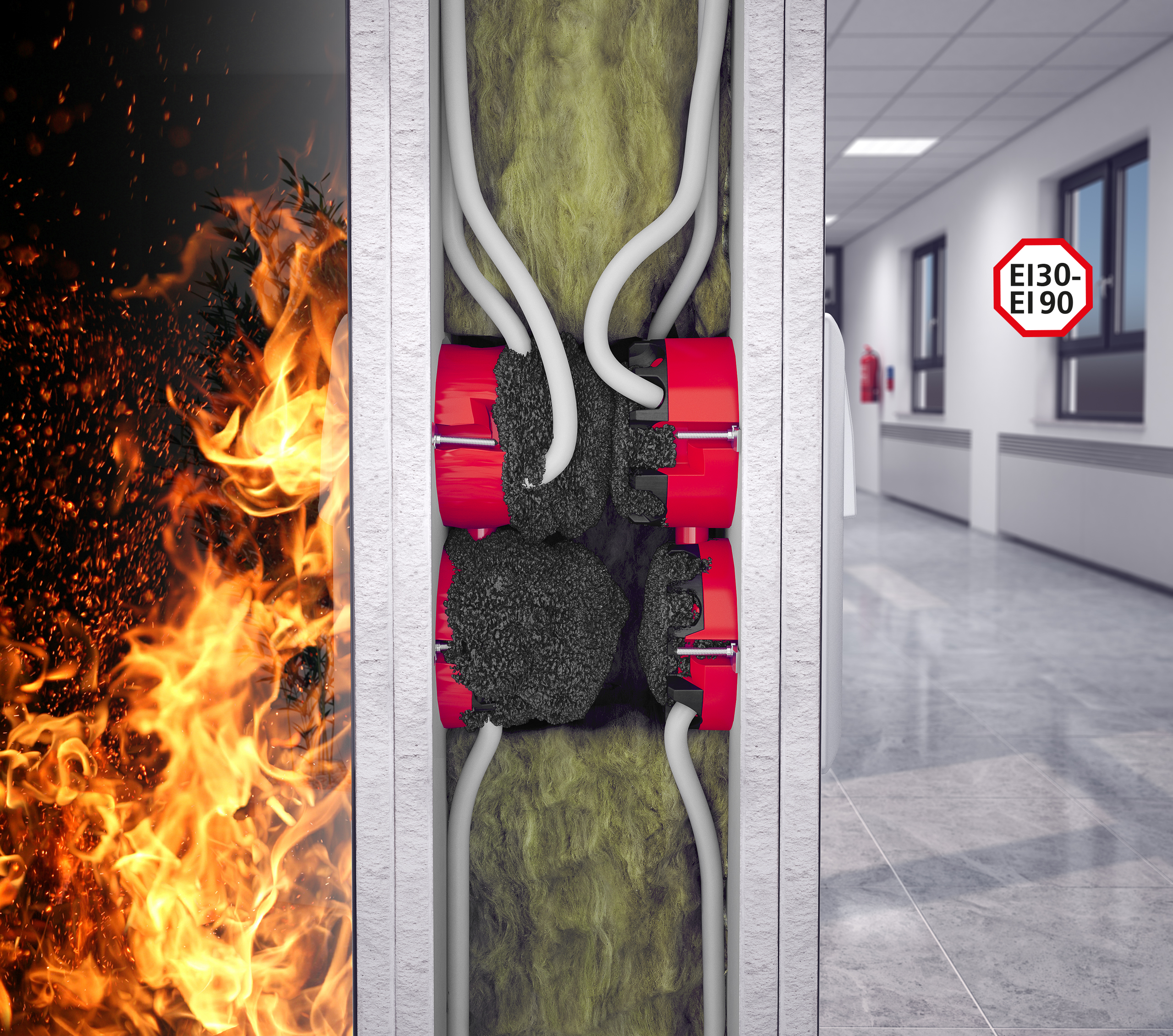

O-range® Protect
Fire-protection boxes are given the same period of fire resistance in fire-protection walls EI30 - EI90 in spite of fitted electrical installations and ensure secure, smokeproof room separation. In the event of a fire, an integrated fire retardant quickly and reliably closes the installation opening and prevents flames and flue gases from escaping. This ensures that lives are saved and material goods are efficiently protected.

• For fire-protection walls EI30-EI90
• Maintains the wall's sound insulation protection
• Retrofitting is possible
• For Ø 68 mm component openings
• For directly opposing installation
• Break-out cable entry
• With fire-protection cover, can be used as a junction box

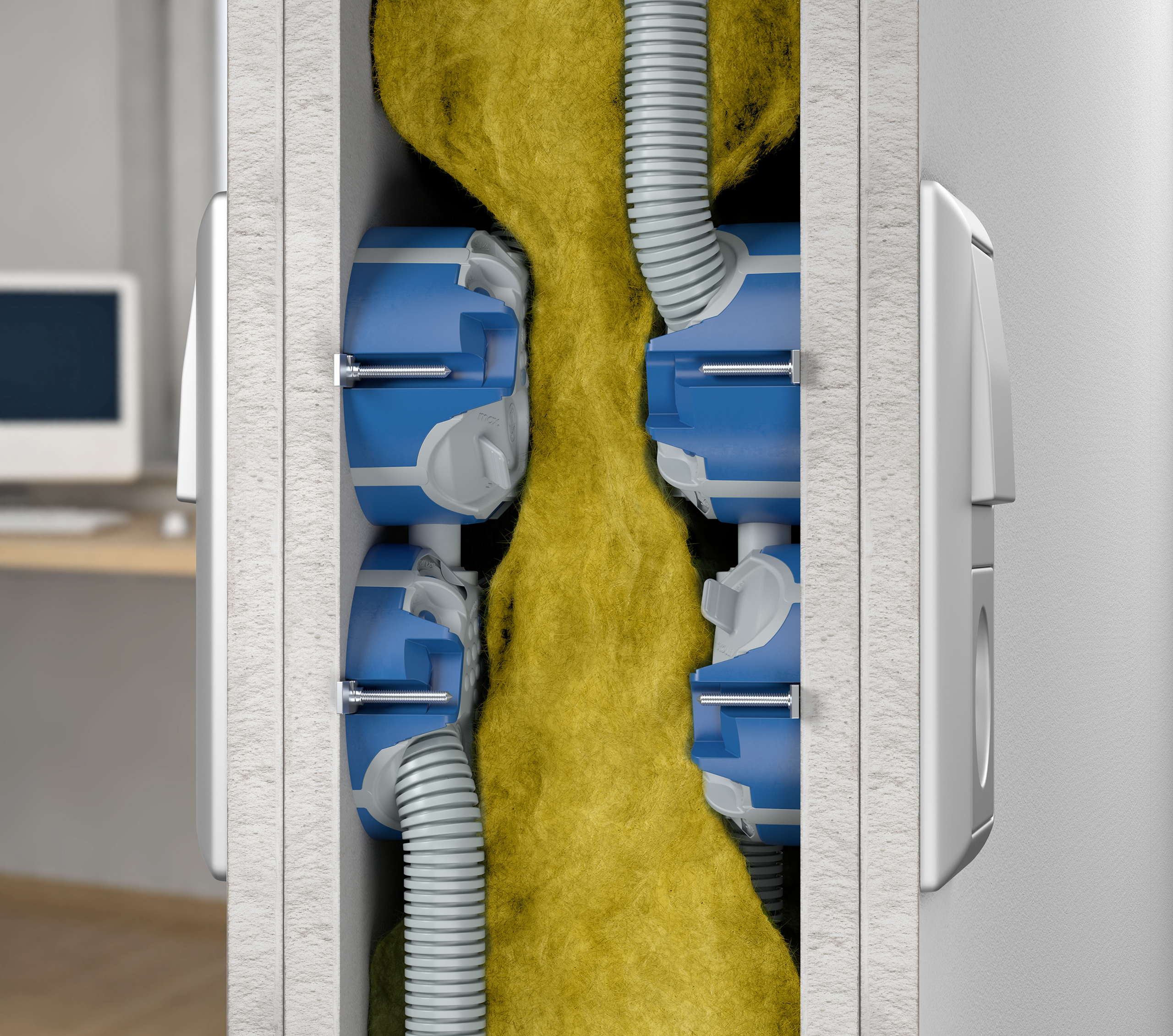

O-range® Acoustic
Thanks to their solid box body in combination with the sound-absorbing surface on the base of the box, O-range® Acoustic one-gang and one-gang junction boxes guarantee the wall's sound insulation. This function is completely maintained even with directly opposing installation. The easy opening process and the 68 mm installation opening ensure fast mounting and also easy retrofitting in existing electrical installations.

• Maintains the wall's sound insulation protection
• Also for retrofitting
• For Ø 68 mm installation openings
• For directly opposing installation
• Easy entry for cables up to Ø 11.5 mm and conduits up to Ø M25

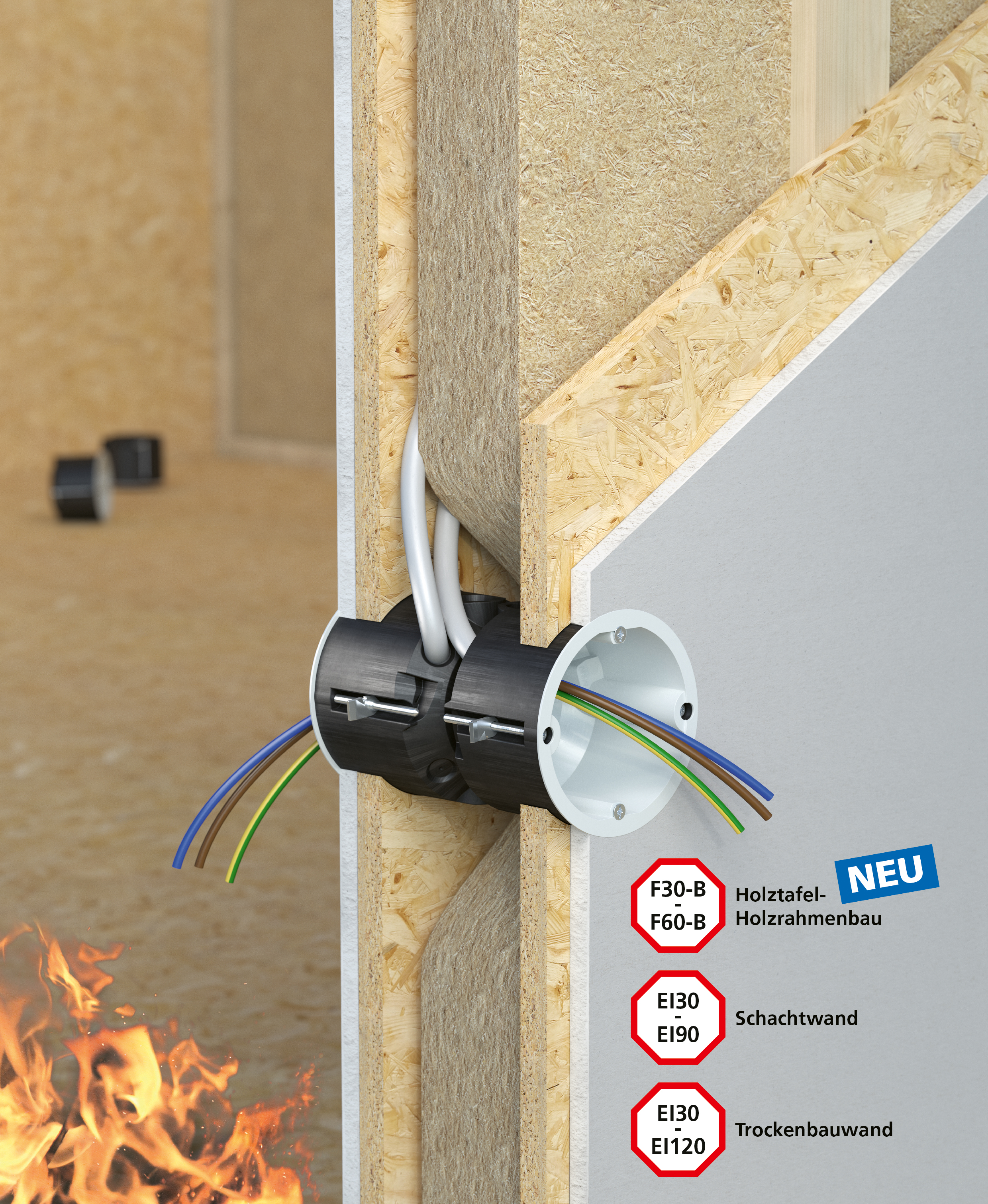

For drywall in timber construction.
Since the introduction of the first fire-protection box for fire-protection walls in 2006, the range of applications has been continually expanded. HWD 90 fire-protection boxes are now also approved for timber walls in timber frame or timber panel construction. They maintain the fire protection properties of the wall with a fire-resistance duration of EI30 and EI60. No additional measures, such as encasing, are necessary. Even if installed on the directly opposing side, the fire protection of the wall is guaranteed for 30 or 60 minutes.

• For fire-protection walls in timber construction EI30 and EI60
• For timber frame or timber panel construction walls
• Also for wall systems with wood fibre insulation
• Retrofitting is possible
• For a directly opposing installation
