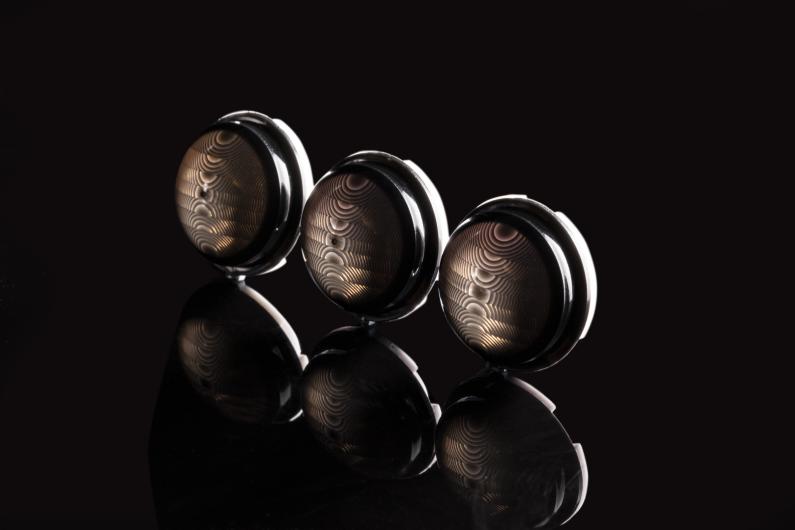

The Flat Ceiling Lens is designed for passive infra-red (PIR) sensors where aesthetic appearance is a key consideration.

Using free-form Fresnel facets, the lens maintains image quality while delivering wide-area coverage — a single sensor can typically monitor a 10 × 10 m room.

Its near-square detection pattern ensures coverage into room corners and reliable close-range (small movement) detection. The flat form, combined with the relatively short focal length, allows designers to create low-profile sensor products without compromising performance.

Samples will be available on the stand.

The Flat Ceiling lens is designed for passive infra-red (PIR) sensors where product aesthetic appearance is an important consideration. The lens uses free-form Fresnel facets to maintain image quality and ensure a wide coverage area. One sensor can typically cover an entire 10 x 10m (33 x 33ft) room.

The lens has a near square zone pattern ensuring that detection is possible into the corners of the

room, while still giving good close-up [small movement] detection. The flat nature of

the lens, combined with the relatively short focal distance, allows the designer to consider a

low-profile sensor product.

Simple and quick to use PIR lens that can be integrated into your product

Features

• Designed to press onto standard T05 pyro Horizontal curtain and circular beam patterns
• Choice of profile shape to suit product styling
• Designed using optical ray-tracing software
• Compact shape with clearance for components
• Available in natural, white and black colours

APPLICATIONS

• Office and household lighting control
• Motion detection for security applications
• Individual luminaire switching
• Fan and air conditioning control
• Control panel illumination for appliances
• Vending machines, ATM’s, streetlights

We are able to design to meet your technical lighting needs with due surface freeform lenses.

our standard range of these FreeForm lenses are based around the needs for EN54 part 23 and emergency lighting needs.
