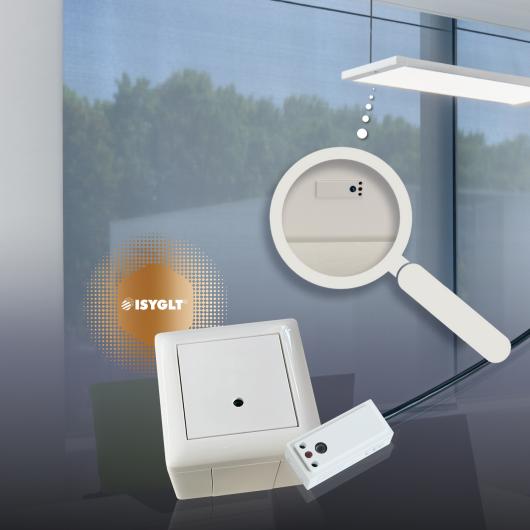

Light and motion sensor LS-05-HF

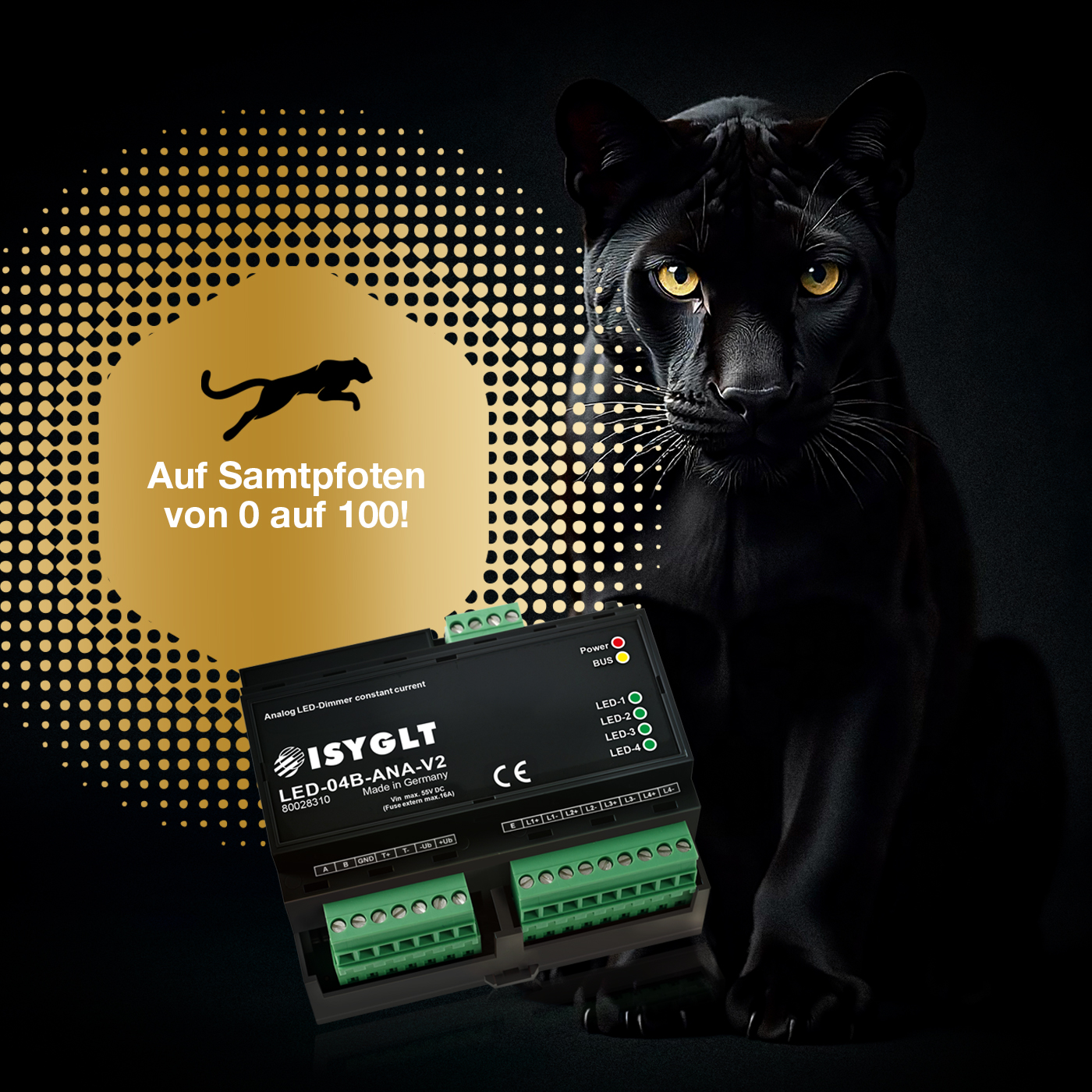

Perfect dimming with the new ISYGLT LED-04B-ANA-V2

Seebacher from Waakirchen has pulled off a real coup with the LED-04B-ANAV2 dimmer.

The non-PWM LED dimmer has 4 dimming channels with 250mA to 1550mA.

With a dimming resolution of 19 bits in a range from 0.001 to 100% (dimming 0 to 100%), it supports RDM and DMX512 protocols. It can be controlled via ISYGLT, DMX, DMX-RDM and DALI.

A special highlight: in addition to constant current LEDs, this dimmer can also be used to dim constant voltage LED strips perfectly and without flickering under certain conditions.

This makes the new addition to the ISYGLT product family perfect for LED dimming in auditoriums, stages and TV studios. The ISYGLT LED-04B-ANAV2 dimmer is accompanied by premium ISYGLT support and guarantees you high-quality camera recordings without flickering at stage events or concerts in the future.

For more information on this dimmer, here is the direct link:

https://www.isyglt.com/produkte/dimmer/led-04b-ana-v2

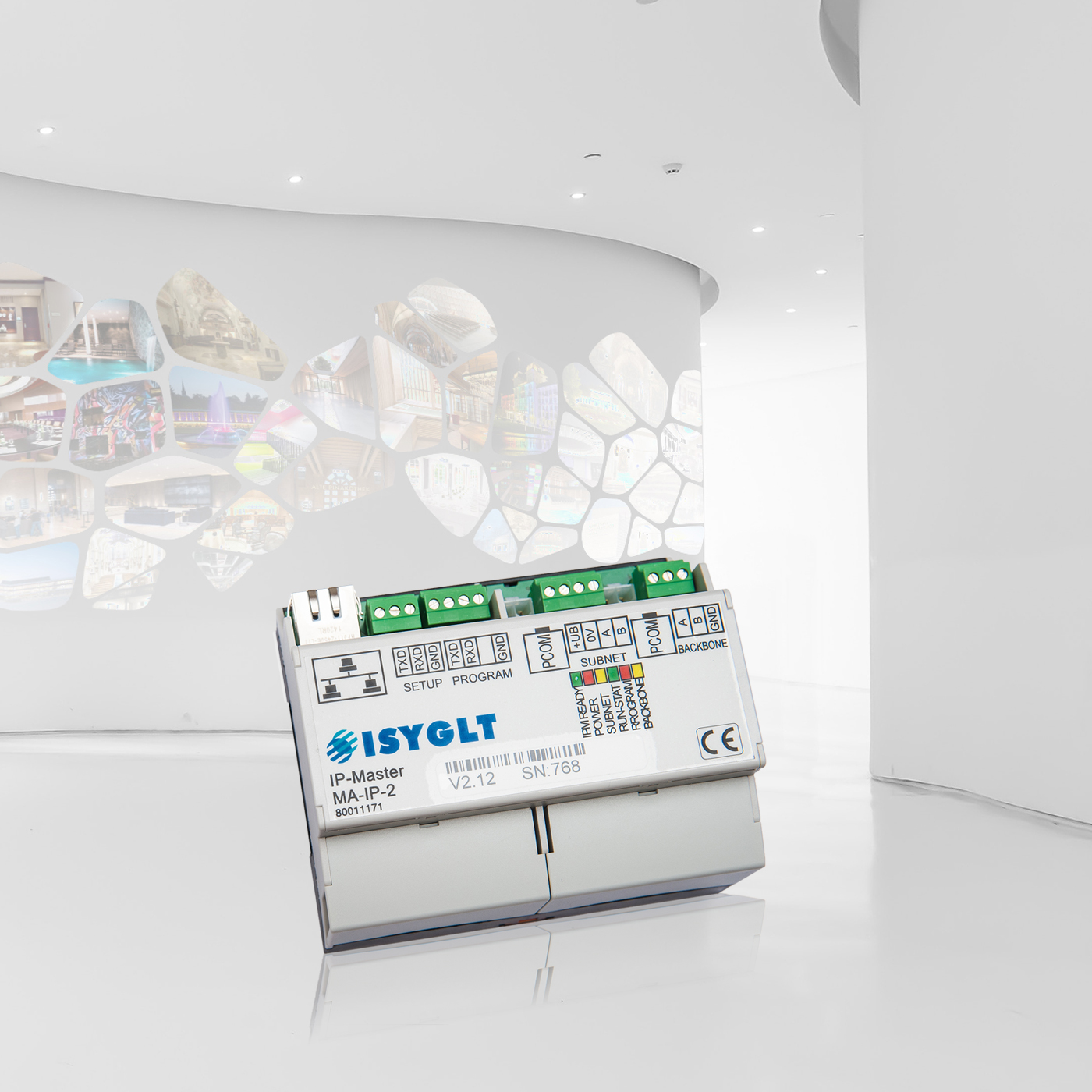

Introducing one of the most important ISYGLT products, the Master MA-IP-2!

The freely programmable master module is the central controller (CPU) of the ISYGLT BUS system. The MA-IP-2 is the centerpiece for control tasks in buildings. Universally suitable for lighting control, smart home, Building automation, HVAC control, sanitary control and much more.

The master module controls the data traffic on the ISYGLT BUS and is required once per subnet. The function programming of all peripheral modules connected to the subnet BUS (switching modules, analogue modules, push-button modules, dimming modules) is carried out using the ProgrammDesigner. The program memory in the master can be written to as often as required and the stored data is safely retained even in the event of a power failure.

The ‘Backbone’ serial interface is used to exchange data between several masters.

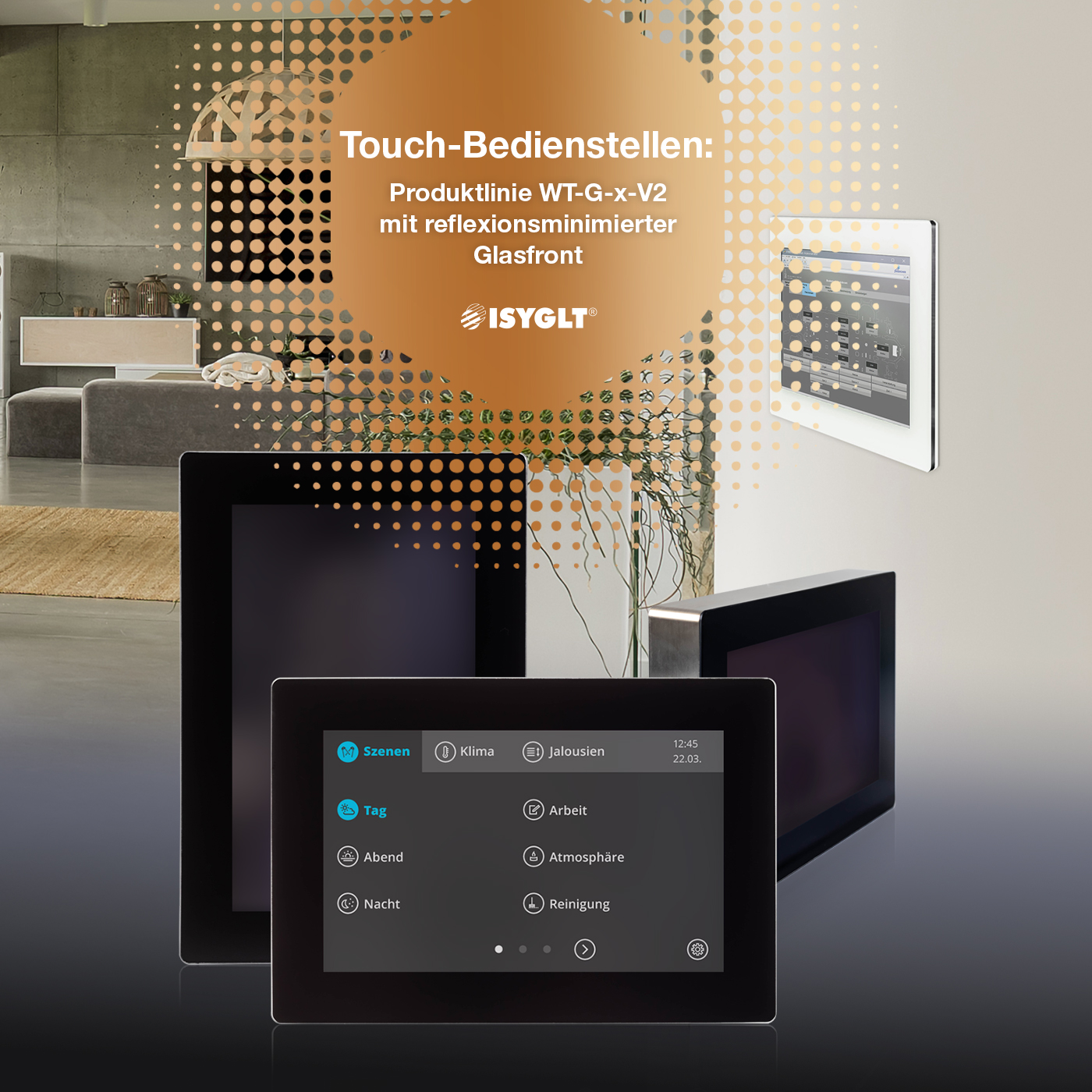

Control your system more easily than ever before! With our ISYGLT touch control panels:

The ISYGLT WT-G was developed as an operating, control and setting Panel for direct operation on the ISYGLT BUS and covers virtually every area of application, e.g. as a room control unit, as a secondary control panel, as a building technology or smart home centre and much more. Emphasis was placed on high availability, rapid operational readiness, reliability and interference immunity. The panel has a special real-time operating system, which enables the system to be operated within 2-3 seconds of switching on the power.

The design of the WT-G was deliberately kept discreet so as not to disrupt the architectural effect of the room. Nevertheless, as a high-quality glass panel, it blends in with its surroundings and is also compatible with most switch programmes. The WT-G is available in a wide variety of designs, e.g. 5-inch, 7-inch, flushmounted, surface-mounted or in a console housing.

The design of pages and functions is very easy to realise with the ISYGLT TouchDesigner. We have developed many standardised interfaces, making programming quick and cost-effective.

For more information on our WT-G touch control panels, here is the direct link:

https://www.isyglt.com/produkte/bedienung/wt-g-05w

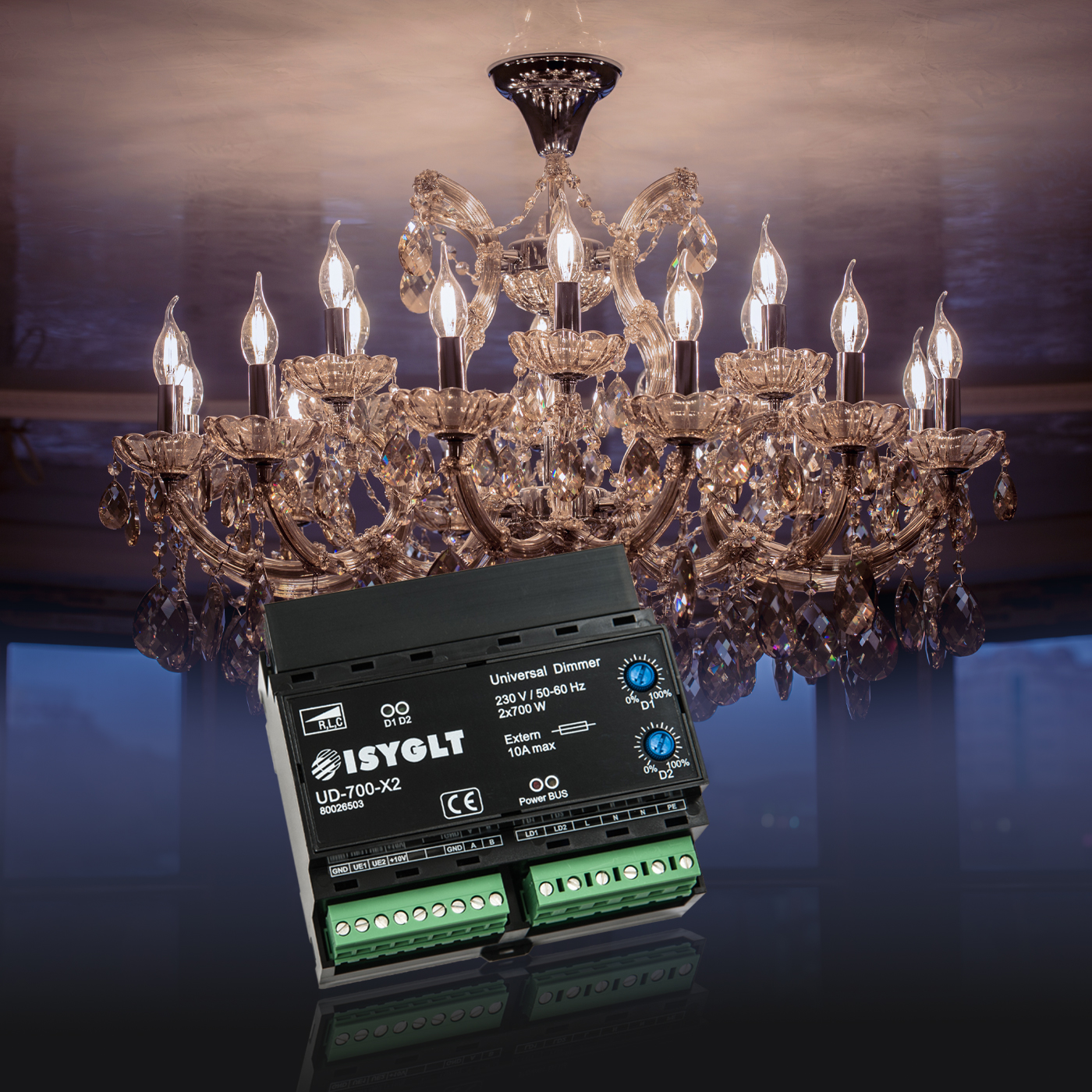

• The UD-700-X2 variants: the best universal dimmers on the market!

The universal dimmers are suitable for the reliable operation of LED retrofit lamps, high-voltage lamps and magnetic transformers.

• Get the most out of them with ISYGLT or simply control them with DMX.
• Optionally also with DALI, DMX-RDM or CASAMBI interface to fulfil every application requirement.
• No minimum load is required and dimming works flicker-free from just one LED retrofit luminaire.
• Even many LEDs are no problem for the dimmers!

Regardless of where they are used for lighting control systems, whether as a plug & play solution in the USP series, as an installation in junction boxes or as a stand-alone solution, the UD-700 variants are suitable for any location!

For further information on our universal dimmers, here is the direct link to the dimmers:
https://www.isyglt.com/en/products/dimmer/ud-700-x2
