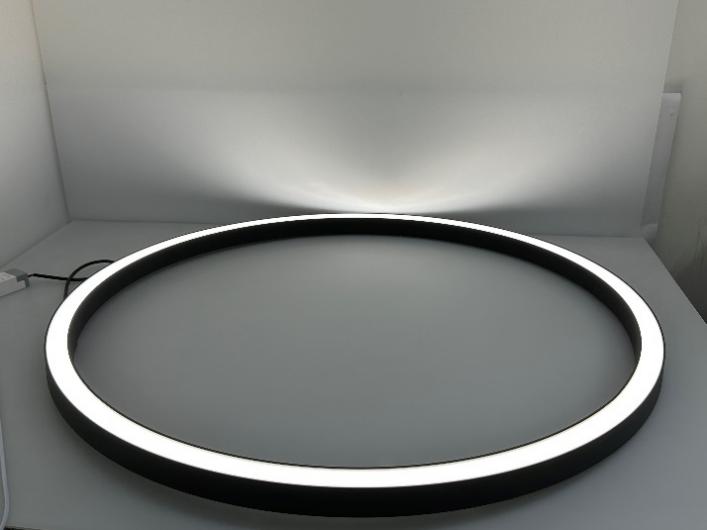

LED Circular Suspended Light

Product Parameters
Input Voltage : AC100-277V / AC220-240V,50-60HZ
Material : 6063 Aluminium Profile + Opal Diffuser / Microprism Diffuser
LED Chip : SANAN SMD2835
Driver Brand : BOKE (220-240V) / Cupower (100-277V)
Color Temperature : 3000K / 4000K / 6000K
Luminous Flux : 100-110Lm/W
CRI : >80Ra
PF : >0.95
UGR : <19
Fllicker Free : Yes
Function Option : ON/OFF no dimming / 0-10V / Triac / DALI
Finish Color Option : Black / White / Silver
Profile Size Option : W50*H70mm
Length Option: 600mm / 1200mm / 1500mm /1800mm / 2400mm / Customized Available
IP Grade : IP20
Warranty : 5years
Model Watt Lumens Siz Color Temperature
EN-5070-LS20W06 20W 2000Lm L600*W50*H70mm 3000K 4000K 6000K
EN-5070-LS40W12 40W 4000Lm L1196*W50*H70mm 3000K 4000K 6000K
EN-5070-LS50W15 50W 5000Lm L1500*W50*H70mm 3000K 4000K 6000K
EN-5070-LS60W18 60W 6000Lm L1791*W50*H70mm 3000K 4000K 6000K
EN-5070-LS80W24 80W 8000Lm L2386*W50*H70mm 3000K 4000K 6000K

Product Parameters
Input Voltage : AC110-120V / AC220-240V,50-60HZ
Width : 53mm
Height : 102mm / 254mm / 381mm
Length : 1228mm
LED Chip : Epistar
Driver Brand : Lifud
UGR : <12
PF : >0.90
CRI : >80Ra ( >90Ra available)
Luminous Flux : 90Lm/W
Beam Angle : 50°
CCT : 3000K / 4000K / 6000K
Material : Aluminium + Acoustic Panel + Lens
Acoustic Panel
Color Option : Silver Grey / Concrete Grey / Moon Grey
: Cloudy Black / China Red / Navy Blue / Stone Blue
: Ocean Blue / Indigo Blue / Camel Brown
Installation : Suspended Mount
Warranty : 5years

Inner light series I
Profile Width : 25MM

Profile Height:55MM

Product Family: inner & outer Lighting
Shape : C:circle
Type A: acoustic
Series Inner lighting

Standard Size Diameter:480/640/800/960/1120/1440mm
Customized with CAD

Profile Color: B:black, W:white S:silver, G:gold

Cover : DF: Polycarbonate, M1:Prismatic, M2:Frosted prismatic

Standard Power : 23-68W

Luminous Efficiency: 30lm/W

CRI: CRI>80,9:CRI>90,B:CRI>95

CCT: 27K:2700K,30K:3000K,40K:4000K,60K:6000K,65K:6500K

Dimming: N:no dimming, 01:0-10V dimming, D:DALI dimming

Install: pendant

Products Description
Input Voltage : AC100-277V / AC220-240V,50-60HZ

Material : 6063 Aluminium Profile + LENS + Felt Acoustic Board

Profile size: W60*H60mm

Height Option: 102mm / 254mm / 381mm

Diameter Option: D474mm / 674mm / 804mm / 924mm / 1074mm / 1224mm

Driver Brand: BOKE / Cupower/Lifud

CCT: 3000K / 4000K / 6000K

Luminous Flux: : 100-110Lm/W

Anti-Glare : Yes

CRI : >80Ra or 90Ra

Beam Angle : 12° / 24° / 38° / 50°

Function Option: ON&OFF / 0-10V Dimming / Triac Dimming / DALI Dimming

Installation Option: Suspension Mount

Felt Acoustic Board Color : : Red / Green / Blue / Grey more than 48 colors option

IP Grade: IP20

Warranty: 5 years

Product Parameters
Input Voltage : AC100-277V / AC220-240V,50-60HZ
Material : 6063 Aluminium Profile + Opal Diffuser / Microprism Diffuser
LED Chip : SANAN SMD2835
Driver Brand : BOKE (220-240V) / Cupower (100-277V)
Color Temperature : 3000K / 4000K / 6000K
Luminous Flux : 100-110Lm/W
CRI : >80Ra
PF : >0.95
UGR : <19
Fllicker Free : Yes
Function Option : ON/OFF no dimming / 0-10V / Triac / DALI
Finish Color Option : Black / White / Silver
Profile Size Option : W50*H70mm
Length Option: 600mm / 1200mm / 1500mm /1800mm / 2400mm / Customized Available
IP Grade : IP20
Warranty : 5years
Model Watt Lumens Siz Color Temperature
EN-5070-LS20W06 20W 2000Lm L600*W50*H70mm 3000K 4000K 6000K
EN-5070-LS40W12 40W 4000Lm L1196*W50*H70mm 3000K 4000K 6000K
EN-5070-LS50W15 50W 5000Lm L1500*W50*H70mm 3000K 4000K 6000K
EN-5070-LS60W18 60W 6000Lm L1791*W50*H70mm 3000K 4000K 6000K
EN-5070-LS80W24 80W 8000Lm L2386*W50*H70mm 3000K 4000K 6000K

Product Parameters
Input Voltage : AC110-120V / AC220-240V,50-60HZ
Width : 53mm
Height : 102mm / 254mm / 381mm
Length : 1228mm
LED Chip : Epistar
Driver Brand : Lifud
UGR : <12
PF : >0.90
CRI : >80Ra ( >90Ra available)
Luminous Flux : 90Lm/W
Beam Angle : 50°
CCT : 3000K / 4000K / 6000K
Material : Aluminium + Acoustic Panel + Lens
Acoustic Panel
Color Option : Silver Grey / Concrete Grey / Moon Grey
: Cloudy Black / China Red / Navy Blue / Stone Blue
: Ocean Blue / Indigo Blue / Camel Brown
Installation : Suspended Mount
Warranty : 5years

Inner light series I
Profile Width : 25MM

Profile Height:55MM

Product Family: inner & outer Lighting
Shape : C:circle
Type A: acoustic
Series Inner lighting

Standard Size Diameter:480/640/800/960/1120/1440mm
Customized with CAD

Profile Color: B:black, W:white S:silver, G:gold

Cover : DF: Polycarbonate, M1:Prismatic, M2:Frosted prismatic

Standard Power : 23-68W

Luminous Efficiency: 30lm/W

CRI: CRI>80,9:CRI>90,B:CRI>95

CCT: 27K:2700K,30K:3000K,40K:4000K,60K:6000K,65K:6500K

Dimming: N:no dimming, 01:0-10V dimming, D:DALI dimming

Install: pendant
