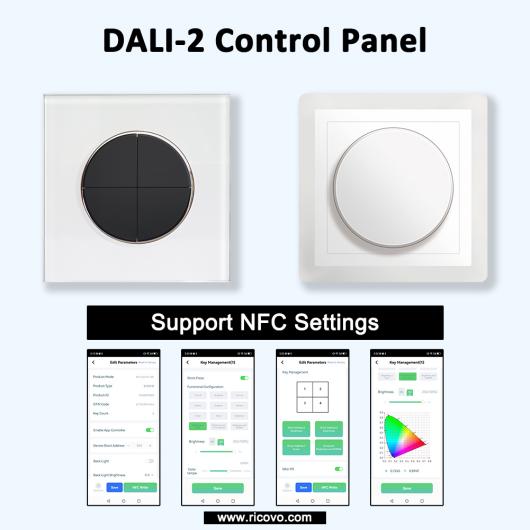

DALI-2 Control Panel with NFC

• Model: RK-DALIT1-V1-DT1
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-202.
• Supported Functions: DALI-2 DT1 Self-contained emergency power supply.
• Power Supply: DC 5V, 10mA.
• DALI Interface: 9.5V-22.5V, 1.9mA, with 220V AC miswiring protection.
• Working Temperature: -40~85 °C.
• Module Size: 43X15X6mm.
• Installation Method: Gold finger/Pin header.
• DALI Certification: Compliant with DALI-2 certification standards, and we can assist customers in completing DALI-2 certifications.
• Compatibility: Be compatible with TRIDONIC, OSRAM, PHILIPS, Helvar, JUNG, ABB, Lutron and Crestron DALI control system, etc.

• Model: RK-DALIPIR-V1
• Supported Protocols: IEC62386-101, IEC62386-103, IEC62386-303, IEC62386-304.
• Features: Parameters can be set via NFC or DALI-2 gateway, 1-channel DALI-2 occupancy sensor and 1-channel DALI-2 light sensor.
• Power Supply: Powered by DALI PS (<10mA).
• DALI Interface: 9.5V-22.5V
• Supported Software:DALI NFC Tool (Mobile & PC versions).
• DALI Certification: Complies with DALI-2 certification standards.
• Key Feature: Integrates DALI-2 input device and application controller dual modes,switchable via configuration tool.

Shenzhen RICO Lighting is an officially authorized DALI Test-house of the DALI Alliance and is authorized to provide professional DALI-2 and D4i certification testing services to customers.

• Model: RK-DALINFC3-V1
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207, IEC62386-209, IEC62386-250, IEC62386-251, IEC62386-252, IEC62386-253.
• Supported Functions: DALI-2 DT6 dimming, DT8 color temperature adjustment, D4i, PushDim. It adopts the ISO15693 international standard and features NFC settings, current reading, and various configurable parameters of DALI-2.
• Power Supply: DC 5V, 10mA.
• DALI Interface: 9.5V-22.5V, 1.9mA, with 220V AC miswiring protection.
• Output PWM: 1-2 channels PWM, dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%). Working Temperature: -40~85 °C.
• Module Size: 49X17.5X1.2mm.
• Installation Method: Gold finger/Pin header.
• DALI Certification: Compliant with DALI-2 and D4i certification standards, and we can assist customers in completing DALI-2 and D4i certifications.
• Compatibility: Be compatible with TRIDONIC, OSRAM, PHILIPS, Helvar, JUNG, ABB, Lutron and Crestron DALI control system, etc.

• Model: RK-DALIT1-V1-DT1
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-202.
• Supported Functions: DALI-2 DT1 Self-contained emergency power supply.
• Power Supply: DC 5V, 10mA.
• DALI Interface: 9.5V-22.5V, 1.9mA, with 220V AC miswiring protection.
• Working Temperature: -40~85 °C.
• Module Size: 43X15X6mm.
• Installation Method: Gold finger/Pin header.
• DALI Certification: Compliant with DALI-2 certification standards, and we can assist customers in completing DALI-2 certifications.
• Compatibility: Be compatible with TRIDONIC, OSRAM, PHILIPS, Helvar, JUNG, ABB, Lutron and Crestron DALI control system, etc.

• Model: RK-DALIPIR-V1
• Supported Protocols: IEC62386-101, IEC62386-103, IEC62386-303, IEC62386-304.
• Features: Parameters can be set via NFC or DALI-2 gateway, 1-channel DALI-2 occupancy sensor and 1-channel DALI-2 light sensor.
• Power Supply: Powered by DALI PS (<10mA).
• DALI Interface: 9.5V-22.5V
• Supported Software:DALI NFC Tool (Mobile & PC versions).
• DALI Certification: Complies with DALI-2 certification standards.
• Key Feature: Integrates DALI-2 input device and application controller dual modes,switchable via configuration tool.

Shenzhen RICO Lighting is an officially authorized DALI Test-house of the DALI Alliance and is authorized to provide professional DALI-2 and D4i certification testing services to customers.
