Changxing Smart Technology (Shenzhen) Co., Ltd.

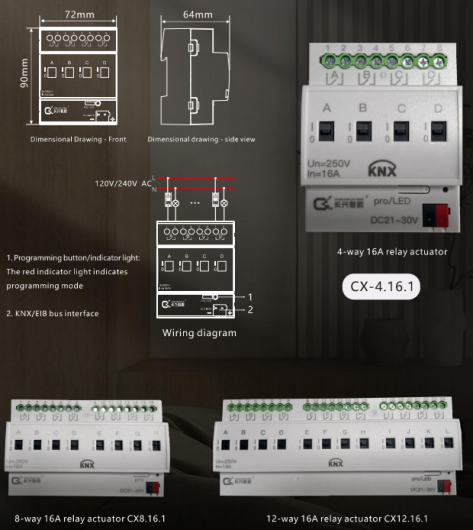

16A 4/8/12 Channels Relay Actuators

Changxing Smart Technology (Shenzhen) Co., Ltd.

Supplier profile All products

Contact supplier

Description

Features: Long life, low power consumption and fast execution speed.

Functions

■ 16A High Power Switch Actuator includes 3 types: 4, 8 and 12 channels of actuator.

■ Maximum output current of each channel: 16A.

■ Control function: Status of each channel, Status response, Status recall, Staircase light, Flashing, ON/OFF delay, Scene control, Threshold function, Curtain control, etc.

■ Logic function: AND, OR, XOR gate.

■ Heating function: PWM/Byte/lype control output.

More from us

Our website

More products by Changxing Smart Technology (Shenzhen) Co., Ltd.

KNX Curtain Motor

KNX Curtain Motor

Mobile Phone-style Module Card-insertion Design
Compact Motor Body Size 82*45*80MM, MINl Palm Size, Avoid collisions between device
Power Outage Manually: Manual operation during power outage, pull to open/close like a regular curtain
Light touch-start: Smart recognition of opening/closing by manual pull

Rated voltage: AC100-240V/50Hz-60Hz

Power board output voltage: DC24V

Rated torque: 1.8N·m

Noise: ≤35dB

Wireless reception sensitivity: -100dBm

Insulation level: E level

Maximum load capacity of curtains: 50kg

Motor weight: 429g

Locked rotor power: 48W

Power board output ripple less than: 250mV-VPP

Travel speed: 13.5cm/s Working remote control: 32 min

Wireless system control frequency: ASK433.92MHz

Protection level: IP41

Working environment: -5℃-45℃

Millimeter-wave Radar Detection 24Ghz Human Presence Sensor

Long-Distance Detection, Wide-Angle Sensing Coverage

Motion sensing radius 6m

Max Presence sensing radius 5.5m Max

Product Features

1. 19V-30V DC power supply

2. KNX communication protocol

3. Supports left-right zoned detection for human motion and presence status.

4. Support multi level adjustment of parameters such as sensing range, sensitivity, and sensing delay

5. Compact size, supports recessed & standalone installation

6. Anti interference design, which can effectively block wireless communication interference such as WiFi and Bluetooth

KNX-DALI Gateway Module

With built-in DALI power supply and a single DALI bus, DALI Gateway can be connected to up to 64 DALI devices.

Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.

Its main functions include:

■ Real-time failure detection for ballasts and lamps.

■ Target control: Broadcast control, Channel control, Group control, Scene control, Staircase light control, Sequence control, Energy control etc.

■ Each channel and light group supports Switch ON/OFF, Relative dimming, Absolute dimming, Status response function.

■ In conjunction with KNX Assistant Software, DALI Gateway enables address management and assignment of DALI ballast.

■ Group scene control supported, which can be configured and managed via KNX Assistant Software.

■ Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DTB type color temperature control ballasts.

■ Online update.

KNX Push-button Switch Panels/Keypads with Backlight & Radar Proximity Sensing, Color Customized

Available in Metal or Plastic material, Color can be customized Intuitive Labeled Functional Buttons with Real-time Visual Status Feedback Backlight Human Radar Proximity Sensing + Backlit Breathing Light (Auto Wake & Sleep): Easily visible and identifiable, even in complete darkness, eliminating the need to fumble around.

Button Functions: Switching, Dimming, Shutter Control, Value Control, Scene Control, Advanced Functions, Interlock Control

Panels of different functions can be flexibly combined.

Size: 80x80mm, 90x90mm

KNX Curtain Motor

KNX Curtain Motor

Mobile Phone-style Module Card-insertion Design
Compact Motor Body Size 82*45*80MM, MINl Palm Size, Avoid collisions between device
Power Outage Manually: Manual operation during power outage, pull to open/close like a regular curtain
Light touch-start: Smart recognition of opening/closing by manual pull

Rated voltage: AC100-240V/50Hz-60Hz

Power board output voltage: DC24V

Rated torque: 1.8N·m

Noise: ≤35dB

Wireless reception sensitivity: -100dBm

Insulation level: E level

Maximum load capacity of curtains: 50kg

Motor weight: 429g

Locked rotor power: 48W

Power board output ripple less than: 250mV-VPP

Travel speed: 13.5cm/s Working remote control: 32 min

Wireless system control frequency: ASK433.92MHz

Protection level: IP41

Working environment: -5℃-45℃

Millimeter-wave Radar Detection 24Ghz Human Presence Sensor

Long-Distance Detection, Wide-Angle Sensing Coverage

Motion sensing radius 6m

Max Presence sensing radius 5.5m Max

Product Features

1. 19V-30V DC power supply

2. KNX communication protocol

3. Supports left-right zoned detection for human motion and presence status.

4. Support multi level adjustment of parameters such as sensing range, sensitivity, and sensing delay

5. Compact size, supports recessed & standalone installation

6. Anti interference design, which can effectively block wireless communication interference such as WiFi and Bluetooth

KNX-DALI Gateway Module

With built-in DALI power supply and a single DALI bus, DALI Gateway can be connected to up to 64 DALI devices.

Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.

Its main functions include:

■ Real-time failure detection for ballasts and lamps.

■ Target control: Broadcast control, Channel control, Group control, Scene control, Staircase light control, Sequence control, Energy control etc.

■ Each channel and light group supports Switch ON/OFF, Relative dimming, Absolute dimming, Status response function.

■ In conjunction with KNX Assistant Software, DALI Gateway enables address management and assignment of DALI ballast.

■ Group scene control supported, which can be configured and managed via KNX Assistant Software.

■ Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DTB type color temperature control ballasts.

■ Online update.

KNX Push-button Switch Panels/Keypads with Backlight & Radar Proximity Sensing, Color Customized

Button Functions: Switching, Dimming, Shutter Control, Value Control, Scene Control, Advanced Functions, Interlock Control

Panels of different functions can be flexibly combined.

Size: 80x80mm, 90x90mm

KNX Curtain Motor

KNX Curtain Motor

Mobile Phone-style Module Card-insertion Design
Compact Motor Body Size 82*45*80MM, MINl Palm Size, Avoid collisions between device
Power Outage Manually: Manual operation during power outage, pull to open/close like a regular curtain
Light touch-start: Smart recognition of opening/closing by manual pull

Rated voltage: AC100-240V/50Hz-60Hz

Power board output voltage: DC24V

Rated torque: 1.8N·m

Noise: ≤35dB

Wireless reception sensitivity: -100dBm

Insulation level: E level

Maximum load capacity of curtains: 50kg

Motor weight: 429g

Locked rotor power: 48W

Power board output ripple less than: 250mV-VPP

Travel speed: 13.5cm/s Working remote control: 32 min

Wireless system control frequency: ASK433.92MHz

Protection level: IP41

Working environment: -5℃-45℃

Millimeter-wave Radar Detection 24Ghz Human Presence Sensor

Long-Distance Detection, Wide-Angle Sensing Coverage

Motion sensing radius 6m

Max Presence sensing radius 5.5m Max

Product Features

1. 19V-30V DC power supply

2. KNX communication protocol

3. Supports left-right zoned detection for human motion and presence status.

4. Support multi level adjustment of parameters such as sensing range, sensitivity, and sensing delay

5. Compact size, supports recessed & standalone installation

6. Anti interference design, which can effectively block wireless communication interference such as WiFi and Bluetooth

KNX-DALI Gateway Module

With built-in DALI power supply and a single DALI bus, DALI Gateway can be connected to up to 64 DALI devices.

Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.

Its main functions include:

■ Real-time failure detection for ballasts and lamps.

■ Target control: Broadcast control, Channel control, Group control, Scene control, Staircase light control, Sequence control, Energy control etc.

■ Each channel and light group supports Switch ON/OFF, Relative dimming, Absolute dimming, Status response function.

■ In conjunction with KNX Assistant Software, DALI Gateway enables address management and assignment of DALI ballast.

■ Group scene control supported, which can be configured and managed via KNX Assistant Software.

■ Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DTB type color temperature control ballasts.

■ Online update.
