Features

• Constant power output designs with wide operating window
• Supports DALI-2 and PUSH DIM and push CCT adjustable
• Supports NFC reader to precisely control current, CLO, dimming curve, DALI address, etc.
• Supports two independent DT6 or one DT8 output, dimming range 1-100% (amplitude dimming)
• Smooth dimming and color temperature, flicker-free.
• Supports i-Data function (DALI part 251, 252, 253, luminaire data, energy reporting, diagnostic and maintenance)
• The DC emergency mode adjusts the current to 15% by default (adjustable), which is suitable for 30 W, 44 W, 60 W
• Removable cord grips, comply with 2.5 mm2 engineering incoming line specification, cord grips for flat types only offer compatibility with 1.5mm2.
• Standby power consumption < 0.3 W (30-60 W), 20 W < 0.5 W, meets ErP energy efficiency certification

Bluetooth platform approach:

• Multiple chips can be integrated and different systems (software) can be implemented
• Easy switch to different systems
• Only one thermal and EMC meassurement per platform: no need for separate meassurements using different systems

Technical highlights:

• High antenna range due to special design
• Build-in, independent with looping function, SELV, Non-SELV driver versions available
• CUPOWER app for iOS and Android
• NFC feature setting: Output current, CLO, DC-level, minimum dimming level

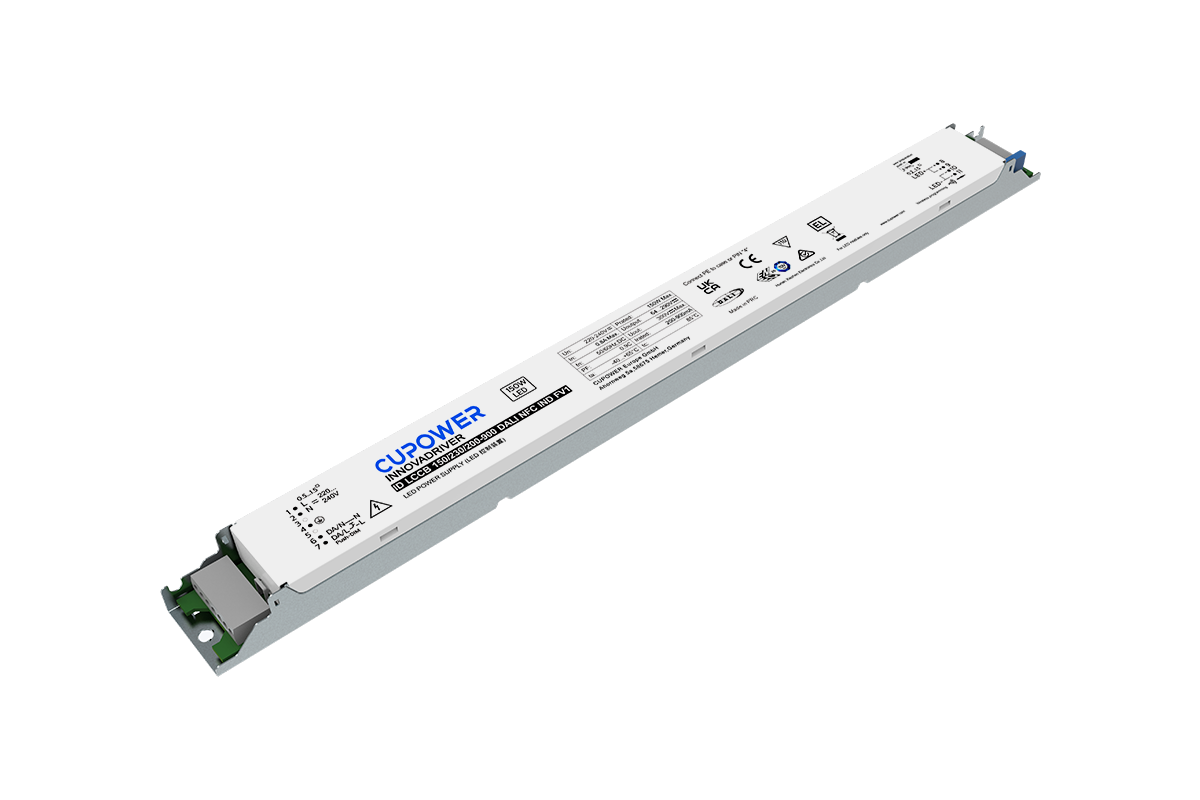

(1)    Non-SELV Industry DALI Series

Features

• Constant power output designs with wide operating window
• Supports DALI-2 and PUSH DIM
• Supports i-Data function (DALI part 251, 252, 253, luminaire data, energy reporting, diagnostic and maintenance).
• Supports NFC reader to precisely control current, CLO, dimming curve, DALI address, etc.
• The DC emergency mode adjusts the current to 15% by default (adjustable)
• Smooth dimming, flicker-free, dimming range 1-100% (amplitude dimming)
• Standby power consumption < 0.3 W, meets ErP energy efficiency certification
• High surge protection L-N: 4 kV，L/N-GND: 4 kV

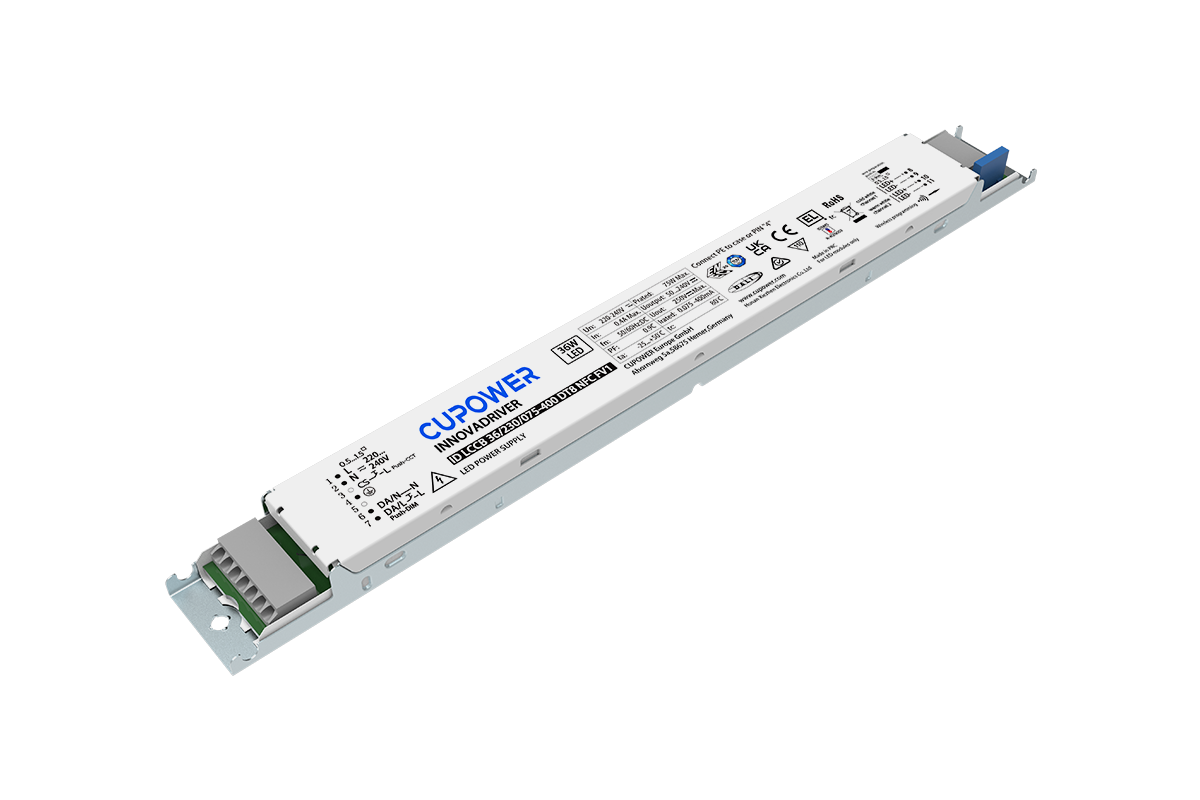

(2) Non-SELV Industry NFC Series

Features

• Constant power output designs with wide operating window
• High power factor, suitable for Class I luminaires
• Flicker-free
• Supports NFC reader to precisely control current, CLO
• High surge protection L-N: 4 kV, L/N-GND: 4 kV

Features

• Very wide adjustable colour temperature range from 1,500 up to 6,500 K
• Constant power output designs with wide operating window
• Supports DALI-2 and PUSH DIM and push CCT adjustable
• Supports i-Data function (DALI part 251, 252, 253, luminaire data, energy reporting, diagnostic and maintenance). Supports NFC reader to precisely control current, CLO, dimming curve, DALI address, etc.
• The DC emergency mode adjusts the current to 15% by default (adjustable)
• Supports two independent DT6 or one DT8 output, smooth dimming, flicker-free, dimming range 1-100% (amplitude dimming)
• Standby power consumption < 0.3 W, meets ErP energy efficiency certification

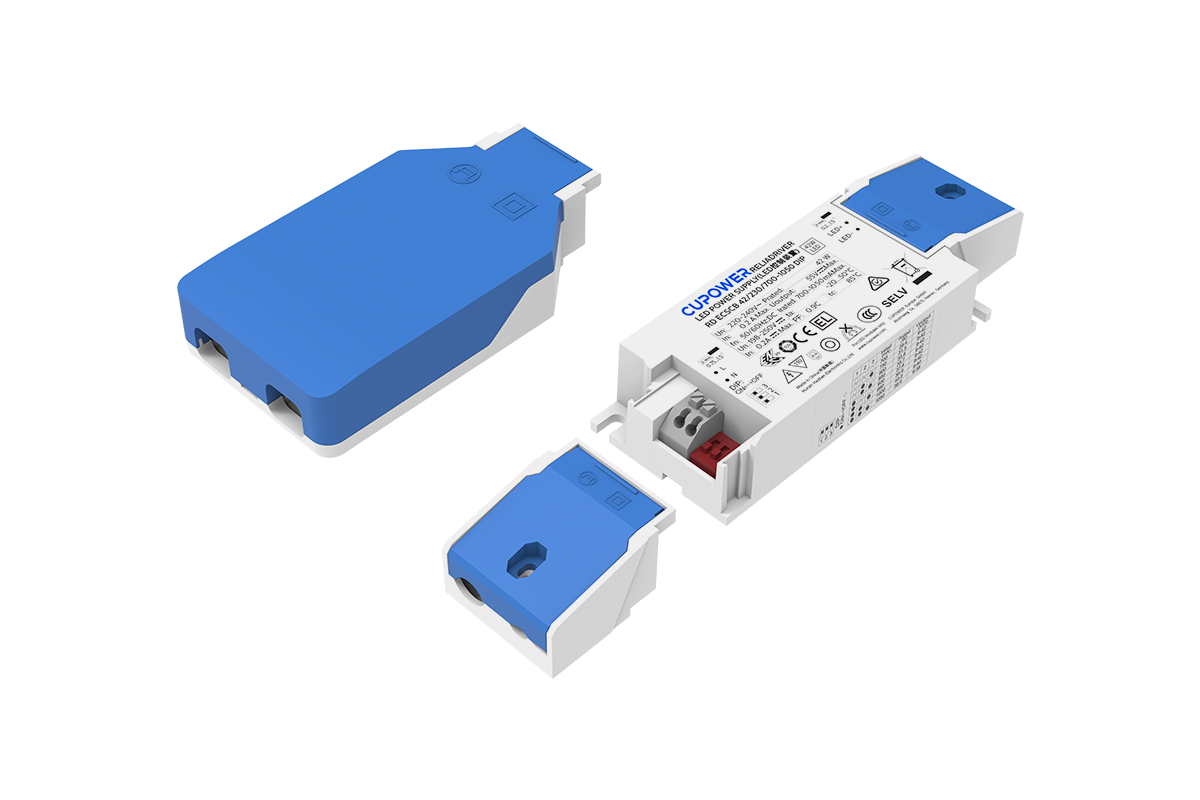

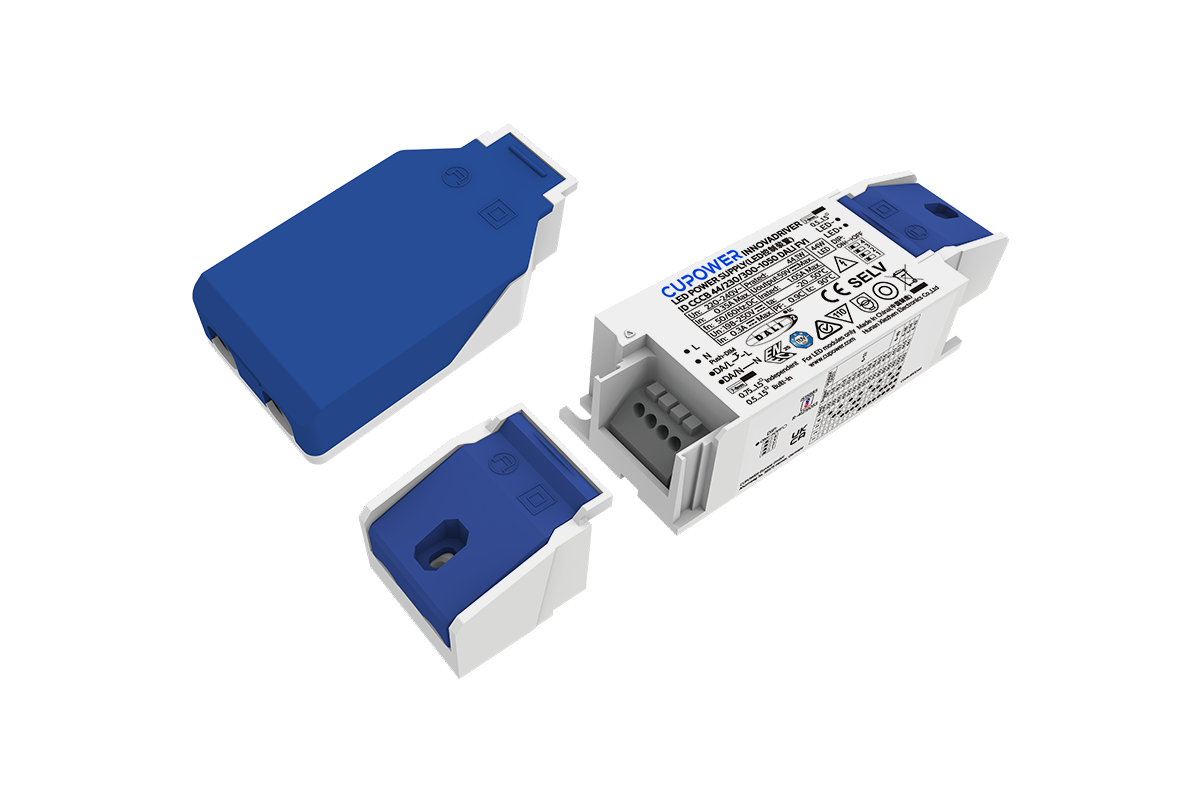

Features

• SELV power supply
• High power factor, suitable for Class I/II luminaires
• Flicker-free
• Removable cord grips (optional)
• DIP switch for multi-current setting
