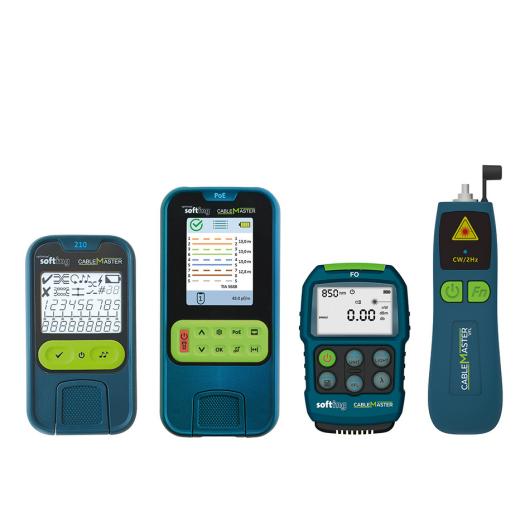

CableMaster series

WireXpert MP, the modular platform with copper and fiber measurement modules

In a world where connectivity is non-negotiable, our cable certifier stands as a testament to innovation, accuracy, and user-centric design.
Introducing our Cable Certifier, a versatile solution designed to meet the diverse certification needs of networking environments ranging from small home offices (SOHO) to medium-sized enterprises and large-scale data centers. This powerful tool seamlessly scales to ensure the compliance and optimization of copper cabling up to Cat 8 and fiber tier 1 certification.
Offering a comprehensive network assurance package, our Cable Certifier features an intuitive interface suitable for users at all levels of expertise. It’s not just about meeting standards; it’s about optimizing performance across the entire spectrum of networking environments, making it an ideal investment for your connectivity needs.

• Modular certifier for highest flexibility for copper and fiber cabling
• Intuitive, easy to use UI with integrated project management and on-board PDF reporting
• Camera for barcode scanning
• DCS+ for best in class ergonomics

The modular design of the WireXpert MP covers all applications from copper 100kHz to 3GHz up to multimode and singlemode fiber tier 1 certification. Its intuitive user interface lets users perform cable certification with minimum training. To get the job finished in no time, WireXpert MP is packed with various helpers.

WireXpert MP C6A, the full featured entry level product in the WireXpert MP range. The C6A module comes with all modern test options like DCRU and TCL and is software upgradable to 3000MHz. The C6A is the only Cat 6A certifier that is also capable of testing 600MHz SPE cabling. With its easy to use, intuitive user interface, this version is the perfect companion for installations in office and industrial environments.

High end cable certifier up to Cat 8 and beyond for high speed cabling and data center applications. The C8 module comes with all modern test options like 600MHz SPE, DCRU and TCL and making this product a future prove investment. The flagship of the WireXpert MP series for copper testing up to Cat 8 and beyond with a frequency range from 100kHz to 3GHz and supports all common non RJ45 Cat 8.2 connectivity. Fast test times enabling users to complete jobs in minimum time.

WireXpert MP with FM module is a cost effective fiber only EF compliant tier 1 certifier for multimode (850/1300nm) fiberoptic cabling.

WireXpert MP with FS module is a cost effective fiber only tier 1 certifier for singlemode (1310/1550nm) fiberoptic cabling.

All-in-one fiber only encircled flux compliant tier 1 certifier for both multimode (850/1300nm) and singlemode (1310/1550nm) fiberoptic cabling.

Further information here: https://itnetworks.softing.com/wirexpert-mp/

FiberXpert 700 - Quad Attenuation Measurement Kit for Multimode & Singlemode: Intuitive, flexible, fast measurement of fiber links. With the calibrated FiberXpert 700 measurement kit, standardized link certifications for multimode and singlemode fiber links can be performed and the official test reports can be printed directly from the PC software supplied on USB stick. For testing, the user has a variety of configurations for different scenarios. Automatic wavelength detection and data storage allow testing to be completed in the shortest possible time while eliminating the risk of operator error. Measurement results can be stored directly in the internal memory (up to 10 000 results).

FiberXpert OTDR 5000 has been specially developed for installers and operators of enterprise networks and is optimized for surveying and documenting fiber optic networks and for troubleshooting. For both multimode and singlemode fibers, FiberXpert OTDR 5000 offers very high resolution with one of the smallest dead zones, enabling standard-compliant surveying even of short transmission distances. Automatic analysis functions simplify handling and make you an expert in fiber optics. With an event dead zone of less than 80 cm, the FiberXpert is able to resolve and measure with high accuracy even short consecutive connectors. A short measurement time with high resolution makes the measurement of fiber optic links very efficient. This saves costs and resources.

Easy operation and analysis
The instrument can be operated hands-free thanks to the special shoulder bag. This facilitates handling when the user wants to measure fiber optic links at different locations without having to set up and dismantle the measuring tool. The results are displayed graphically on the 5" touch screen and can be easily analyzed and saved accordingly. Automatic event detection is available, where all events of the fiber link are automatically displayed and evaluated for good/bad.

Smart Link Mapper
With the help of the symbol-based result display, a quick and easy assessment of the measured optical fiber is possible. The individual events on the link are marked with simple, logical symbols and can be selected individually to display detailed measurement values for each event. It is possible to switch between trace and SLM views at any time. Both SLM and trace display are included with each instrument.

Advanced measurement functions
Additional measurement functions, such as attenuation measurement and optical power level meters, allow accurate determination of path attenuation and measurement of output power from active components such as switches. The optional fiber optic microscope also allows you to document the quality of the connector surface after installation. This is particularly useful in the event of a warranty or fault.

• Optical reflectometer (OTDR) for multimode 850/1,300 nm or combined multimode 850/1,300 nm and singlemode 1,310/1,550 nm
• Standard-compliant Tier 2 measurement of fiber optic cabling
• Automatic pass/fail analysis of measurement results according to TIA/IEC limits
• Graphical display of the reflection curve for a length-dependent evaluation of all events for reflection and attenuation
• Tabular listing of all link events and their evaluation
• Automatic macrobender detection
• Built-in attenuation meter
• Optional fiber optic microscope
• Large color touch display
• Professional measurement reports with the central evaluation software eXport

Copper testing, PoE, fiber and network testing - in your pocket!

From SoHo to enterprise networks, today’s copper networks become increasingly complex with a variety of different devices and remote powering. A hand-held network multitool is essential to master those modern networks.

LinkXpert TP - cabling tester with color display for network, telephone and coaxial cables with additional simple active test functions and PoE++ load test and documentation on PCs. The LinkXpert TP is a professional cabling tester for testing the correct wiring including length determination via TDR and split-pair detection. The results can be stored and processed for documentation using PC software. In addition, the LinkXpert TP offers extensive troubleshooting functions such as cable tracing, link detection up to 1Gbits/s, PoE++ tests and outlet assignment via mapper remote terminations. The LinkXpert TP is the ideal cable tester for professional installers and network operators who need to test RJ45 and coaxial cabling and document correct wiring and cable lengths in measurement reports.

LinkXpert M3 - cabling and network tester up to 10 Gbit/s for copper, fiber and WLAN networks with extended active and PoE++ test functions with documentation on PCs. The LinkXpert M3 is a professional tester for copper, fiber and WLAN networks. On copper it determines the wiring diagram and via TDR the cable lengths with distance to the fault. On copper, fiber and WLAN it connects to networks and provides network diagnostic functions. The results can be stored and processed for documentation using PC software. Network diagnostics include troubleshooting functions such as link detection up to 10 Gbit/s, ping, network discovery, PoE++ testing and more. The LinkXpert M3 is the ideal tool for professional installers and network operators who need to perform tests on all 3 media - copper, fiber and WLAN.

Performance tester up to 10Gb/s for all Ethernet applications

The NetXpert XG2 series consists of three device models. The difference is in the
Ethernet speeds (1Gb/s to 10Gb/s) and the testable media (copper and/or fiber).
All models are upgradeable, both in terms of speed and supported media.

• Complete performance qualification at the touch of a button
• Reliable test results by combining up to four measurement methods
• Clear user interface with large 7 inch touch display

High data transmission rates of up to 10Gb/s Ethernet and new Power-over-Ethernet applications up to 90W lead to completely new challenges in the field of structured cabling. NetXpert XG2 offers comprehensive active and passive network testing up to 10Gb/s for qualification, commissioning and troubleshooting on copper and fiber cabling. With the largest touch display in its class, NetXpert XG2 guarantees easy operation and clear presentation of results. At the same time, NetXpert XG2 offers highest reliability of results due to the unique combination of up to four different test methods for the evaluation of a data link.

Flexible, expandable model range - upgradeable from 1 to 10Gb/s

NetXpert XG2 and XG2-PLUS qualify twisted pair cabling from 1 to 10Gb/s. With their unique combination of 4 measurement methods, these devices check whether your cabling can transmit Ethernet up to 10Gb/s without interference.

The NetXpert XG2 is available in the smallest version starting at 1Gb/s and can be upgraded up to 10Gb/s.

The NetXpert XG2-PLUS is fully equipped to also qualify fiber optic cabling up to 10Gb/s.
