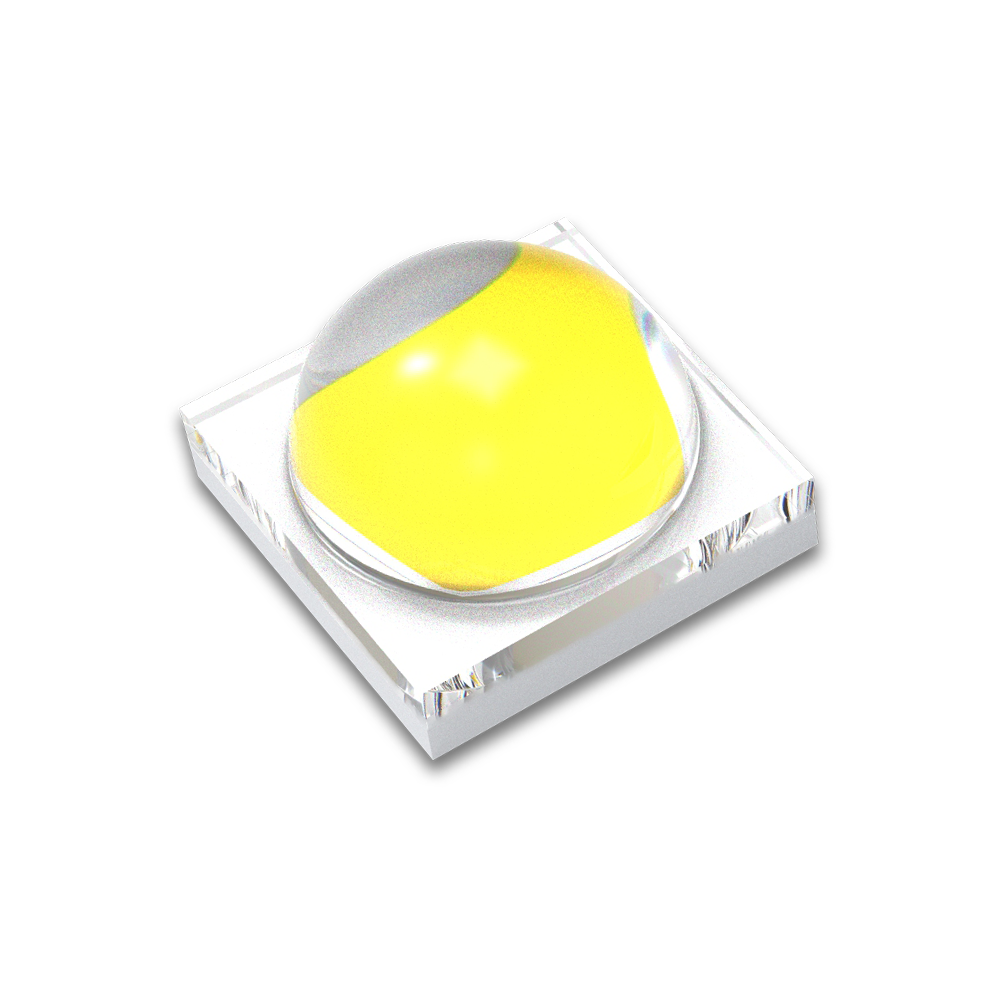

NICHIA represent NVSW219F 1800K High Power LED, alternate of one and only solution High Pressure Sodium Lamps

NICHIA introduces High-Power 1800K LED as industry’s only true alternative to High Pressure Sodium lamps

Existing LED solutions fail to meet the light profile demanded by applications currently serviced by HPS. This typically requires a light level with a low correlated color temperature (CCT) of 1800K to recreate the ‘nostalgic landscape’ effect typified by HPS.

NICHIA has developed the 219F at 1800K/CRI 70 to address this, with technology that can meet the CCT and color rendering index (Ra) required for street lighting applications and lighting for parks and other outdoor areas.

NICHIA’s newest technology brings plenty of benefits in addition to the color matching with HPS. The color rendering index (CRI) of the 219F is higher than HPS, increasing it from less than 5, by NICHIA measurement, to over 70, which enhances the natural colors of a city vs. the monotone rendering with HPS. The ability to generate a true color landscape delivers comfortable and bright lighting while retaining a nostalgic and/or elegant atmosphere. Also, LEDs allow for instantaneous on/off and output modulation or dimming controls. Enabling “smart lighting” will lead to energy savings. Needless to say, LEDs help to achieve mercury-free replacement and offer a longer lifetime. The 219F can deliver up to 60,000 hours of operation, over twice the average of HPS (24,000 hours).

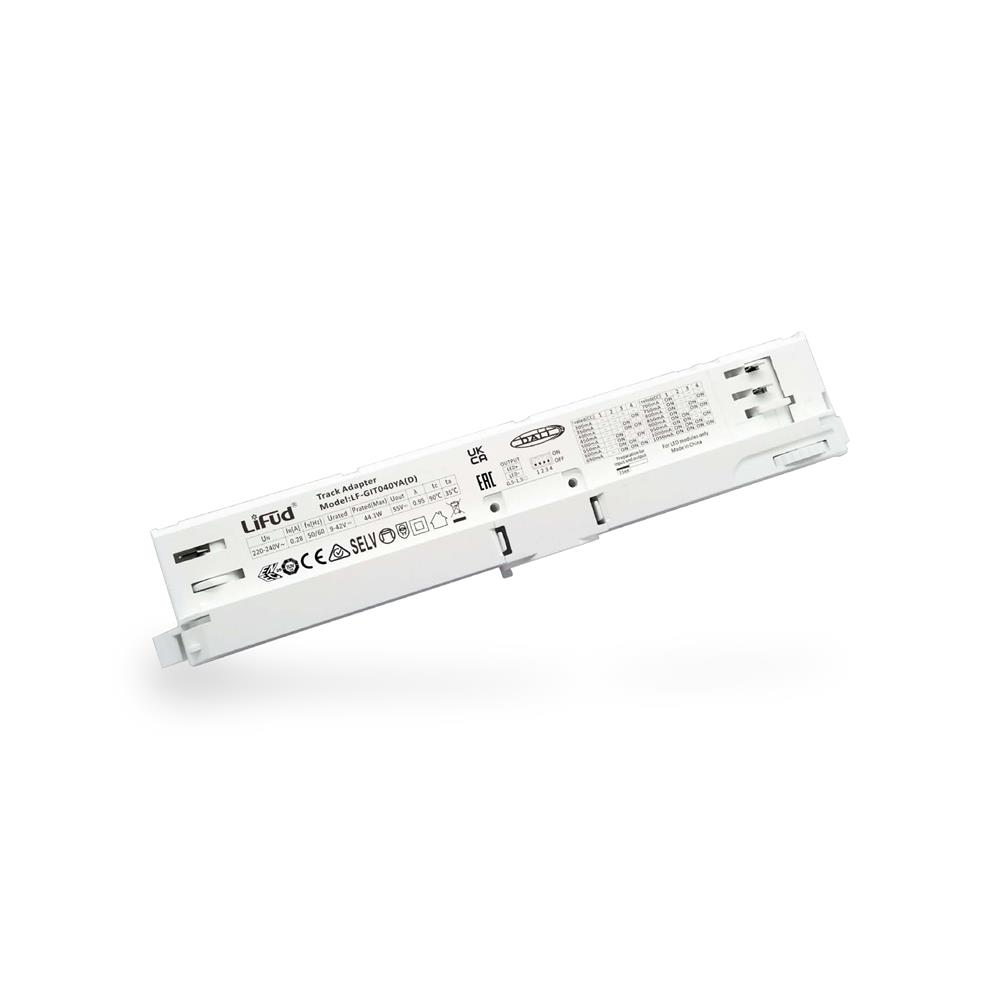

LIFUD TRACK DALI SERIES

• DALI 2.0
• Flicker Free
• PF: ≥0.95
• Output Power: 40W
• Output Current (Dip Switch): 300mA /.../ 1050mA
• Output Voltage: 9-42 V
• Efficiency: ≥87%
• Power Factor: ≥0.87/ ≥0.9 /≥0.95
• Size (W x L x H): 217.8x42.2x31.1mm

LIMBUS- Control Your Life

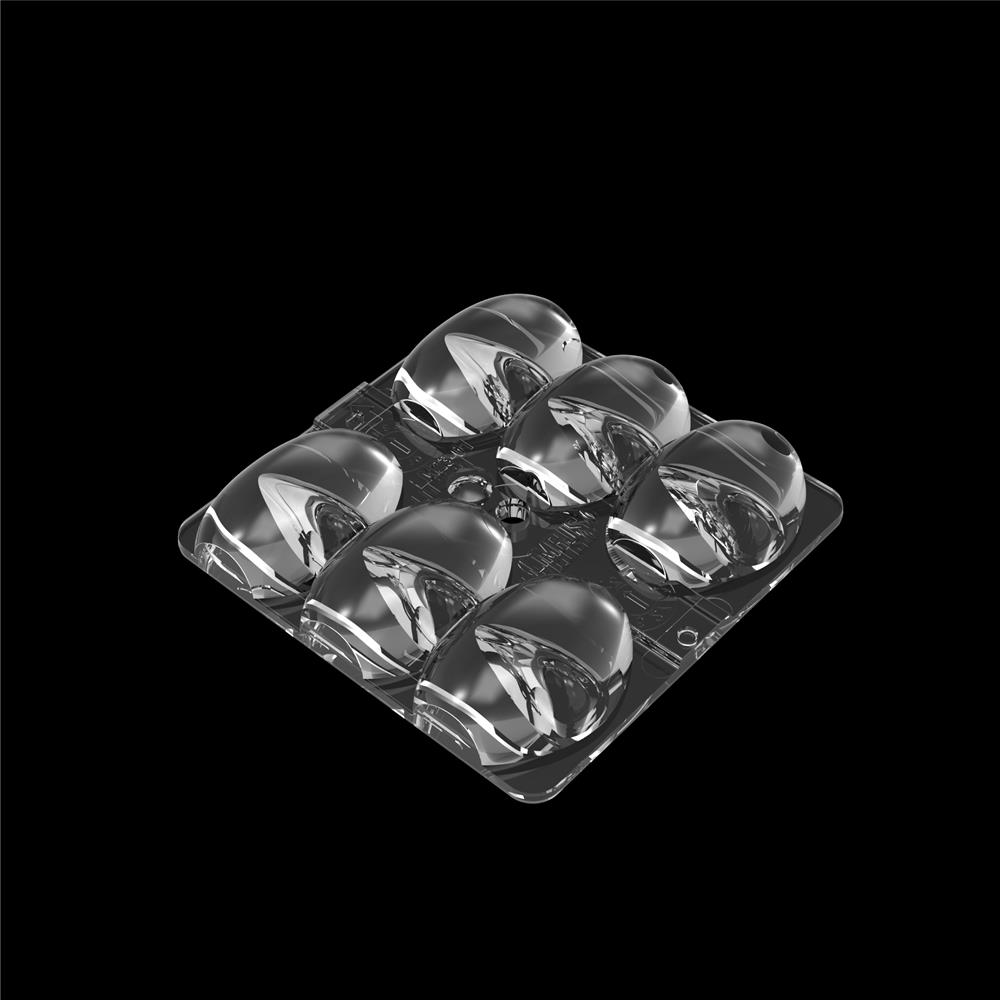

2x3 50*50mm ASYM optic for the Streetlight application

Specifications:

• Degree (FWHM): TPIII-Medium Asymmetric
• Size W x L x H: 50x50x7.87mm
• Efficiency: 92%
• Material: PMMA / -40 ° C ~ + 90 ° C max
• Fastening: Screw, Pin

Optical Results:

• Lumileds Luxeon 5050 HE - 150x75°

LIMBUS- Control Your Life

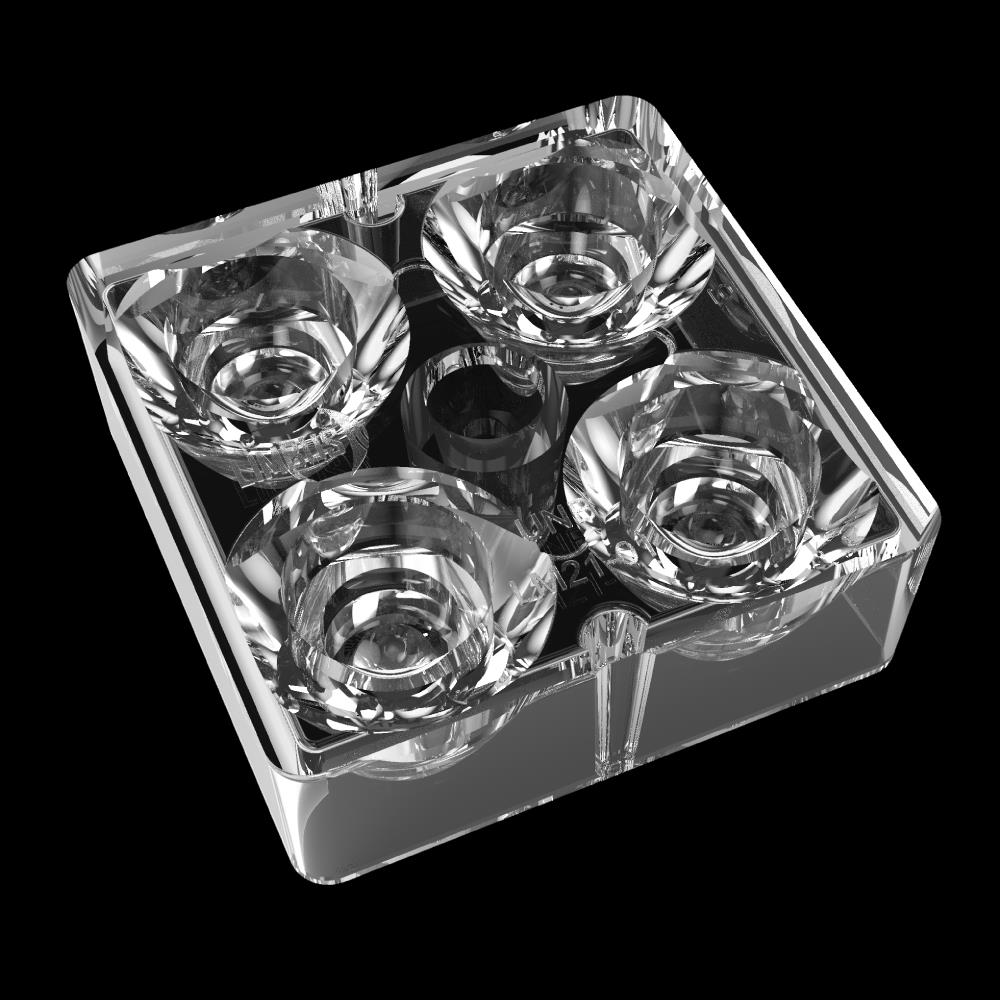

2x2 50*50mm 10° optic for the Stadium and Very Highbay application

Specifications:

• Degree (FWHM): 10°
• Size W x L x H: 50x50x16.7mm
• Efficiency: 95%
• Material: PMMA / -40 ° C ~ + 90 ° C max
• Fastening: Screw, Pin

Optical Results:

• NICHIA NVSW219F - 11°
• NICHIA NVSLE21A - 11°
• NICHIA NV4WB35AM - 17°
• NICHIA NV4W144AR - 23°

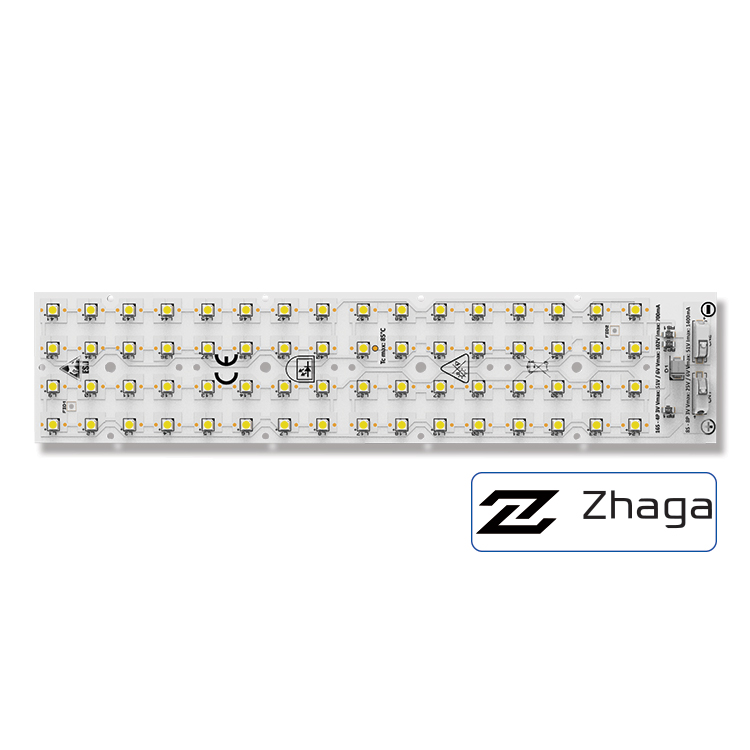

TD LIGHTING SOLUTIONS

Specifications:

• Default driving method is constant current input
• This modul can be used 16 series x4 parallels or 8 series x 8 parallels options.
• This module is compatible with Zhaga Standart Book 15.
• CCT Range from 2000K up to 6500K
• Luminous flux range from 2879 lm to 10261 lm
• Efficacy of the module up to 181 lm/W
• CRI 80 is standart, CRI 70 and CRI 90 are available
• Outstanding system color tolerance MacAdam 3 over the full operating area
• Simple installation (e.g. screw)
• Long life-time > 60,000 hours
• 5 years guarantee at specified conditions

Lumen Calculation:

• LUXEON 3030 HE+ @350mA 15W 3.226lm
• LUXEON 3030 HE+ @500mA 22W 4.515lm
• LUXEON 3030 HE+ @700mA 32W 6.161lm
