The R-Fiber range covers the wide range of components used in network levels 4 and 5 of a fiber optic installation. Rutenbeck offers a variety of different connector faces and performance classes in the singlemode and multimode range, depending on the planned procedure for further installation.
From installation in 19" cabinets to design-compatible flush-mounted terminations, the components cover all areas of application.

Rutenbeck is also presenting new solutions this year. An FTTH connection set including the home transfer point (WÜP) in a design-neutral surface-mounted wall box can also be installed in microducts in future and can be fitted with additional gas blockers for increased fire protection.

FTTH connection set, with wall socket, surface-mounted, with 1x LC-D couplings
- Connector assembly 1 x LC-D/APC, with internal laser protection
- 2 inserted spare fibers (blue/yellow)
- Accommodation of one microduct 7/4 incl. gas blocker
- for fiber optic cables up to 4.5 mm diameter
- Drop cable 4 x E9/125 G657 A2, Ø 2.3 mm, CPR: B2ca-S1, d0, a1
- Quality class Grade B
- Cable entry from the rear or all 4 sides
- prepared for DIN rail mounting
- Clear fiber management in the wall box
- Removable, hinged splice tray
- Splice tray for max. 4 crimp or shrink splices
- Protection class for wall mounting: IP50
- Temperature range: -10° C - +60° C
- Mounting material included in scope of delivery
- Pure white (similar to RAL 9010)

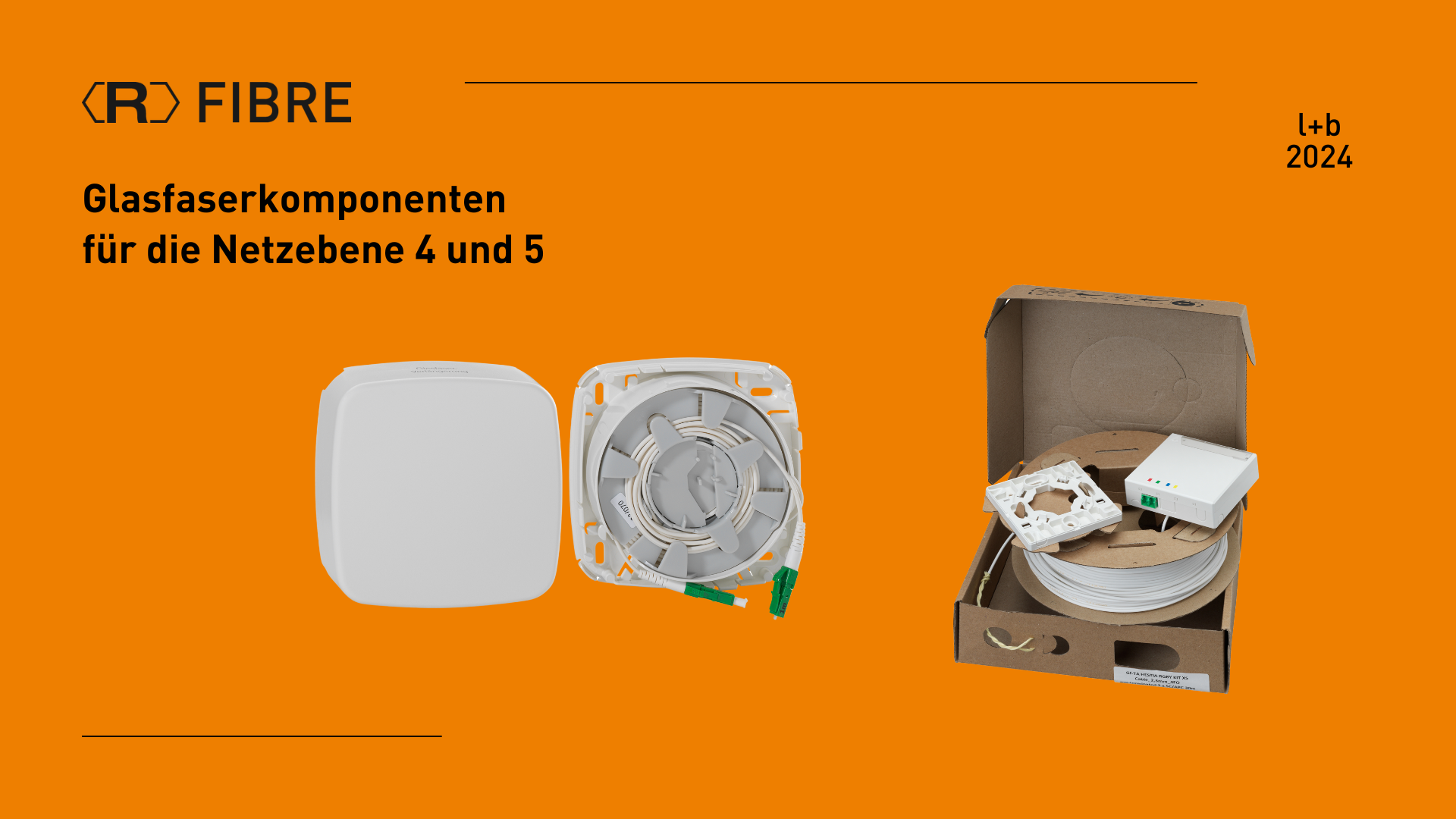

Rutenbeck offers a Plug & Play FTTH extension set for bridging the distance between the fiber optic connection in the apartment or house and the position of the fiber optic router. Up to 20 meters can be bridged with a single fibre and the positioning can be selected individually.

NE5 cable extension box, surface-mounted, 20 m cable, roller box, 1x LC OS2 APC
- Pre-assembled cable on both sides for extending the FTTH connection
- for wall mounting
- Cable outlet possible at all 4 corners
- Drop cable 1 x E9/125 G657 A2, Ø 1.6 mm, LSZH, for indoor applications
- Quality class Grade B
- Connection length to the subscriber connection: 20 m, (LC/APC)
- Connection length to the fiber optic connection (WÜP): 1 m, (LC/APC)
- pure white (similar to RAL 9010)

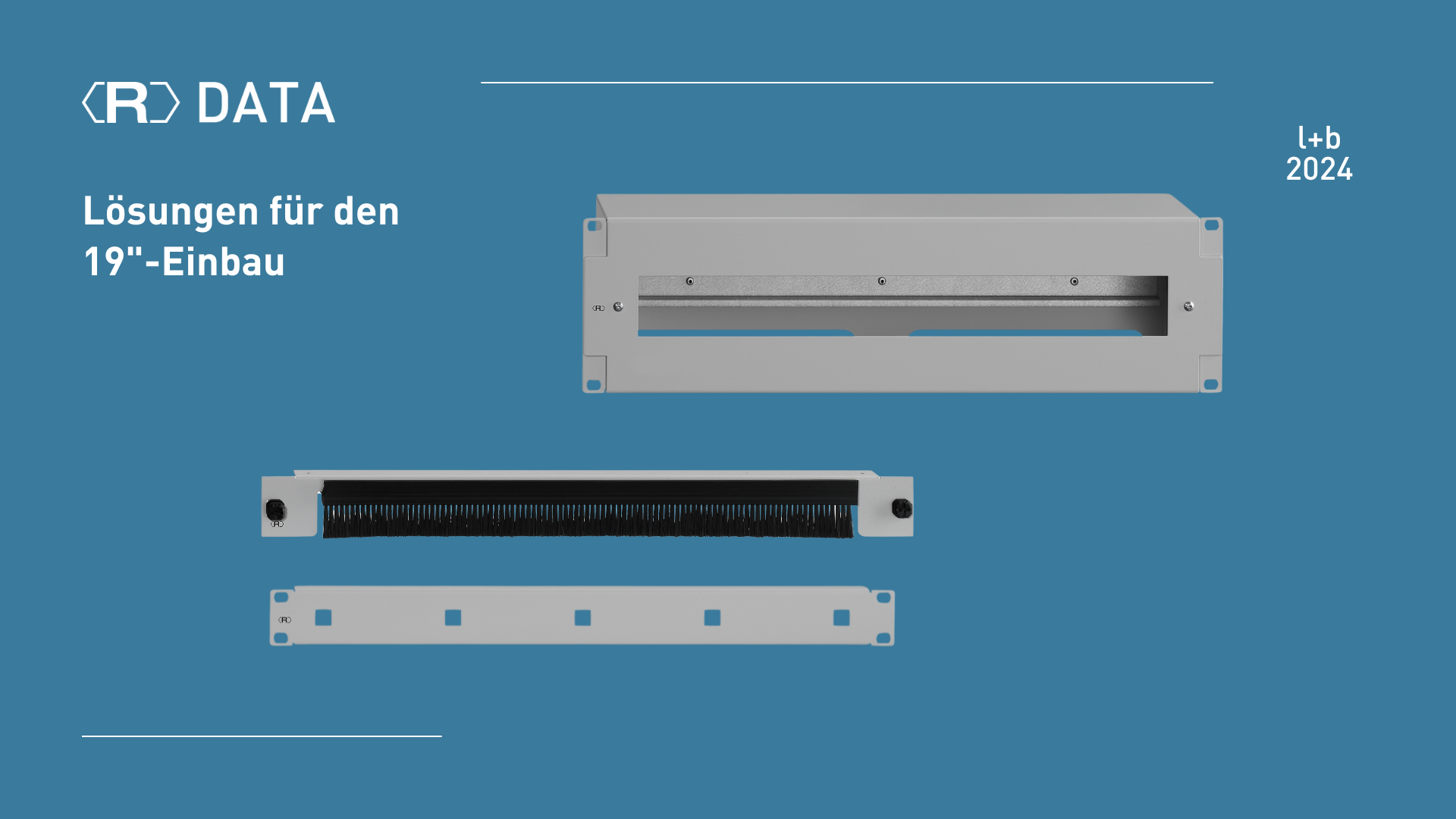

Program extensions for 19" applications

Patch panel for patch cable management

On one height unit, the front recess provides sufficient space for the patch cables to be fed through to the rear into the interior of the enclosure. The brush strip can also be removed after the feed-through patch panel has been installed to simplify the threading of the patch cables. The brush strip serves as dust protection and to prevent air exchange between the front and rear in air-conditioned enclosures.

PP-DF/1
Art. 23510010

To ensure clean patch cable routing in the front area of the 19" enclosure, appropriate cable routing aids are now a must. An unequipped base plate for 19" installation on a height unit can be fitted with various cable routing brackets to accommodate the patch cables. Different cabinet depths can be compensated for with the different versions of the brackets. These are available in the sizes 60 mm (black plastic version), 75 and 110 mm (chrome-plated metal brackets). The brackets can be easily replaced even when mounted. 5 brackets are required for each base plate.

Cable management patch panel for holding max. 5 cable brackets 19"/1 U
PP-KF/1 | Art. 23510011
Cable management bracket made of metal or plastic
KFB 75 mm | Art. 23510012
KFB 110 mm | Art. 23510013KFB 60 mm | Art. 23510014

The REG patch panel is installed in a 19" rack on 3 height units. The front panel can be easily removed with two screws, providing access to a pre-assembled top-hat rail. The patch panel offers space for up to 22 subdivision units and thus enables the mounting of REG patch panels, installation switches and other REG devices. The openings at the top and bottom across the entire rear allow cables to be fed in easily from behind. Earthing studs are provided on the rear left or right side.

REG patch panel, 19"/3 U, 22 HP with pre-mounted top-hat rail
PP-REG 22/3 | Art. 23510015

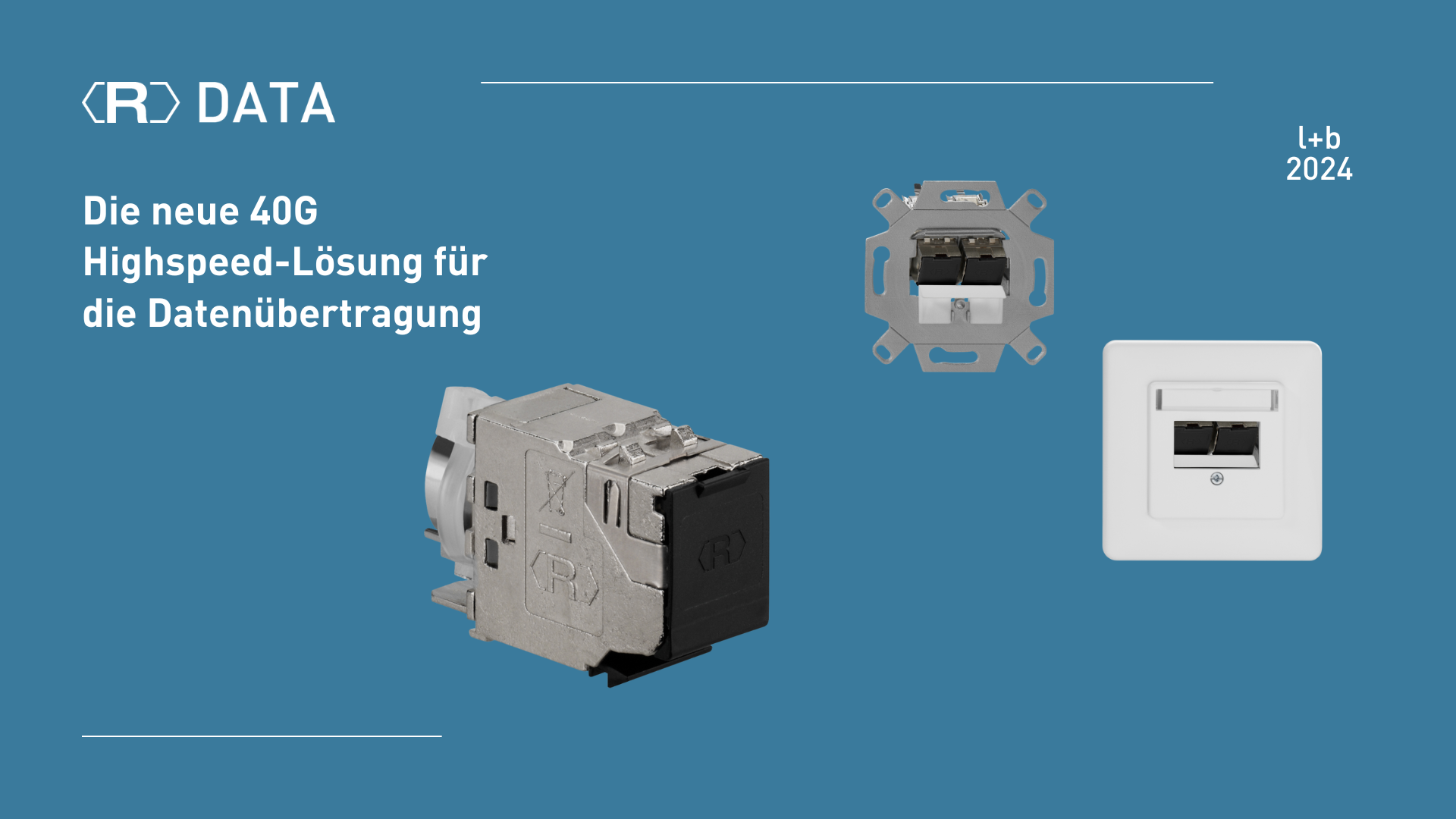

The new Cat.8.1 universal module has been specially developed for use in 40 Gigabit Ethernet networks and offers a transmission bandwidth of up to 2000 MHz. It is backwards compatible throughout and is also suitable for use in 25 and 10 Gigabit Ethernet networks. The module fits into standard keystone openings and can therefore be used in a variety of installation situations. This makes it an ideal choice for modern network requirements.

Key facts

- Proven design
- Connection without special tools
- Fits into all keystone adapters
- Use in 40/25/10GB networks
- Environmentally friendly cardboard packaging

40 GB universal module, shielded, for standard Keystone module cut-outs
UM-Cat.8.1/Class I 40/25/10G
Art. 13900306

PS: The module is the direct successor to the Rutenbeck UM-Cat.8.1/Class I 40/10G | Art. 13900308

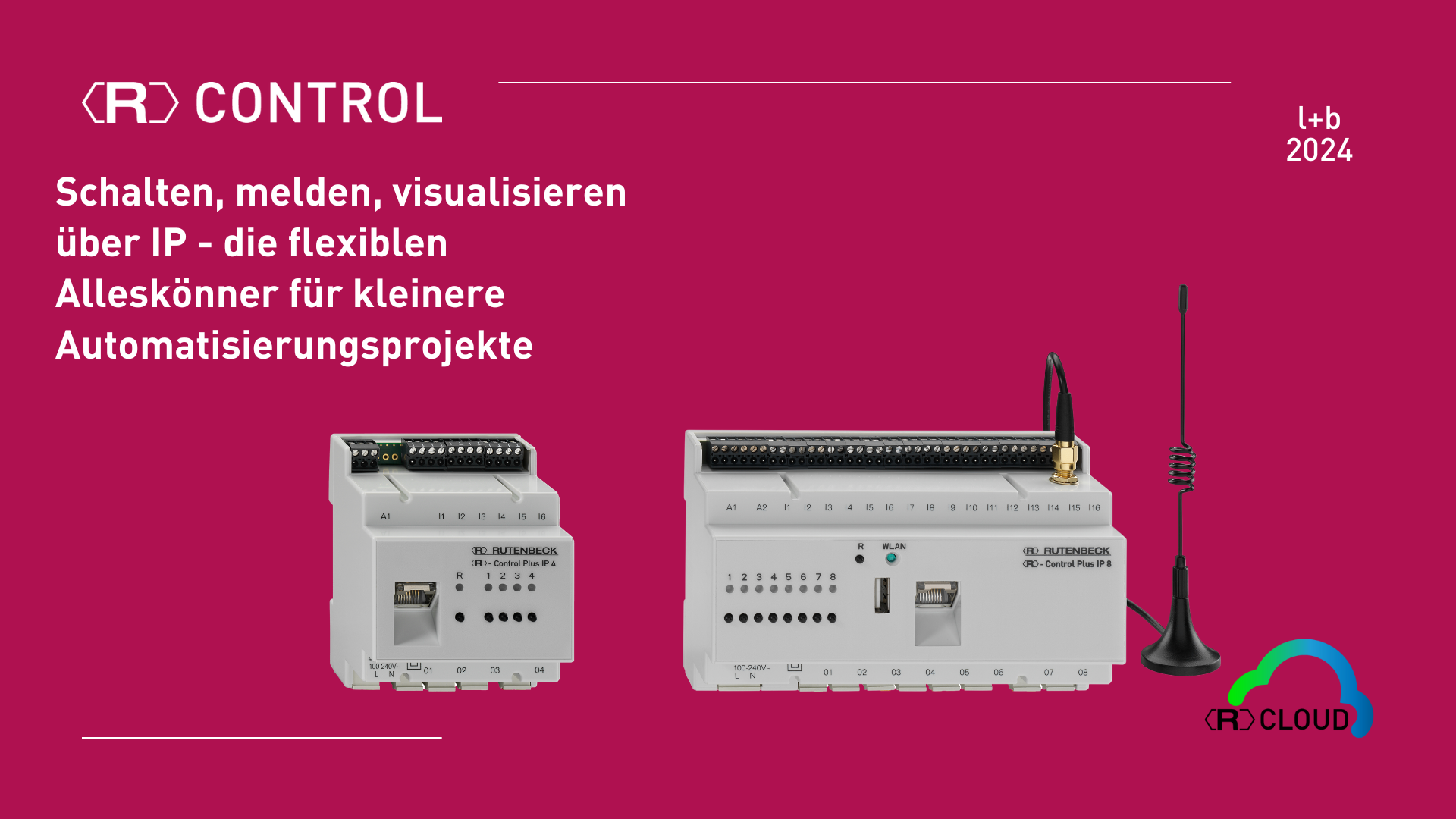

The devices in the R-Control Plus family offer a wide range of functions in the field of building automation. It is not necessary
It is not necessary to commit to a specific communication standard such as KNX, EnOcean or similar. On the contrary,
on the contrary, the IP-based functions can even be combined with a large number of common home automation systems.

The connection is made directly via open protocols such as UDP or via the integrated, open user interface
API. Control via Amazon Alexa, Google Home or even Siri as well as integration into Apple Home applications
is easily possible via a universal gateway. Direct integration into KNX installations is also possible.

Programming and operation are carried out via the integrated web browser and therefore via almost any IP device
with access to an internet browser. Switching functions and statuses can be monitored free of charge via the R-Cloud.
free of charge.

The devices comply with standardized DIN dimensions and therefore fit into any standard sub-distribution board. Thanks to the integrated 230V power supply, no additional power supply units are required. The potential-free switching outputs are designed with high-performance relays for 16A switching capacity and therefore require no additional fuse protection. To control roller shutter or garage door drives, for example, 2 outputs can be logically interlocked against each other. This means that up to 4 roller shutters can be controlled with one device.

IP switching actuator/sensor, with network connection and integrated WLAN access point,
REG mounting
- 16 digital inputs for potential-free contacts
- 2 A/D inputs for sensors 0-10V/4-20mA, parameterizable
- WLAN antenna with 2 m supply cable included in scope of delivery
- For DIN rail mounting 8 TE, approx. 144 mm
- 8 potential-free switching outputs 16A/230V
- Protection class IP20 according to EN60529
- Nominal operating voltage: 100-240 V~/50-60 Hz
- Power consumption 10 VA max.
- Temperature range: -5°C - +45°C
- Network connection RJ45
- Front USB2.0 interface for LTE/GSM stick
- Integrated timer
- Logical multiple linking of the input/output functions
- Controllable via web browser, app, UDP
- API interface
