ARDIC Elektrik San. ve Tic. Ltd. Sti.
Cable Ladder
Description

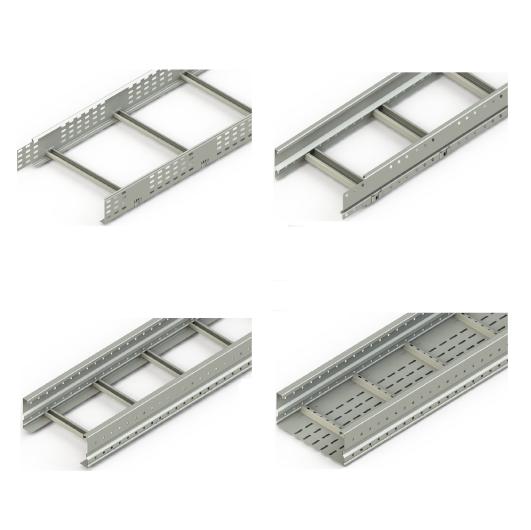

Description of Product: Cable Ladders
Final Material & Coatings:
- Hot Dip Galvanized (HDG)
- Pre-Galvanized (PG)
- Stainless Steel Grade 304 (For some Model & Sizes – Please contact us)
Dimension Range (Based on each Model):
- CM: Height: 40 to 100 mm / Width: 100 to 1000 mm / Thickness: 1.0 to 2.0 mm
- FM: Height: 80 to 200 mm / Width: 100 to 1000 mm / Thickness: 1.5 to 2.0 mm
- FTD: Height: 100 to 200 mm / Width: 200 to 600 mm / Thickness: 1.5 to 2.0 mm
- FMD: Height: 100 to 200 mm / Width: 200 to 1000 mm / Thickness: 1.5 to 2.0 mm
Loading Capacity:
For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com
Standards & Certificates:
- EN / IEC 61537
- EN / IEC 1461
- EN / IEC 62561-1 & 2
- UL (NEMA V1 & UL5)
- Fire Resistancy: FIRES-JR-108-25-NUR2
- Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
- Seismic Eligibility: EN IEC 60068-3-3
Advantages:
Based on selected model, ARDIC Cable Ladders generally have below advantages:
1- High Loading Capacity because of:
- Especial Bend on Side Profile
- Especial Longitudinal Ribs on Side Profile
- Rungs Design & Connection Method to Side
- Additional Rigidity
- Extra Loading Capacity
2- Especial Perforation & Openings provide:
- Reduction of Weight
- Extra Ventilation
- Openings for Cable Exit through routing
3- Fast Connection (Male-Female) provides:
- Reducing Installation Time & Cost
- Uninterrupted Cable Routing
- Better Conductivity of Hole Line
4- Faster, Lower Cost and Safer Installation because of:
- Lower Installation Time
- Lower Weight of Hole Line
- Better Conductivity of Hole Line
- Uninterrupted Cable Routing
For any details and more information, please:
- Refer to ARDIC Catalogue of Products
- Refer to ARDIC website as www.ardic.com
- Contact us by e-mail: export@ardic.com
- Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)
