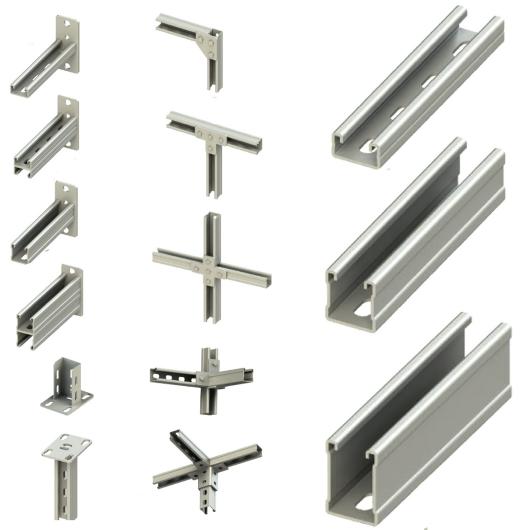

C Profile Supporting System

Description of Product: Cable Ladders

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (For some Model & Sizes – Please contact us)

Dimension Range (Based on each Model):

• CM: Height: 40 to 100 mm / Width: 100 to 1000 mm / Thickness: 1.0 to 2.0 mm
• FM: Height: 80 to 200 mm / Width: 100 to 1000 mm / Thickness: 1.5 to 2.0 mm
• FTD: Height: 100 to 200 mm / Width: 200 to 600 mm / Thickness: 1.5 to 2.0 mm
• FMD: Height: 100 to 200 mm / Width: 200 to 1000 mm / Thickness: 1.5 to 2.0 mm

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

Advantages:

Based on selected model, ARDIC Cable Ladders generally have below advantages:

1- High Loading Capacity because of:

• Especial Bend on Side Profile
• Especial Longitudinal Ribs on Side Profile
• Rungs Design & Connection Method to Side
• Additional Rigidity
• Extra Loading Capacity

2- Especial Perforation & Openings provide:

• Reduction of Weight
• Extra Ventilation
• Openings for Cable Exit through routing

3- Fast Connection (Male-Female) provides:

• Reducing Installation Time & Cost
• Uninterrupted Cable Routing
• Better Conductivity of Hole Line

4- Faster, Lower Cost and Safer Installation because of:

• Lower Installation Time
• Lower Weight of Hole Line
• Better Conductivity of Hole Line
• Uninterrupted Cable Routing

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)

Description of Product: Wire Mesh Cable Trays (Basket Tray) & Accessories

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (Polished / Non-Polished)

Dimension Range:

• Height: 35 to 100 mm
• Width: 50 to 600 mm
• Wire Diameter: 4.0 & 5.0 mm

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

Advantages of FAST CONNECTON type:

• Lower Installation Time
• Lower Weight of Hole Line
• Better Conductivity of Hole Line
• Uninterrupted Cable Routing

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)

Description of Product: Cable Management Support System & Accessories

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (for available dimensions, please contact us)

Products’ Categories & Easy Selection:

Based on the cable route design and installation requirements, customers are easily able to choose between ARDIC different types of Supports, Profiles and Connection Accessories for achieving the optimum structure of Cable Management System.

Below, you will find the Main Categories of ARDIC Supporting System products. For more information and details, please refer to our Catalogue or Website or contact us.

• Suspension (Horizontal Routing)
• Horizontal Wall Mounted (Horizontal Routing)
• Vertical Wall Mounted (Vertical Routing)
• Floor Mounted (Horizontal Routing)
• Profiles (C, U, I, Z, OMEGA, L, …)

Dimension Range:

Based on your selection from ARDIC Cable Trays, Cable Ladders & Wire Mesh Basket Trays, all compatible dimension range of Supporting System & Accessories are available.

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)

Description of Product: Cable Trays & Accessories

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (For some Model & Sizes – Please contact us)

Dimension Range (Based on each Model):

AMF: Height: 40 to 100 mm / Width: 50 to 400 mm / Thickness: 0.6 to 1.0 mm

ALL: Height: 40 to 100 mm / Width: 50 to 600 mm / Thickness: 0.6 to 1.5 mm

HEAVY DUTY: Height: 40 to 200 mm / Width: 50 to 1000 mm / Thickness: 0.8 to 2.0 mm

UK: Height: 15 & 25 mm / Width: 50 to 600 mm / Thickness: 0.6 to 2.0 mm

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

Advantages:

Based on selected model, ARDIC Cable Trays generally have below advantages:

1- High Loading Capacity because of:

• Especial Bend on Height ends
• Central Embossed Forms
• Longitudinal Ribs
• Additional Rigidity
• Extra Loading Capacity

2-Especial Perforation & Openings provide:

• Reduction of Weight
• Extra Ventilation
• Openings for Cable Exit through routing

3- Fast Connection (Male-Female) provides:

• Reducing Installation Time & Cost
• Uninterrupted Cable Routing
• Better Conductivity of Hole Line

4- Protectional Design provides:

• Preventing Cable Damage during Installation
• Dost & Moisture Protection as IP10 (When are used with cover)

5- Faster, Lower Cost and Safer Installation because of:

• Lower Installation Time
• Lower Weight of Hole Line
• Better Conductivity of Hole Line
• Uninterrupted Cable Routing

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)

Description of Product: Cable Ladders

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (For some Model & Sizes – Please contact us)

Dimension Range (Based on each Model):

• CM: Height: 40 to 100 mm / Width: 100 to 1000 mm / Thickness: 1.0 to 2.0 mm
• FM: Height: 80 to 200 mm / Width: 100 to 1000 mm / Thickness: 1.5 to 2.0 mm
• FTD: Height: 100 to 200 mm / Width: 200 to 600 mm / Thickness: 1.5 to 2.0 mm
• FMD: Height: 100 to 200 mm / Width: 200 to 1000 mm / Thickness: 1.5 to 2.0 mm

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

Advantages:

Based on selected model, ARDIC Cable Ladders generally have below advantages:

1- High Loading Capacity because of:

• Especial Bend on Side Profile
• Especial Longitudinal Ribs on Side Profile
• Rungs Design & Connection Method to Side
• Additional Rigidity
• Extra Loading Capacity

2- Especial Perforation & Openings provide:

• Reduction of Weight
• Extra Ventilation
• Openings for Cable Exit through routing

3- Fast Connection (Male-Female) provides:

• Reducing Installation Time & Cost
• Uninterrupted Cable Routing
• Better Conductivity of Hole Line

4- Faster, Lower Cost and Safer Installation because of:

• Lower Installation Time
• Lower Weight of Hole Line
• Better Conductivity of Hole Line
• Uninterrupted Cable Routing

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)

Description of Product: Wire Mesh Cable Trays (Basket Tray) & Accessories

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (Polished / Non-Polished)

Dimension Range:

• Height: 35 to 100 mm
• Width: 50 to 600 mm
• Wire Diameter: 4.0 & 5.0 mm

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

Advantages of FAST CONNECTON type:

• Lower Installation Time
• Lower Weight of Hole Line
• Better Conductivity of Hole Line
• Uninterrupted Cable Routing

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)

Description of Product: Cable Management Support System & Accessories

Final Material & Coatings:

• Hot Dip Galvanized (HDG)
• Pre-Galvanized (PG)
• Stainless Steel Grade 304 (for available dimensions, please contact us)

Products’ Categories & Easy Selection:

Based on the cable route design and installation requirements, customers are easily able to choose between ARDIC different types of Supports, Profiles and Connection Accessories for achieving the optimum structure of Cable Management System.

Below, you will find the Main Categories of ARDIC Supporting System products. For more information and details, please refer to our Catalogue or Website or contact us.

• Suspension (Horizontal Routing)
• Horizontal Wall Mounted (Horizontal Routing)
• Vertical Wall Mounted (Vertical Routing)
• Floor Mounted (Horizontal Routing)
• Profiles (C, U, I, Z, OMEGA, L, …)

Dimension Range:

Based on your selection from ARDIC Cable Trays, Cable Ladders & Wire Mesh Basket Trays, all compatible dimension range of Supporting System & Accessories are available.

Loading Capacity:

For Loading Graph, please refer to ARDIC Products' Catalogue or website www.ardic.com

Standards & Certificates:

• EN / IEC 61537
• EN / IEC 1461
• EN / IEC 62561-1 & 2
• UL (NEMA V1 & UL5)
• Fire Resistancy: FIRES-JR-108-25-NUR2
• Fire Resistancy: E90 & E30 Comply with EN-IEC 61537 & DIN 4102
• Seismic Eligibility: EN IEC 60068-3-3

For any details and more information, please:

• Refer to ARDIC Catalogue of Products
• Refer to ARDIC website as www.ardic.com
• Contact us by e-mail: export@ardic.com
• Contact us by Tel: +90 535 018 95 67 (Direct or WhatsApp)
