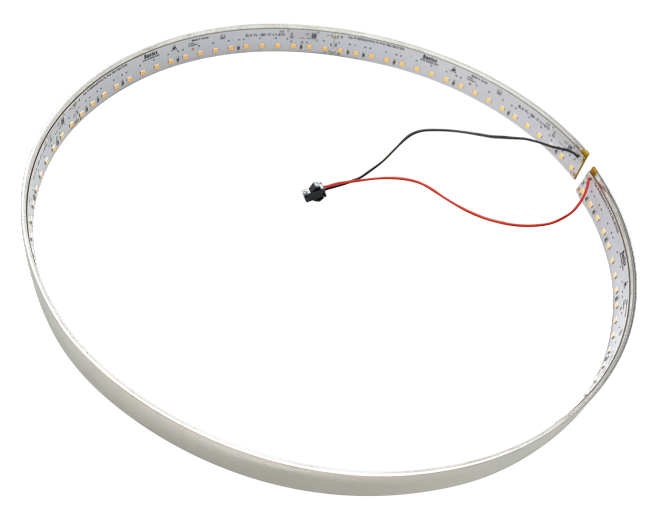

Flexible LED Module on Aluminum Ring for Edge-lit Applications

Linear LED Modules with various color combination and performance to apply to diverse lighting system requirements.

Tunable White & Color Linear LED Module

• 560mm × 38mm
• 1960 ~ 2200lm @ 600mA, Tc=55◦C
• Module efficacy up to 160lm/W
• CRI of 80+
• Tunable white and color with 3 independent channels
• Suitable for robot wiring

Single White & Color Linear LED Module

• 560mm × 24mm
• 360 ~ 2200lm @ 300mA, Tc = 55 °C
• Module efficacy up to 160lm/W
• CRI of 80+
• Single white and color with 2 independent channels
• Re-workable push-in connector for easy wiring

Linear LED Module with Integrated Driver

• 560mm × 24mm
• 1400lm @ 380mA, Tc=55 °C
• Module efficacy up to 158lm/W
• CRI of 80+
• On-board linear led driver for constant voltage driving
• Discrete Wire IDC(Insulation Displacement Connectors)

LED modules with optics, engineered in multiple form factors for various applications

Square LED Module with Optic

• 115mm × 115mm
• 3700lm @ 1050mA, Tc=65◦C
• Module efficacy up to 101.2lm/W (with lens)
• CRI of 90+
• White light with integrated optics
• To be used with wire harness

Round LED Module with Optic

• 180mm × 180mm
• 3500lm @ 700mA, Tc=65◦C
• Module efficacy up to 114lm/W (with lens)
• CRI of 80+
• White light with integrated optics
• Re-workable push-in connectors for easy wiring

Linear LED Module with Optic

• 588mm × 20mm
• 1290lm @ 375mA, Tc=55◦C
• Module efficacy up to 156lm/W (with lens)
• CRI of 80+
• White light with integrated optics
• Re-workable push-in connectors for easy wiring

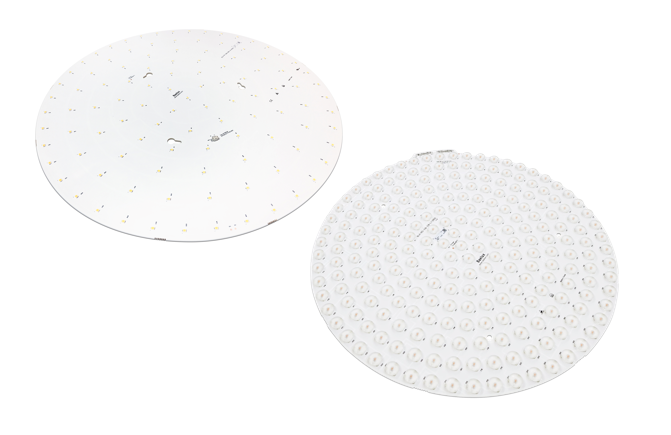

Round LED Modules with various color combination and performance to apply to diverse lighting system requirements.

Big Round LED Module

• 390mm × 390mm
• 4000lm @ 700mA, Tc=45◦C
• Module efficacy up to 133lm/W
• CRI of 90+
• To be used with wire harness

Round LED Module with lens

• 318mm × 318mm
• 2800lm @ 700mA, Tc=55◦C
• Module efficacy up to 154lm/W (with lens)
• CRI of 90+
• Re-workable push-in connectors for easy wiring
• 240ea LEDs and lenses

Spot LED Modules with various color combination and performance to apply to diverse lighting system requirements.

Tunable White Square LED Module

• 19mm x 19mm
• 1500lm @ 700mA, Tc=65◦C
• Module efficacy up to 102lm/W
• CRI of 90+
• Tunable white capability with independent 2 channel
• Contact pads with sliver finish

Spot LED Module

• 21mm x 20mm
• 180lm @ 700mA, Tc=65◦C
• Module efficacy up to 117lm/W
• CRI of 90+
• Contact pads with sliver finish

RGBW Round LED Module

• 48mm x 47mm
• 790 ~ 2260lm @ 700mA per channel, Tc=65◦C
• Module efficacy up to 161lm/W
• CRI of 80+
• LED module capable of Red-Green-Blue and White
• 5pcs x 1-pole poke-in connectors for easy wiring
• 1pc to be connected per driver
