MICRO-1CV

LINE-5CV-DMX is a 5-channel output LED dimmer, which can be controlled by means of a DMX BUS control.
The LED dimmer is suitable for driving loads such as StripLEDs and LED modules, White, Single-color, Dynamic White, RGB, RGB+W, RGB+WW and RGB+TW at constant voltage. A 12-24-48 Vdc power supply can be connected.
The maximum output current is 12A. The dimmerLED has the following protections: short-circuit protection on the LED outputs, over-power protection, reverse polarity protection, and input fuse protection.

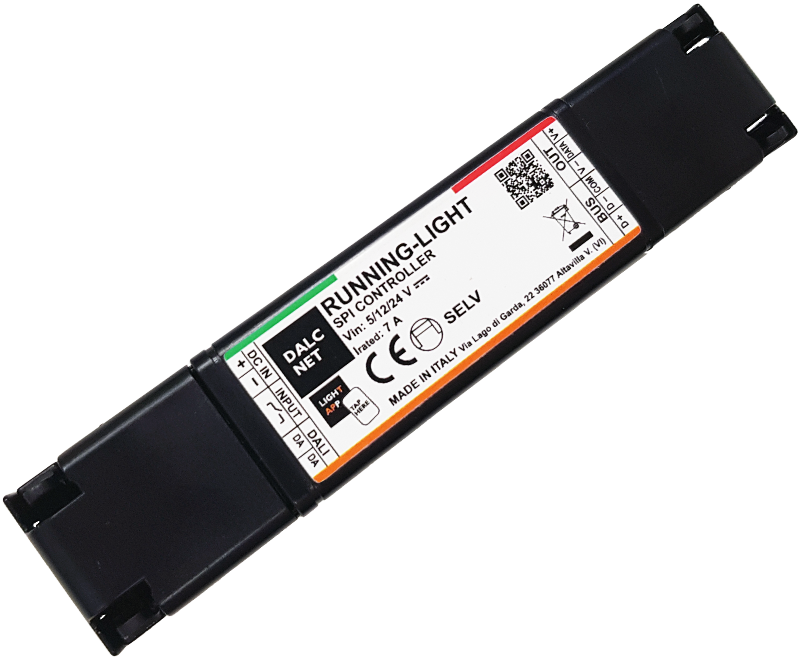

RUNNING-LIGHT is an SPI controller for pixel-to-pixel LED control on digital (programmable/addressable) LED strips, which can be connected to a SELV constant voltage (5 ÷ 24) Vdc power supply. The controller is suitable for driving loads such as Digital LED-strips and RGB or WWW LED modules at constant voltage. It can be controlled locally via Normally Open (N.O.) pushbutton or remotely via DALI (Digital Addressable Lighting Interface) digital protocol.
RUNNING-LIGHT can deliver a maximum output current of 7 A and has the following protections: over-voltage and under-voltage protections, reverse polarity protection and input fuse protection.

PIXEL-TILE-300-RGBW-12V is an SPI pixel-to-pixel LED-module with N°100 digital (programmable/addressable) RGBW LEDs, which can be supplied by a SELV constant voltage 12 Vdc power supply. The LED-module is suitable to be driven by an SPI LED-controller at constant voltage.

MINI-1CV-CASAMBI is a single-channel LED dimmer, PWM (Pulse Width Modulation) modulated at Constant Voltage (CV) and
controlled remotely via Bluetooth through the CASAMBI© mobile application or locally by means one N.O. (Normally Open)
pushbutton. MINI-1CV-CASAMBI can be supplied by a SELV constant voltage (12 ÷ 48) Vdc power supply and is suitable for driving
loads such as White/Monochromatic LED-strips or LED-modules constant voltage. The dimmer can deliver an output current of up
to 12 A and has the following protections: over-voltage and under-voltage protections, reverse polarity protection and input fuse
protection.
MINI-1CV-CASAMBI enables you to make not only simple brightness adjustments but also more dynamic lighting control systems.
This is made possible through the creation of multiple scenarios, animations, timers, daylight controls, and more.

LINE-5CV-DMX is a 5-channel output LED dimmer, which can be controlled by means of a DMX BUS control.
The LED dimmer is suitable for driving loads such as StripLEDs and LED modules, White, Single-color, Dynamic White, RGB, RGB+W, RGB+WW and RGB+TW at constant voltage. A 12-24-48 Vdc power supply can be connected.
The maximum output current is 12A. The dimmerLED has the following protections: short-circuit protection on the LED outputs, over-power protection, reverse polarity protection, and input fuse protection.

RUNNING-LIGHT is an SPI controller for pixel-to-pixel LED control on digital (programmable/addressable) LED strips, which can be connected to a SELV constant voltage (5 ÷ 24) Vdc power supply. The controller is suitable for driving loads such as Digital LED-strips and RGB or WWW LED modules at constant voltage. It can be controlled locally via Normally Open (N.O.) pushbutton or remotely via DALI (Digital Addressable Lighting Interface) digital protocol.
RUNNING-LIGHT can deliver a maximum output current of 7 A and has the following protections: over-voltage and under-voltage protections, reverse polarity protection and input fuse protection.

PIXEL-TILE-300-RGBW-12V is an SPI pixel-to-pixel LED-module with N°100 digital (programmable/addressable) RGBW LEDs, which can be supplied by a SELV constant voltage 12 Vdc power supply. The LED-module is suitable to be driven by an SPI LED-controller at constant voltage.
