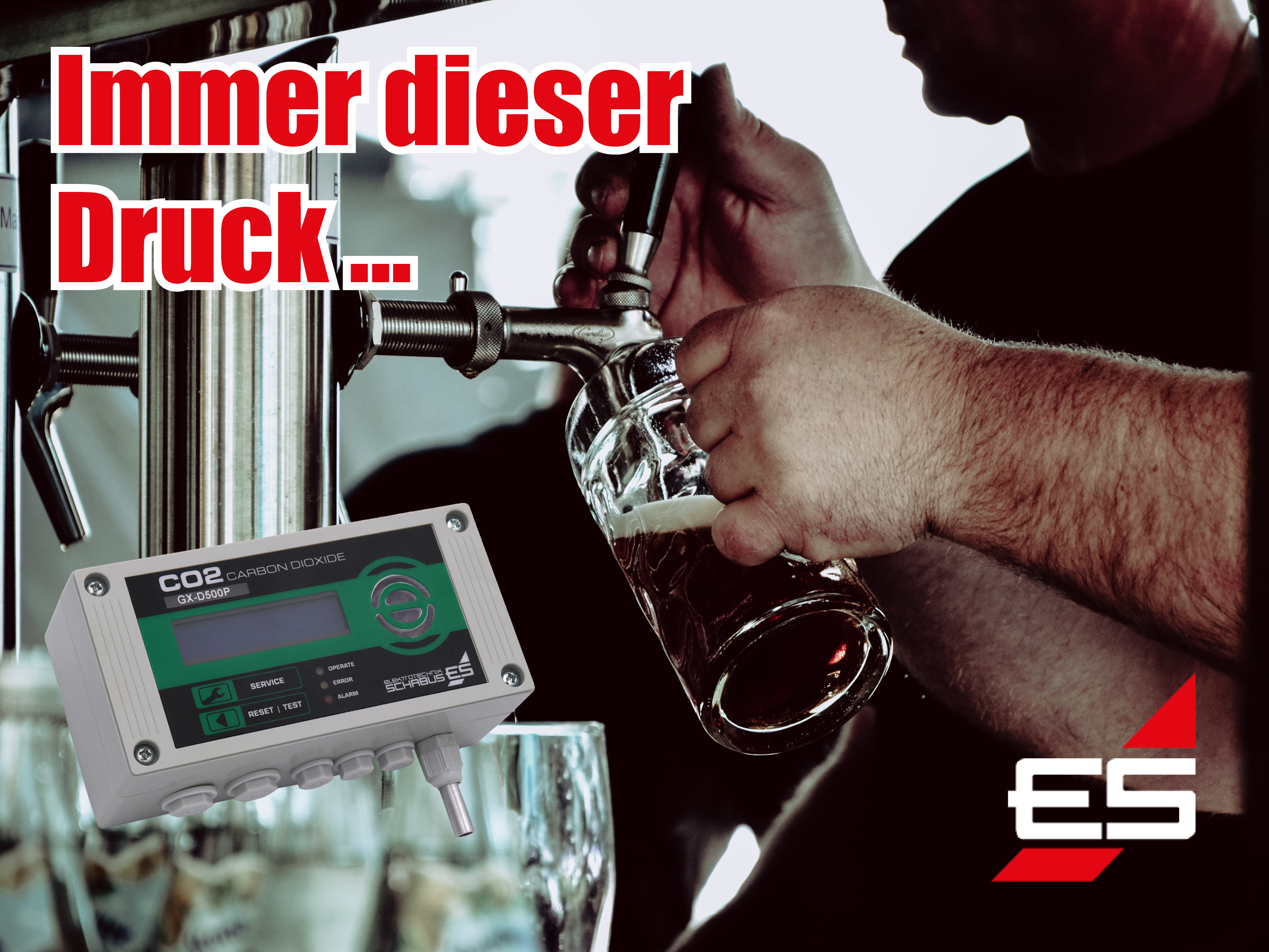

Always this pressure ...
in the safe and proper handling of gas cylinders. Whether CO2 has escaped through your CO2 gas cylinder, e.g. for the water bubbler or at leaky fittings, you can measure comfortably with our GX-D500P.

Other areas of application are dry ice processing and storage, occupational safety, food refrigeration e.g. of meat and sausage products, beverage dispensing systems, greenhouses with CO2 fumigation and overall thermally demanding rooms with very hot, cold, humid or dusty air or in ventilation systems with drafts.

The GX-D500P is a carbon dioxide warning device with ppm-accurate measurement and display of CO2 concentration in tenths of a percent, as well as display and storage of many operating parameters on a plain text display. The NDIR infrared sensor with high lifetime is permanently monitored by two µControllers and provides precise results.
The room to be monitored is connected to the device via a silicone hose, and a fan wheel ensures accelerated diffusion of the CO2 to the internal CO2 sensor. At the same time, unfavorable temperatures in the outside hose section adapt to the ambient temperature of the warning device.
2 potential-free change-over relays switch in case of alarm (3%) and in case of technical faults detected by the device itself.
The warning concentrations have been set at 1.5% and 3.0% in accordance with the TRGS for CO2 from beverage dispensing systems, but can also be parameterized alternatively by Elektrotechnik Schabus in the factory at the customer's request.
The application of the GX-D500P is always technical, be it the monitoring of CO2 bottles or the processing of dry ice.

Item number: 300263
EAN: 4044764004467

Performance features
monitoring of thermally demanding rooms with very warm, cold, humid or dusty air
suitable for CO2 from technical plants under pressure
suitable for dry ice processing / storage
relay contact for automatic ventilation
acoustic and optical warning
second relay for fault messages to the building control system
calibration possibility (zero point) for user
plain text display with indication of CO2 concentration
pre-alarm stage 1.5% CO2 / main alarm at 3% CO2 following the monitoring of beverage dispensing systems
internal NDIR sensor and connection of the room to be monitored by means of silicone hose

Technical data
operating voltage: 230 V~ (+/- 10%) / max. 8 VA
power consumption: max. 10 VA, depending on operating condition
Relay contacts: 2 potential-free change-over relays
Relay Re1 "Alarm": 250 V~ AC / 5 Amps max.
Relay Re2 "Fault": 60 V= DC / 5 Amps max.
Piezo alarm transmitter Sound pressure: approx. 85dB(A) @ 1 meter
Trigger concentrations: 1.5% / 15,000 ppm pre-alarm // 3.0% / 30,000 ppm main alarm
Sensor technology: optical, infrared absorption, NDIR
Display: 2x 16 Z. Display: white/blue, illuminated, flashes on alarm
3x LED: green operation, yellow error, red alarm
Function range: 0°C ... +45°C for control unit
silicone hose: 6/10mm, 2m enclosed, max. 4m
Protection class control unit:    IP20 (IP65 on request against surcharge)
Dimensions (HxWxD): 80 x 160 x 55 mm
