Safe ventilation with power-operated windows

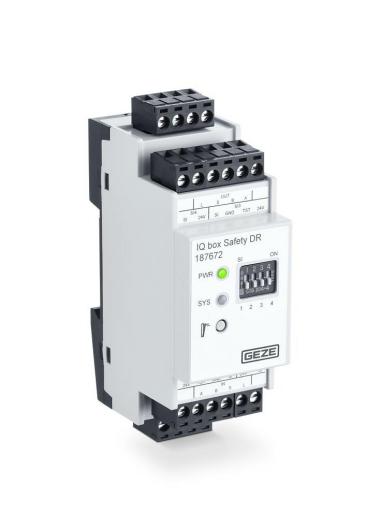

IQ box Safety is a product solution for safe ventilation. Certified by TÜV (a German technical service organisation), IQ box Safety offers the highest level of safety for power-operated windows up to protection class 4.

IQ box Safety is suitable for protecting closing edges on automated windows with 24 V IQ windowdrive drives and enables safety edges and contactless sensors to be connected. For each window, one IQ box Safety connects up to four window drives and two locking drives. It is suitable for natural ventilation and smoke & heat extraction systems, as well as for all activations (such as SHEV control panels, 24 V power supplies, KNX, IQ gear). This therefore allows planners and architects greater flexibility and creative freedom in the layout of ventilation windows and smoke & heat extraction windows.

Benefits

• Fulfils the requirements of the highest protection class in accordance with risk assessment
  for power-operated windows under the Machinery Directive (protection class 4)
• TÜV-certified functional safety in accordance with DIN EN 13849-1
• Quick and simple commissioning with pre-set standard parameters
• Four sensor connections that can be assigned to switch strips or non-contact sensors
• Top hat rail module with pluggable terminals for quick and simple wiring
• Integrated push button for manually closing windows during servicing
