LUXTELLA URBAN

We off er modular building concept in lighting business. With basic elements we can off er standard street luminaire, hanging type, T-lamp or also industrial luminaire all made from same or similar components. Housing is made of extruded aluminium with 20 microns anodised fi nish that enables perfect heat transfer. Each end is covered with die cast parts. Access to the cable is possible without tools, replacing the driver is easier. Silicone gaskets ensure IP66 protection, whole fi xture is up to IK10 resistant. Optionally, luminaire can be equipped with Zhaga or NEMA socket. Universal holder enables top pole or side entry installation with possibility to change inclination for + / - 15 deg with step of 5 deg. Regularly equipment is a 60 mm pole connector, 76 mm also available. All screws are made of stainless steel.

This is sub version of Luxtella street LB series. It is equipped with special holder that enables to connect the luminaire on celling of industrial objects or warehouses. Silicone gaskets
ensure IP66 protection, whole fi xture is IK10 resistant. Luminaire is ENEC certifi ed. Usually we use one of symmetrical optics (10°, 20° or 60°) and special optic for installation in warehouse between aisles.

Solar sets are always subject of customised off er and consist of several elements that could be delivered:
- LED luminaire (can be LB or LO series)
- PV panel (we off er 275W as a standard)
- Lithium Battery (typically we off er 12V, 40Ah, LiFePo4)
- Charge controller & LED driver - 12V (maximum 80W lamp), 24V (more than 80W lamp)
- PV panel and battery holder
- Holder of luminaire
Autonomy of solar luminaires is adjusted with the size of battery.
With GPS coordinates we can optimize a solar luminaire set to best suite any desired location on Earth.

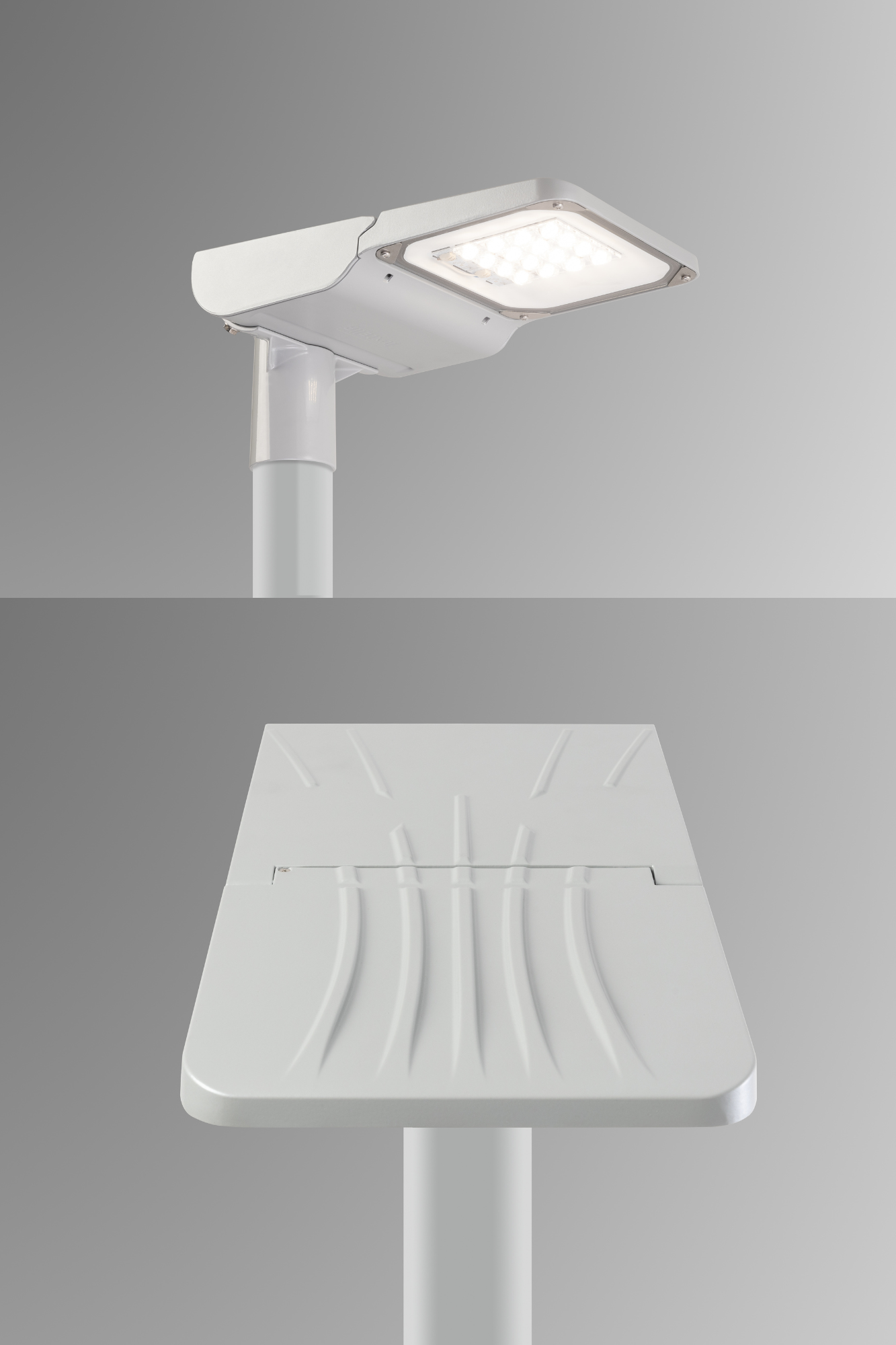

The housing is made out of die-casted aluminum and powder-coated with UV-resistant epoxy paint. Gaskets are made of ozone and UV-resistant material which ensures IP66 protection, the whole fixture has up to IK10 certification. The luminaire can be opened without any tool. Lenses are
covered with tempered protection glass. Disconnecting connectors ensure safe operations during the installation and maintenance process. Optionally, the luminaire can be equipped with Zhaga or NEMA socket. Universal holder enables top pole or side entry installation with the possibility to change inclination for ± 20° with a step of 5°. As a standard, all luminaires are equipped with a 60 mm pole connector, 76 mm is also available. All screws are made of stainless steel. OP mini offers solutions for different projects, with requirements up to 100 W.
