A Multi Sensor with A Wide Range Area: The Optimus Multi Sensor

Compatible with Optimus KNX Stack, the multi-sensor is a presence and motion detector designed
for indoor spaces. It is used to turn on/off lighting systems and/or heating-cooling (HVAC) systems
depending on movement and/or presence and to adjust the lighting level.
It also offers constant light level control in lighting systems.

It transmits measurement information to the KNX line via temperature and humidity sensors located
on it. It is powered via the KNX line without the need for external power. It is suitable for both flush-mounted and surface-mounted (with surface-mounted installation box) installations.

• Wide Area: 20 m Diameter
• High Ceiling: 30 m Diameter
• Hallway: 30 m x 6m Rectangle
• Standart Ceiling: 10 m Diameter

Future-Proofing Spaces, Energizing Lives: Optimus Solutions Led Dimmer

A LED driver that can adjust the level of LED lighting with constant voltage. The supply voltage is determined according to the requirements of the load, between 12-24 VDC. LED lighting requiring the same voltage should be installed in each channel.

The maximum current that can be drawn per channel is 3 Amperes. Channels can be combined
programmatically and physically to increase the total current to 6 A or 12 A. The device can also be used for LED drivers operating with PWM signals.

Optimize Your World, Choose Optimus Solutions

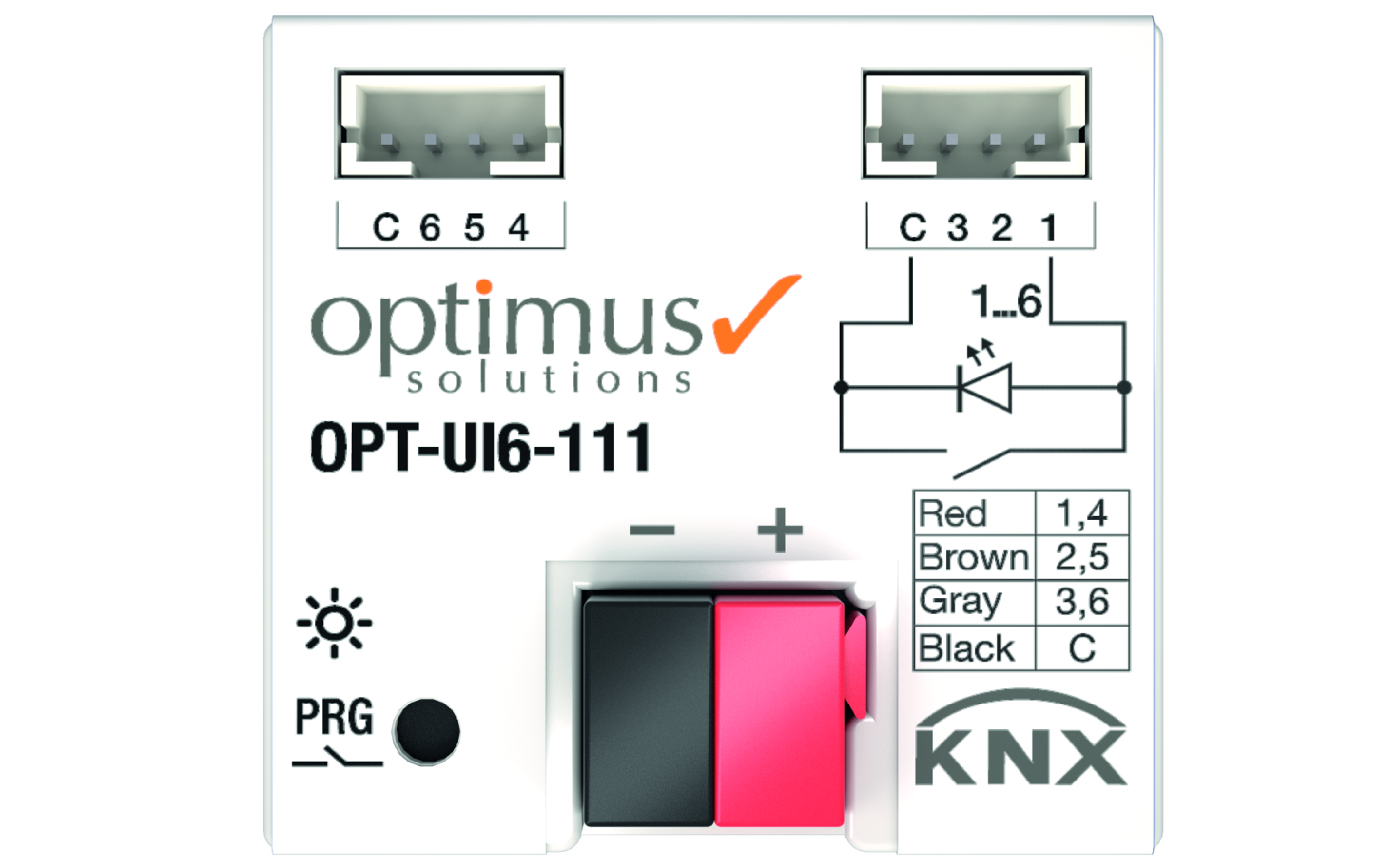

Designed for the KNX world with Optimus KNX Stack, this device is a universal input/output interface
designed for indoor use. The Optimus Universal Interface series is available with 3, 6, and 9-channel
options, and each channel is designed to be programmable as input or output according to the needs.

In input mode, the status of the contact is detected, and appropriate information in the suitable data type is transmitted to the KNX line. In output mode, the LEDs to be connected can be turned on or off according to the information coming from the KNX line. The Optimus Universal Interface is powered
via the KNX line and therefore does not require an additional power source for contact scanning or LED driving.

• One device for different purposes
• Using as Input/Output
• 3-Channel
• 6-Channel
• 9-Channel versions available

A compact, hight capacity, multi functional design : Optimus Combined Actuator Series

The combined actuator, which was designed considering both the needs of the user and the system integrator, offers various usage purposes with the Optimus Stack infrastructure.

The Optimus Combined Actuator Family, capable of performing Lighting, Switch/Valve, Curtain/Blinds, 3-Point Motor, and Fan Coil control operations through a single device, consists of models with 4, 8, 12, 16, 20 and 24 contact outputs.
