A Multi Sensor with A Wide Range Area: The Optimus Multi Sensor

Compatible with Optimus KNX Stack, the multi-sensor is a presence and motion detector designed
for indoor spaces. It is used to turn on/off lighting systems and/or heating-cooling (HVAC) systems
depending on movement and/or presence and to adjust the lighting level.
It also offers constant light level control in lighting systems.

It transmits measurement information to the KNX line via temperature and humidity sensors located
on it. It is powered via the KNX line without the need for external power. It is suitable for both flush-mounted and surface-mounted (with surface-mounted installation box) installations.

• Wide Area: 20 m Diameter
• High Ceiling: 30 m Diameter
• Hallway: 30 m x 6m Rectangle
• Standart Ceiling: 10 m Diameter

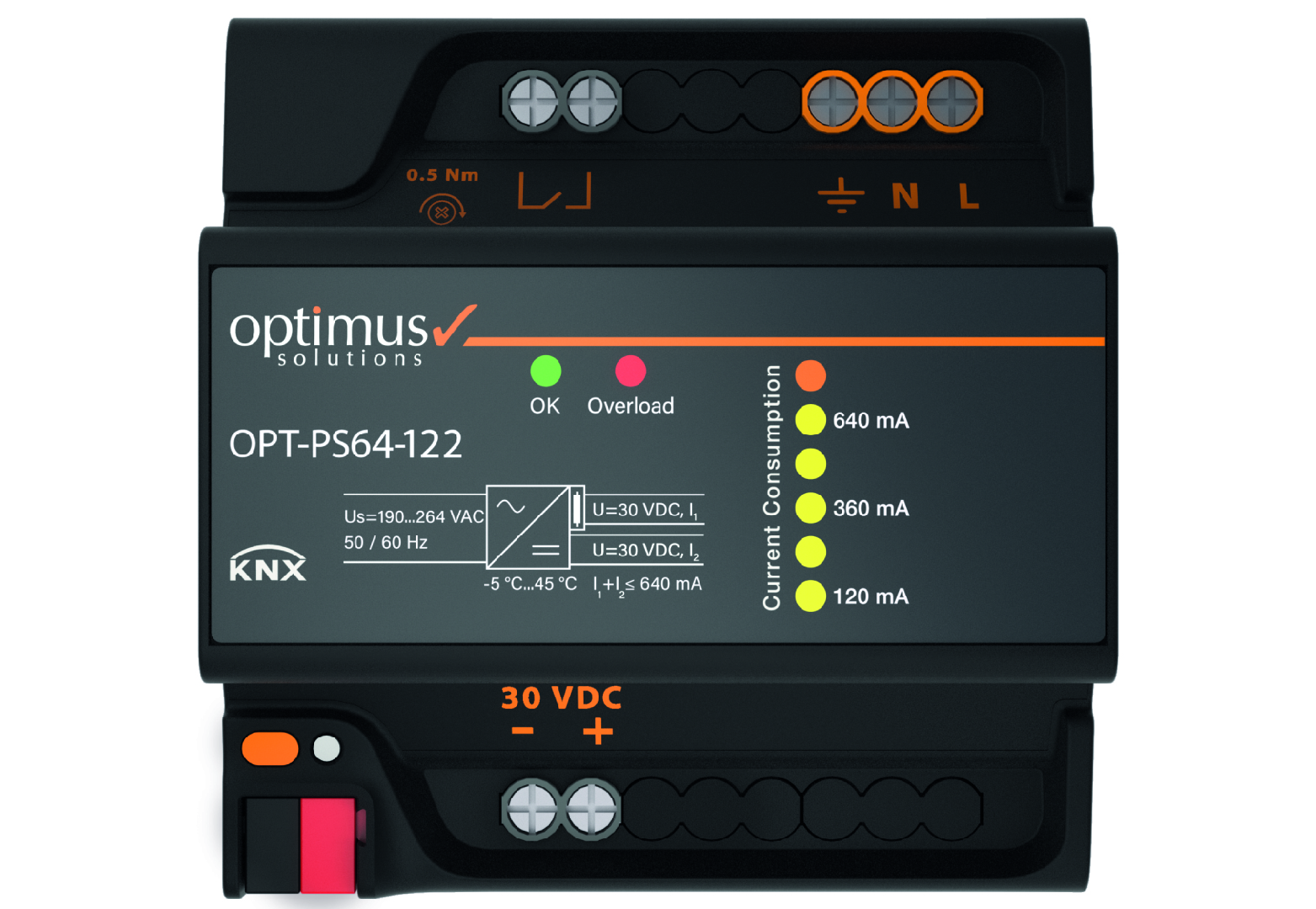

KNX power supplies are essential components for KNX infrastructures. They provide constant voltage for powering of other components in the system and their communication with each other. OPT-PS64-122 power supply is a KNX power supply that can output a nominal current of 30 VDC
(SELV), 640 mA, and has two separate outputs.

The primary output is the one that is used to supply the KNX line and has an integrated choke circuit;
the other is the auxiliary output which can be used to supply another line. With its indicator, the
operating status, error status, and current draw information are monitored in real-time. An additional KNX line can be created via the additional output.

• 320 mA
• 640 mA

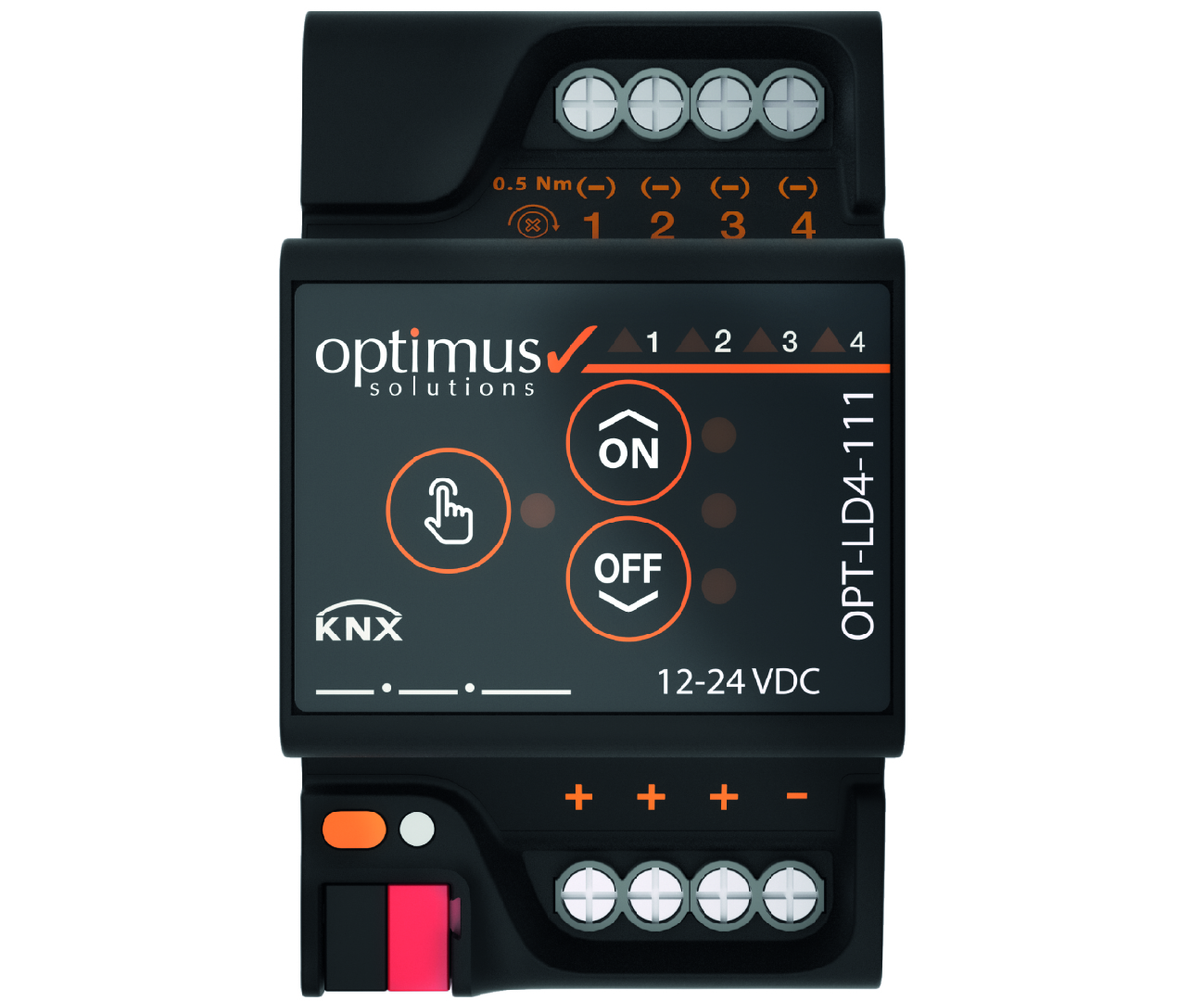

Future-Proofing Spaces, Energizing Lives: Optimus Solutions Led Dimmer

A LED driver that can adjust the level of LED lighting with constant voltage. The supply voltage is determined according to the requirements of the load, between 12-24 VDC. LED lighting requiring the same voltage should be installed in each channel.

The maximum current that can be drawn per channel is 3 Amperes. Channels can be combined
programmatically and physically to increase the total current to 6 A or 12 A. The device can also be used for LED drivers operating with PWM signals.

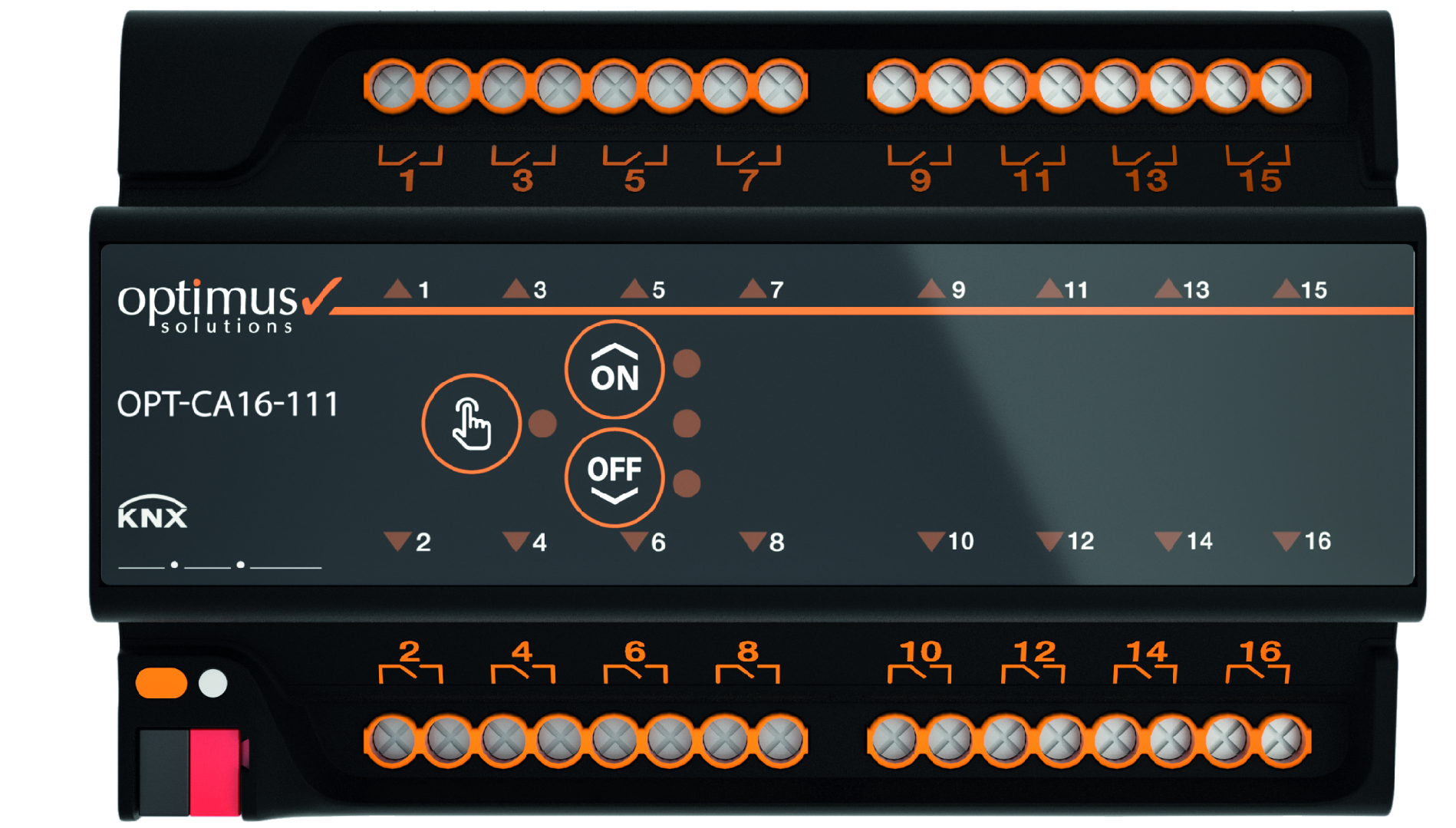

A compact, hight capacity, multi functional design : Optimus Combined Actuator Series

The combined actuator, which was designed considering both the needs of the user and the system integrator, offers various usage purposes with the Optimus Stack infrastructure.

The Optimus Combined Actuator Family, capable of performing Lighting, Switch/Valve, Curtain/Blinds, 3-Point Motor, and Fan Coil control operations through a single device, consists of models with 4, 8, 12, 16, 20 and 24 contact outputs.

A Multi Sensor with A Wide Range Area: The Optimus Multi Sensor

Compatible with Optimus KNX Stack, the multi-sensor is a presence and motion detector designed
for indoor spaces. It is used to turn on/off lighting systems and/or heating-cooling (HVAC) systems
depending on movement and/or presence and to adjust the lighting level.
It also offers constant light level control in lighting systems.

It transmits measurement information to the KNX line via temperature and humidity sensors located
on it. It is powered via the KNX line without the need for external power. It is suitable for both flush-mounted and surface-mounted (with surface-mounted installation box) installations.

• Wide Area: 20 m Diameter
• High Ceiling: 30 m Diameter
• Hallway: 30 m x 6m Rectangle
• Standart Ceiling: 10 m Diameter

KNX power supplies are essential components for KNX infrastructures. They provide constant voltage for powering of other components in the system and their communication with each other. OPT-PS64-122 power supply is a KNX power supply that can output a nominal current of 30 VDC
(SELV), 640 mA, and has two separate outputs.

The primary output is the one that is used to supply the KNX line and has an integrated choke circuit;
the other is the auxiliary output which can be used to supply another line. With its indicator, the
operating status, error status, and current draw information are monitored in real-time. An additional KNX line can be created via the additional output.

• 320 mA
• 640 mA

Future-Proofing Spaces, Energizing Lives: Optimus Solutions Led Dimmer

A LED driver that can adjust the level of LED lighting with constant voltage. The supply voltage is determined according to the requirements of the load, between 12-24 VDC. LED lighting requiring the same voltage should be installed in each channel.

The maximum current that can be drawn per channel is 3 Amperes. Channels can be combined
programmatically and physically to increase the total current to 6 A or 12 A. The device can also be used for LED drivers operating with PWM signals.
