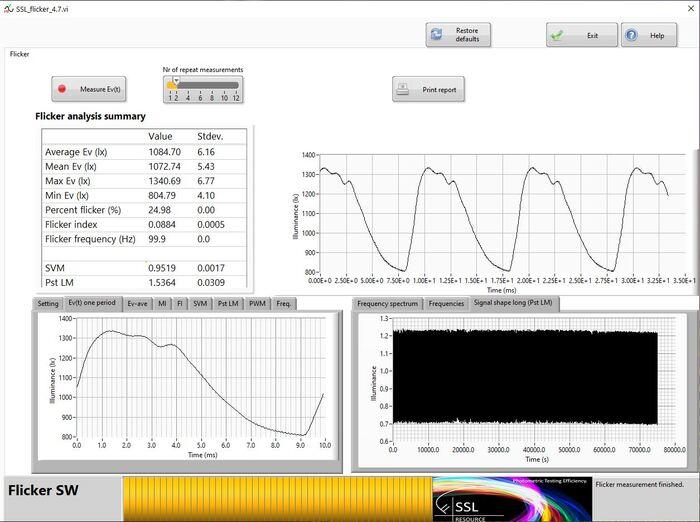

SSL FAS 21 Flicker Analyzing System

SSL BTC 2000 combines screen imaging with a goniophotometer for a fast wide angle beam pattern measurement of light sources.

Measurements according to various standards can be made significantly faster than with a goniophotometer. The typical measurement times are 5 minutes for H ±50°,V ±15° or 29 minutes for H ±90°, V±90°. BTC 2000 produces comparable results to turning goniophotometers with an accuracy of +/-4%. The dynamic measurement range is from 0.3 cd up to 70 000 000 cd.

Measurement parameters:

• Luminous intensity in Zone, Group, Line, Single test points
• Cutoff
• Color and stability
• Beam pattern
• Axial luminous intensity
• Maximum luminous intensity
• Beam distance
• Isolux curves on the road surface and vertical plane
• Isolux curves on the horizontal level at luminaire height
• Partial luminous flux and efficacy
• ANSI/NEMA FL 1-2009 test routines to measure
  • beam distance
  • maximum beam intensity
  • runtime of photometric performance of flash lights.

Options:

• Input power measurement
• Spatial color parameters
• Far-field photometer add-on

SSL BTC 20 is a lighter camera based setup for measuring narrow beam light sources.

SSL DECO 27 (previously named by SSL C-2R.270) is a floor mount goniometer of type 2.1 (EN13032-1:2004 clause 6.1.1.2) with the turning detector (γ axis) and luminaire (C axis) features. SSL DECO 27 moving detector goniophotometer completely meets the requirements of unchanged burning positions stated in IES LM79-08 Clause 9.3.1.

SSL FiLMI 2.3 creates a luminance map over an area by one mouse click. This data can be used to determine the level and variation of luminance in the measurement area. These values are needed e.g. when lighting of roads are evaluated.

• SSL-FiLMI-sw measurement parameters
• L_av (average luminance)
• U_o overall uniformity
• U_ow (overall uniformity wet
• U_l (longitudinal uniformity)
• required illumination at the entrance of a tunnel (L20 and perceived contrast)

Determination of these are required in road lighting standards like CIE 088 and EN 13201.

An automatic report is saved or printed after the measurement. The report includes identification data for the measured object, the measured parameter values and pass/fail criteria if such exist.

Turn-key Testing System for Quality Control in Production Lines of Luminaires

LightTester 100, LightTester 160 and LightTester 280 (maximum size of luminaire 100cm, 160cm or 280cm, respectively) are test stations for quality control of luminaires during production. The verification of most important photometric values (such as lumens, CCT etc.) and electrical safety has been integrated into one single test unit. The testing sequence time is even < 10 seconds, so the LightTesters are suitable for 100% testing scheme. The LightTester 100/160/280 is delivered as a ready-made package, including everything you need, such as a test station table, test computer with software and measuring equipment, sticker printer, dimmer...

In the test software, the measured values ​​are stored in a database. In the test software it is possible to give fail-pass criteria for each luminaire type and for each measurement parameter.

The LightTester 100/160/280 can be configured to be integrated as a part of the production assembly line or they can be stand-alone testing setup

SSL BTC 2000 combines screen imaging with a goniophotometer for a fast wide angle beam pattern measurement of light sources.

Measurements according to various standards can be made significantly faster than with a goniophotometer. The typical measurement times are 5 minutes for H ±50°,V ±15° or 29 minutes for H ±90°, V±90°. BTC 2000 produces comparable results to turning goniophotometers with an accuracy of +/-4%. The dynamic measurement range is from 0.3 cd up to 70 000 000 cd.

Measurement parameters:

• Luminous intensity in Zone, Group, Line, Single test points
• Cutoff
• Color and stability
• Beam pattern
• Axial luminous intensity
• Maximum luminous intensity
• Beam distance
• Isolux curves on the road surface and vertical plane
• Isolux curves on the horizontal level at luminaire height
• Partial luminous flux and efficacy
• ANSI/NEMA FL 1-2009 test routines to measure
  • beam distance
  • maximum beam intensity
  • runtime of photometric performance of flash lights.

Options:

• Input power measurement
• Spatial color parameters
• Far-field photometer add-on

SSL BTC 20 is a lighter camera based setup for measuring narrow beam light sources.

SSL DECO 27 (previously named by SSL C-2R.270) is a floor mount goniometer of type 2.1 (EN13032-1:2004 clause 6.1.1.2) with the turning detector (γ axis) and luminaire (C axis) features. SSL DECO 27 moving detector goniophotometer completely meets the requirements of unchanged burning positions stated in IES LM79-08 Clause 9.3.1.

SSL FiLMI 2.3 creates a luminance map over an area by one mouse click. This data can be used to determine the level and variation of luminance in the measurement area. These values are needed e.g. when lighting of roads are evaluated.

• SSL-FiLMI-sw measurement parameters
• L_av (average luminance)
• U_o overall uniformity
• U_ow (overall uniformity wet
• U_l (longitudinal uniformity)
• required illumination at the entrance of a tunnel (L20 and perceived contrast)

Determination of these are required in road lighting standards like CIE 088 and EN 13201.

An automatic report is saved or printed after the measurement. The report includes identification data for the measured object, the measured parameter values and pass/fail criteria if such exist.
